Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

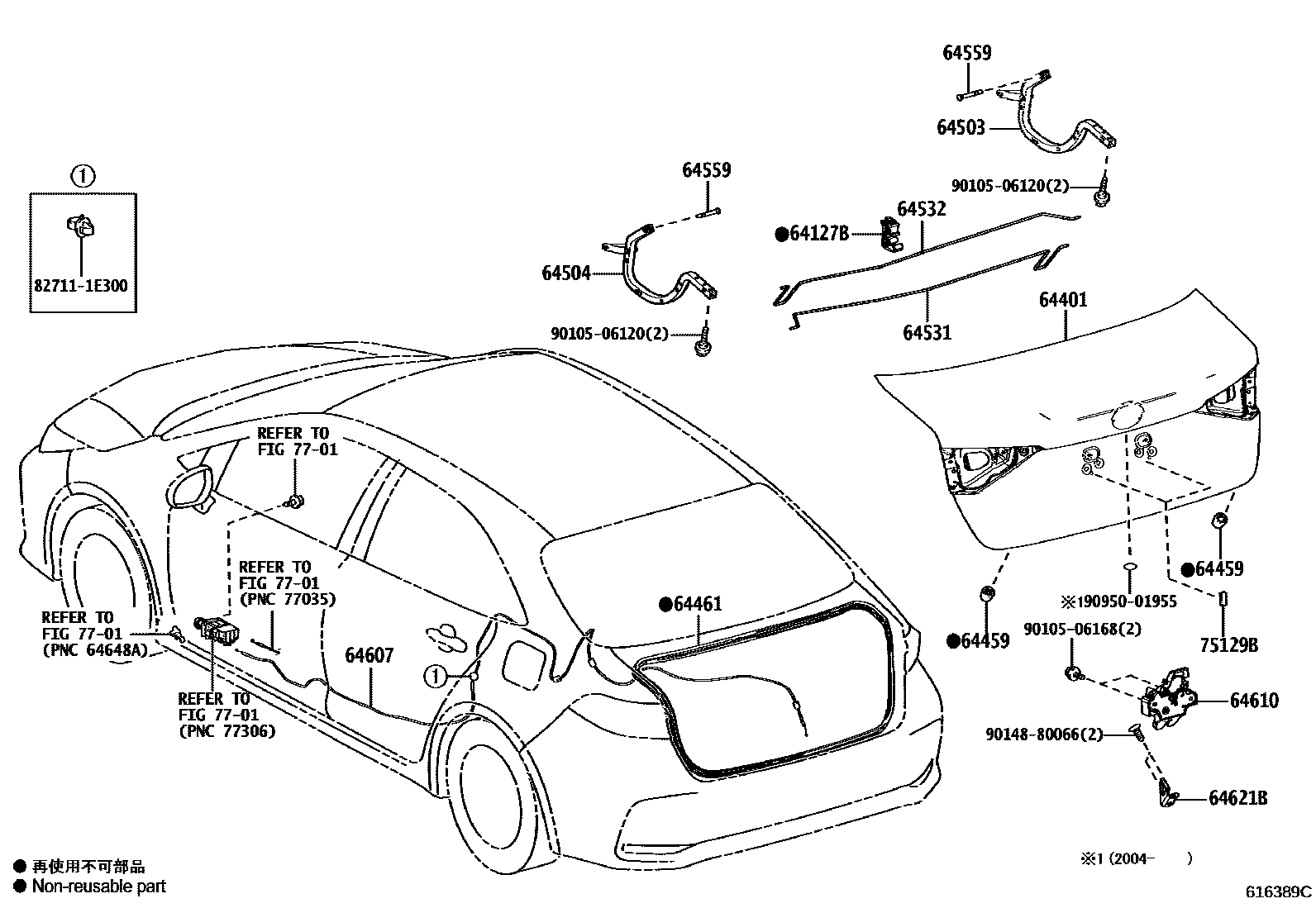

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02G10 · 64401-02J70 · 64401-02J80 · 64401-02K30 · 64401-02K40 · 64401-02K50 · 64401-02K60 · 64401-02K90 · 64401-02K91 · 64401-02L00 · 64401-02L10 · 64401-02L70 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02340 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02260 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02260 |
| 64531 | Trunk door right hinge torsion bar | 64531-02510 · 64531-02640 |
| 64532 | Trunk door left hinge torsion bar | 64532-02510 · 64532-02640 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02550 |
| 64610 | Trunk door lock assembly | 64600-02080 |
| 64621B | Trunk door latch | 64621-06080 |
| 75129B | rear license plate cushion | 75129-0D110 |
