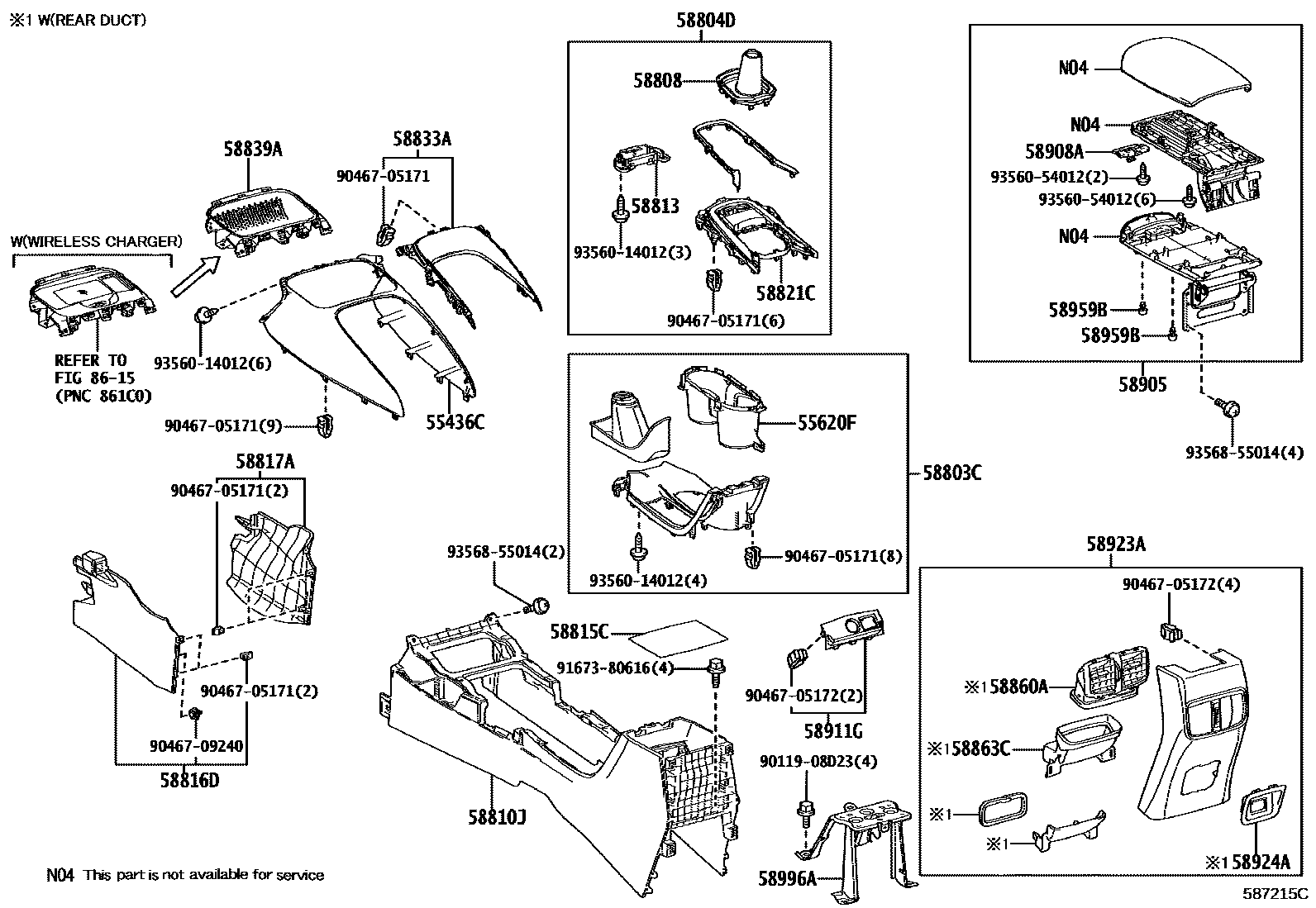

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620F | Armrest box cup holder assembly | 55620-02330 |
| 58813 | Upper armrest box | 58813-12180 |
| 58815C | Armrest box felt pad | 58815-02470 |
| 58821C | Armrest box upper panel | 58821-12370 |
| 58860A | Armrest box air regulator assembly | 58860-0A010 |
| 58863C | Armrest box No. 3 air duct | 58863-0A010 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02260 |
