Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

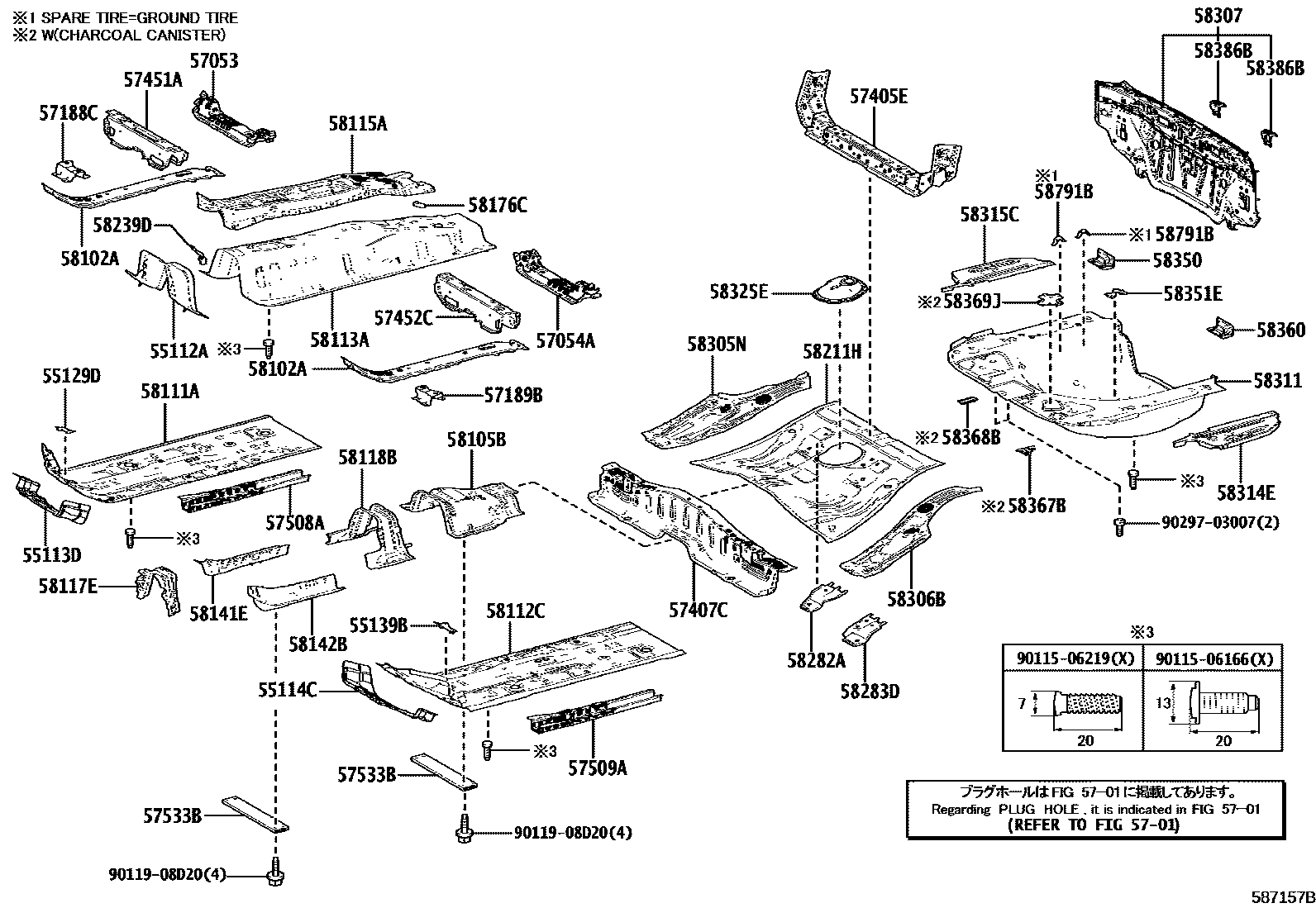

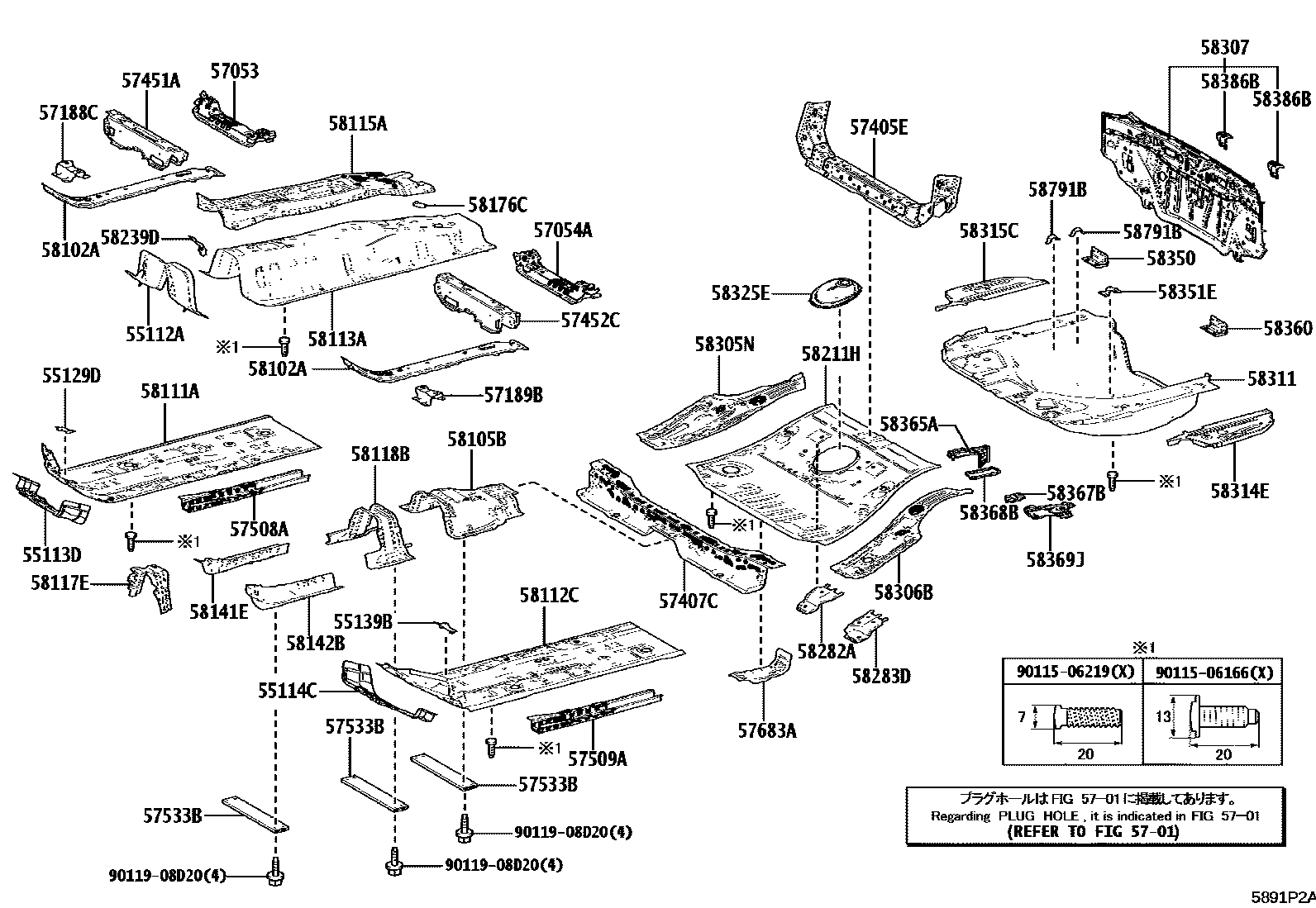

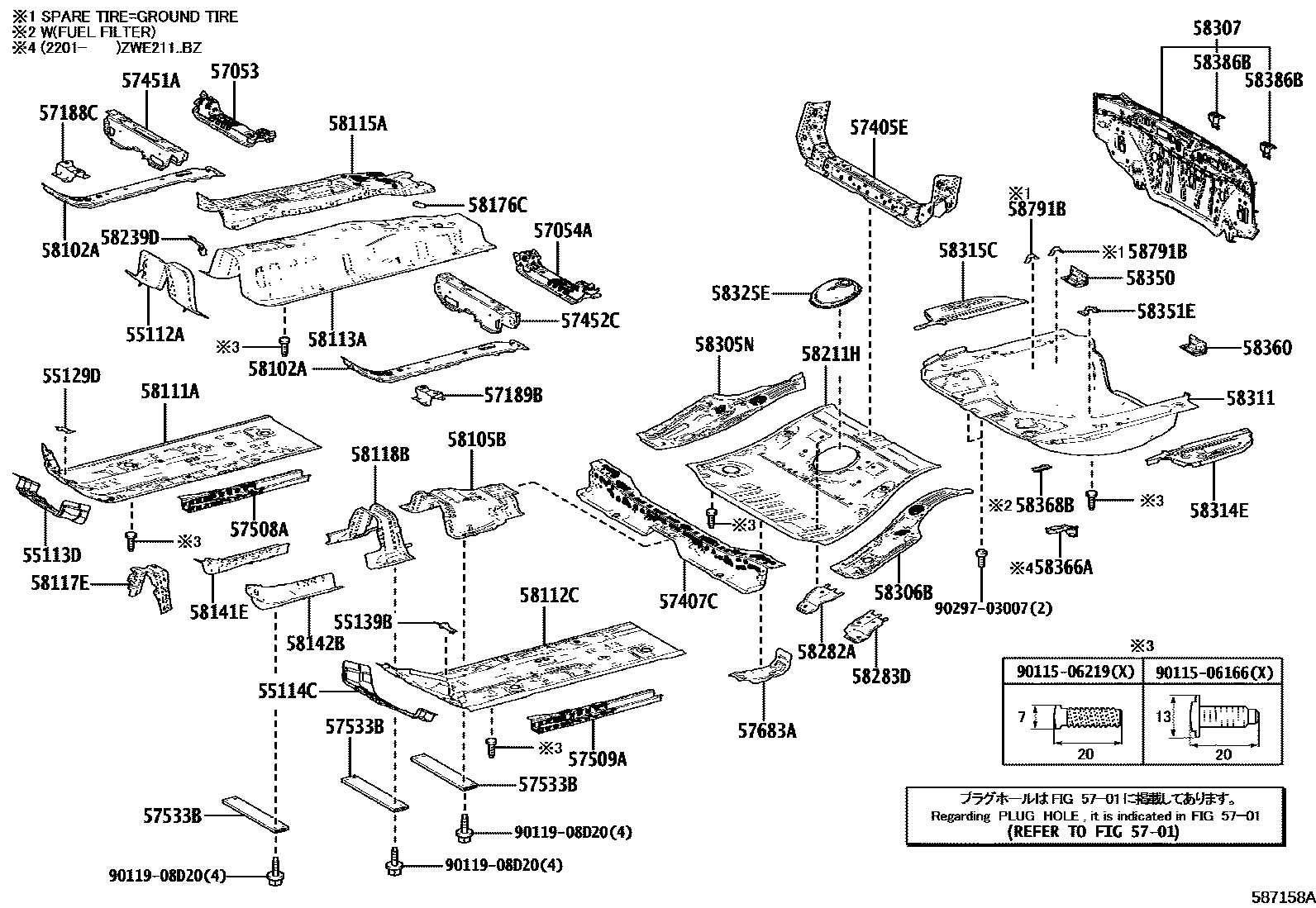

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55112A | No. 2 front panel | 55112-02060 |
| 55113D | lower right cowl | 55113-02070 |
| 55114C | Lower left cowl | 55114-02110 |
| 55129D | Right front panel hole cover | 55129-02130 |
| 55139B | Left front panel hole cover | 55139-02120 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02150 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02140 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-02110 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-02090 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-02070 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02290 · 57407-02300 · 57407-02301 |
| 57451A | Front floor right cross member | 57451-02280 |
| 57452C | Front floor left cross member | 57452-02220 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-02100 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-02100 |
| 57533B | Front floor center bracket | 57533-02120 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-02240 |
| 58102A | Front floor reinforcement sub-assembly | 58102-02270 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-02090 |
| 58111A | Front floor right bottom panel | 58111-02430 |
| 58112C | Front floor left bottom panel | 58112-02180 |
| 58113A | front floor center panel | 58113-02220 |
| 58115A | front floor reinforcement | 58015-02300 |
| 58117E | Front floor sub-cover | 58117-02090 · 58117-47040 |
| 58118B | Front floor reinforcement No. 2 | 58118-02130 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-02120 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-02130 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02110 |
| 58211H | central floor base | 58211-02590 · 58211-02591 · 58211-02600 |
| 58239D | Cable clip bracket | 58239-02080 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-02280 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-02230 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-02170 · 58305-02180 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-02180 · 58306-02181 · 58306-02190 |
| 58307 | Body lower back panel sub-assembly | 58307-02550 · 58307-02551 |
| 58311 | rear floor pan | 58311-02430 · 58311-02431 |
| 58314E | Rear floor left side panel extension | 58316-02110 |
| 58315C | Rear floor right side panel extension | 58315-02150 |
| 58325E | Rear floor access hole cover | 58325-02290 · 58325-47051 |
| 58350 | Rear floor right reinforcement assembly | 58350-02060 |
| 58351E | Spare tire clip bracket | 58351-02100 · 58351-12070 |
| 58360 | Rear floor left reinforcement assembly | 58350-02060 |
| 58365A | Fuel tank right side bracket | 58365-02030 |
| 58366A | Fuel tank left bracket | 58366-02050 |
| 58367B | Fuel pipe bracket | 58367-02040 |
| 58368B | No. 2 fuel pipe bracket | 58368-02050 |
| 58369J | rear floor bracket | 58369-02070 · 58369-02080 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0D190 |
| 58791B | jack bracket | 58791-02160 |
