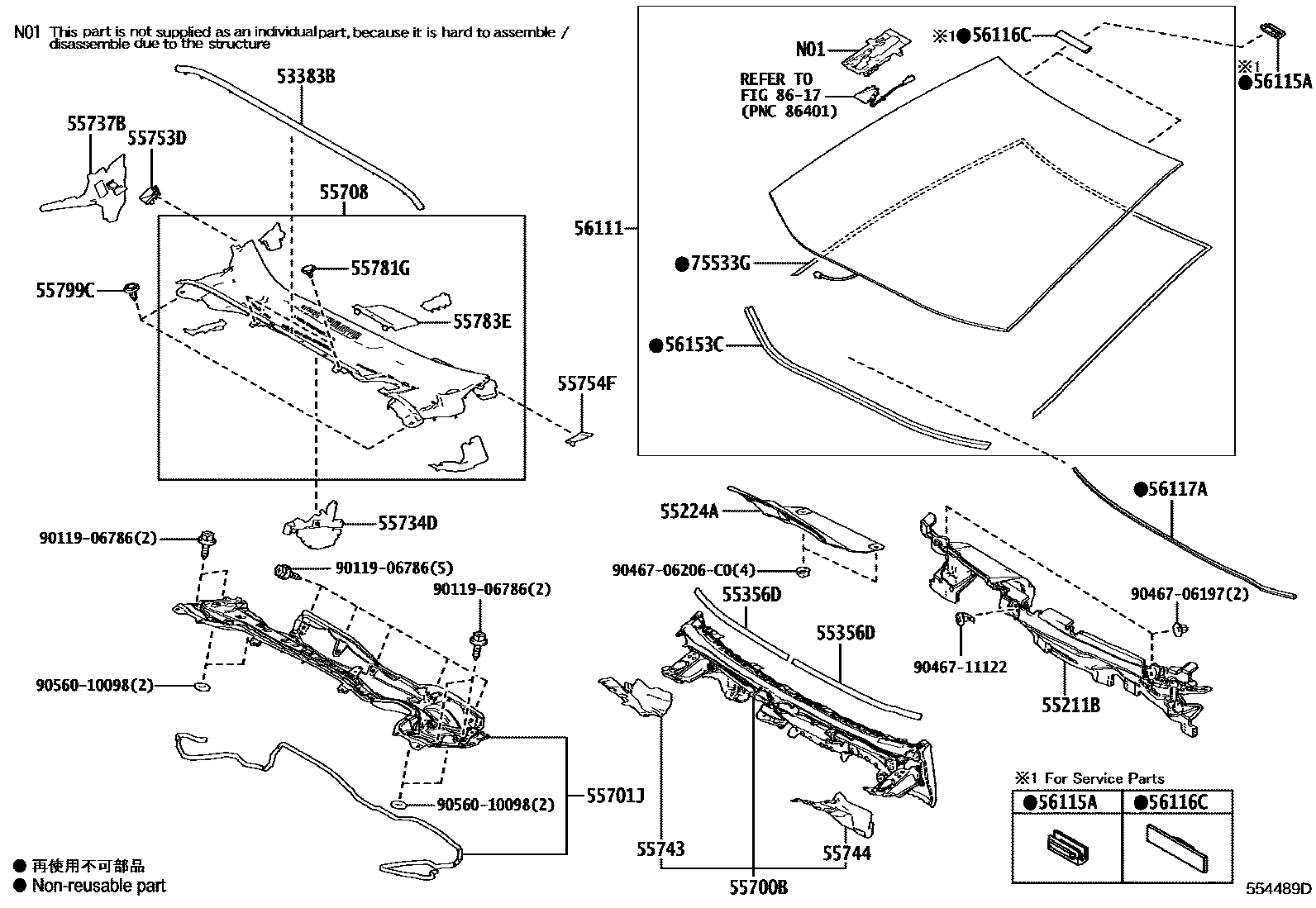

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02310 |
| 55211B | Front panel silencer | 55211-02350 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02290 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02590 |
| 55700B | Front apron assembly | 55700-02730 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02670 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02A90 · 55708-02A91 |
| 55734D | Waterproof cover panel | 55734-02430 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02270 |
| 55743 | Right front upper outer corner panel | 55743-02240 |
| 55744 | Left front upper outer corner panel | 55744-02210 |
| 55753D | Right front water pumping device guard | 55753-02230 |
| 55754F | Left front water pumping device guard | 55754-02240 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-02370 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-02G60 · 56101-02G61 · 56101-02Y50 · 56101-02Y51 · 56101-02Y70 · 56101-02Y71 · 56101-02Y80 · 56101-02Z00 · 56101-02Z01 · 56101-02Z10 · 56101-02Z30 · 56101-02Z31 · 56101-02Z32 · 56101-02Z40 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-12010 · 56153-12030 |
| 75533G | Windshield outer protective strip | 75533-02310 |
