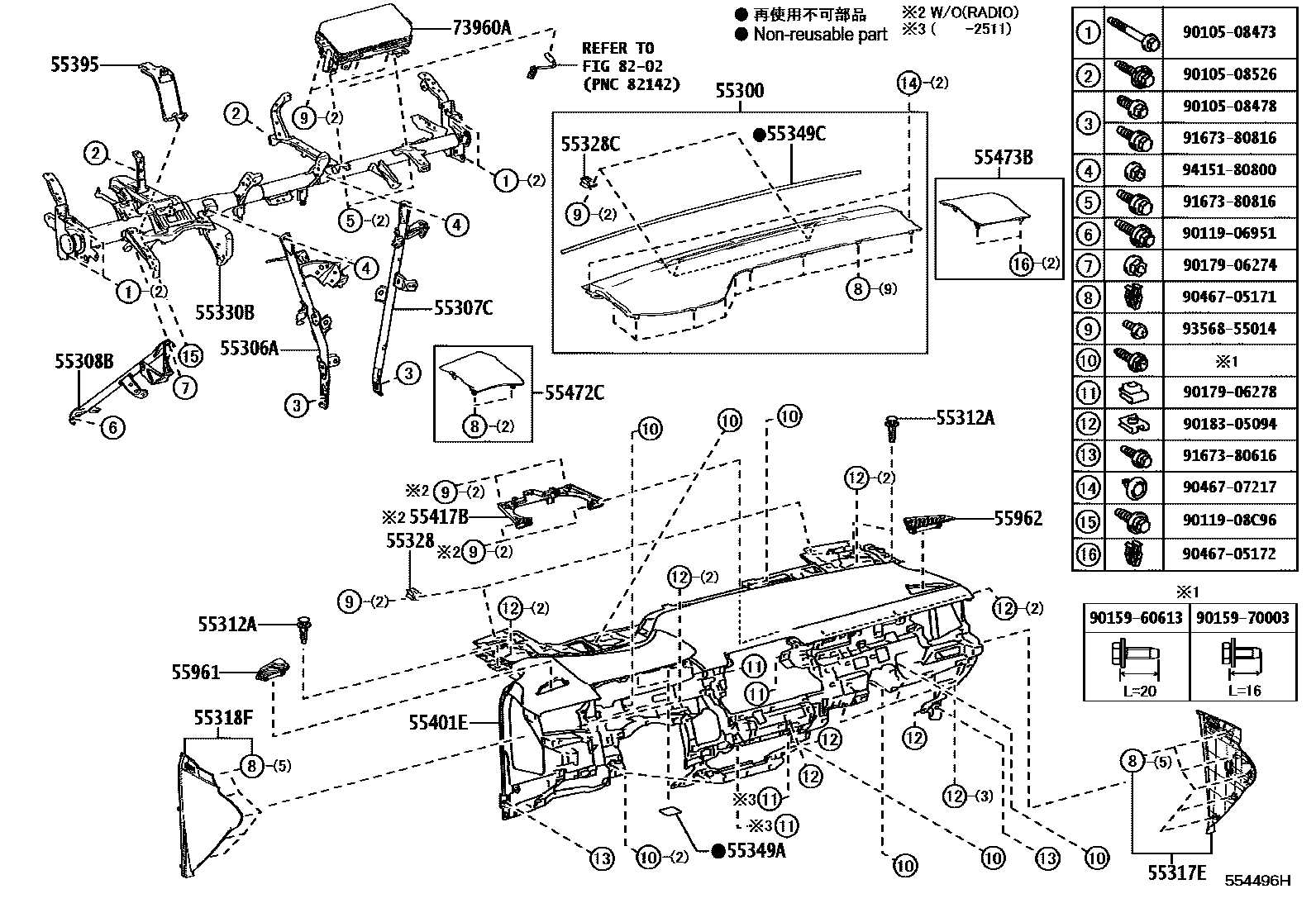

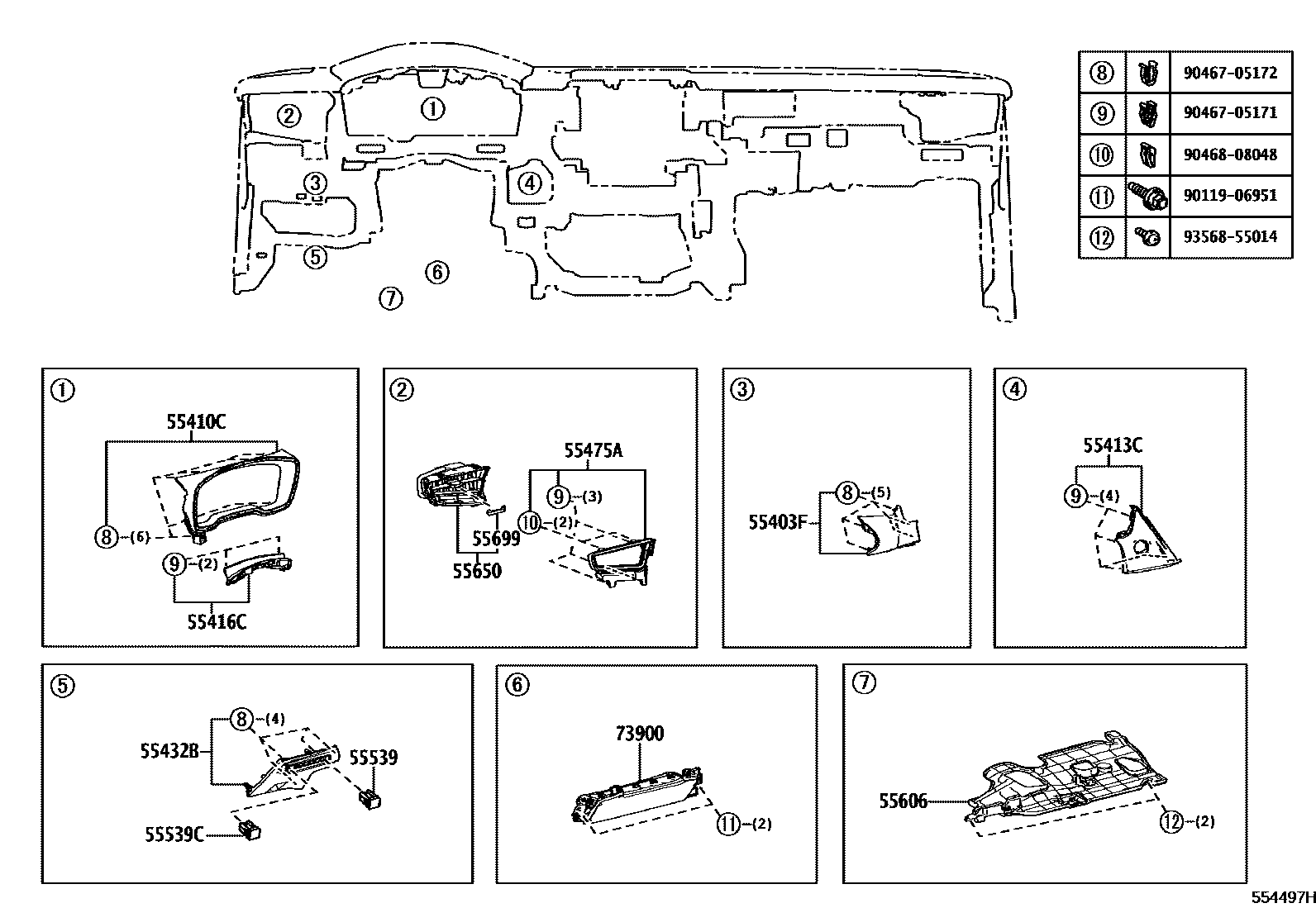

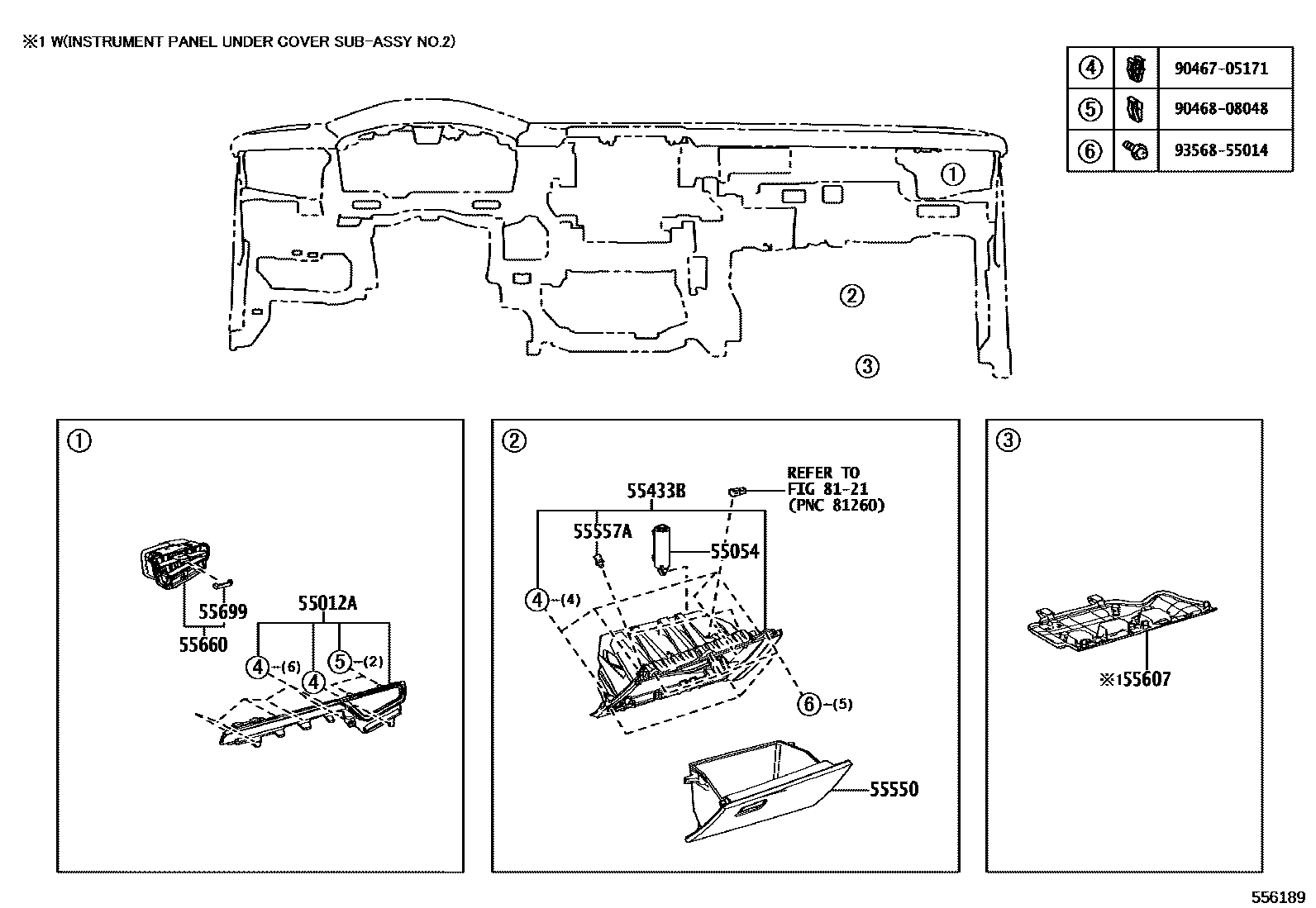

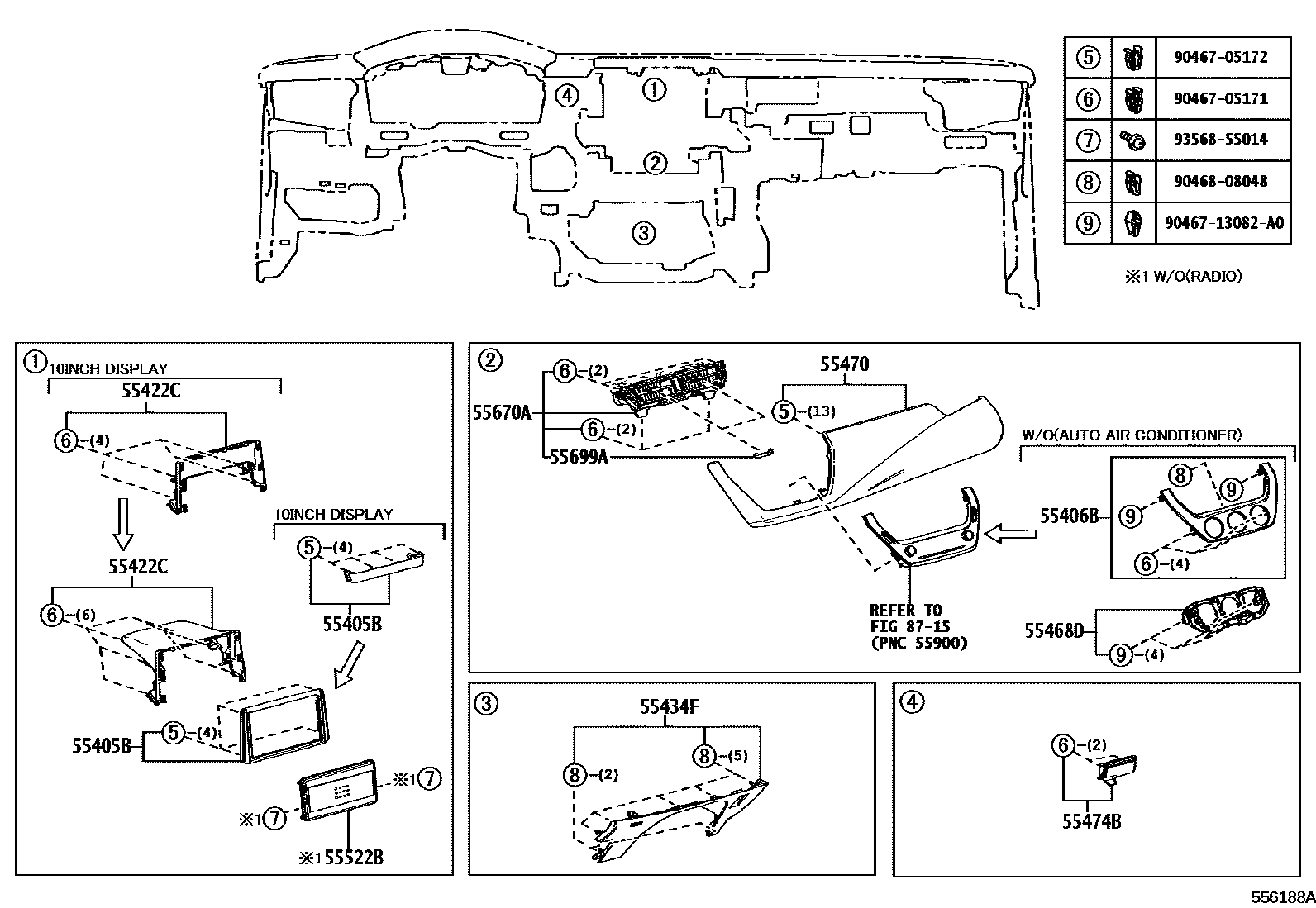

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02750 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02590 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-02250 |
| 55312A | Dashboard clip | 52161-0K040 · 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-12430 · 55328-60090 |
| 55328C | Instrument panel pin 2 | 55328-12420 · 55328-12440 |
| 55330B | Instrument panel reinforcement assembly | 55330-02B40 · 55330-02B50 |
| 55349A | Dashboard cushion | 55349-02120 |
| 55349C | Dashboard cushion | 55349-02310 |
| 55395 | Dashboard to pedal bracket | 55395-02120 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02G00 · 55405-02J50 · 55405-YY020 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02700 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02280 |
| 55417B | Radio tuner trim panel fixing | 55417-02090 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02780 · 55422-YY030 |
| 55468D | Dashboard safety mat central fixing | 55468-02450 |
| 55522B | Radio tuner opening cover | 55522-47041 · 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02370 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02380 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02A20 · 55650-02A21 · 55650-02A30 · 55650-02A31 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02590 · 55660-02591 · 55660-02600 · 55660-02601 |
| 55670A | Instrument panel central air register assembly | 55670-02A10 · 55670-02A11 · 55670-02A20 · 55670-02A21 |
| 55699 | Dashboard air register control button | 55699-02280 · 55699-02281 · 55699-02290 · 55699-02291 |
| 55699A | No. 2 air register control button on the instrument panel | 55699-02280 · 55699-02281 · 55699-02290 · 55699-02291 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02430 |
