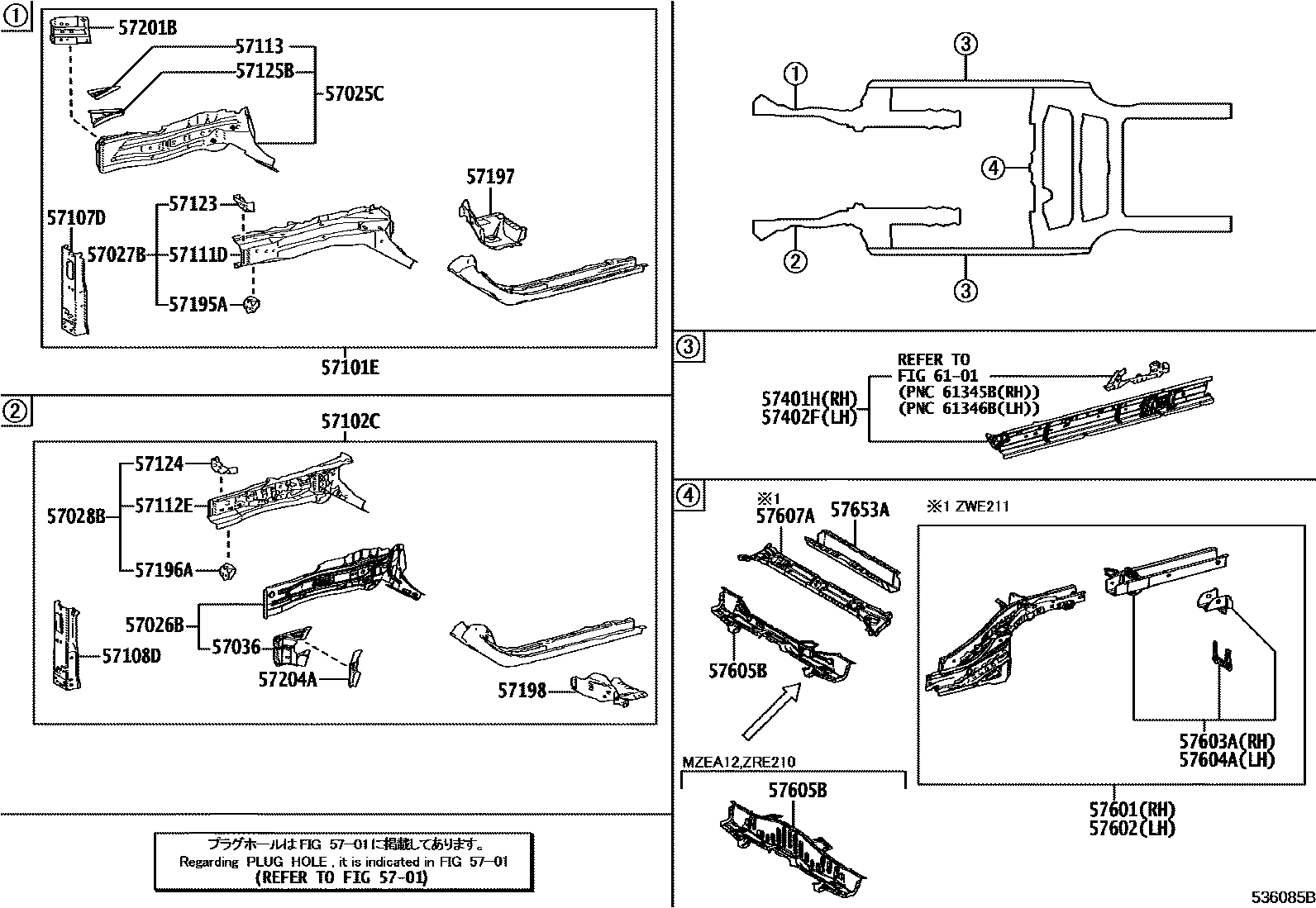

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-02100 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-02120 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02130 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-02140 |
| 57036 | Left front running board panel sub-assembly | 57036-02080 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57101-02600 · 57101-0A070 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57102-02810 · 57102-0A070 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-02140 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-02140 |
| 57111D | Inner right front longitudinal beam | 57111-02260 |
| 57112E | Inboard left front longitudinal beam | 57112-02220 |
| 57113 | Right front longitudinal beam extension | 57163-02130 |
| 57123 | Right front longitudinal beam bracket | 57123-02100 |
| 57124 | Left front longitudinal beam bracket | 57124-02100 |
| 57125B | Right front longitudinal beam reinforcement | 57165-02170 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-02100 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-02110 |
| 57197 | Right front torsion box section piece | 57197-02170 |
| 57198 | Left front anti-torsion box section piece | 57198-02170 |
| 57201B | Right front longitudinal beam extension sub-assembly | 57215-02060 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-02080 · 57204-47011 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-02410 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-02420 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02942 · 57601-02943 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02944 · 57602-02945 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-02260 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-02160 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02360 · 57605-02361 · 57605-02370 · 57605-02371 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-02050 · 57607-02051 |
| 57653A | No. 2 rear floor cross member | 57653-02220 |
