Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

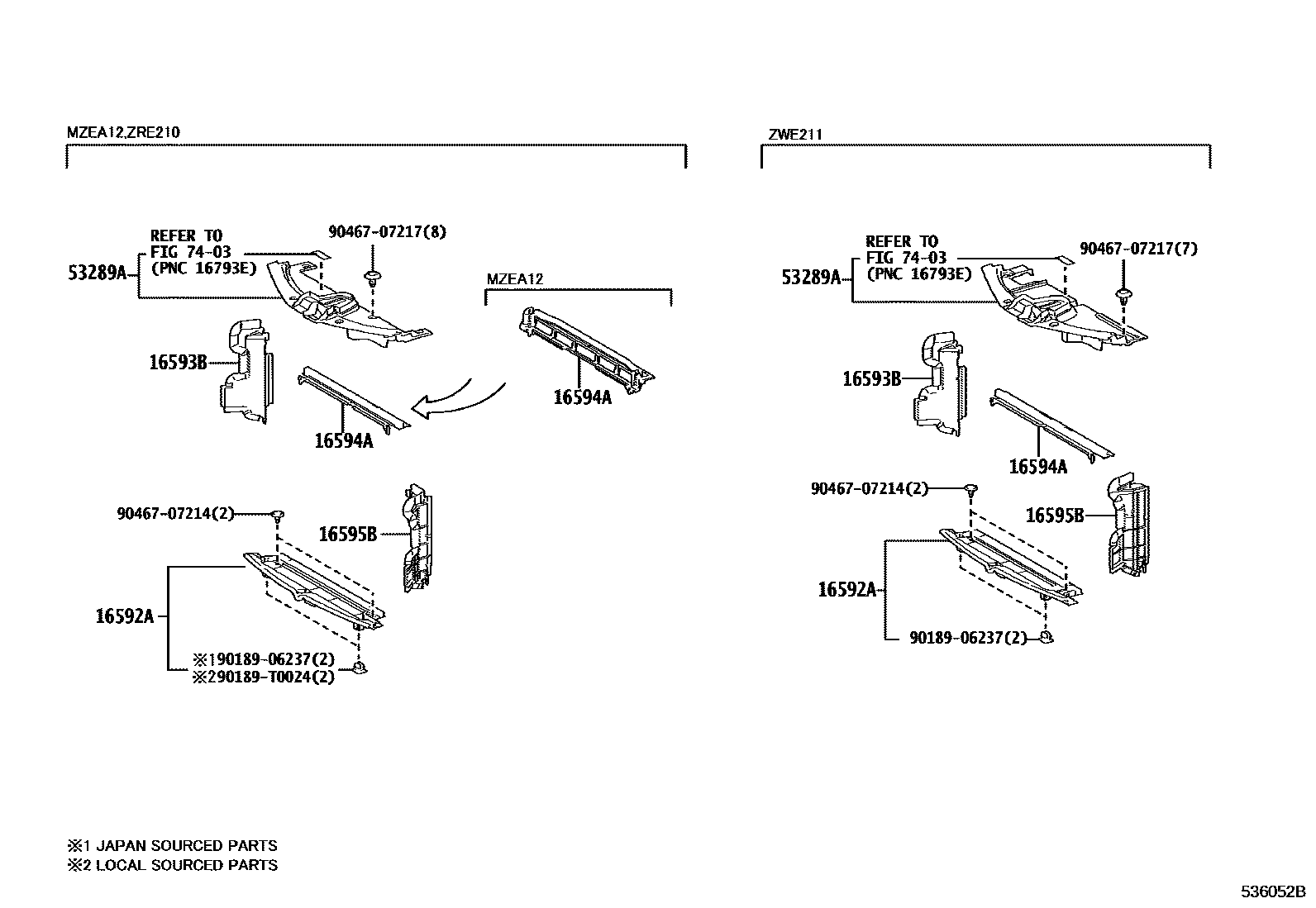

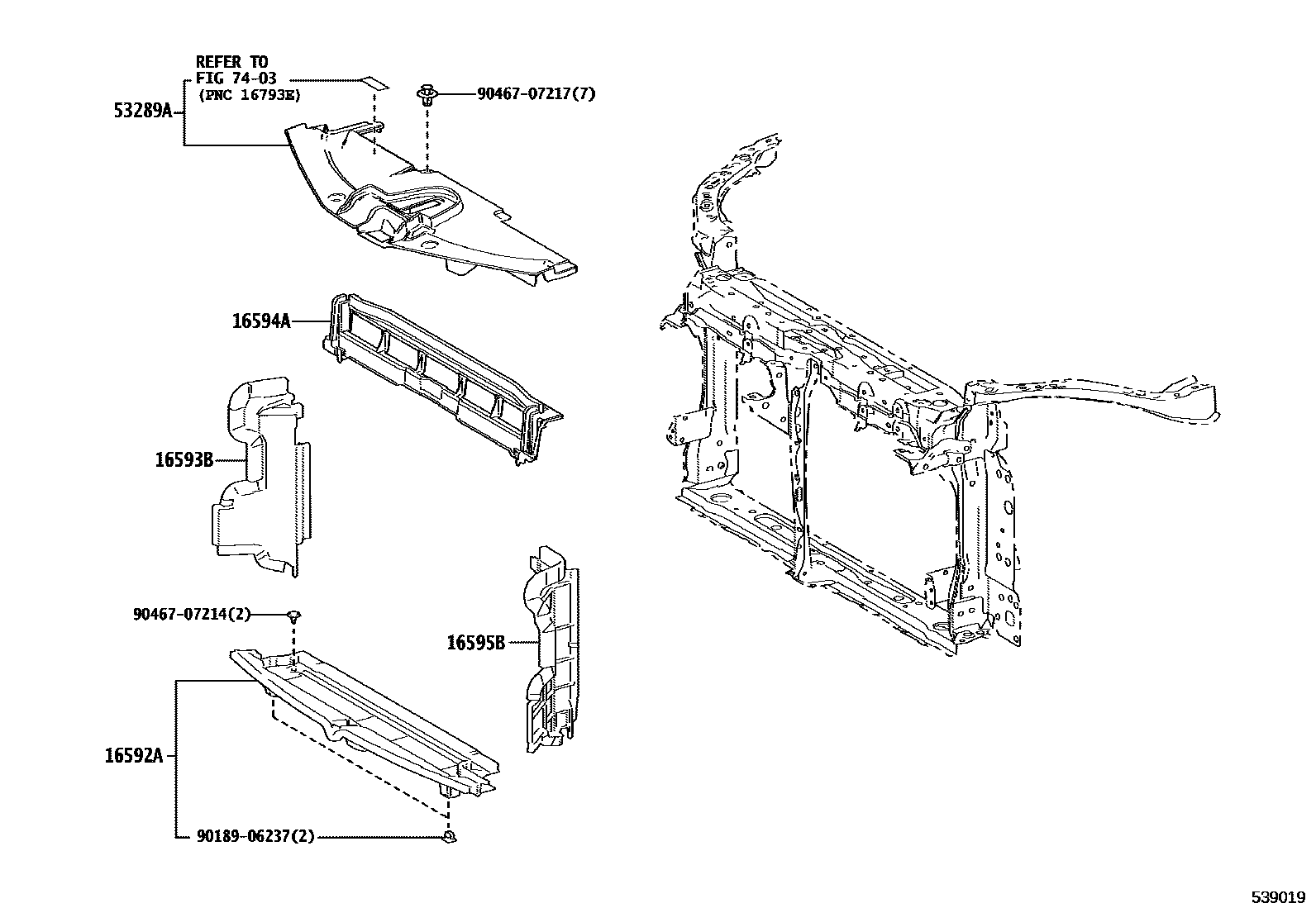

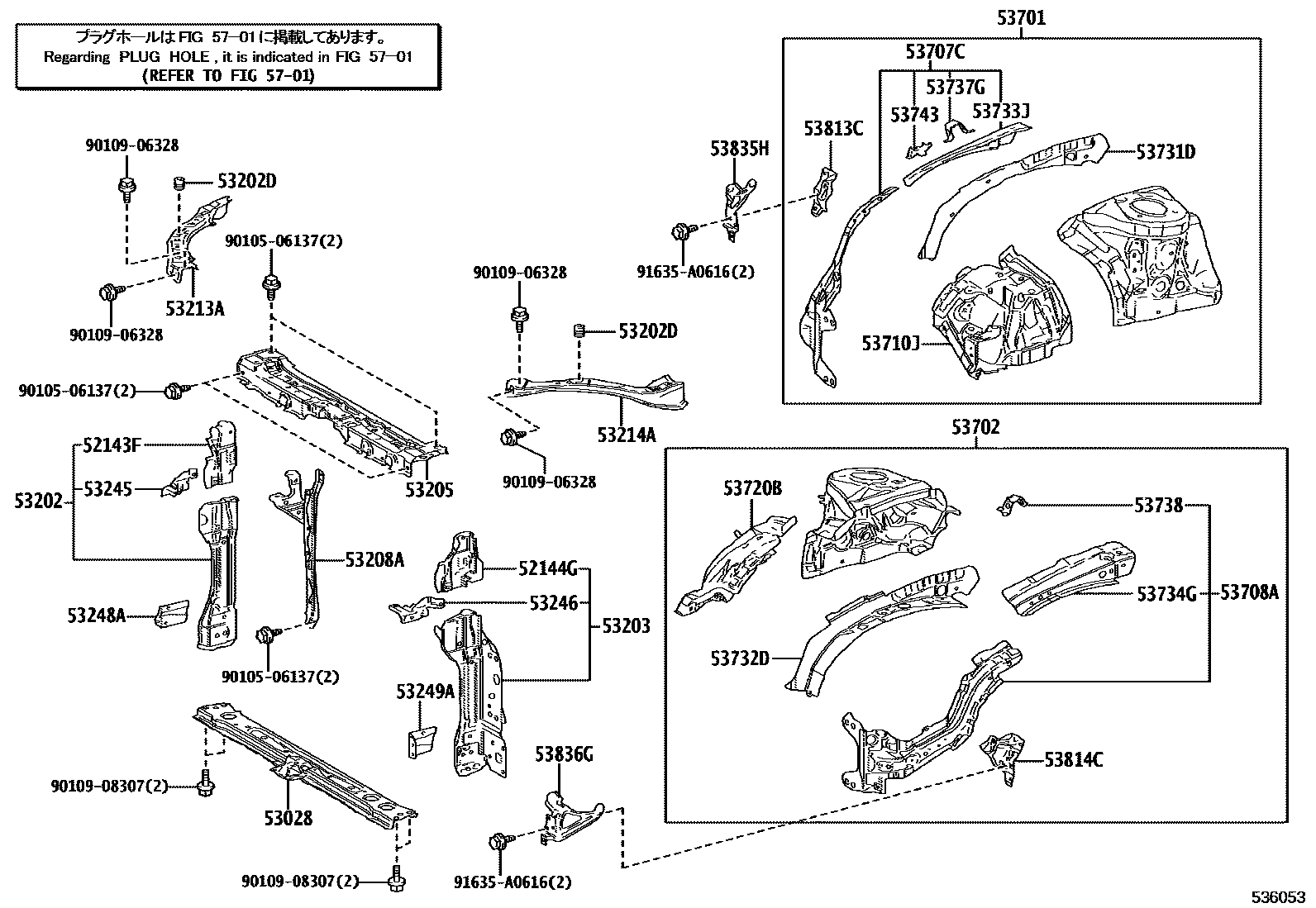

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-0T160 · 16592-F2040 |
| 16593B | No. 1 radiator right deflector | 16593-0T170 · 16593-F2090 |
| 16594A | Radiator deflector No. 2 | 16594-0T070 · 16594-0T080 · 16594-F2070 · 16594-F2180 |
| 16595B | No. 1 radiator left deflector | 16595-0T190 · 16595-0T210 · 16595-F2110 |
| 52143F | Front bumper right side bracket | 52143-02120 |
| 52144G | Front bumper left bracket | 52144-02110 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02130 · 53028-02140 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02913 |
| 53202D | Radiator bracket cushion | 90541-15037 |
| 53203 | Radiator left bracket sub-assembly | 53203-02907 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02390 · 53205-02400 · 53205-02510 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02320 |
| 53213A | Radiator upper right bracket | 53213-02260 |
| 53214A | Radiator upper left bracket | 53214-02260 |
| 53245 | Right headlight bracket | 53245-02100 · 53245-12150 |
| 53246 | Left headlight bracket | 53246-02100 · 53246-12090 |
| 53248A | Radiator shutter right bracket | 53248-47010 |
| 53249A | Radiator shutter left bracket | 53249-47010 |
| 53289A | Radiator bracket opening cover | 53289-02080 · 53289-02140 · 53289-02310 · 53289-02311 |
| 53701 | Right front fender fender sub-assembly | 53701-02460 |
| 53702 | Left front fender fender sub-assembly | 53702-02390 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-02100 |
| 53708A | Left front fender, fender front extension sub-assembly | 53708-02100 |
| 53710J | Right front fender fender assembly | 53710-02170 |
| 53720B | Left front fender fender assembly | 53720-02190 · 53720-02191 |
| 53731D | Right front fender to cowl side upper beam | 53731-02160 |
| 53732D | Left front fender to cowl side upper beam | 53732-02160 |
| 53733J | Right front fender to front wall side outer beam | 53733-02120 |
| 53734G | Left front fender to front wall side outer beam | 53734-02120 |
| 53737G | Right front fender to front wall side sill | 53737-02260 |
| 53738 | Left front fender to front wall side sill | 53738-02230 |
| 53743 | Front fender fender extension reinforcement | 53743-02090 |
| 53813C | Right front fender extension | 53813-02220 |
| 53814C | Left front fender extension | 53814-02230 |
| 53835H | Right front fender to extension stay | 53835-02100 |
| 53836G | Left front fender to extension stay | 53836-02100 |
| 55101 | Front apron sub-assembly | 55101-02904 · 55101-02905 |
| 55133A | Right reinforcement (front wall to floor) | 55133-02100 |
| 55137A | Right side bracket (front wall to frame) | 55137-02230 |
| 55138A | Left side bracket (front wall to frame) | 55138-02230 |
| 55210 | Front wall insulation pad assembly | 55210-02750 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-02480 |
| 55223C | clip | 90467-06197 |
| 55225C | Front wall insulation pad | 55225-02080 · 55225-02081 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-02050 |
| 55241 | Front panel No. 1 right side silencer | 55241-02110 |
| 55242 | Front panel No. 1 left side silencer | 55242-02100 |
| 55242B | Front panel side muffler clip | 90467-13079 |
