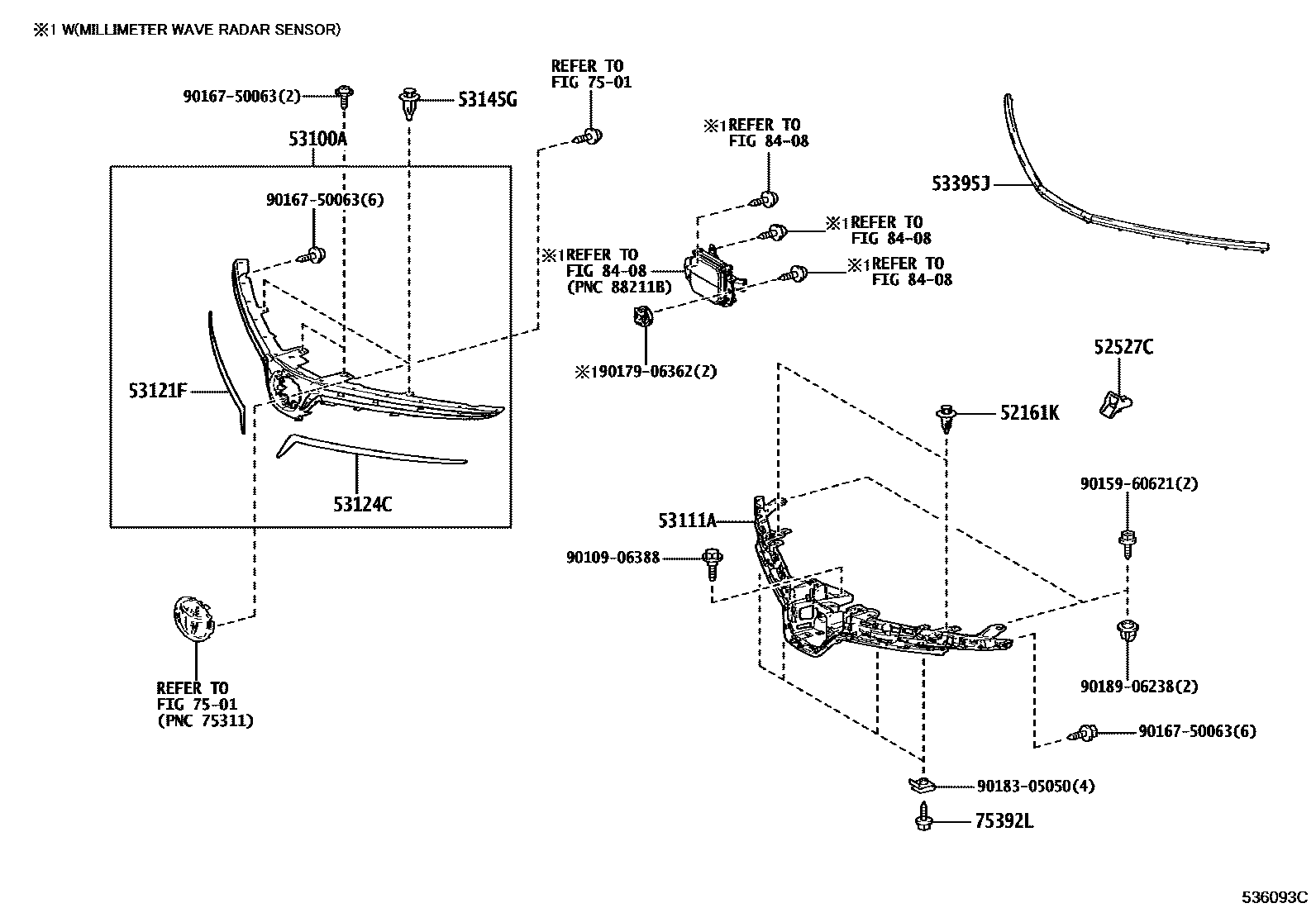

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-0K040 · 52161-16010 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02060 |
| 53100A | Radiator grille assembly | 53100-02820 · 53100-02G90 |
| 53111A | Radiator grille outside | 53111-02890 |
| 53121F | Radiator grille upper right protective strip | 53121-02490 · 53121-02570 |
| 53124C | Radiator grille upper left protective strip | 53124-02470 · 53124-02550 |
| 53395J | Engine cover to front end plate seal | 53395-02310 |
| 75392L | External protective strip fixings | 75392-42030 |
