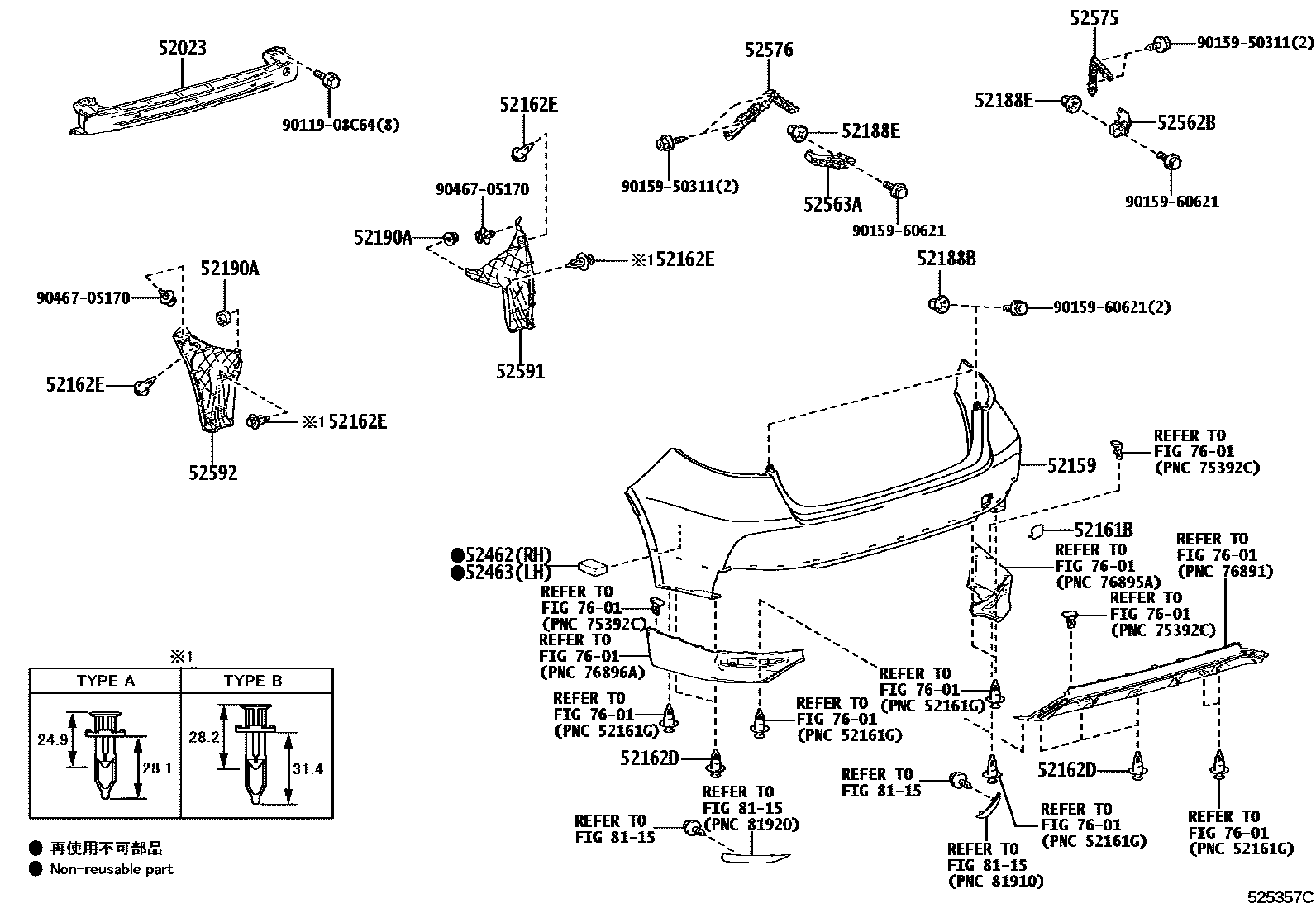

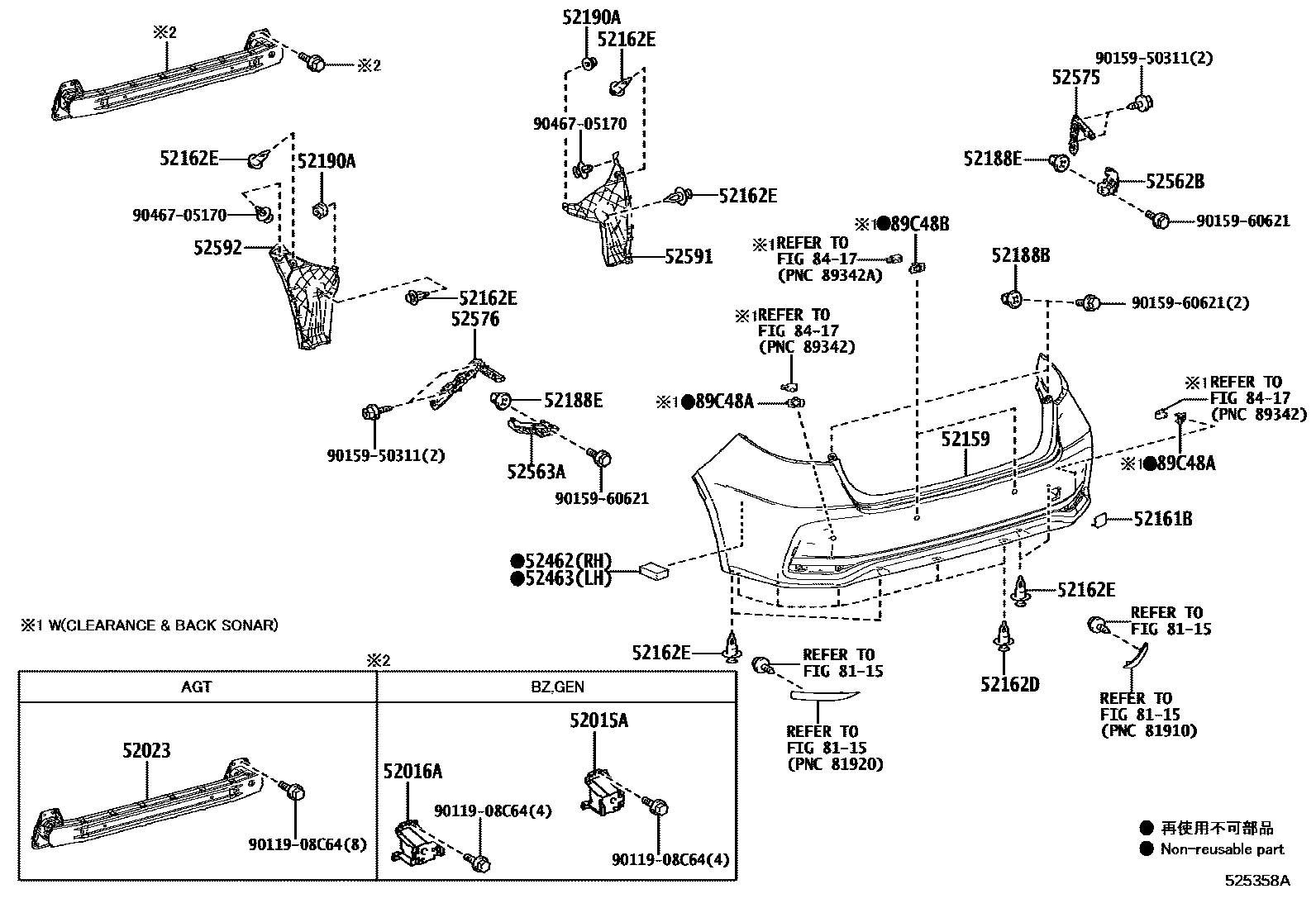

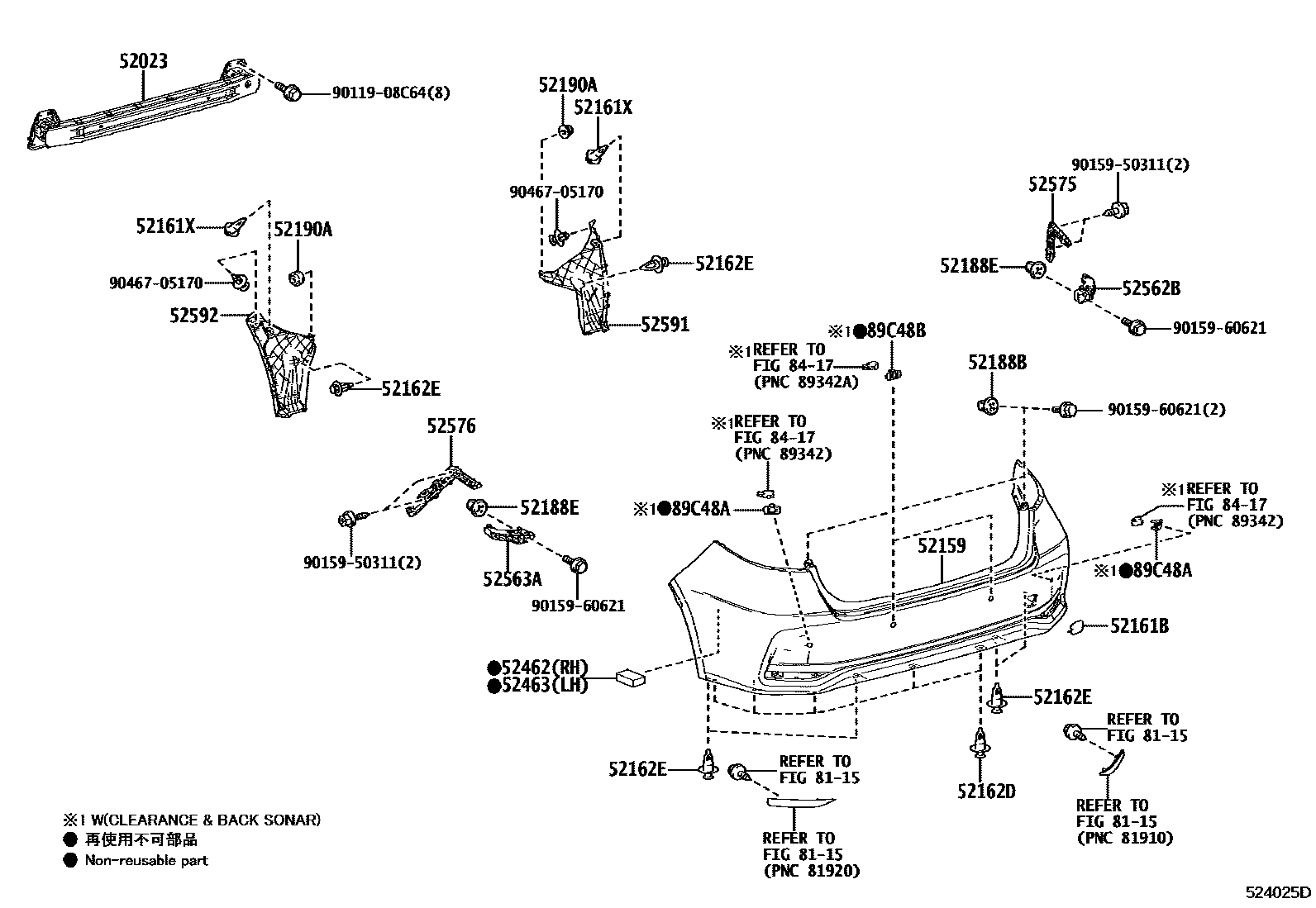

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02220 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02200 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02290 |
| 52159 | rear bumper cover | 52159-0Z967 · 52159-0Z968 · 52159-0Z972 · 52159-0Z983 |
| 52161B | Rear bumper insert | 52161-02902 |
| 52161X | Rear bumper insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-0K040 · 52161-16010 |
| 52162E | Rear bumper insert | 52161-0K040 · 52161-16010 · 52161-20010 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52188E | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52462 | Rear bumper right side lining | 52462-02330 |
| 52463 | Rear bumper left lining | 52462-02330 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02360 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02330 |
| 52575 | Rear bumper right side fixing bracket | 52575-02240 |
| 52576 | Rear bumper left side fixing bracket | 52576-02240 |
| 52591 | Rear bumper right seal | 52591-02440 |
| 52592 | Rear bumper left seal | 52592-02410 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-02190 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-02190 |
