Toyota COROLLA 前保险杠及附件 — Figure 5201

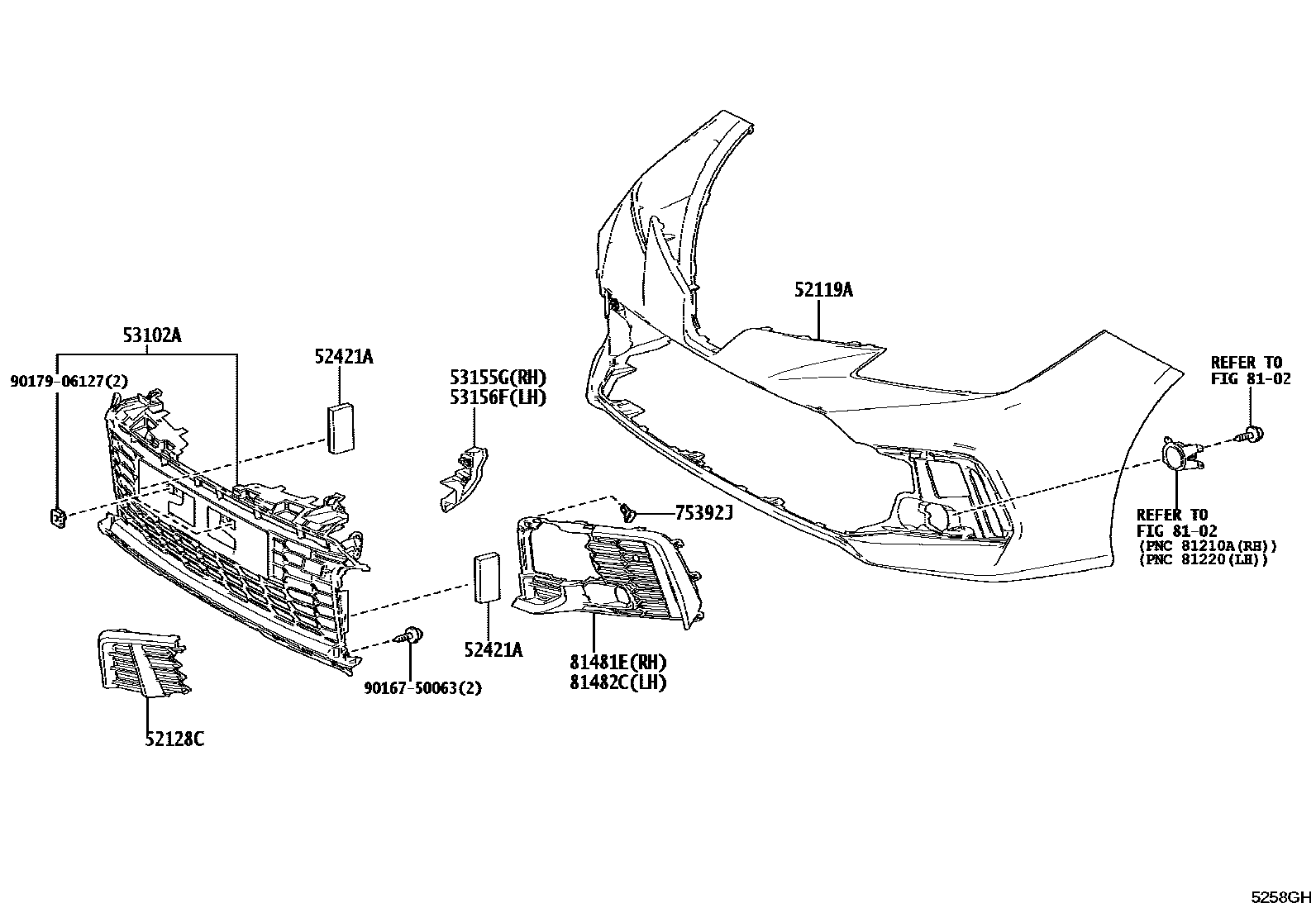

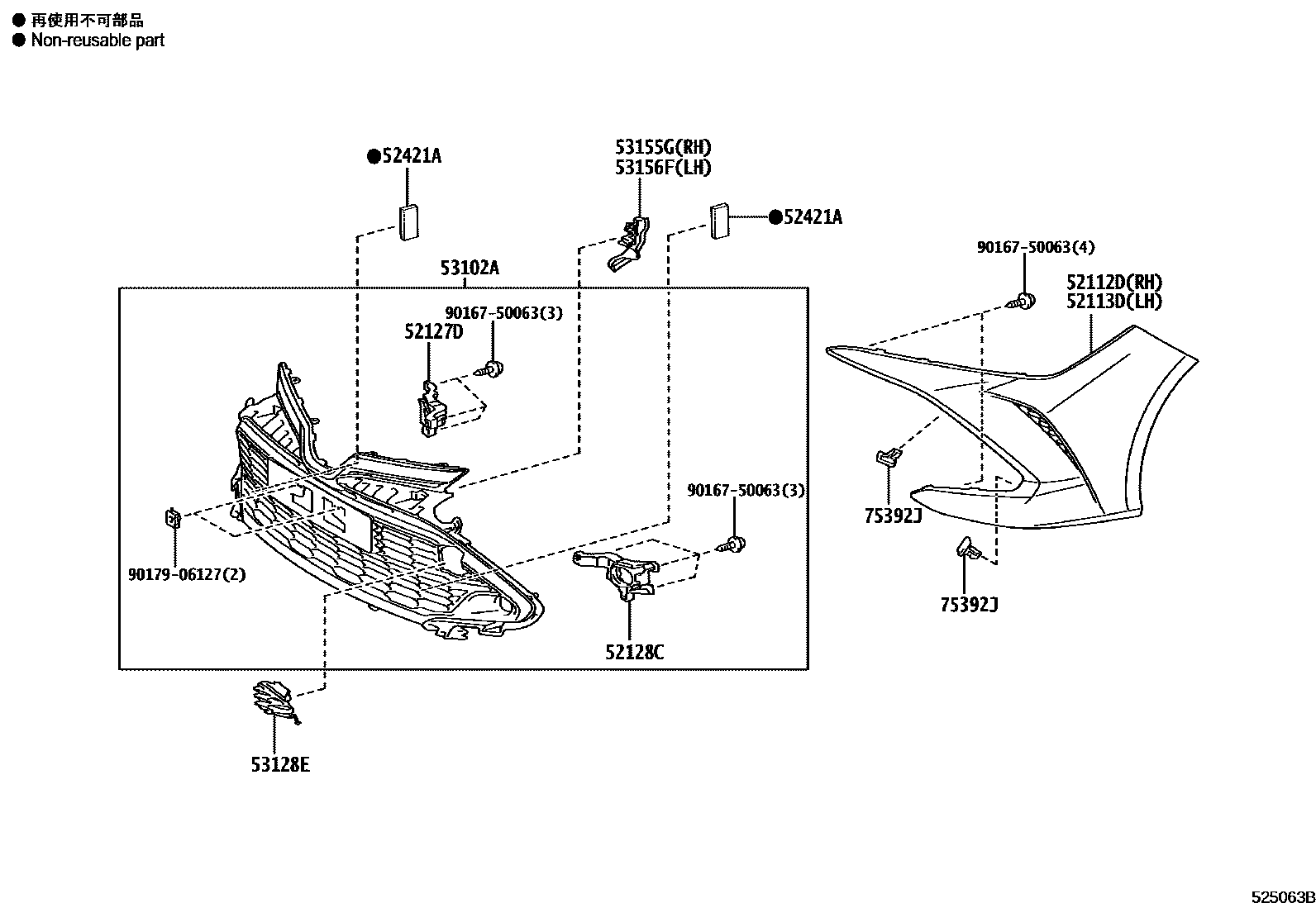

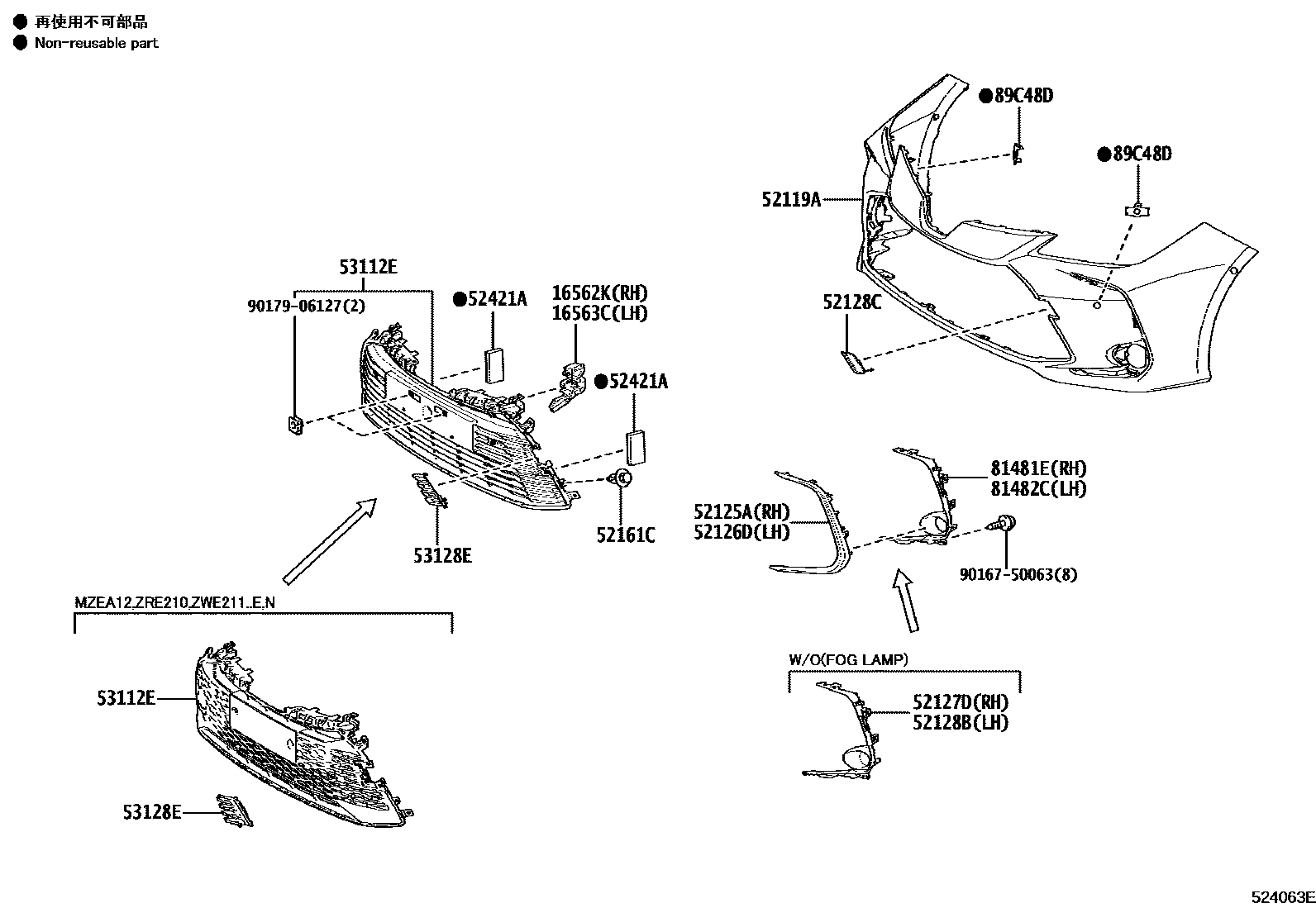

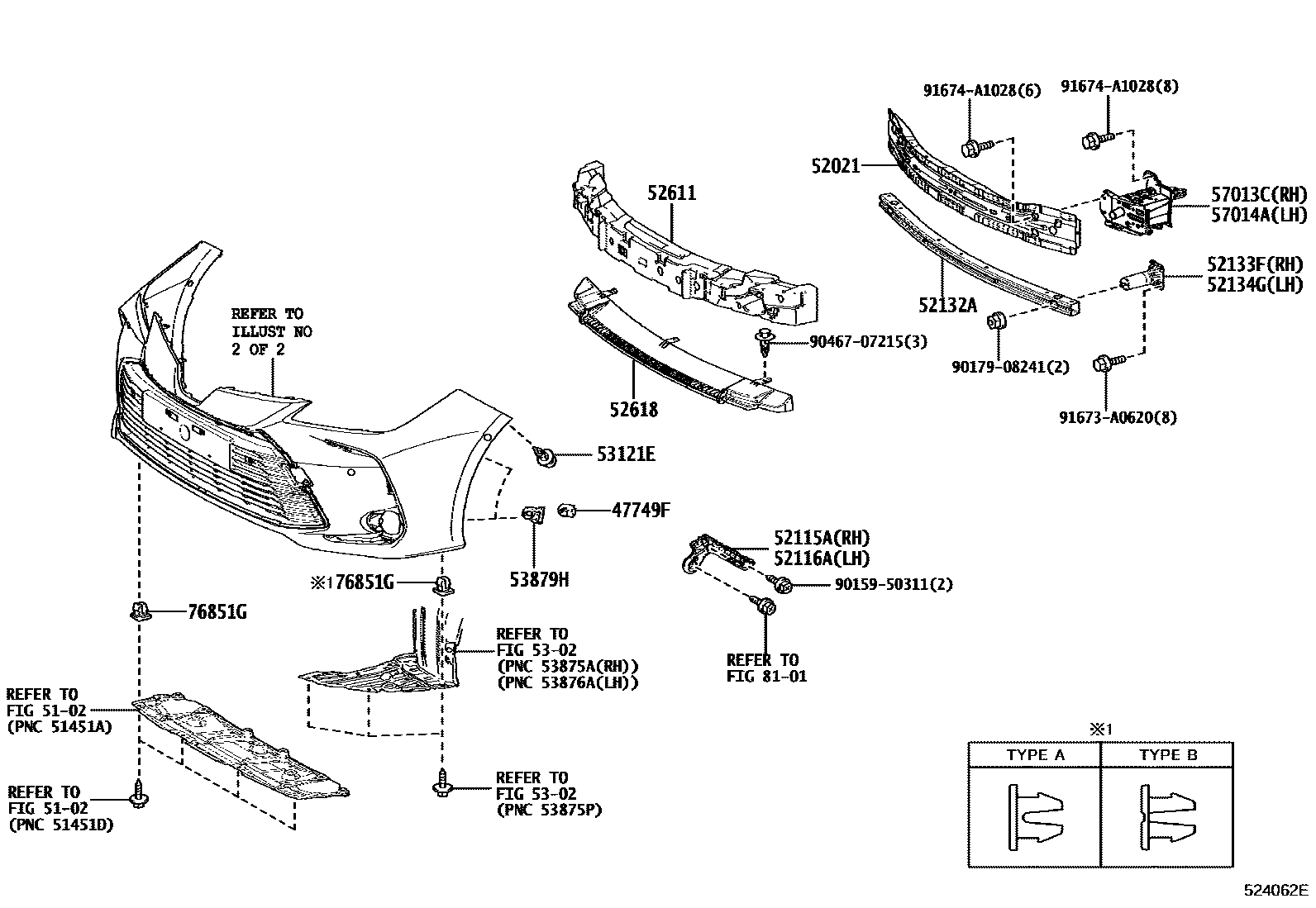

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | Seal No. 2 (radiator to bracket) | 16562-0T090 |
| 16563C | Seal No. 3 (radiator to bracket) | 16563-0T090 |
| 47749F | pin fixing clip | 47749-33030 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-02260 |
| 52112D | Front bumper right extension | 52112-02900 |
| 52113D | Front bumper left extension | 52113-02900 |
| 52115A | Front bumper right side bracket | 52115-02530 |
| 52116A | Front bumper left bracket | 52116-02520 |
| 52119A | front bumper cover | 52119-F2931 · 52119-F2932 · 52119-F2950 |
| 52125A | Right fog light mounting bracket | 52125-02410 · 52125-02420 |
| 52126D | Left fog light mounting bracket | 52126-02400 · 52126-02410 |
| 52127D | Front bumper right hole cover | 52127-02490 · 81481-02B70 |
| 52128B | Front bumper left hole cover | 81482-02B70 |
| 52128C | Front bumper left hole cover | 52128-02460 · 52128-02670 · 52128-02922 |
| 52132A | No. 2 front bumper reinforcement | 52132-02080 |
| 52133F | Front bumper right side bracket | 52133-02140 |
| 52134G | Front bumper left bracket | 52133-02140 |
| 52161C | front bumper insert | 52161-0K040 · 52161-16010 |
| 52421A | front bumper lining | 52421-02080 |
| 52611 | front bumper energy absorber | 52611-02610 · 52611-02680 · 52611-02690 |
| 52618 | Front bumper lower shock absorber | 52618-02240 |
| 53102A | Radiator lower grille sub-assembly | 53102-02530 · 53102-02630 |
| 53112E | No. 1 radiator lower grille | 53112-02C40 · 53112-02C50 · 53112-02F40 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 |
| 53128E | Lower left radiator grille | 53128-02220 · 53128-02230 · 53128-02350 · 53128-02500 |
| 53155G | Radiator grille seal | 53155-02260 · 53155-02290 |
| 53156F | Radiator grille seal No. 2 | 53156-02100 · 53156-02170 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02240 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02240 |
| 75392J | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 76851G | No. 1 screw seal | 90189-06193 · 90189-06237 |
| 81481E | Right fog light cover | 81481-02540 · 81481-02C90 · 81481-02D00 |
| 81482C | Left fog light cover | 81482-02530 · 81482-02C80 · 81482-02C90 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-02190 |
