Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-02150 · 51107-02160 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-02150 · 51108-02160 |

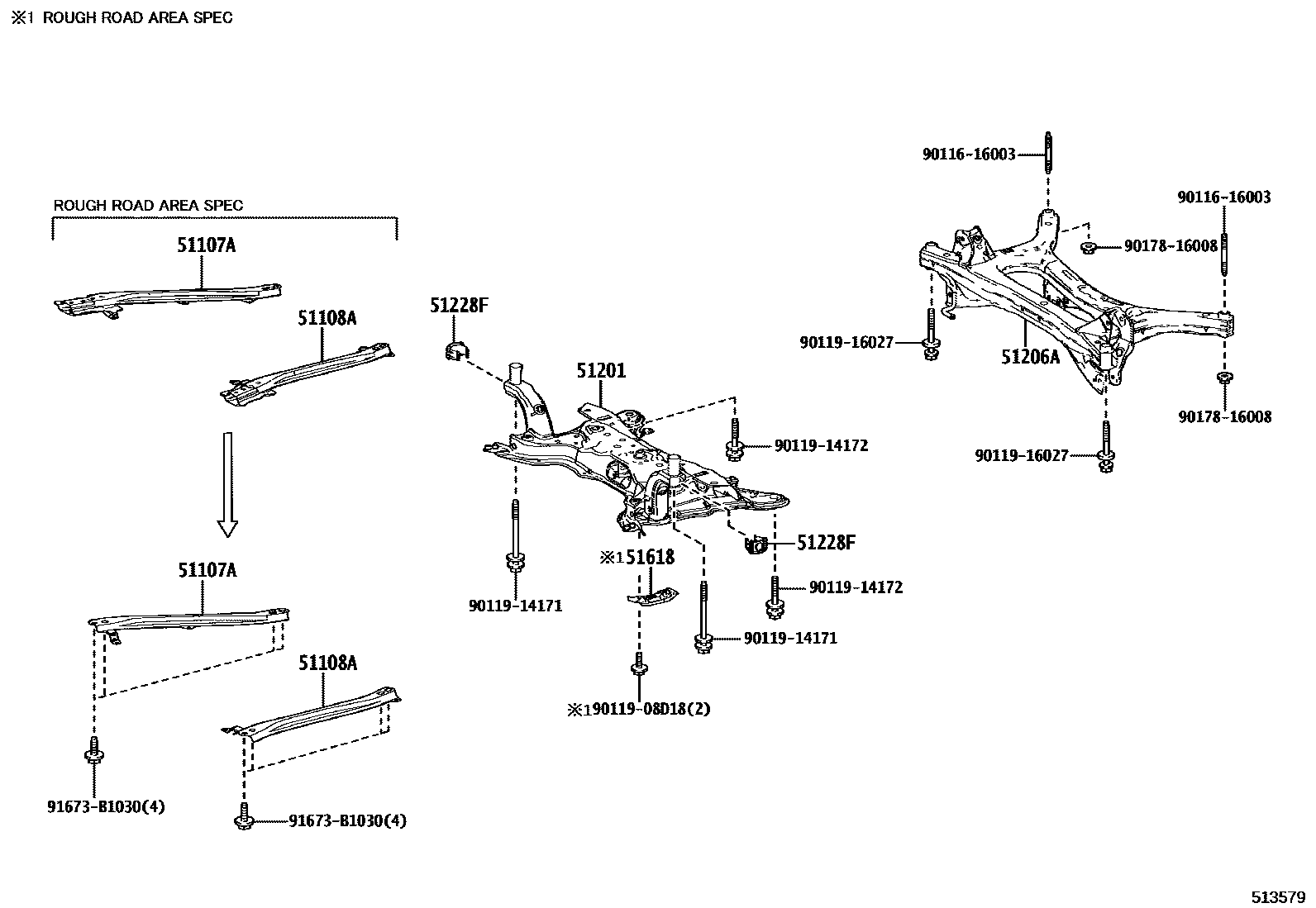

| 51201 | Front suspension cross member sub-assembly | 51201-02281 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02140 · 51206-02141 |
| 51228F | Front suspension cross member damper plate | 51228-47010 |

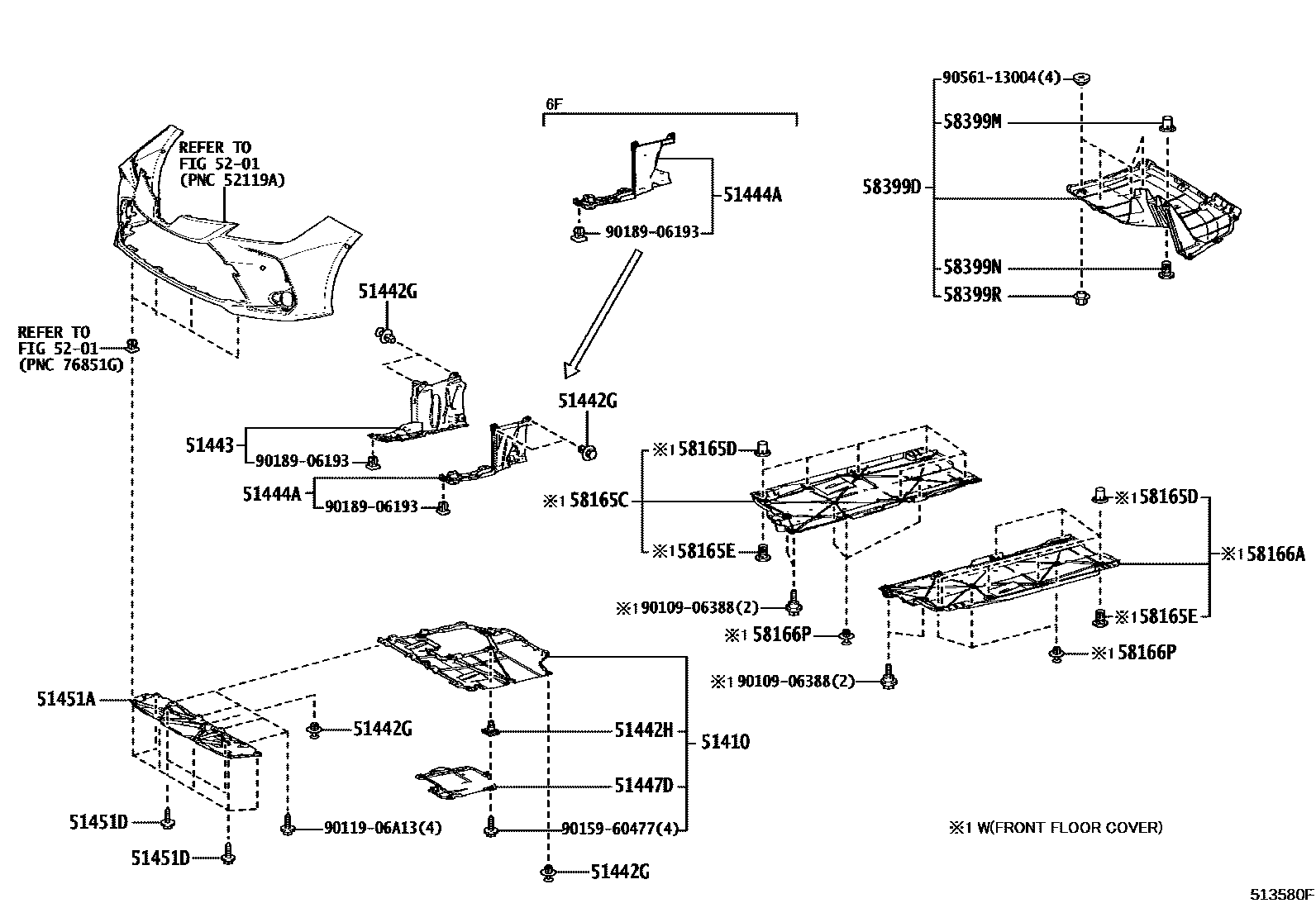

| 51410 | Engine No. 1 bottom cover assembly | 51410-02400 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51442H | No. 2 engine bottom cover clip | 90179-06104 · 90467-05176 |
| 51443 | Engine right rear bottom cover | 51443-02200 |
| 51444A | Engine left rear bottom cover | 51444-02250 · 51444-02260 |
| 51447D | No. 4 engine center bottom cover | 51447-02150 |
| 51451A | Engine center cover | 51451-02220 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51618 | Left front differential bracket guard | 51618-47010 |
| 58165C | Front floor right cover | 58165-02350 |
| 58166A | Front floor left cover | 58166-02200 |
| 58166P | Front floor cover clip | 90467-07220 |
| 58399D | Floor No. 2 lower cover | 58399-02240 |
| 58399R | Lower floor cover clip No. 3 | 90467-14053 · 90467-14054 |
