Toyota COROLLA 制动配管和卡箍 — Figure 4708

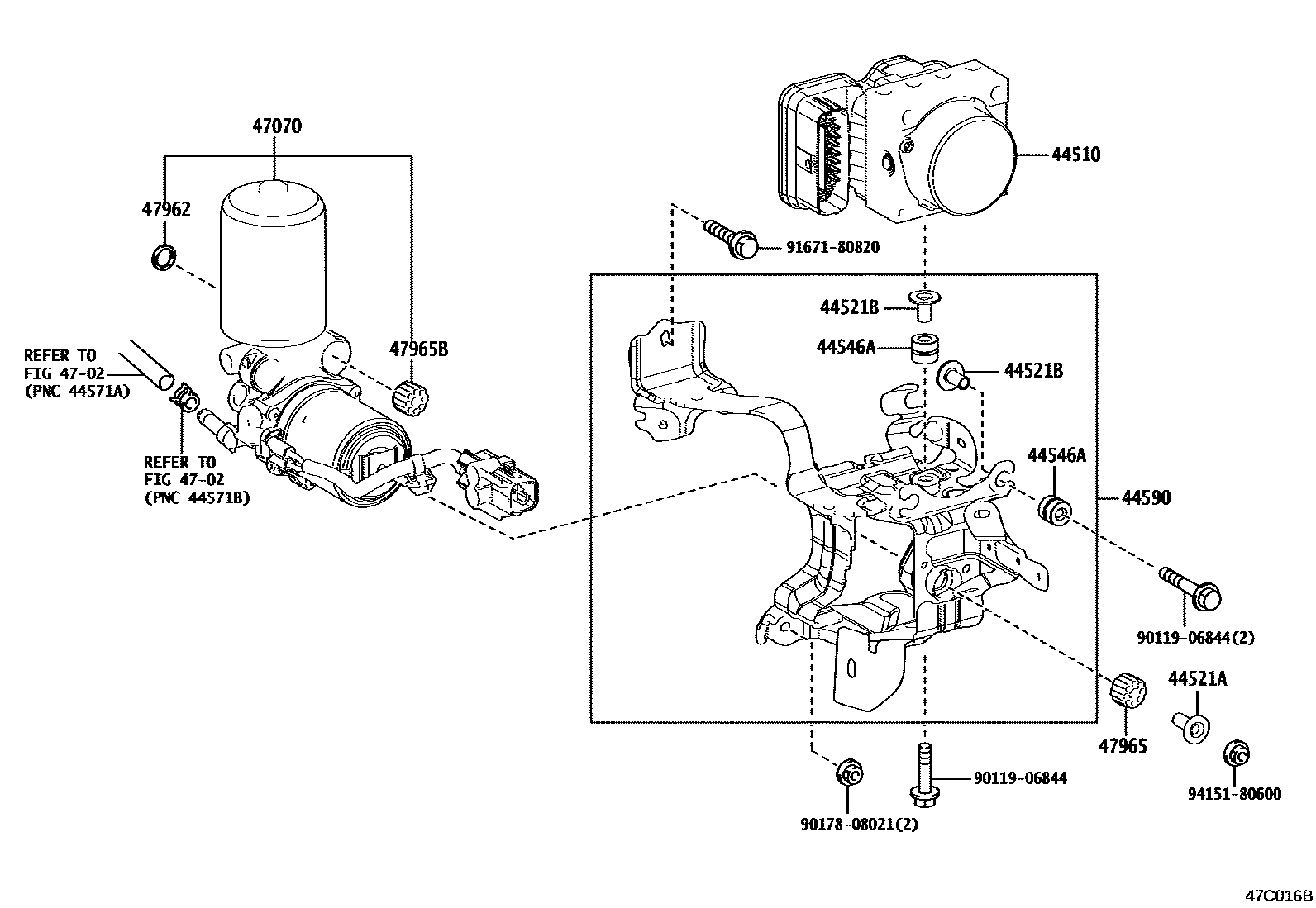

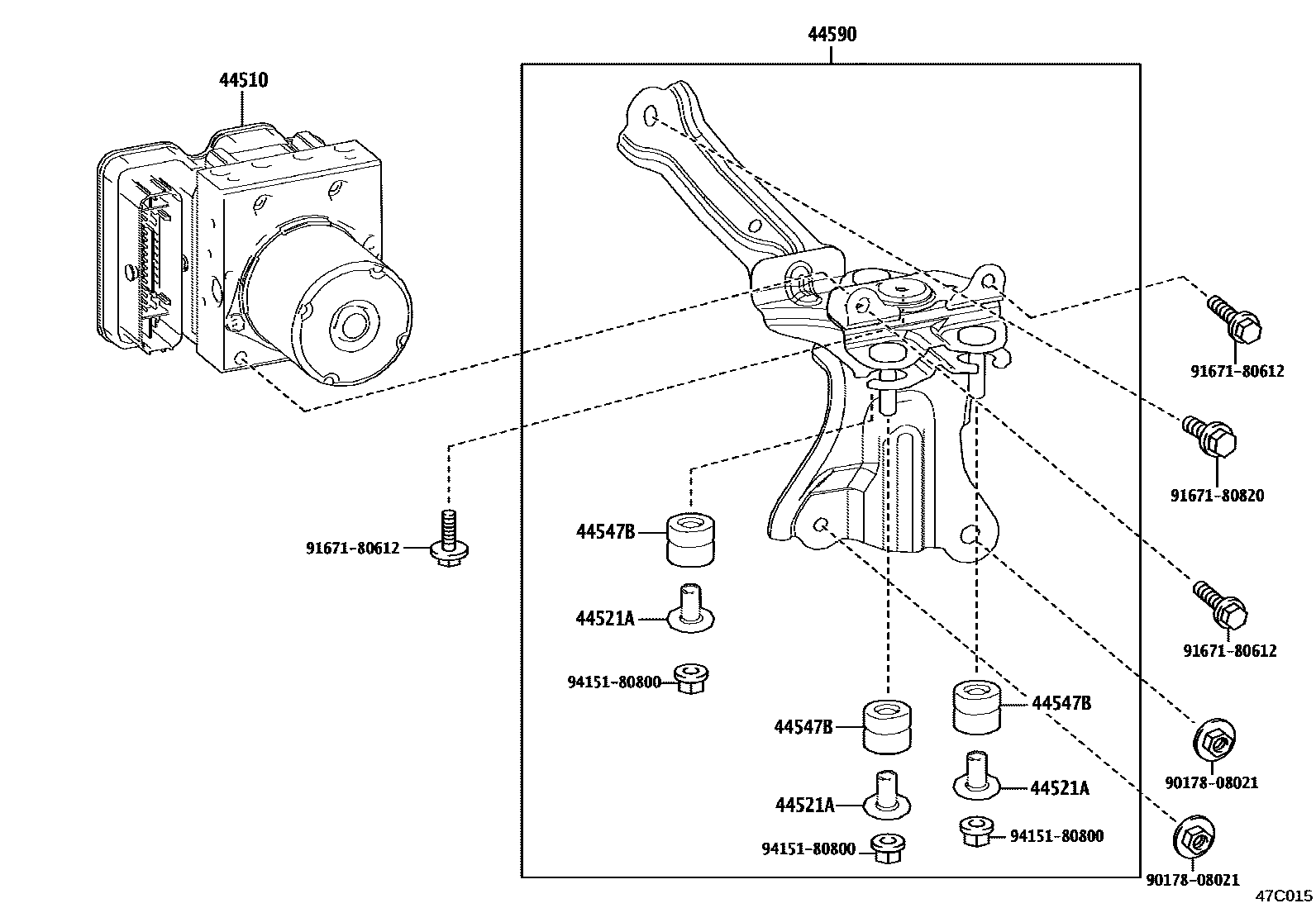

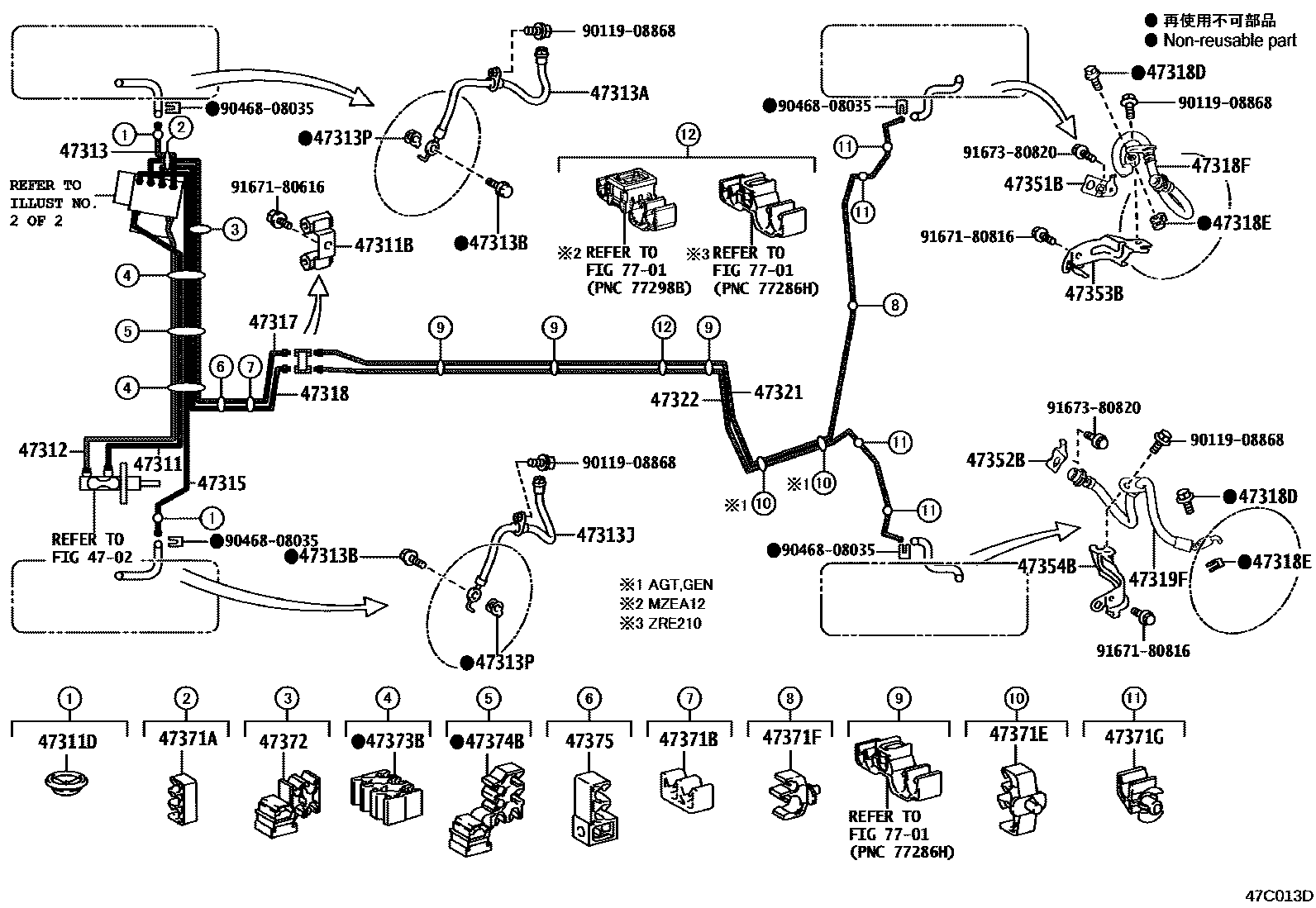

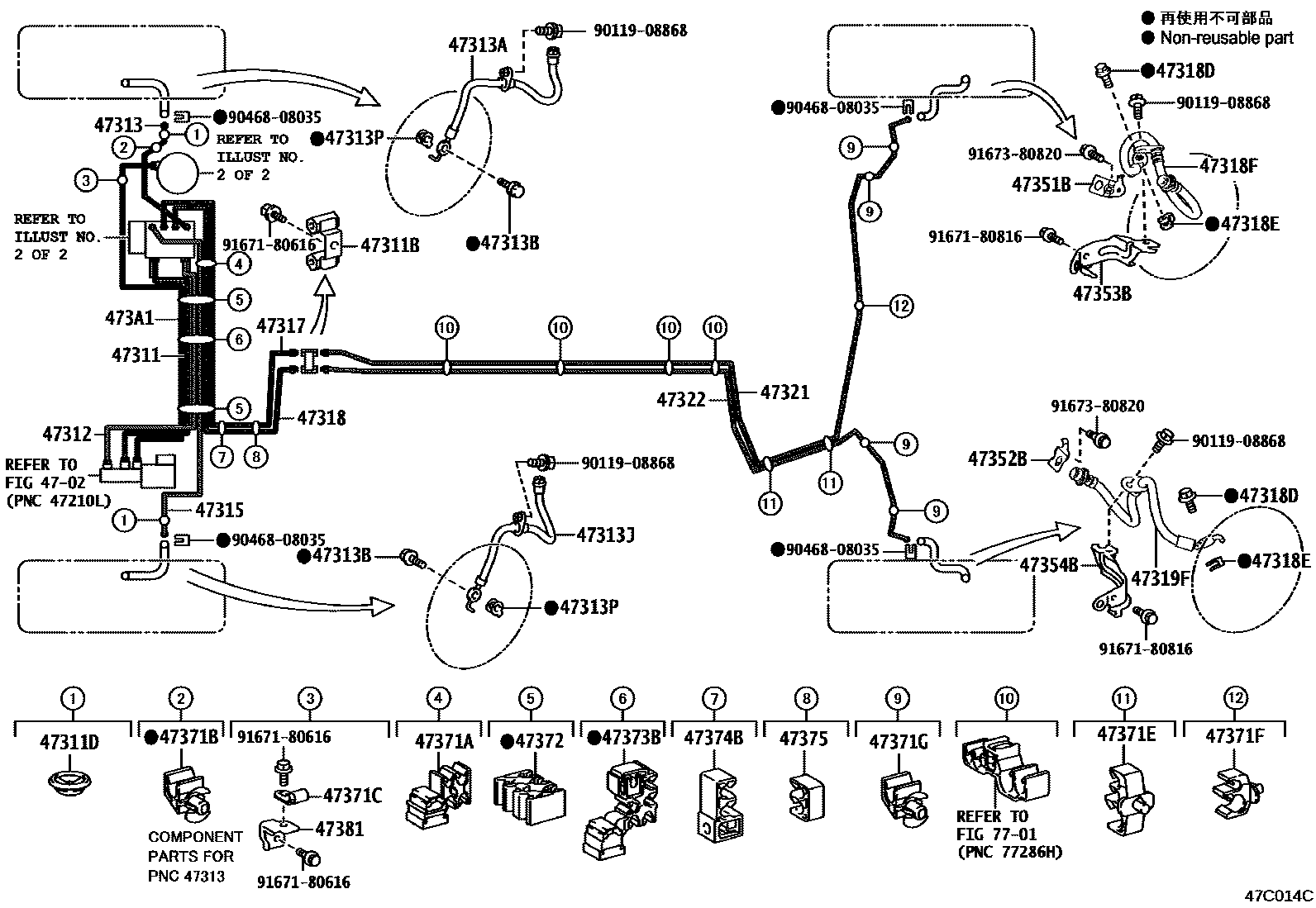

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02F10 · 44050-02F70 · 44050-02M80 · 44050-02M90 · 44050-47060 |
| 44521A | No. 1 brake actuator housing collar | 44521-33020 · 44521-47010 |
| 44521B | No. 2 brake actuator housing collar | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-02580 · 44590-47063 |
| 47070 | Brake booster pump assembly | 47070-47090 |
| 47311 | No. 1 front brake pipe | 47311-02F70 · 47311-02F80 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02E10 · 47312-02E20 |
| 47313 | No. 3 front brake pipe | 47313-02G40 · 47313-02G50 |
| 47313A | No. 1 front flexible hose | 90947-T2168 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2169 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02570 · 47315-02580 |
| 47317 | No. 7 front brake pipe | 47317-02F20 · 47317-02F30 |
| 47318 | No. 8 front brake pipe | 47318-02F40 · 47318-02F50 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2159 |
| 47319F | Left rear flexible hose | 90947-T2159 |
| 47321 | No. 1 rear brake pipe | 47321-02710 |
| 47322 | No. 2 rear brake pipe | 47322-02710 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-02230 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-02230 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02250 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02250 |
| 47371A | No. 1 brake pipe clamp | 90949-01D92 · 90949-01E51 |
| 47371B | No. 6 brake pipe clamp | 90949-01D91 · 90949-01E10 |
| 47371C | No. 7 brake pipe clamp | 90461-10854 |
| 47371E | No. 9 brake pipe clamp | 77286-47050 |
| 47371F | No. 10 brake pipe clamp | 77285-47110 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01D99 · 90949-01E51 |
| 47373B | No. 3 brake pipe clamp | 90949-01E44 · 90949-01E50 |
| 47374B | No. 4 brake pipe clamp | 90949-01E33 · 90949-01E42 |
| 47375 | No. 5 brake pipe clamp | 90949-01D91 · 90949-01E33 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-47070 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-02100 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
