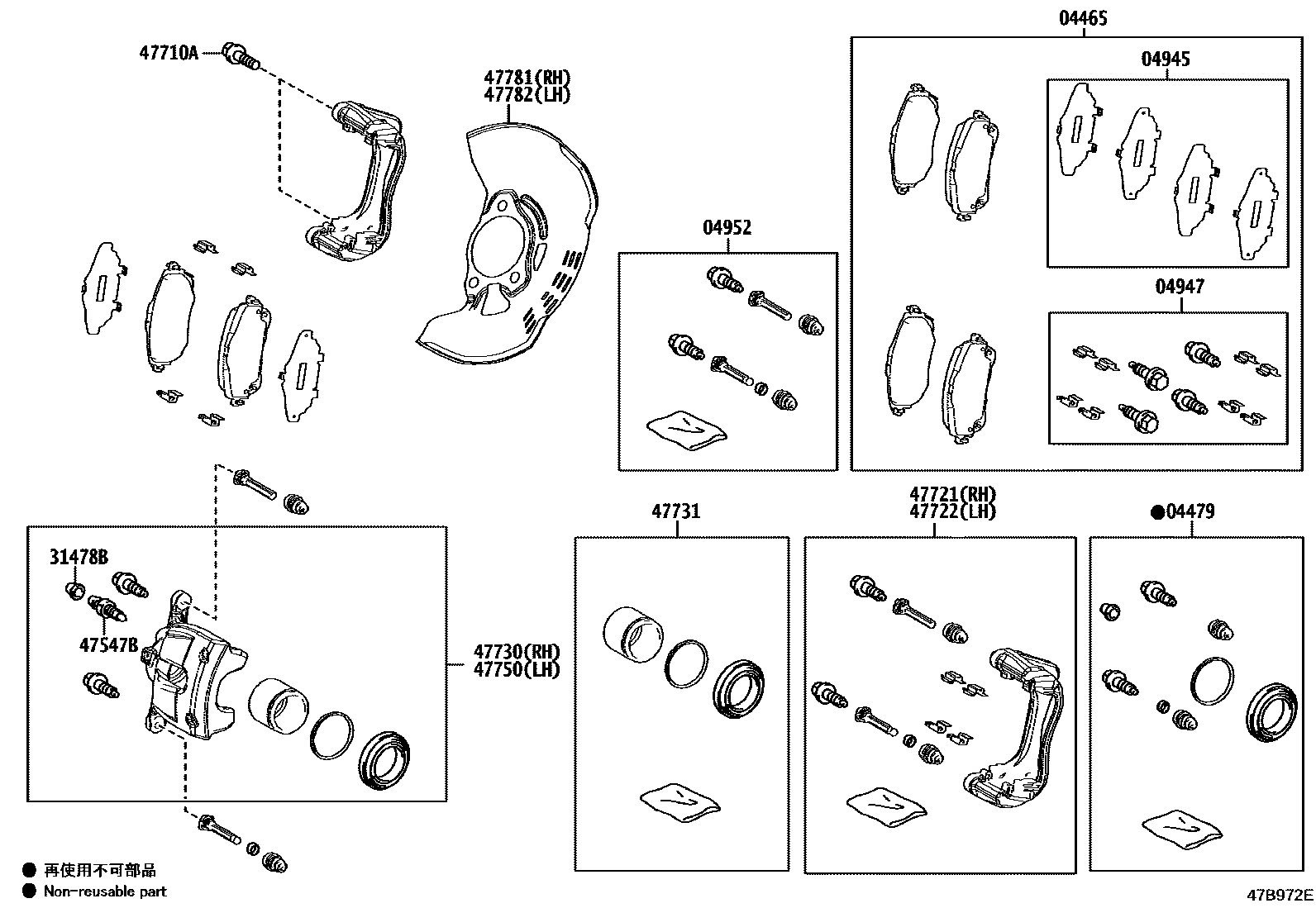

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02520 |
| 04479 | Front disc brake cylinder assembly | 04478-02450 · 04478-02451 |
| 04945 | Front silencer gasket assembly | 04945-02290 |
| 04947 | Front disc brake mounting kit | 04947-02180 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02410 |
| 31478B | Bleeder plug cap (for front disc brake) | 90069-39028 |
| 47547B | Bleed plug (for front disc brake) | 90069-39030 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47721 | Right front disc brake cylinder retainer | 47721-09590 |
| 47722 | Left front disc brake cylinder retainer | 47722-09280 |
| 47730 | Right front disc brake cylinder assembly | 47730-02620 |
| 47731 | Front disc brake piston | 47731-09010 |
| 47750 | Left disc brake cylinder assembly | 47750-02520 |
| 47781 | Right front disc brake dust cover | 47781-02310 |
| 47782 | Left front disc brake dust cover | 47782-02310 |
