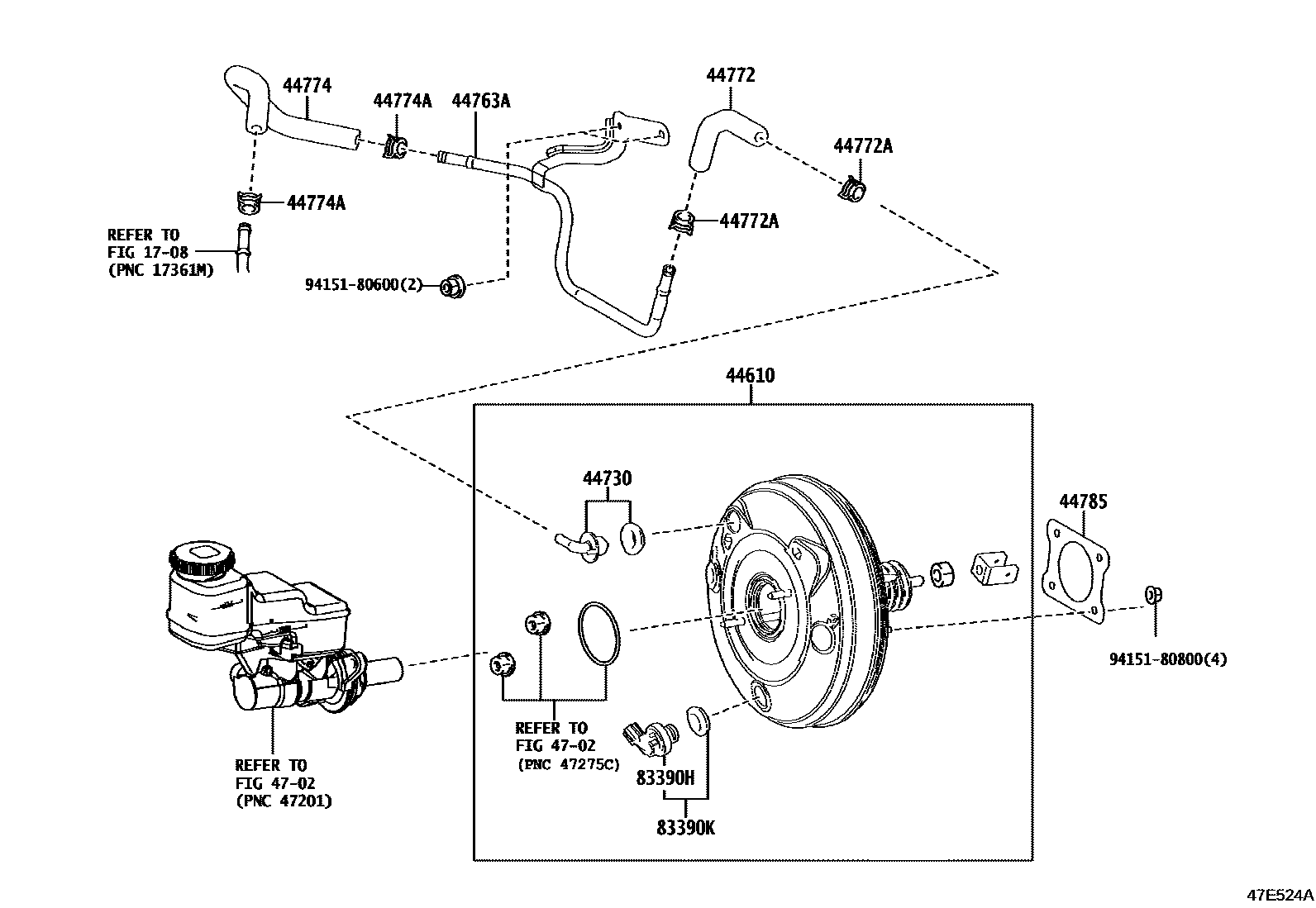

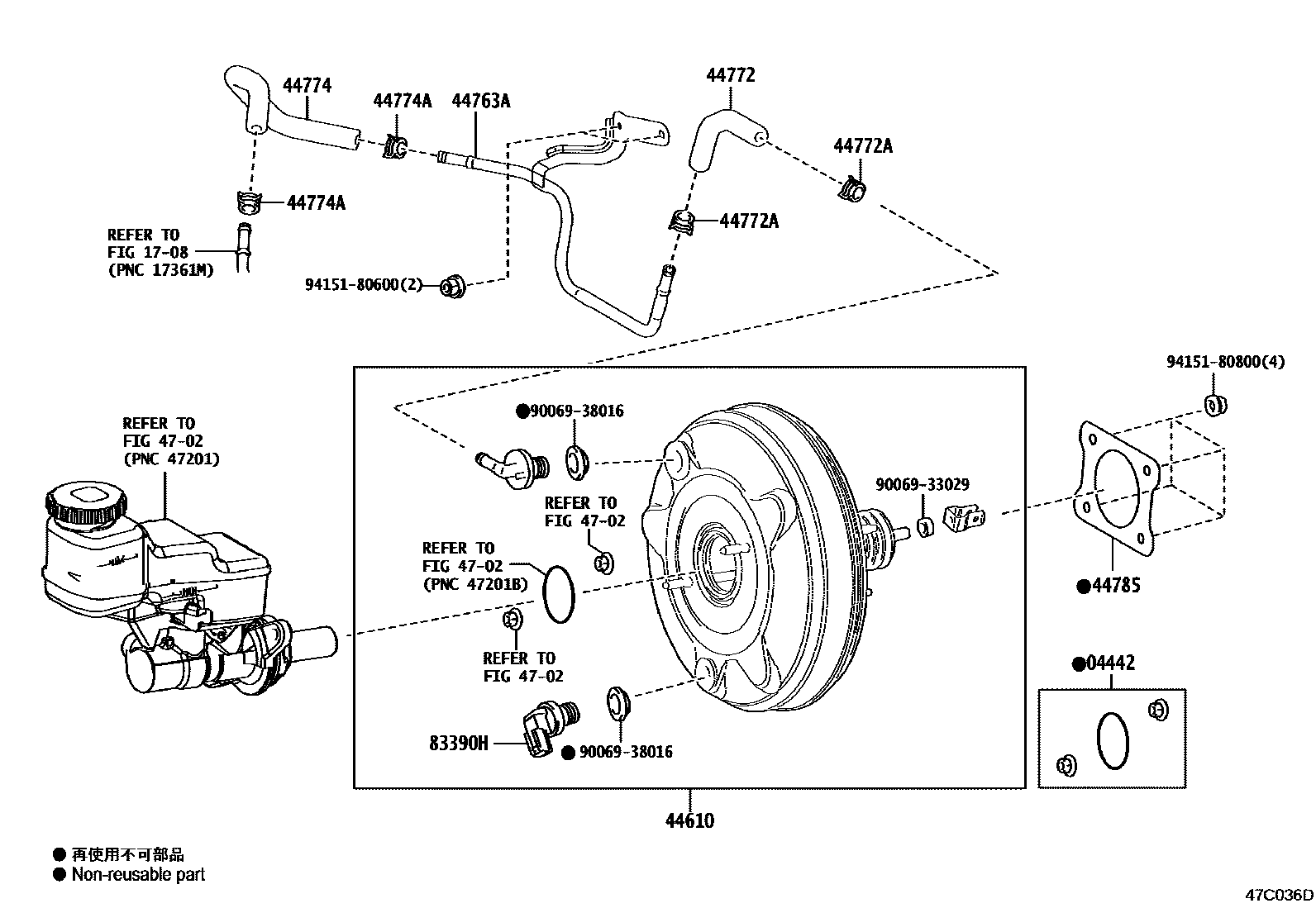

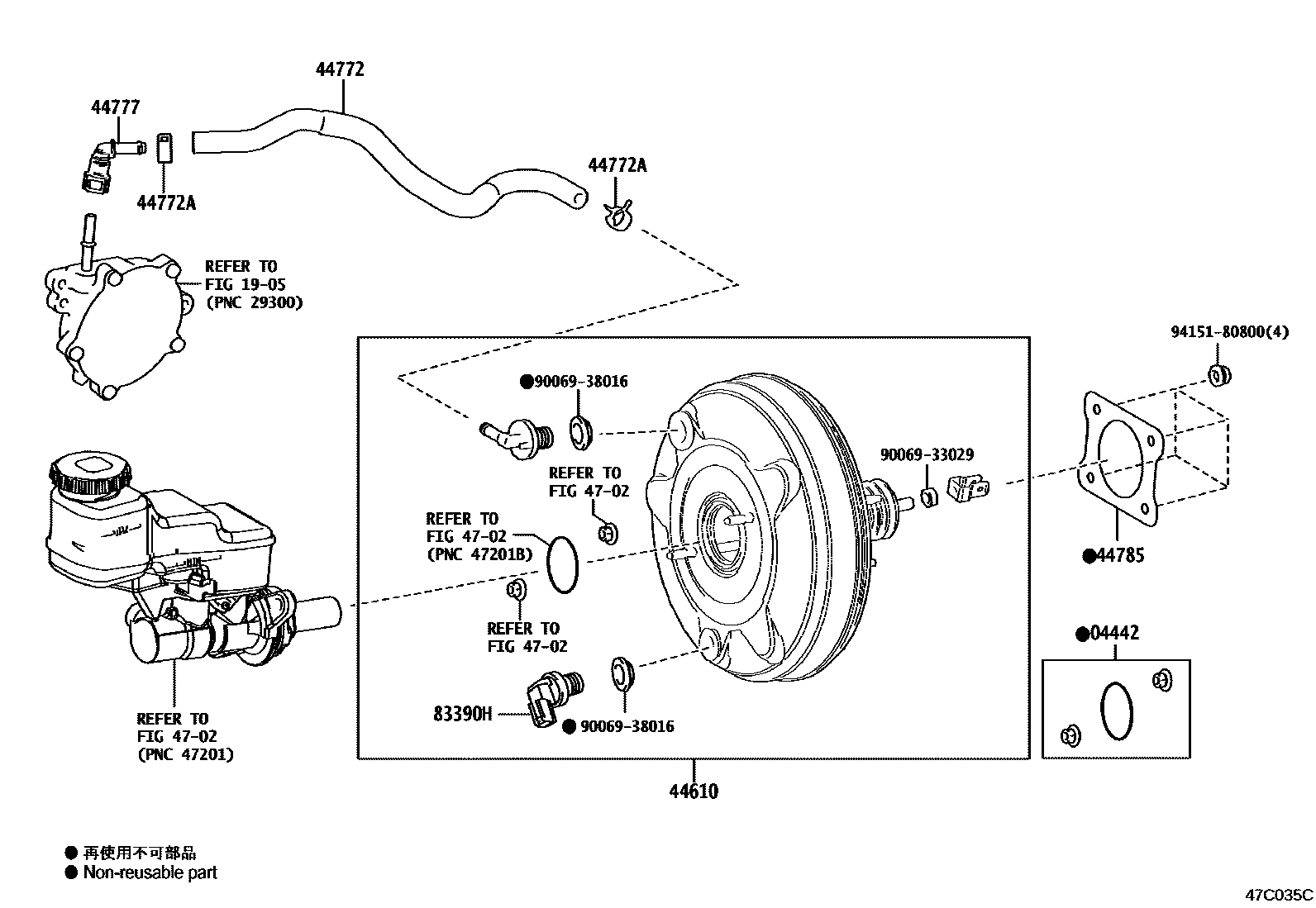

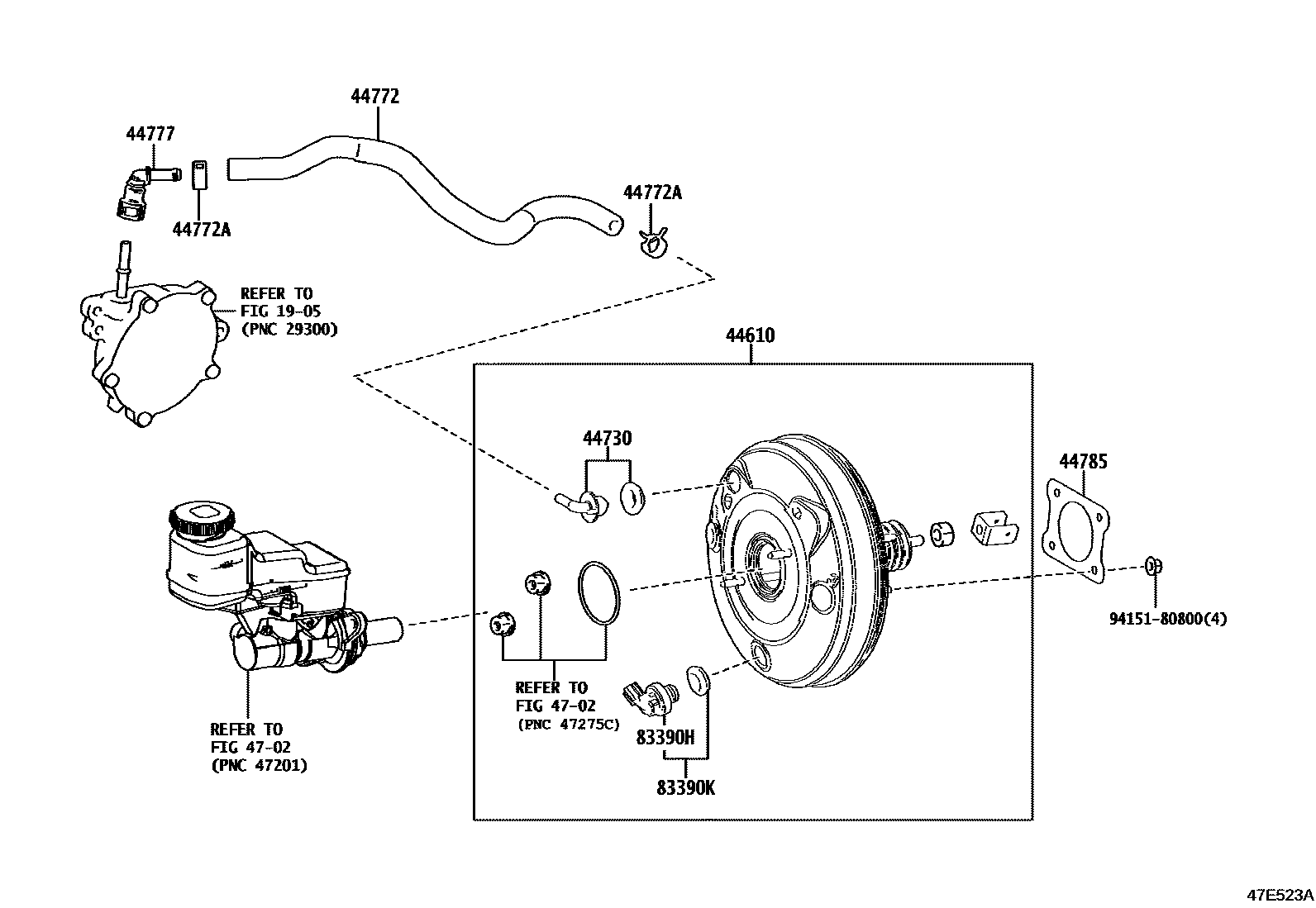

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04442 | Brake booster mounting kit | 04442-0D030 |
| 44610 | brake booster assembly | 44610-09G60 · 44610-09J60 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-F9010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12600 |
| 44772 | Hoses (check valve to connector tube) | 44772-12780 · 44772-12860 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-12A30 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-12010 |
| 44785 | brake booster pad | 44785-12040 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390K | JEU SOUPAPE CARROSSERIE, SURALIMENTATION | 83390-09020 |
