Toyota COROLLA 制动总泵 — Figure 4702

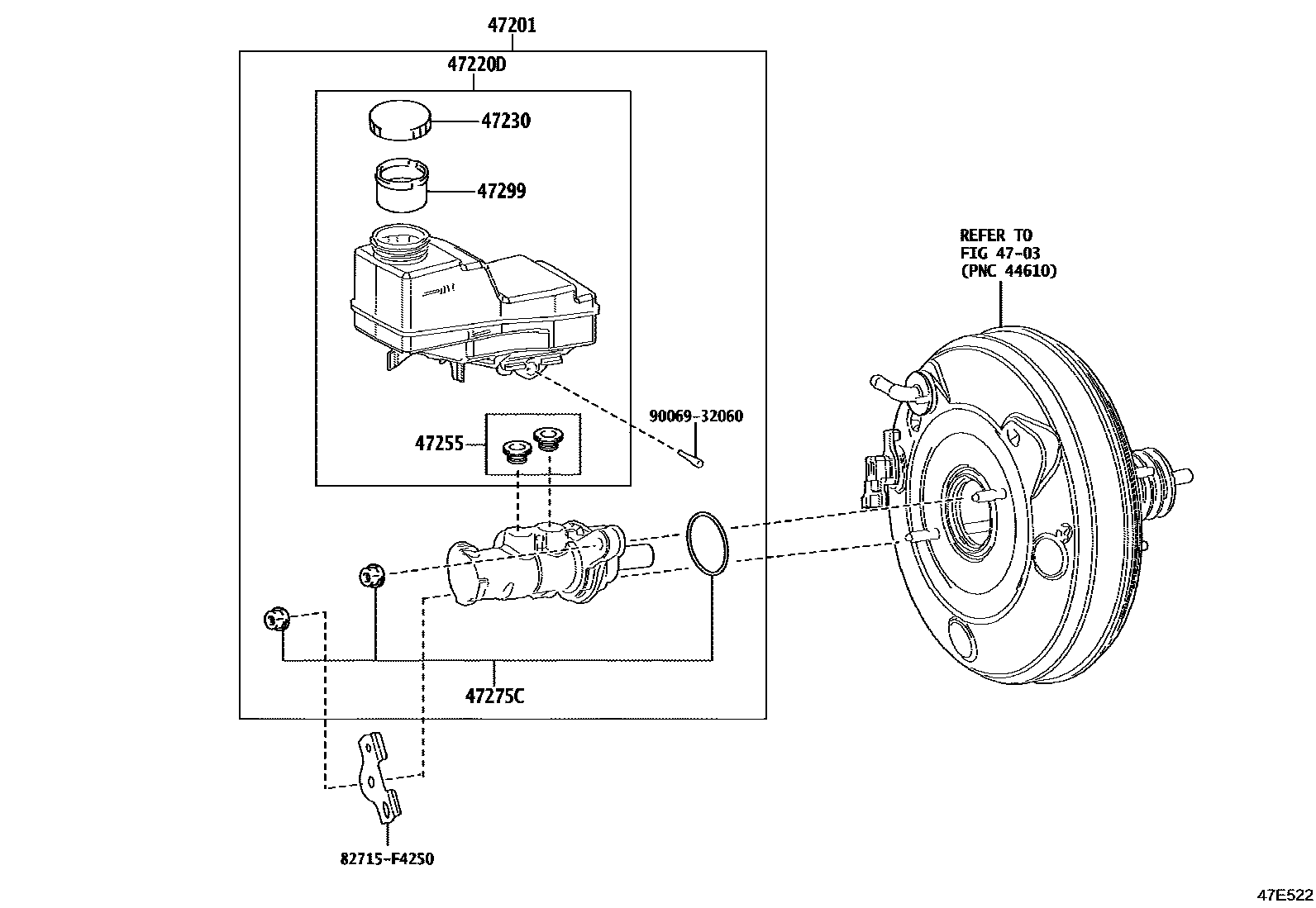

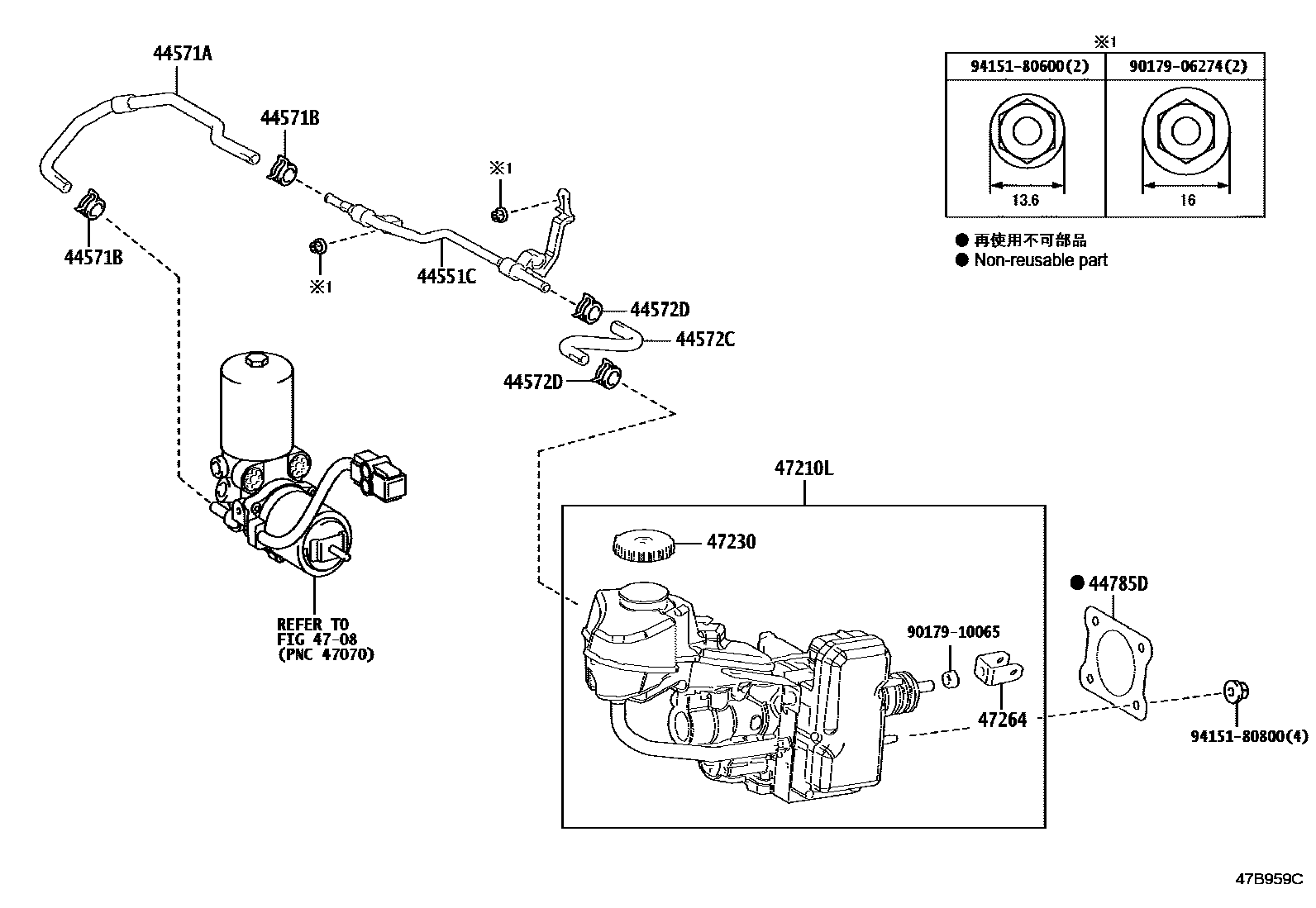

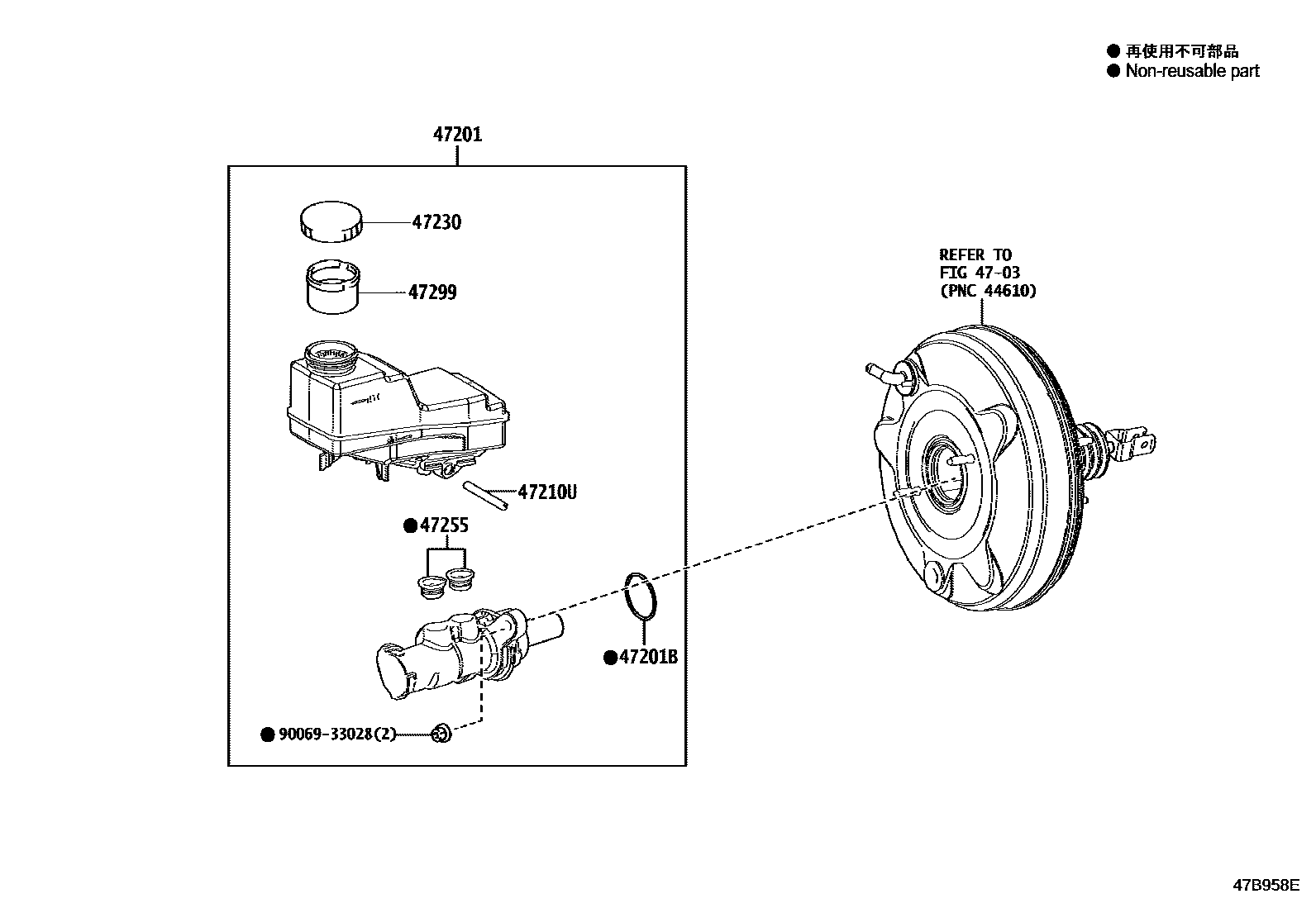

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-47050 |
| 44571A | No. 1 brake actuator hose | 44571-47070 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-47050 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-09A10 · 47201-09B70 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47210L | Brake booster assembly with master cylinder | 47050-12770 · 47050-12C00 · 47050-12D30 · 47050-12D40 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-09380 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D160 · 47230-33330 · 47230-47090 |
| 47255 | Master pump reservoir seal | 47255-09040 · 47255-09050 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-47010 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 |
