Toyota COROLLA Steering Column & Shaft — Figure 4501

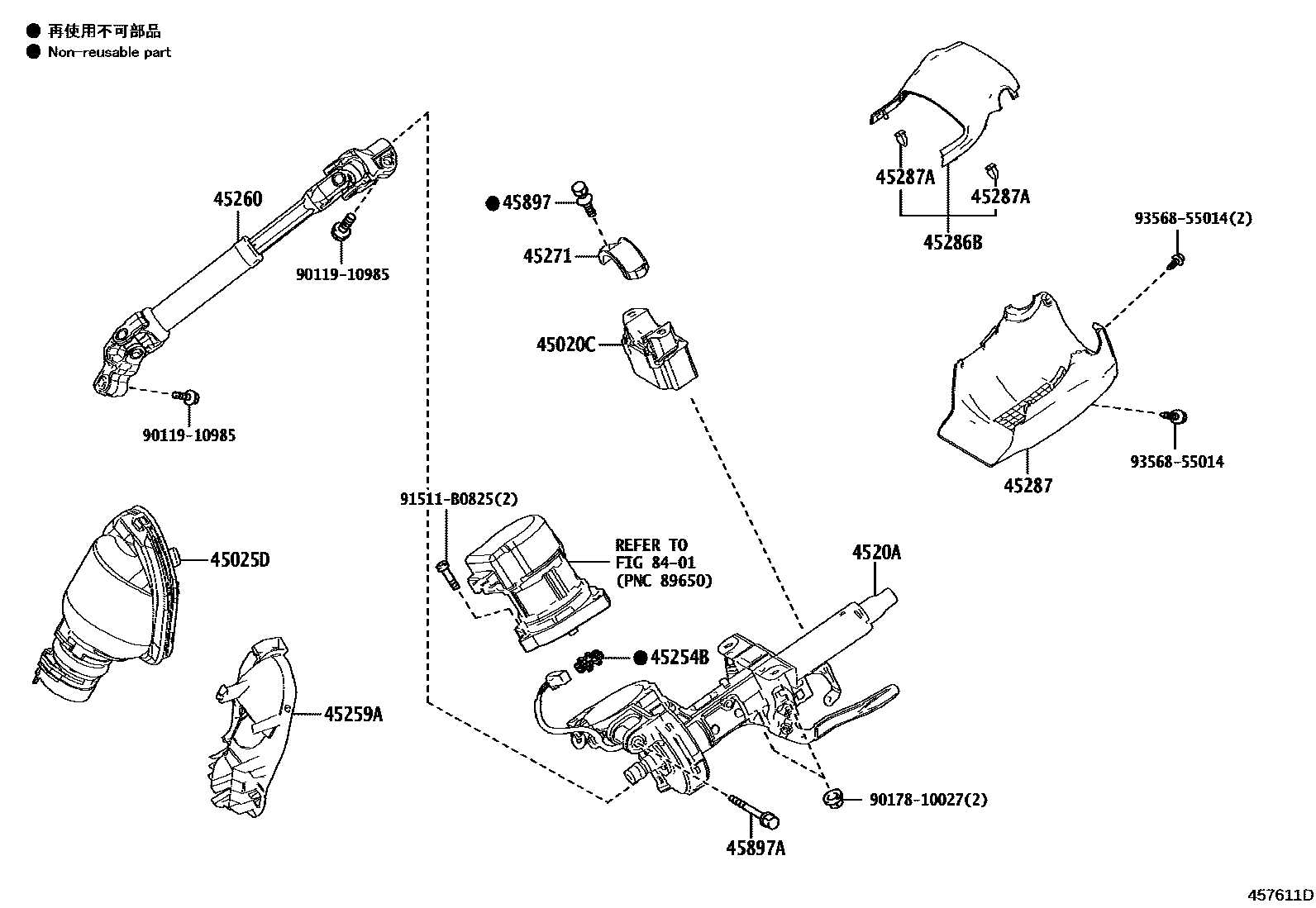

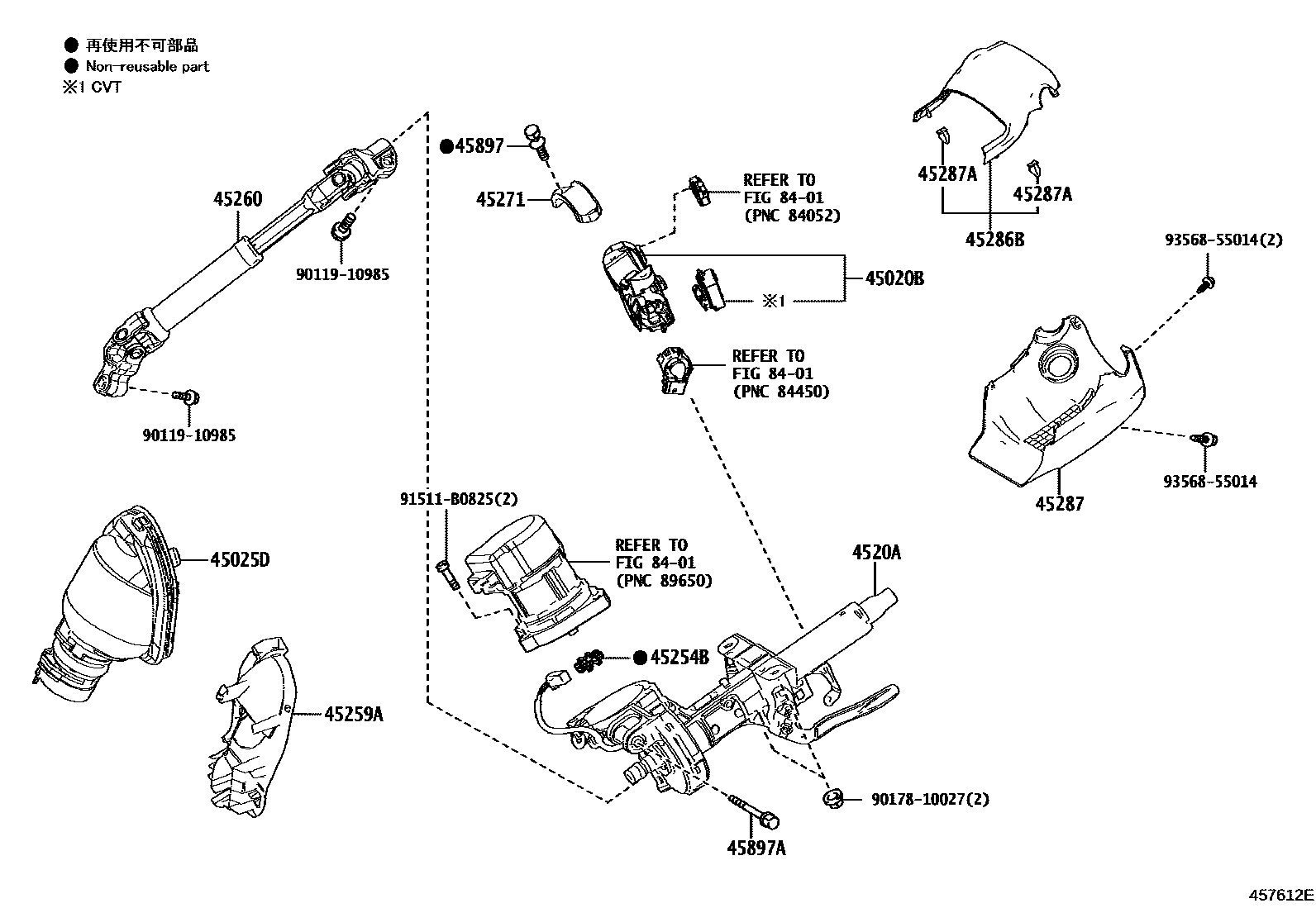

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-12420 · 45280-12440 · 45280-26270 · 45280-33180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-12550 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02330 |
| 4520A | Electric steering column sub-assembly | 4520A-02530 · 4520A-02540 · 4520A-02640 · 4520A-02770 · 4520A-02771 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-02340 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02310 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45287A | Clip (for steering column cover) | 90467-05171 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
