Toyota COROLLA Front Drive Shaft — Figure 4302

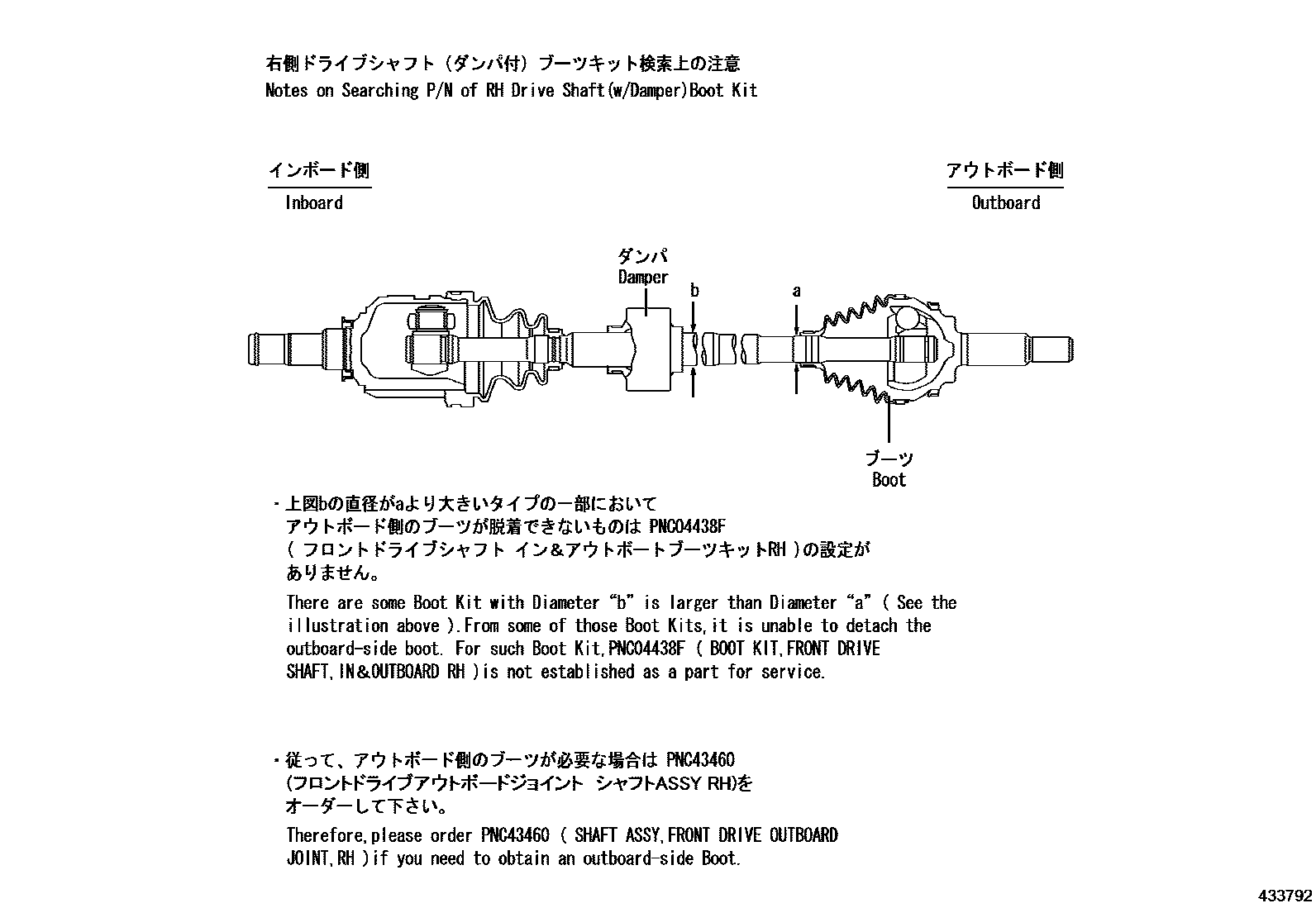

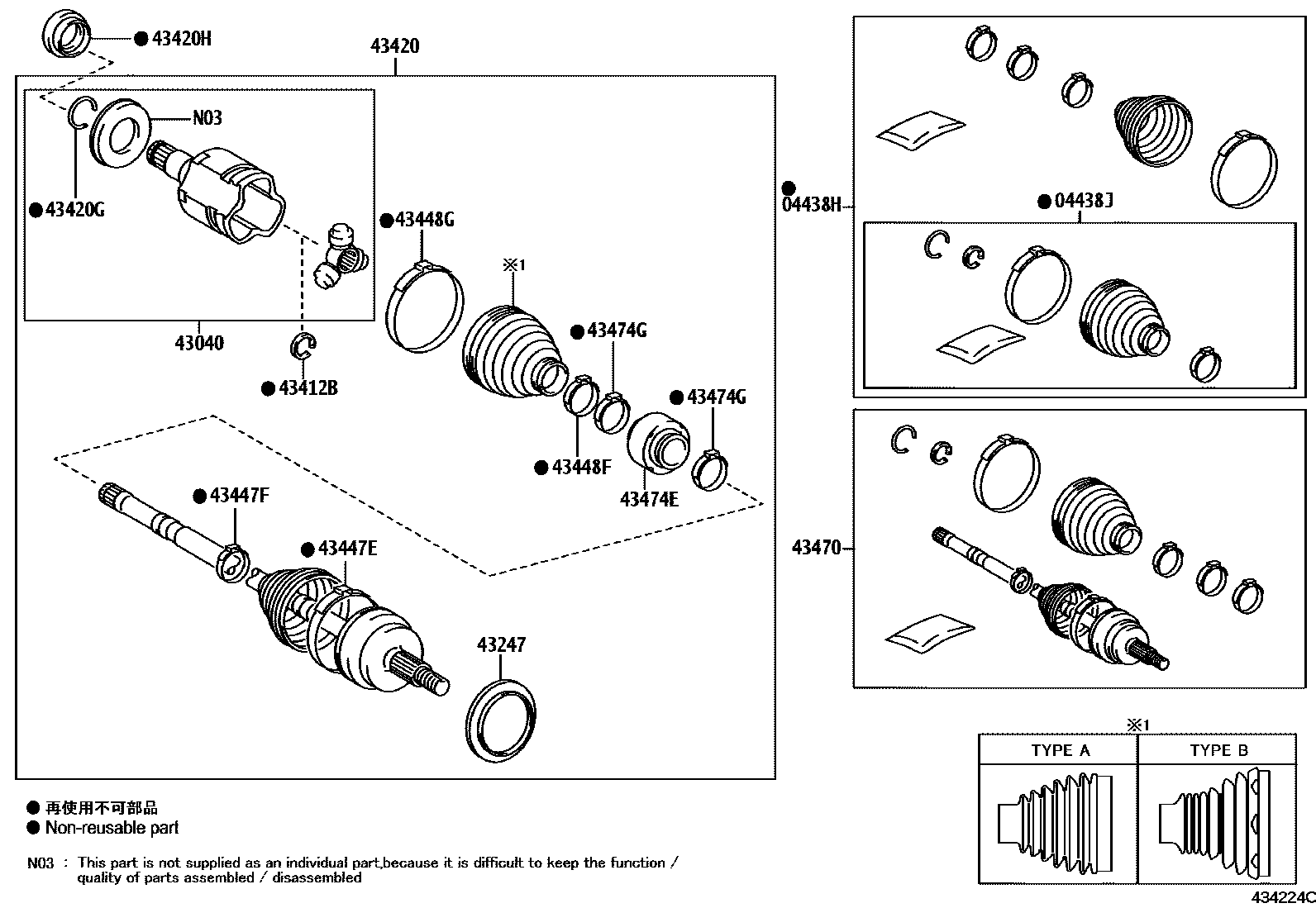

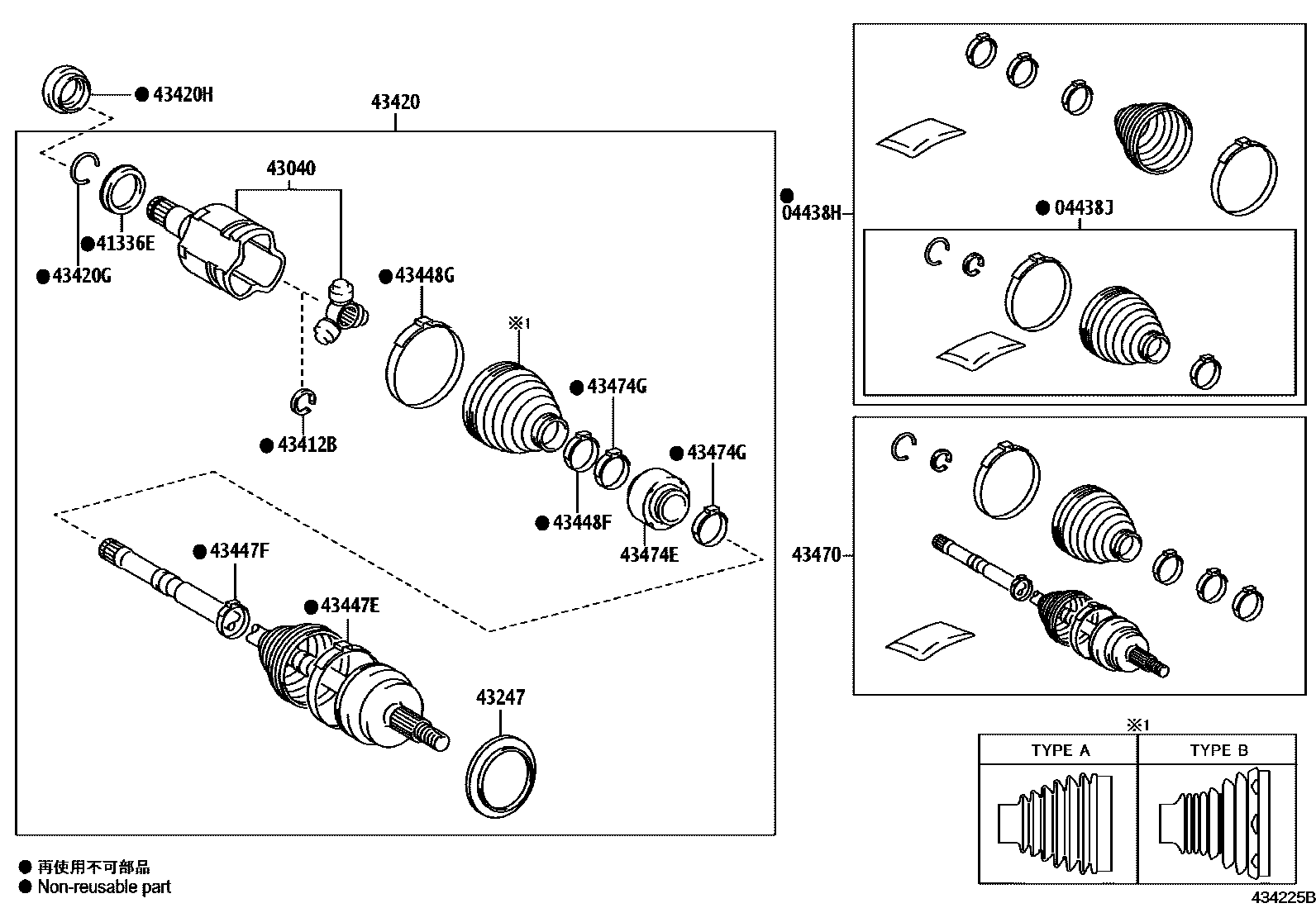

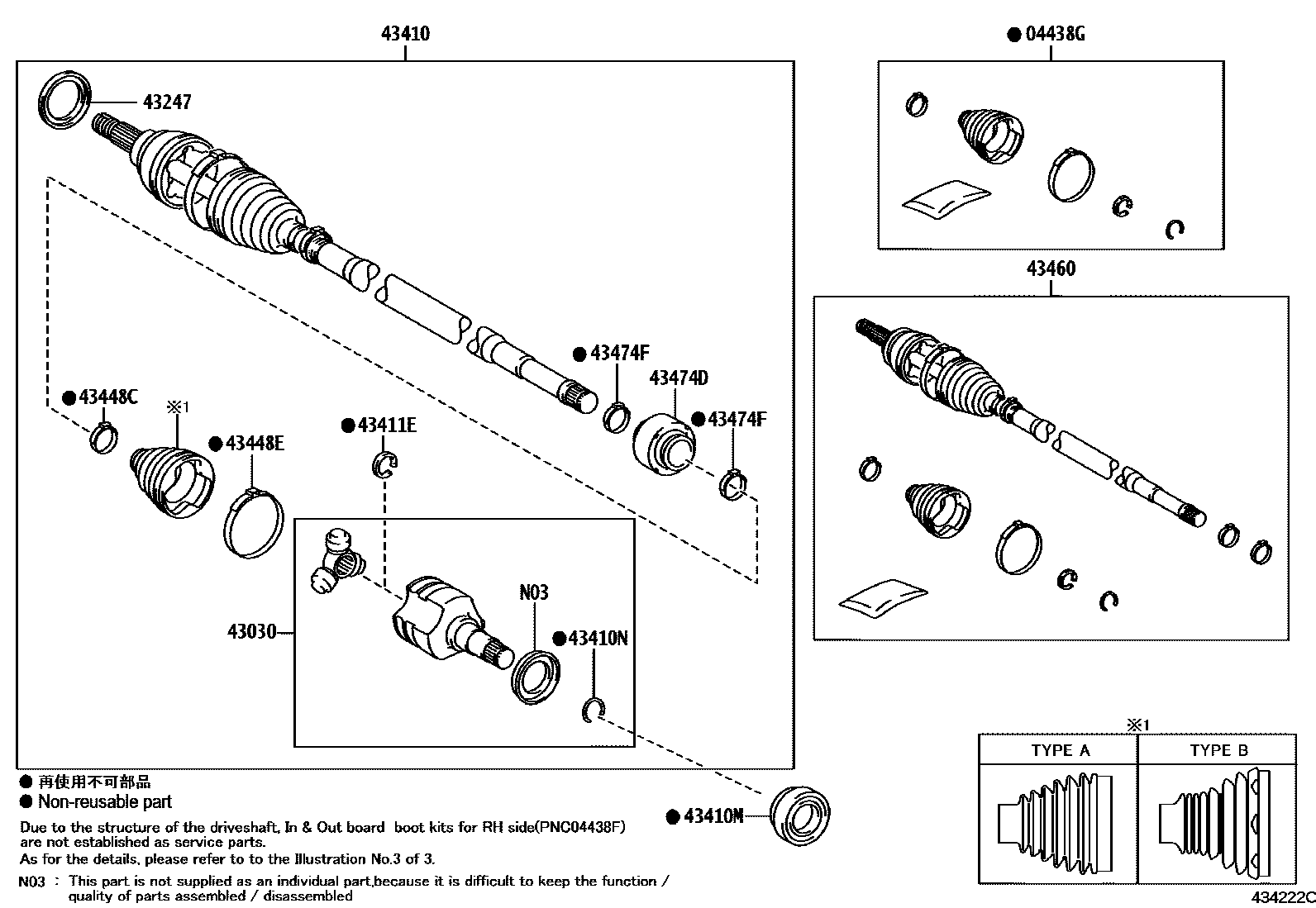

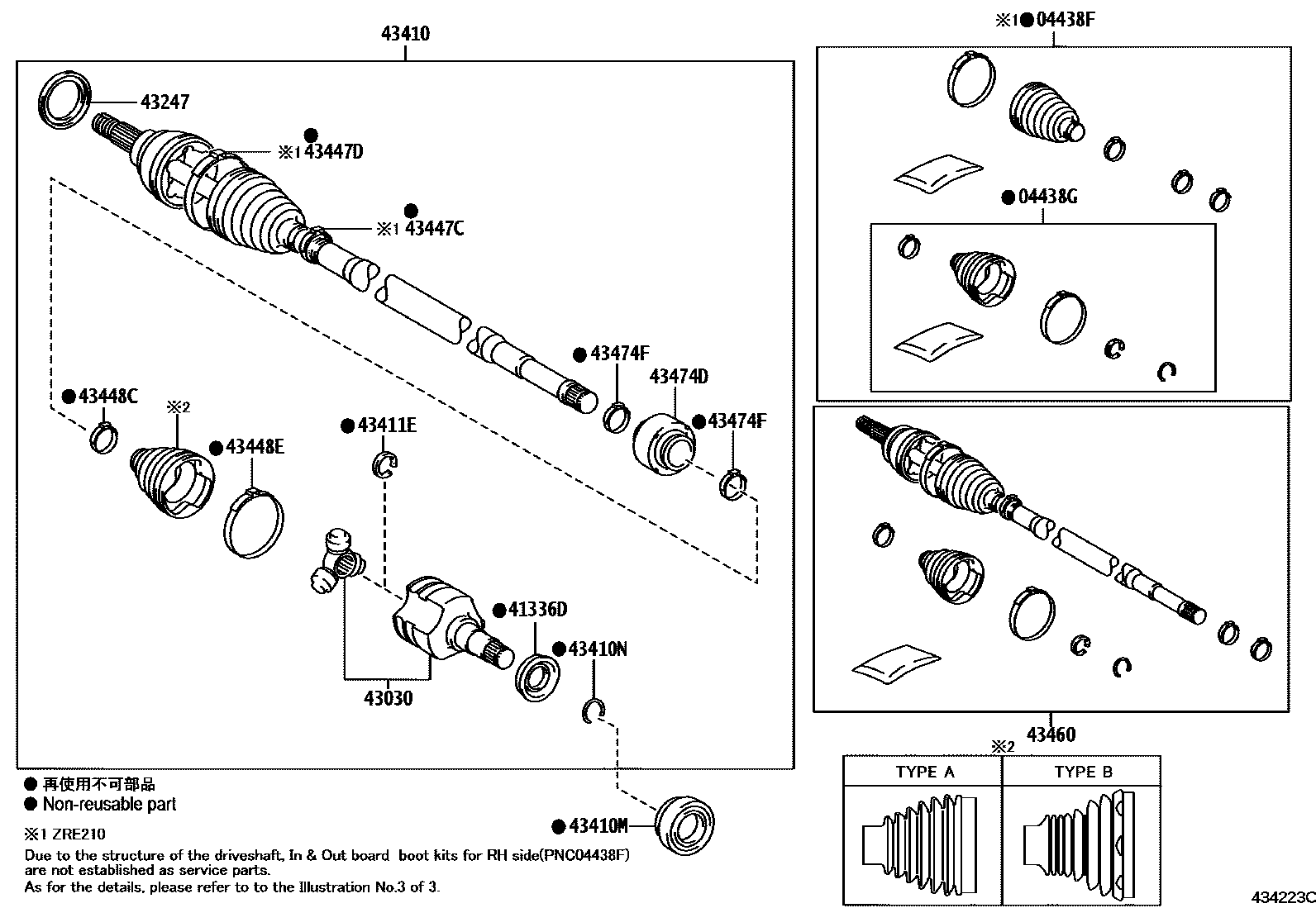

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02850 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02800 · 04437-02810 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02B10 · 04428-02B20 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02800 · 04437-02810 |
| 41336D | Right front driveshaft dust cover | 41336-01040 · 41336-02210 · 41336-02240 · 41336-02560 · 41336-07020 |
| 41336E | Left front driveshaft dust cover | 41336-01040 · 41336-02220 · 41336-02240 · 41336-02570 · 41336-07040 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02170 · 43040-02380 · 43040-02570 · 43403-02140 · 43403-02141 · 43403-02220 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02380 · 43040-02390 · 43040-02530 · 43040-02570 · 43040-02670 · 43404-02040 · 43404-02041 · 43404-02180 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-02050 · 43247-76010 |
| 43410 | Right front driveshaft assembly | 43410-02D20 · 43410-02D21 · 43410-02D22 · 43410-02D30 · 43410-02D31 · 43410-02D32 · 43410-02D41 · 43410-02D42 · 43410-02D43 · 43410-02G80 · 43410-02G90 |
| 43410M | Front drive shaft right oil seal | 90311-35065 · 90311-35076 · 90311-40038 · 90311-40047 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-01030 · 43425-02510 · 43425-02520 · 43425-02600 · 43425-07040 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-01040 · 43425-02490 · 43425-02640 · 43425-02730 · 43425-0R010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-01040 · 43425-02490 · 43425-02640 · 43425-02730 · 43425-0R010 |
| 43420 | Left front drive shaft assembly | 43420-02G20 · 43420-02G21 · 43420-02G22 · 43420-02G30 · 43420-02G31 · 43420-02G32 · 43420-02G41 · 43420-02G42 · 43420-02G43 · 43420-02L70 · 43420-02L80 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-01030 · 43425-02510 · 43425-02520 · 43425-02600 · 43425-07040 |
| 43420H | Front drive shaft left oil seal | 90311-35075 · 90311-35080 · 90311-50058 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02B00 · 42345-0R080 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02A90 · 42345-0R070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02A90 · 42345-02G30 · 42345-0R070 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02B00 · 42345-02G20 · 42345-0R080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-01060 · 42345-02B00 · 42345-02F40 · 42345-02G20 · 42345-0R080 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02B10 · 42345-02E20 · 42345-02F30 · 42345-02G00 · 42345-06A00 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-01060 · 42345-02B00 · 42345-02F40 · 42345-02G20 · 42345-0R080 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02B10 · 42345-02E20 · 42345-02F30 · 42345-02G00 · 42345-06A00 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-80196 · 43460-8Z010 · 43460-8Z011 · 43460-8Z015 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z822 · 43470-8Z843 · 43470-8Z844 · 43470-8Z854 |
| 43474D | Right front driveshaft shock absorber | 43474-01021 · 43474-02790 · 43474-02850 · 43474-02A40 |
| 43474E | Left front driveshaft shock absorber | 43474-02740 · 43474-02830 · 43474-02A50 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02871 · 42345-02B40 · 42345-02B70 · 42345-02F50 · 42345-02G80 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02A70 · 42345-02G90 · 42345-0R060 |
