Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

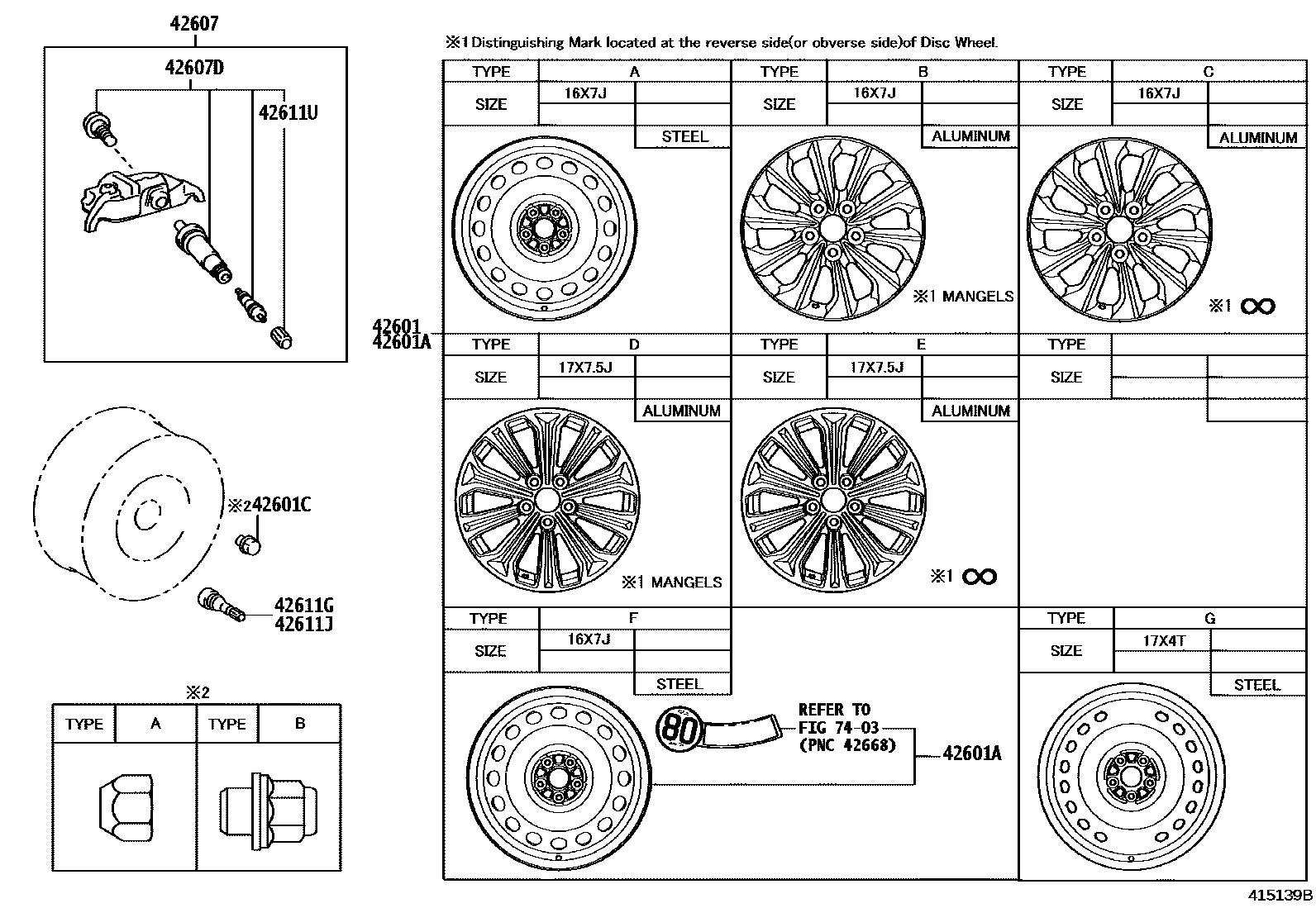

| 42601 | spoke wheel | 42611-02M00 · 42611-02T30 · 42611-02T31 · 42611-02T40 · 42611-02T50 · 42611-02T60 · 42611-02T61 · 42611-02U80 · 42611-02V00 · 42611-02V10 · 42611-02V11 · 42611-02W60 · 42611-02W70 · 42611-02W80 · 42611-02W81 · 42611-02W90 · 42611-02W91 · 42611-02Y60 · 42611-02Y70 · 42611-02Y80 · 42611-02Y90 · 42611-0Z010 · 42611-0Z070 |
| 42601A | Spoke wheel (for spare tire) | 42611-02T40 · 42611-02U90 · 42611-47631 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 |

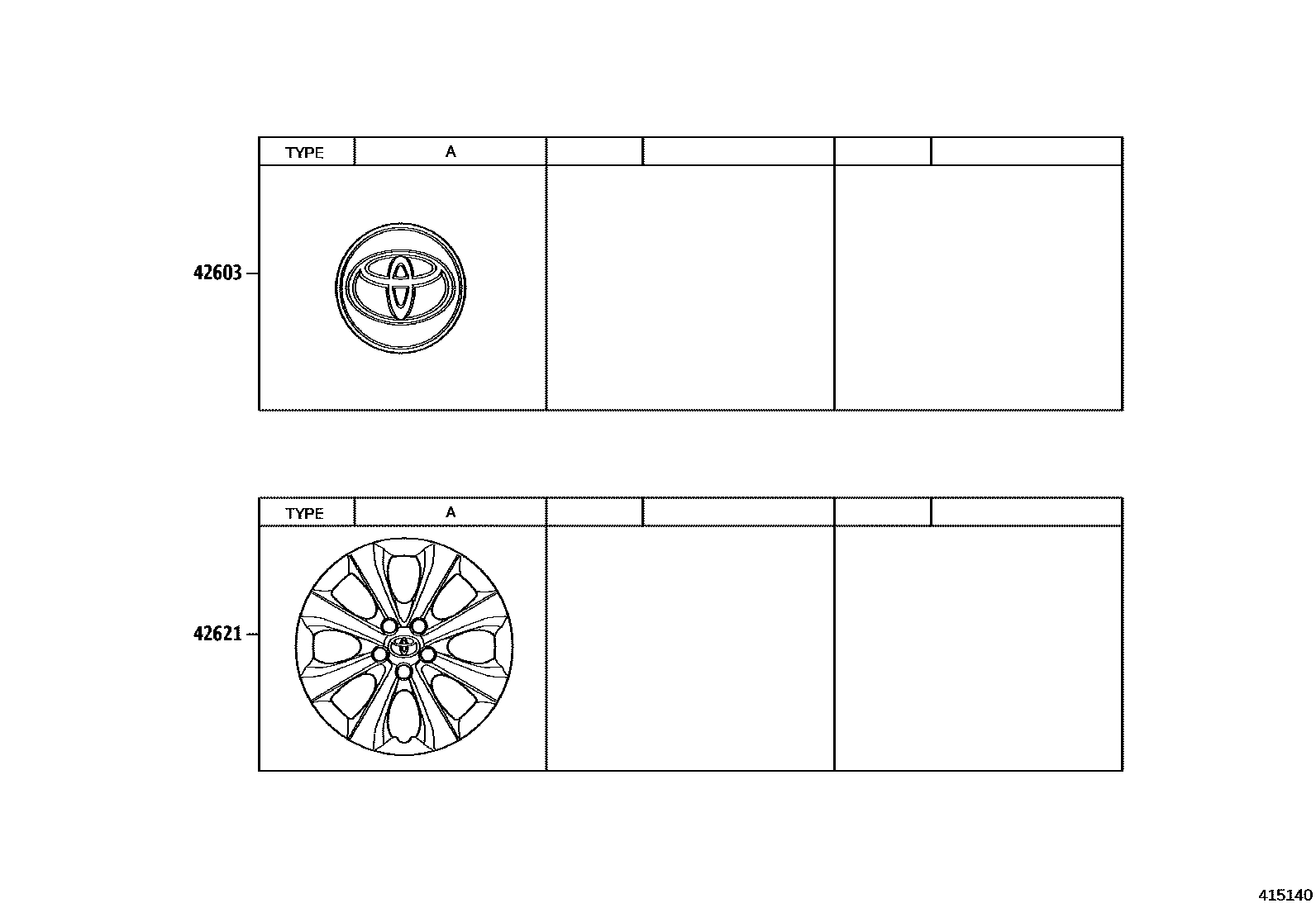

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D230 |
| 42611G | Valve (for tubeless tires) | 90942-05009 · 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5004 |
| 42621 | wheel cover | 42602-02600 |
