Toyota COROLLA 起动机 — Figure 1904

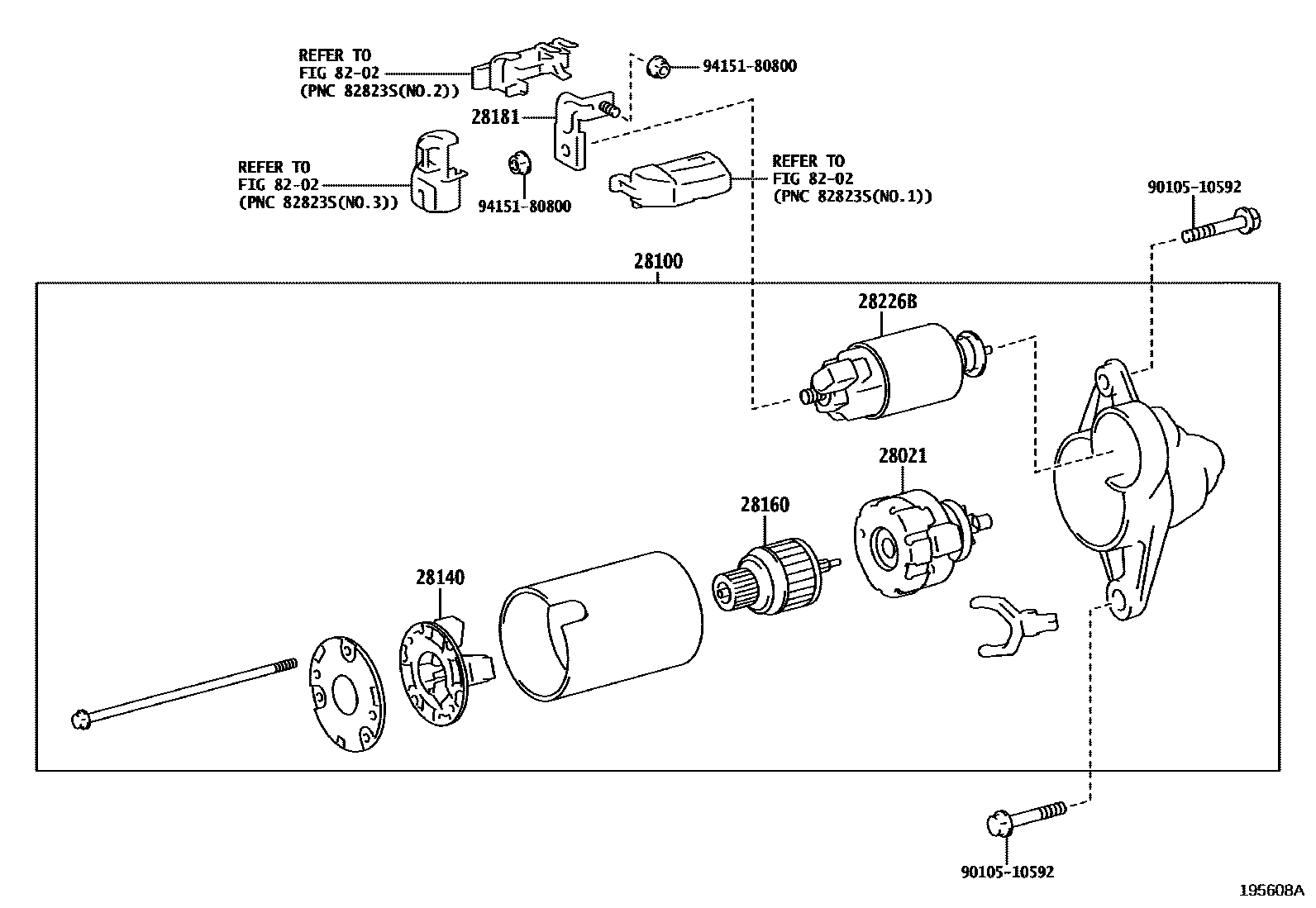

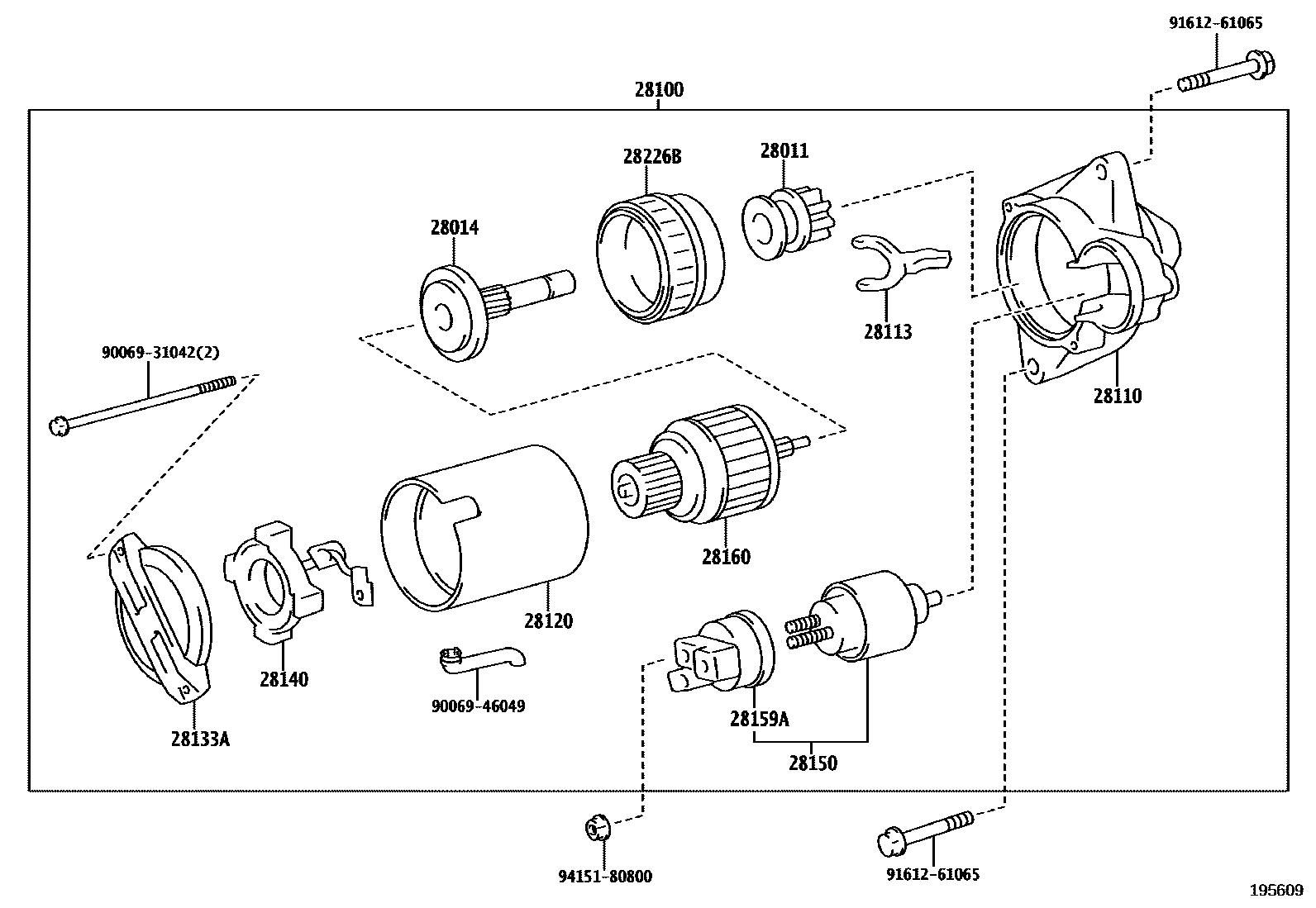

Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0T310 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0T310 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-F2060 |
| 28100 | Starter assembly | 28100-0T310 · 28100-F2060 · 28100-F2160 |
| 28110 | Starter drive end housing assembly | 28110-0T310 |
| 28113 | starter pinion drive rod | 28113-0T310 |
| 28120 | Starter yoke assembly | 28120-0T310 |
| 28133A | Commutator end frame | 28133-0T310 |
| 28140 | Starter brush holder assembly | 28140-0T310 · 28140-0Y210 |
| 28150 | Starter electromagnetic switch assembly | 28150-0T310 |
| 28159A | Electromagnetic switch cover | 28159-0T310 |
| 28160 | Starter armature assembly | 28160-0T310 · 28160-0Y210 · 28160-0Y220 |
| 28181 | starter terminal | 28181-24010 |
| 28226B | starter magnetic switch | 28226-0T310 · 28226-F2060 · 28226-F2160 |
