Toyota COROLLA vacuum tube — Figure 1708

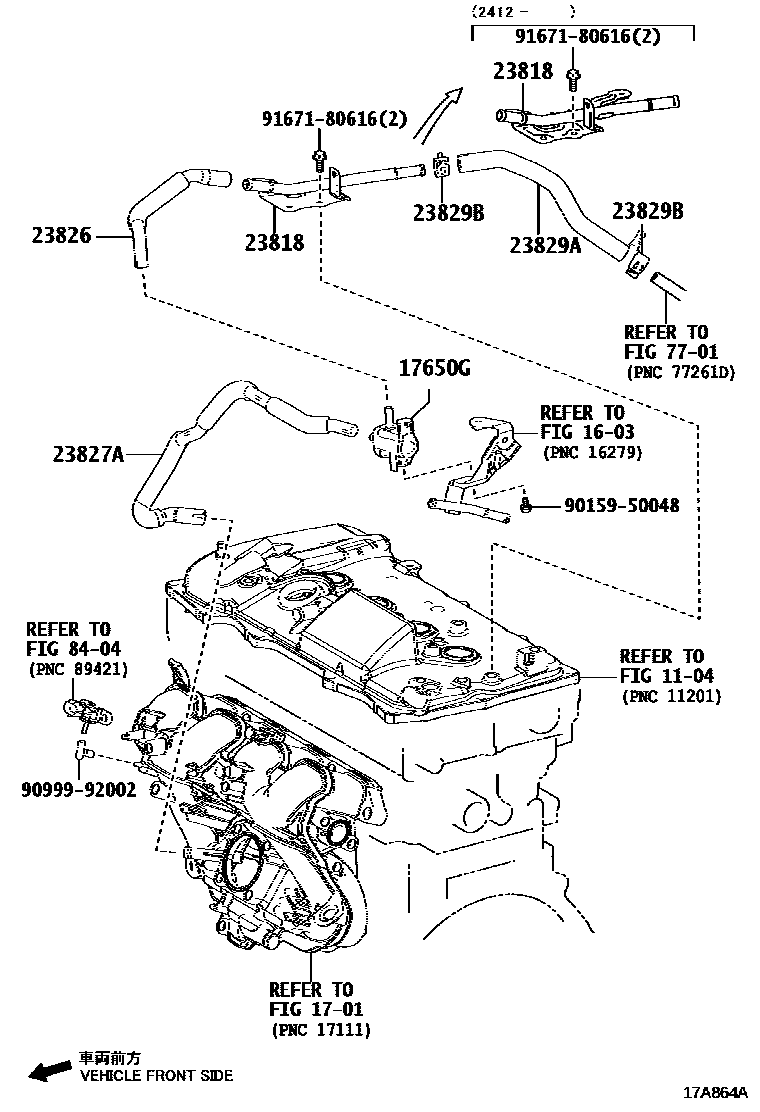

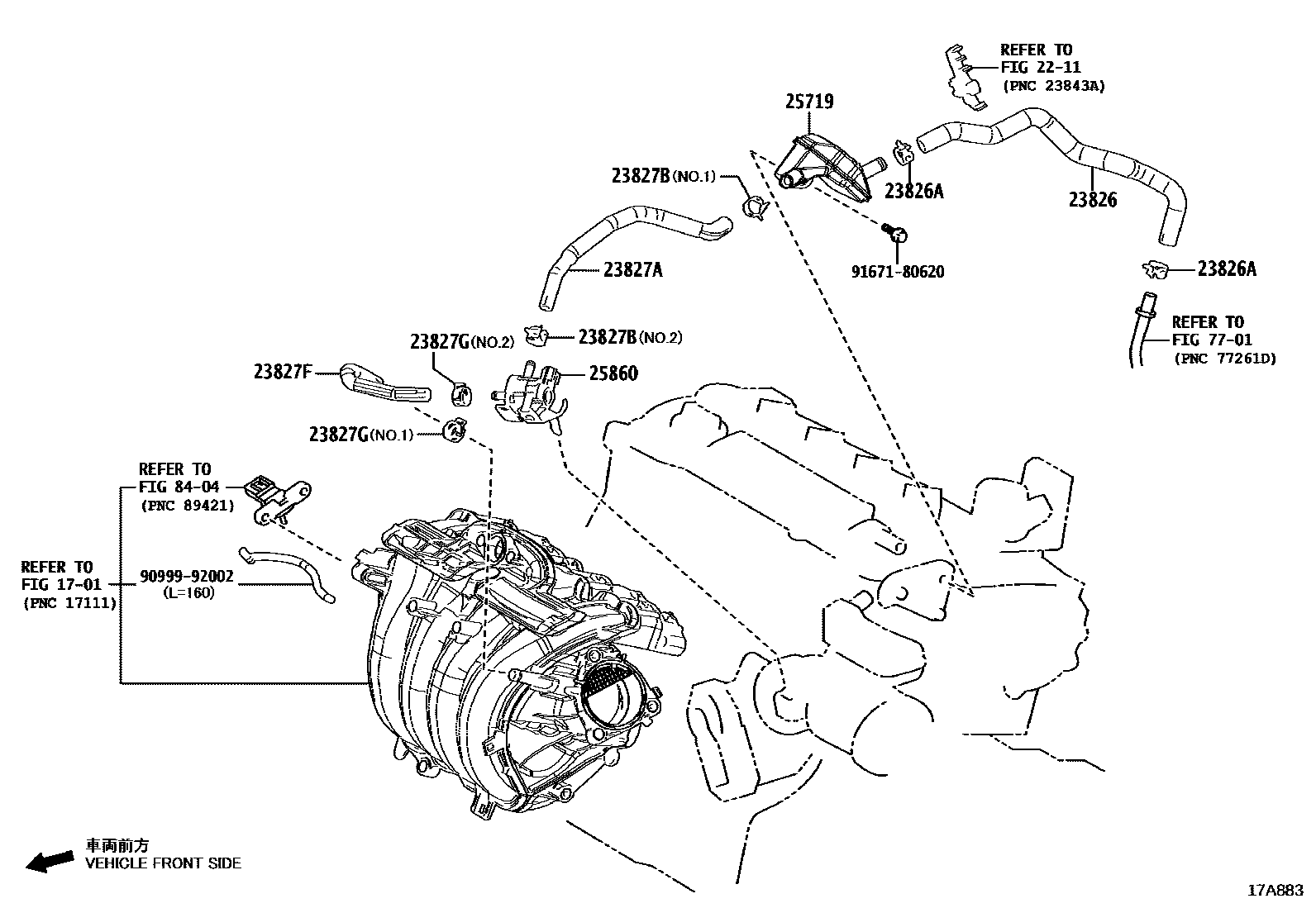

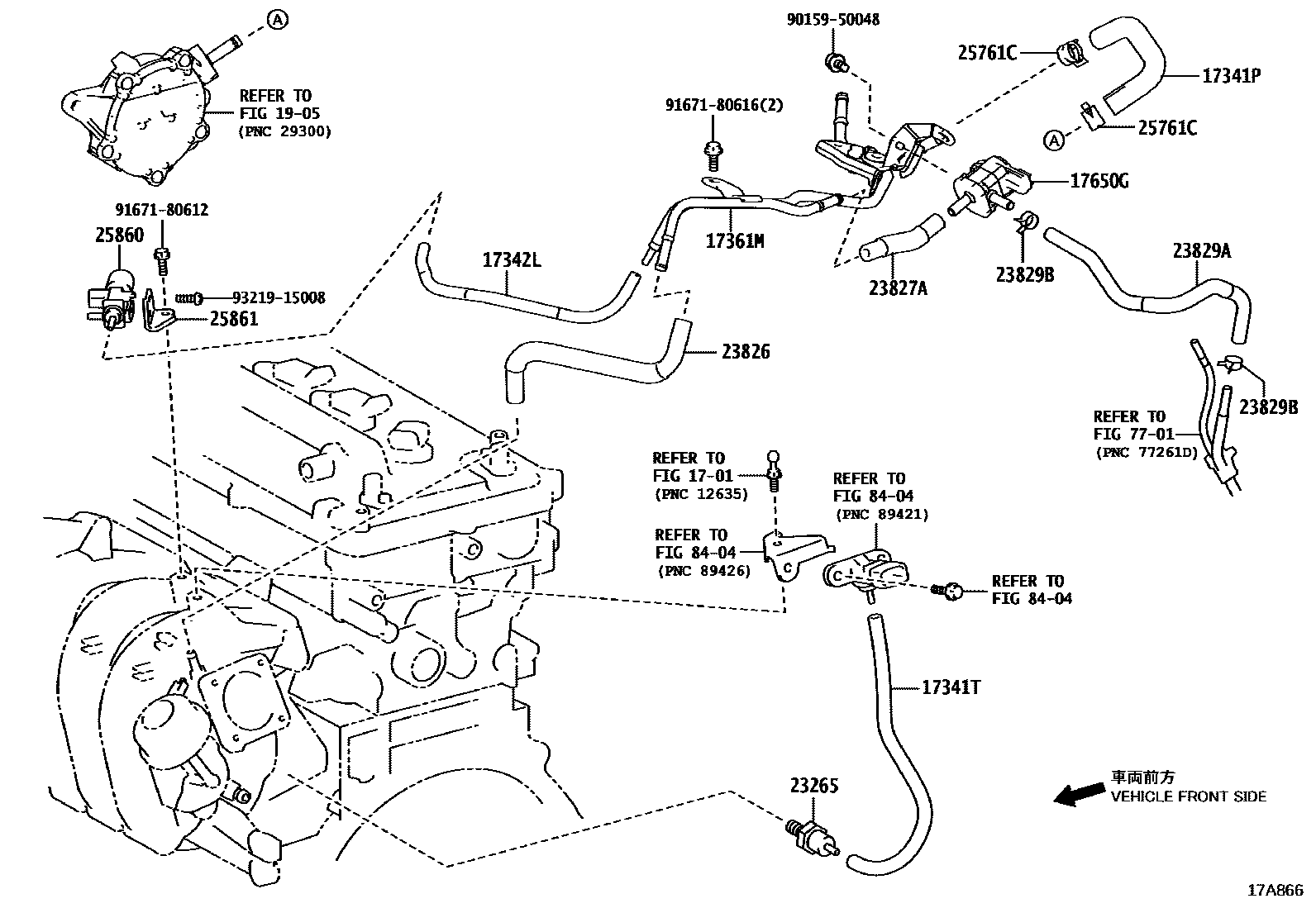

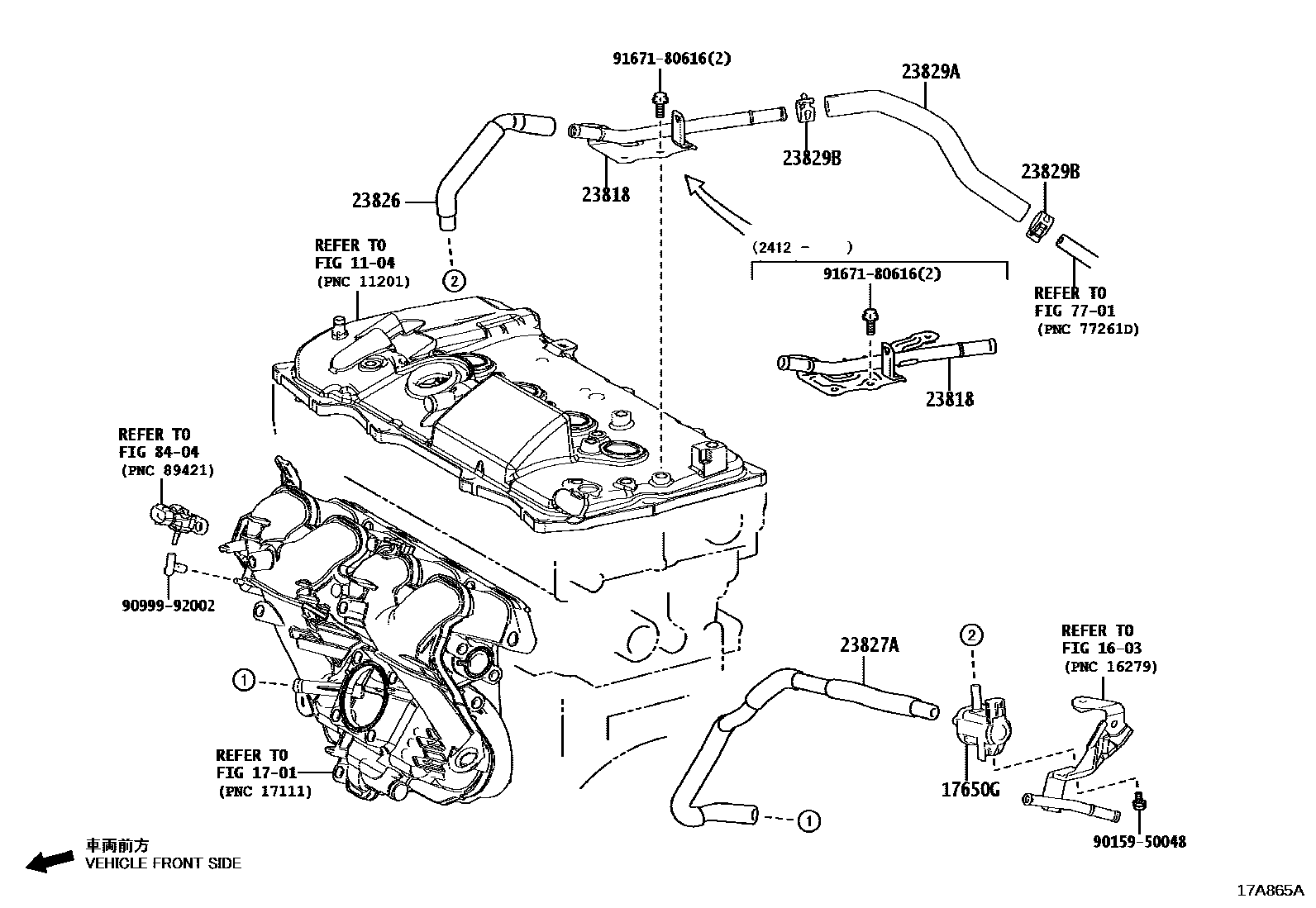

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341P | air hose | 17341-37090 |
| 17341T | Air hose No. 1 | 17341-37060 |
| 17342L | Air hose No. 2 | 17342-37050 |
| 17361M | air tube | 17361-37140 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-12279 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 23818 | Fuel vapor supply pipe | 23818-37030 · 23818-37050 |
| 23826 | No. 1 fuel vapor supply hose | 23826-24030 · 23826-37050 · 23826-37250 · 23826-37310 · 23826-37340 · 23826-37370 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24070 · 23826-24100 · 23827-37030 · 23827-37070 · 23827-37110 · 23827-37130 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-41801 · 96136-41901 · 96138-41501 |
| 23827F | No. 3 fuel vapor supply hose | 23826-24080 · 23826-24110 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 96136-41801 · 96136-41901 · 96138-41501 |
| 23829A | Fuel vapor supply hose | 23826-0T410 · 23826-37241 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41901 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24040 · 25860-24050 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
