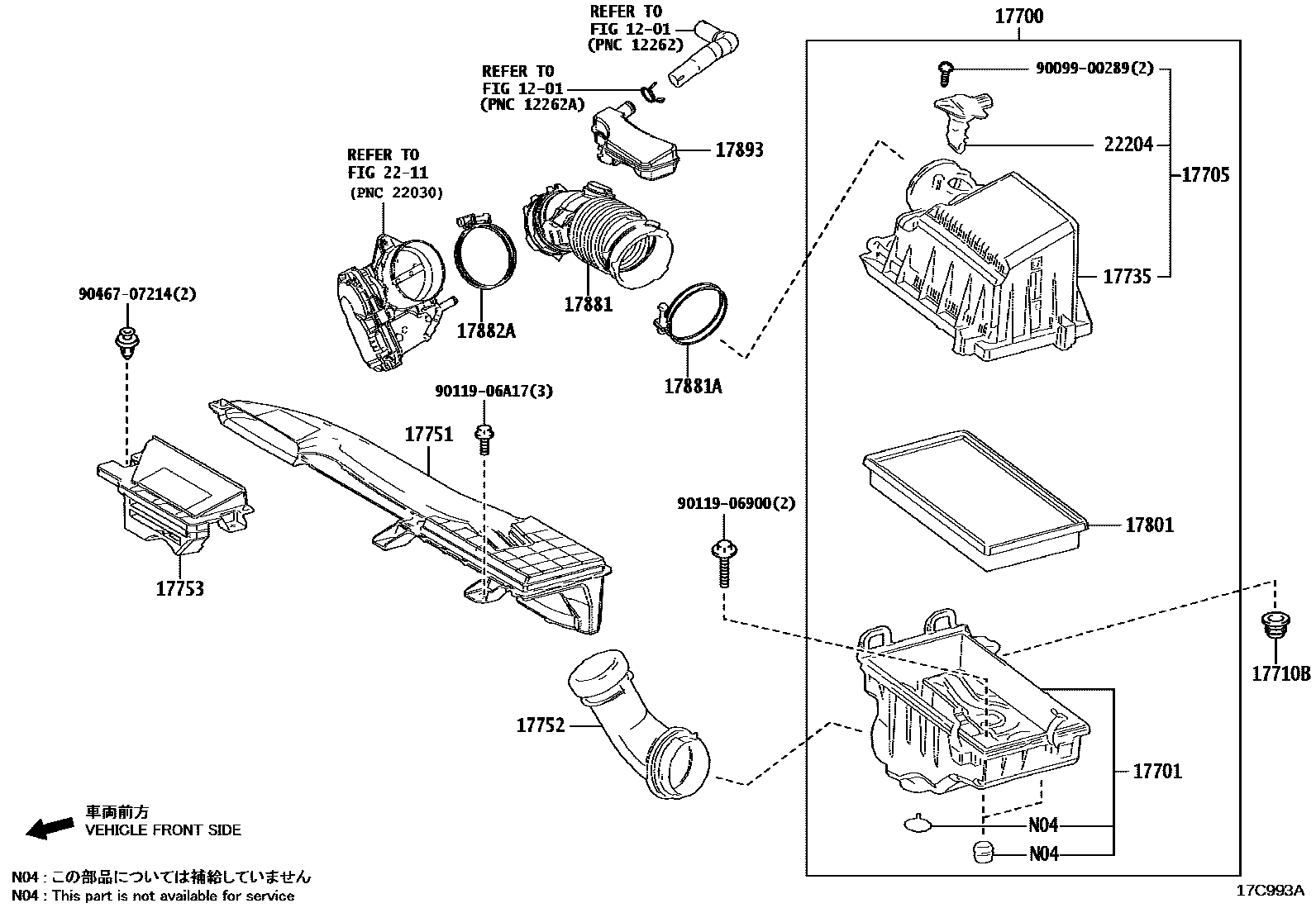

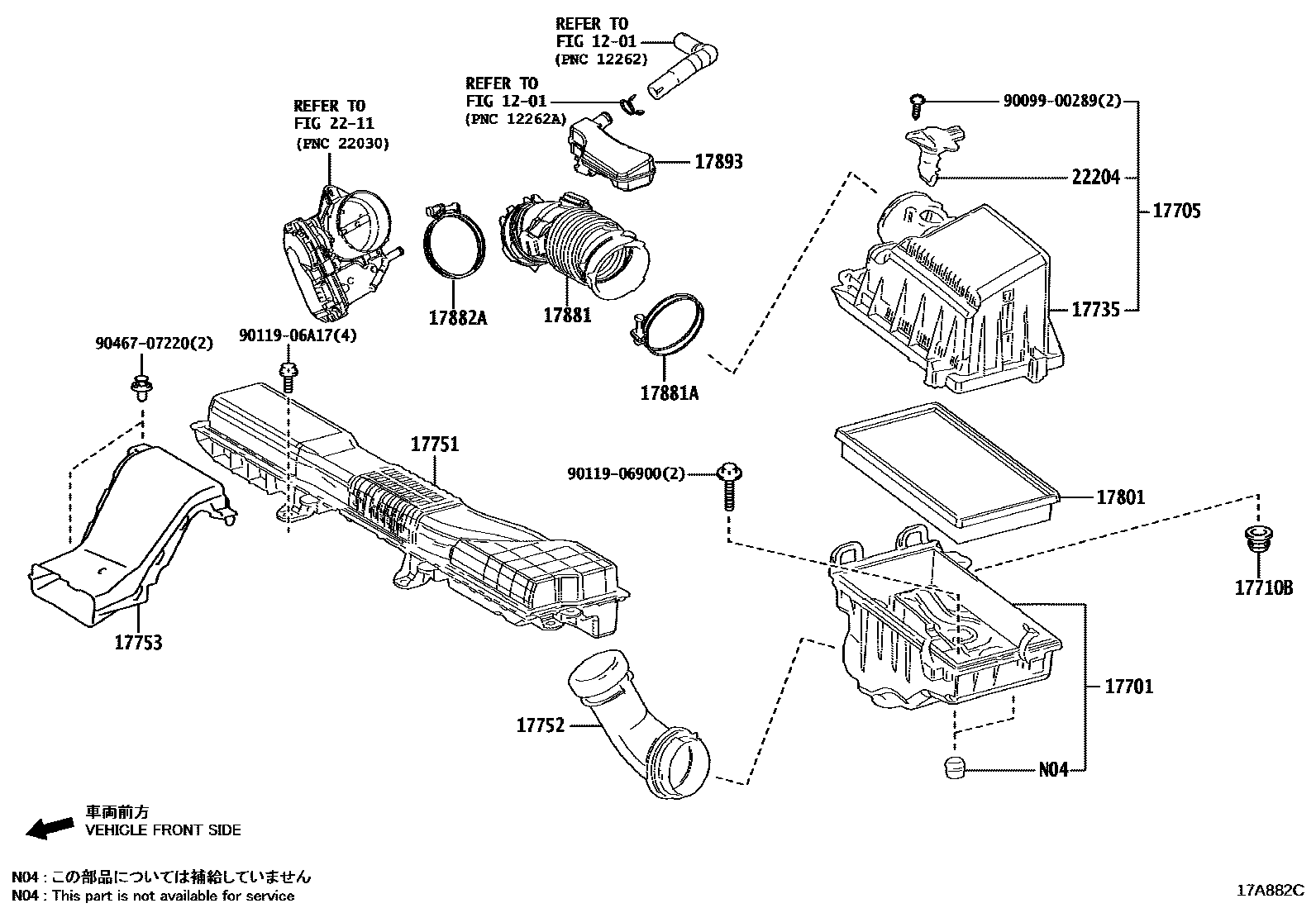

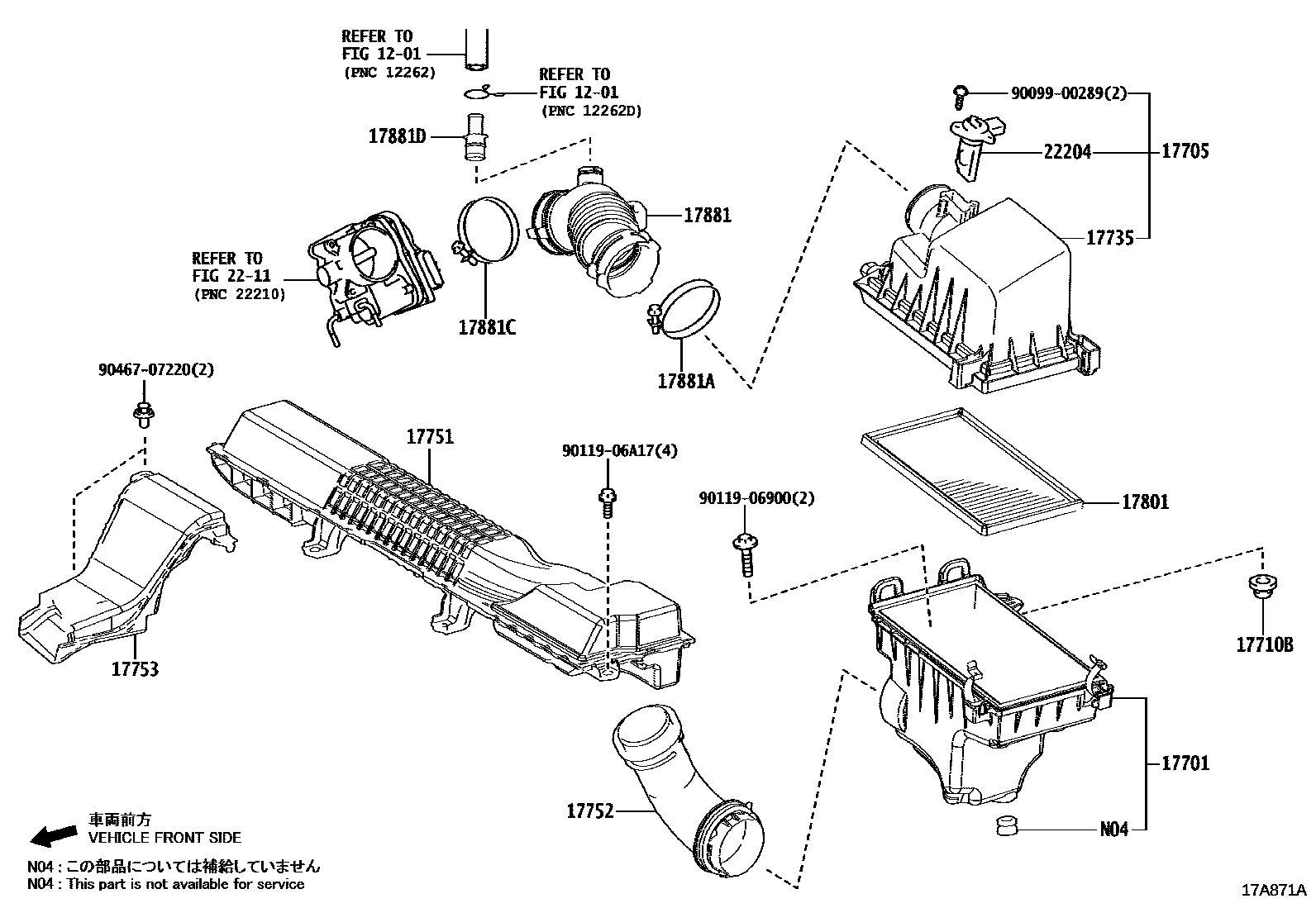

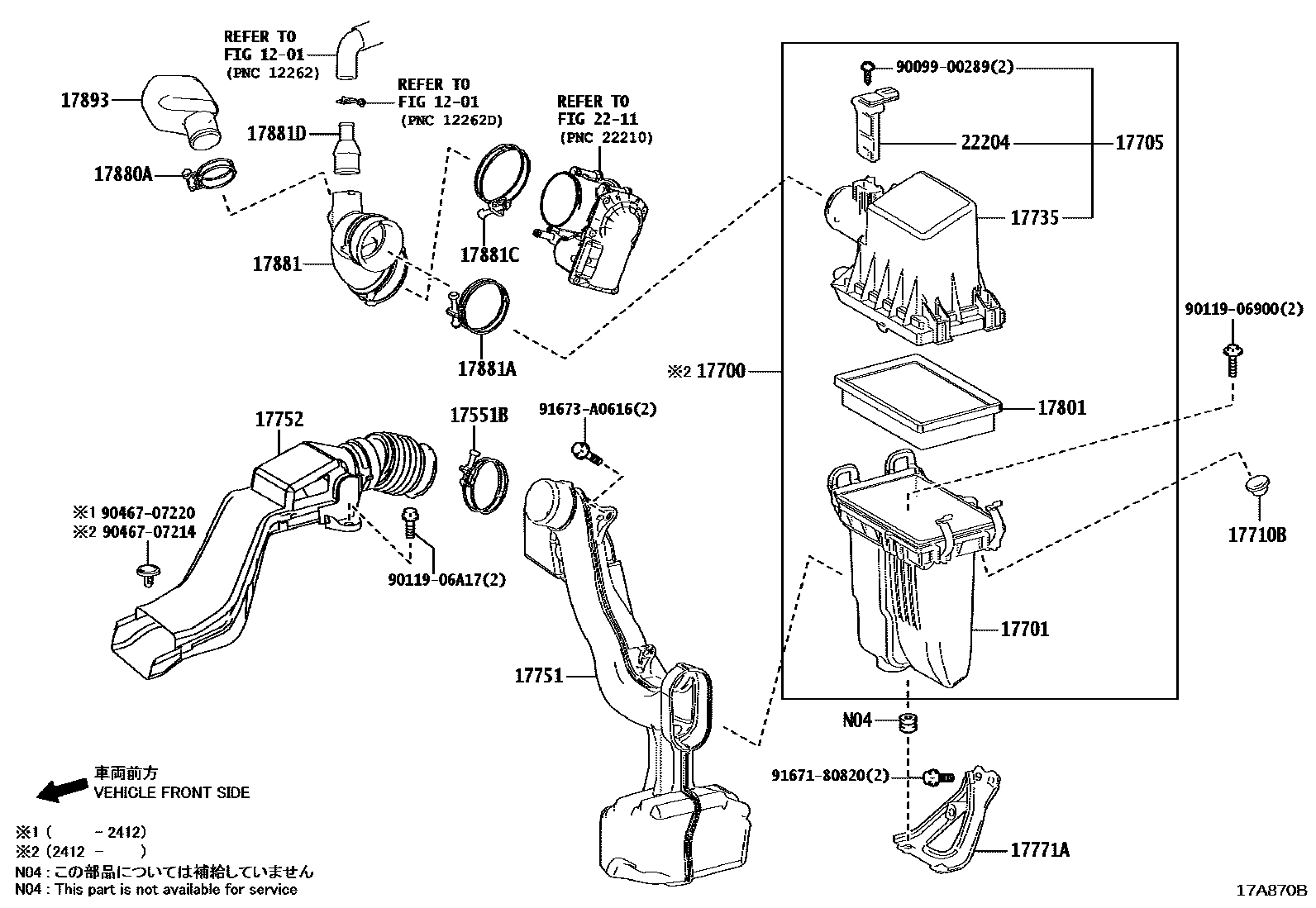

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17551B | Clip (for No. 1 air cleaner air inlet) | 96111-10650 |
| 17700 | air filter assembly | 17700-37330 · 17700-F2090 |
| 17701 | Air filter housing sub-assembly | 17701-37230 · 17701-47080 · 17701-F2060 |
| 17705 | Air filter cover sub-assembly | 17705-37100 · 17705-37240 · 17705-F2080 |
| 17710B | gasket | 90480-18006 |
| 17735 | air filter cover | 17735-37030 · 17735-37090 · 17735-F2060 |
| 17751 | No. 1 air filter air inlet | 17751-0T250 · 17751-24010 · 17751-24050 · 17751-37150 |
| 17752 | No. 2 air filter air inlet | 17752-0T132 · 17752-24050 · 17752-47020 |
| 17753 | No. 3 air filter air inlet | 17753-0T090 · 17753-24030 |
| 17771A | air filter bracket | 17771-37020 |
| 17801 | Air filter element sub-assembly | 17801-21060 · 17801-77050 · 17801-F0020 · 17801-F0030 |
| 17880A | hose clamp | 96111-10430 |
| 17881 | No. 1 air cleaner hose | 17881-0T570 · 17881-24050 · 17881-37330 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10780 · 96111-10850 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 12229-0Y030 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 17893 | Intake resonator | 17893-24020 · 17893-37130 |
| 22204 | Intake air flow meter assembly | 22204-75030 · 22204-75040 |
