Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.

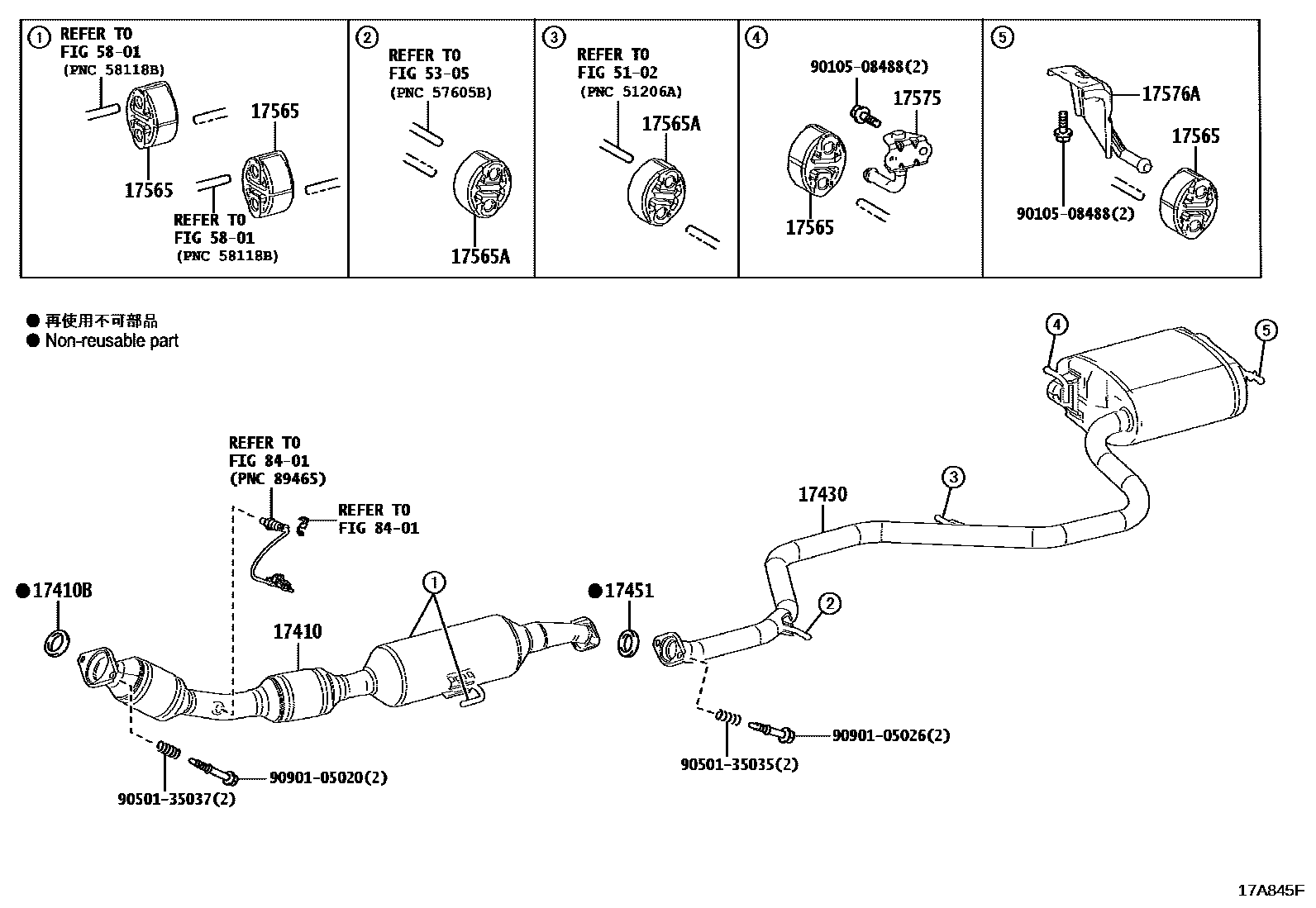

Toyota COROLLA Exhaust Pipe EPC diagram — 17A845F — Exhaust Pipe — 17A845F (201909 – 999999)

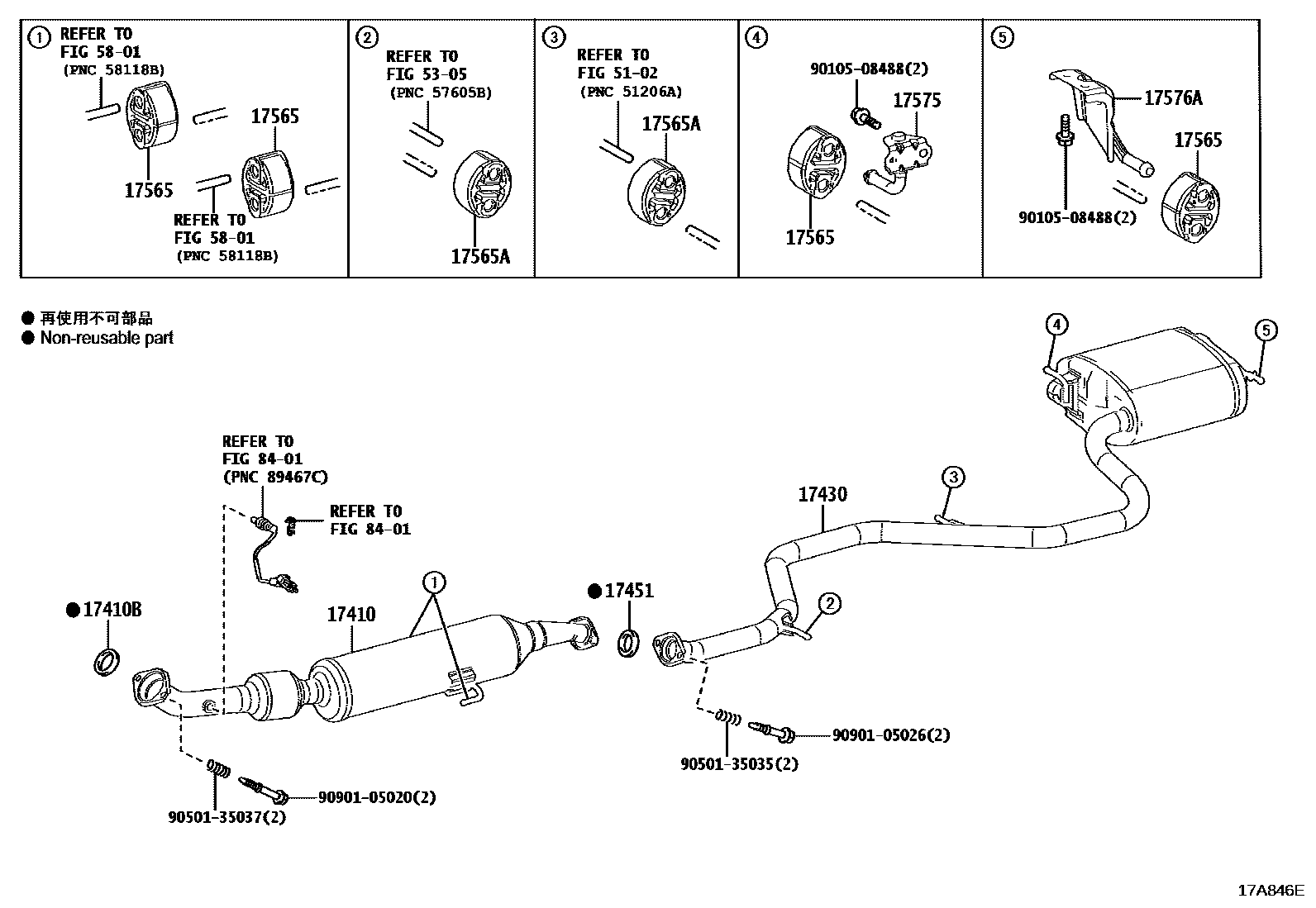

Toyota COROLLA Exhaust Pipe EPC diagram — 17A846E — Exhaust Pipe — 17A846E (201909 – 999999)

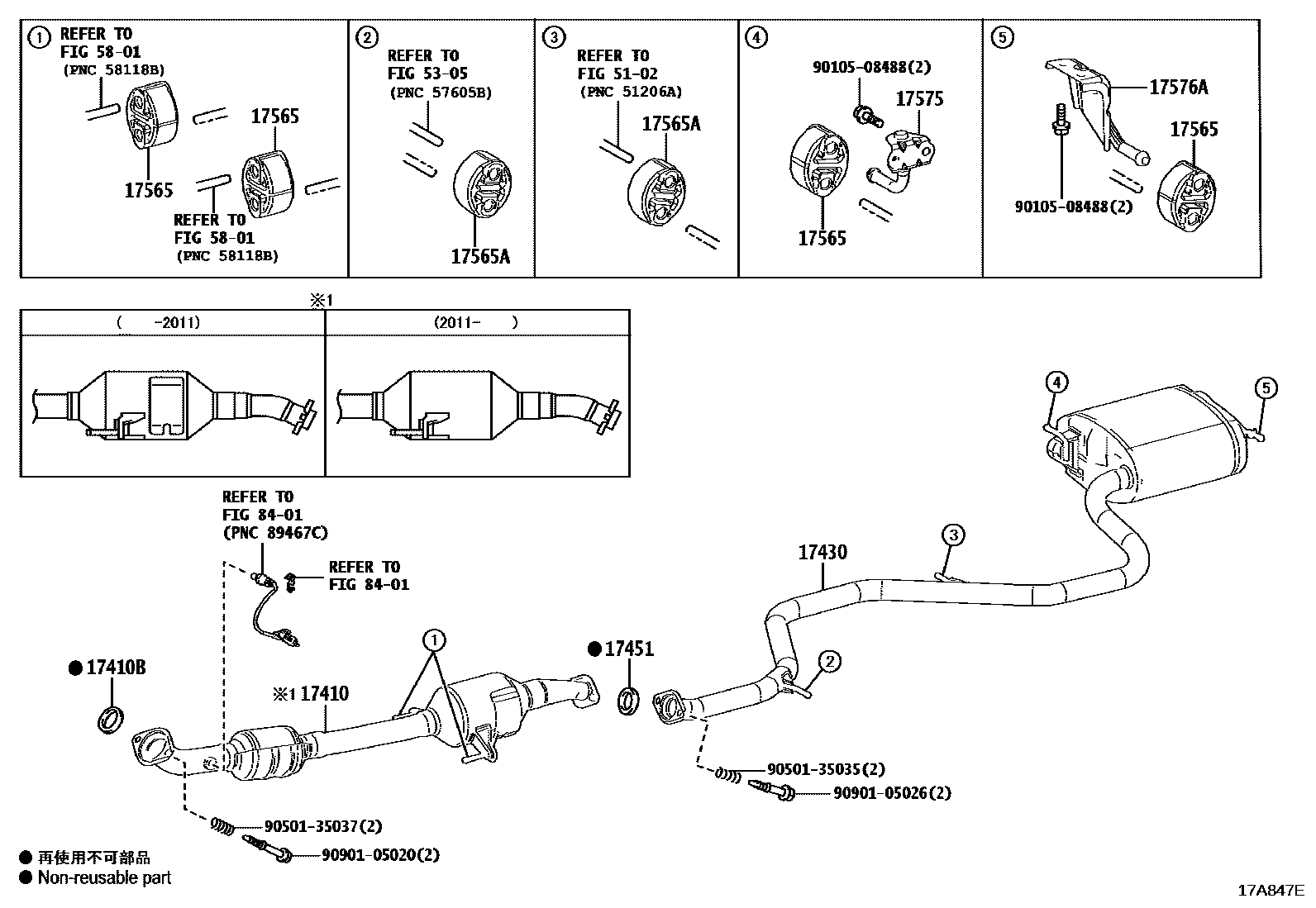

Toyota COROLLA Exhaust Pipe EPC diagram — 17A847E — Exhaust Pipe — 17A847E (201909 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0TE61 · 17410-0TF11 · 17410-0TF12 · 17410-0TK80 · 17410-0TM00 · 17410-F2121 · 17410-F2131 · 17410-F2210 · 17410-F2230 · 17410-F2360 · 17410-F2370
17410B	Exhaust pipe gasket	17451-24010 · 17451-28040 · 17451-28041
17430	Exhaust tailpipe assembly	17430-0T621 · 17430-0T631 · 17430-F2081 · 17430-F2091
17451	Exhaust pipe gasket	17451-23042 · 17451-23043 · 17451-24020
17565	No. 5 exhaust pipe lifting lug	17565-0T080
17565A	No. 4 exhaust pipe lifting lug	17565-0L090
17575	No. 5 exhaust pipe bracket	17575-F2040
17576A	No. 6 exhaust pipe bracket	17576-F2020
