Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 6 PNC and OE references.

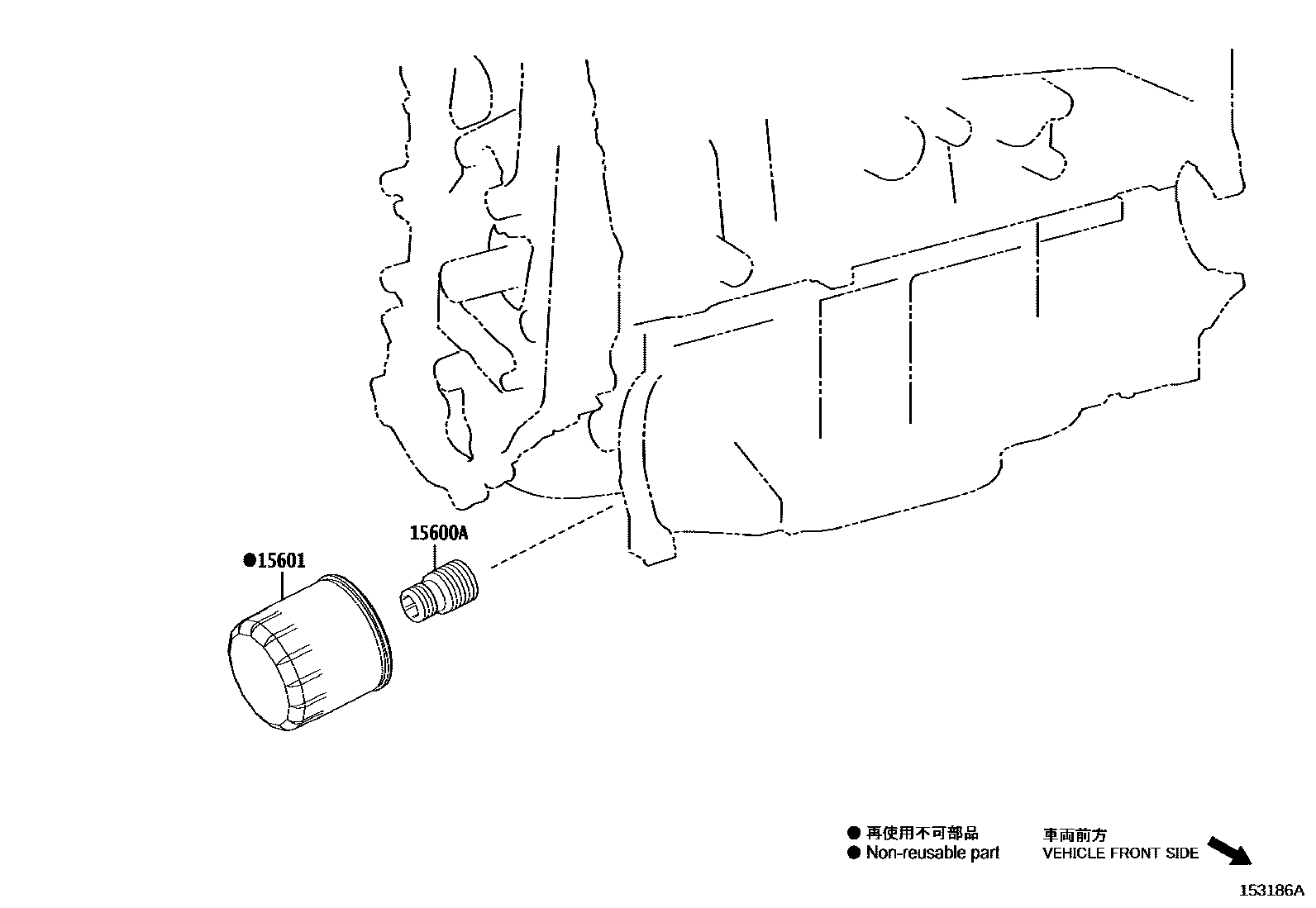

Toyota COROLLA Oil Filter EPC diagram — 153186A
Oil Filter — 153186A (201909 – 999999)

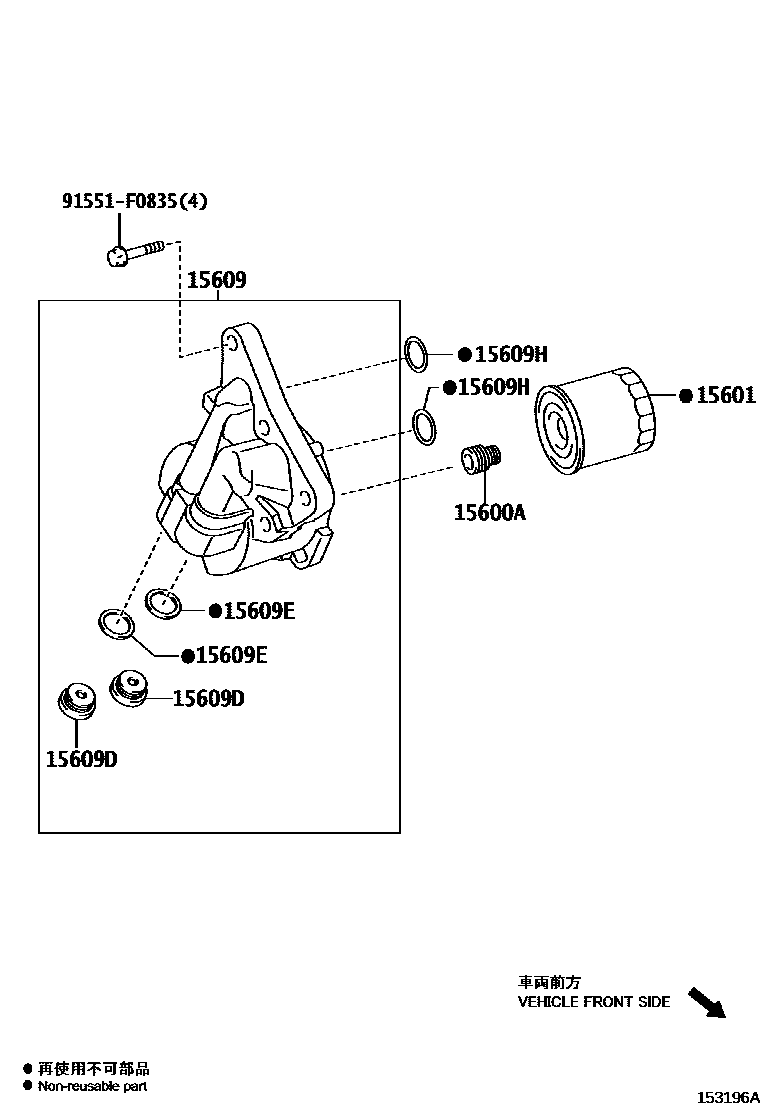

Toyota COROLLA Oil Filter EPC diagram — 153196A
Oil Filter — 153196A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009
15609Oil filter bracket sub-assembly15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)96723-24020
