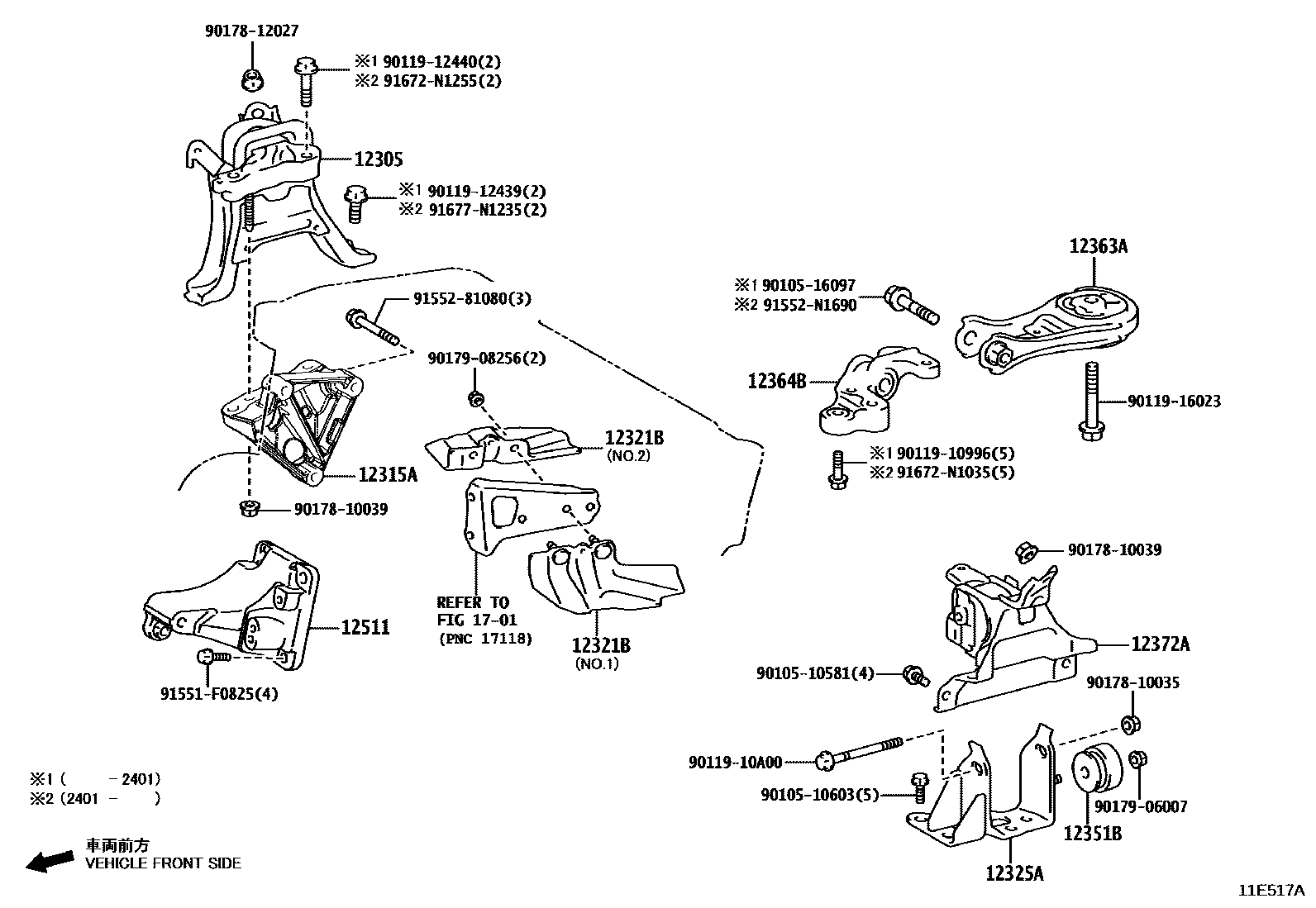

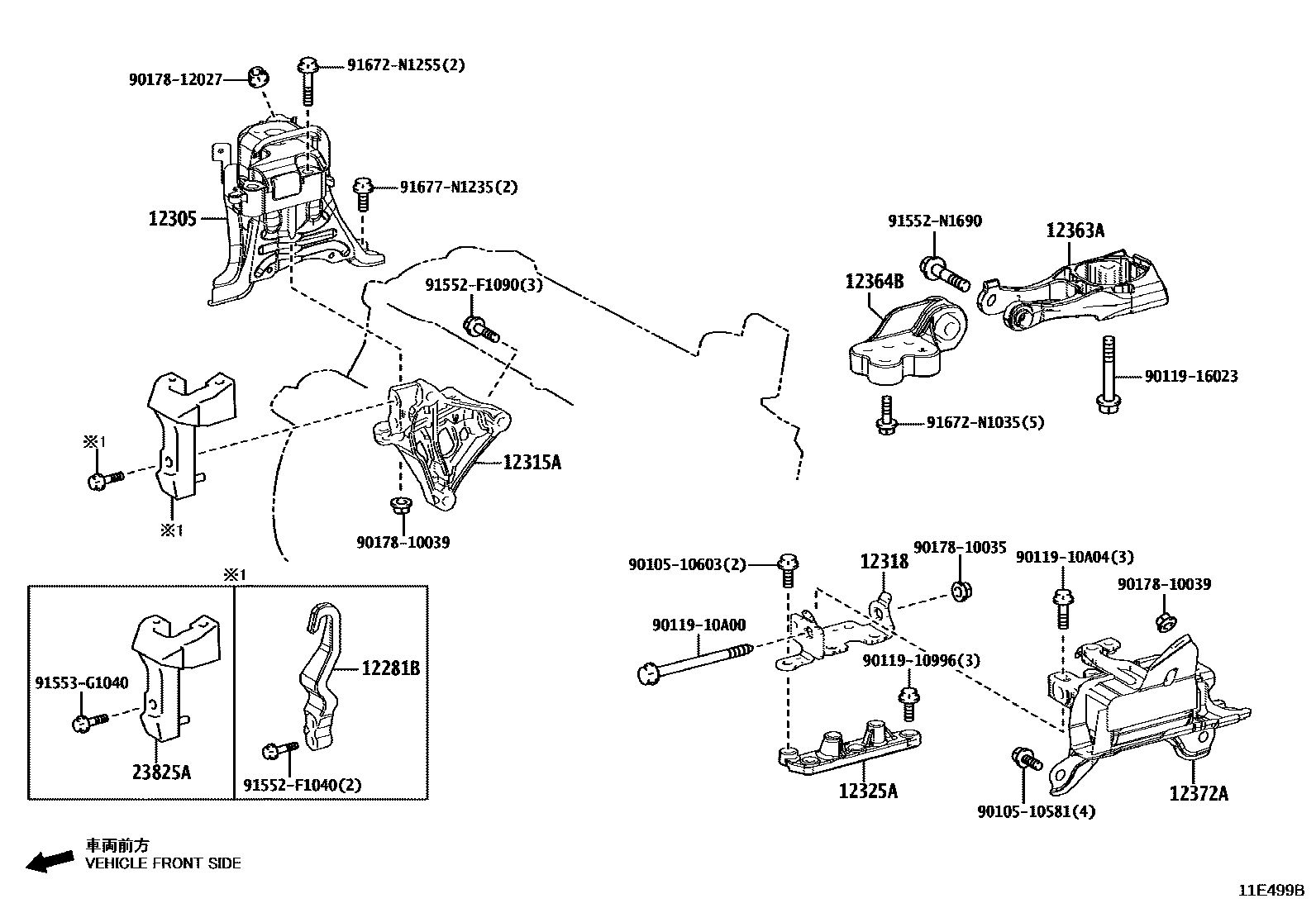

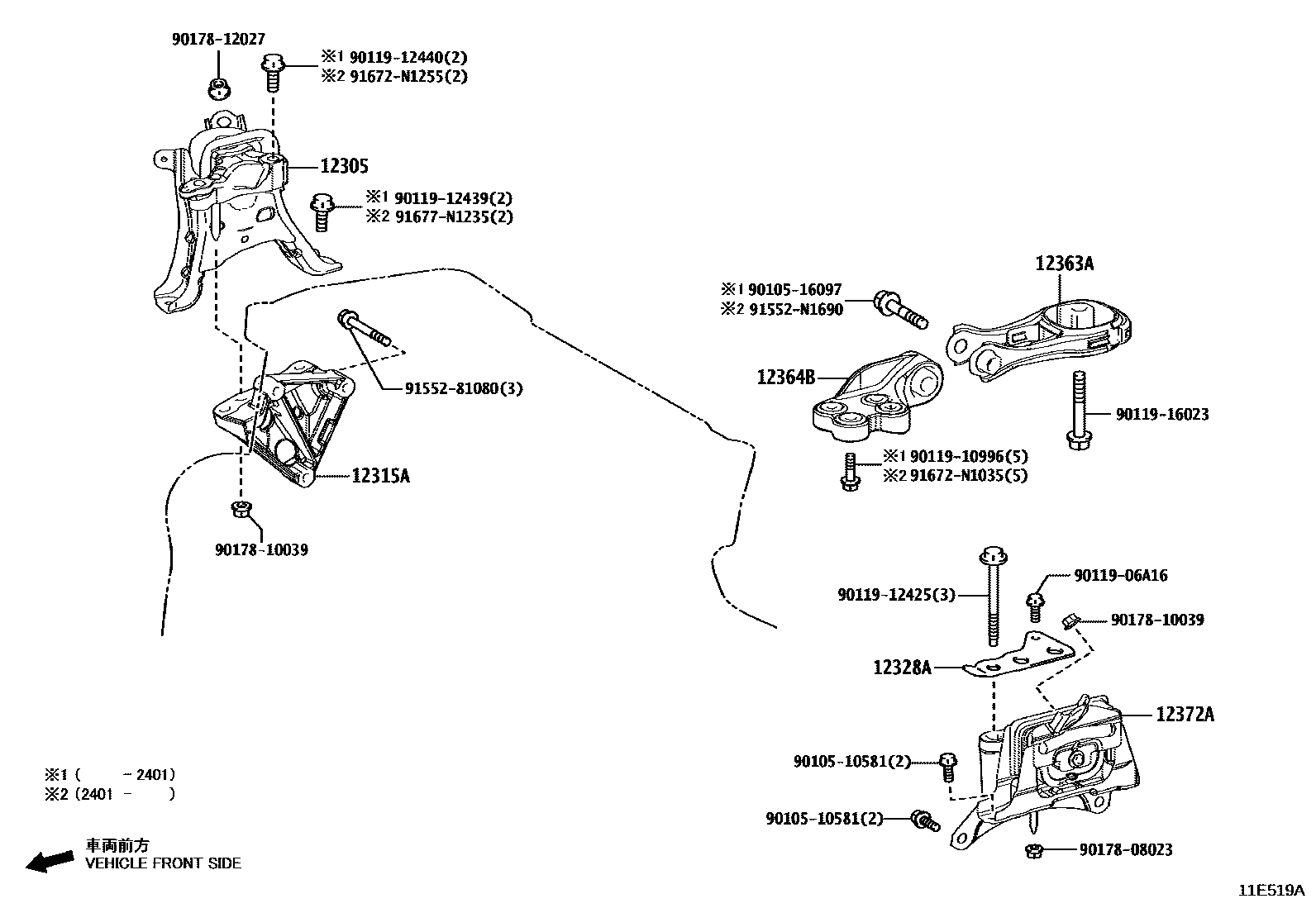

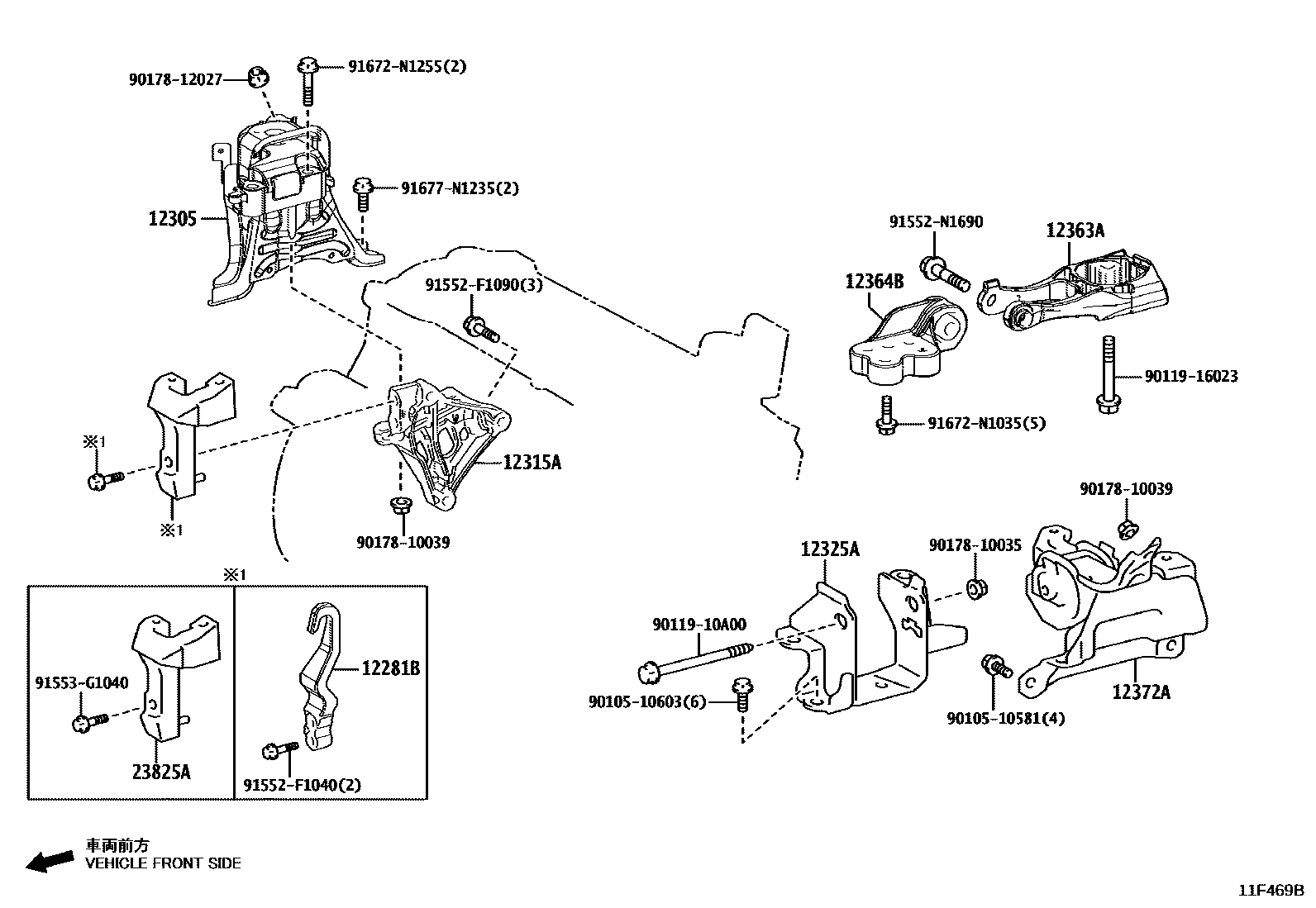

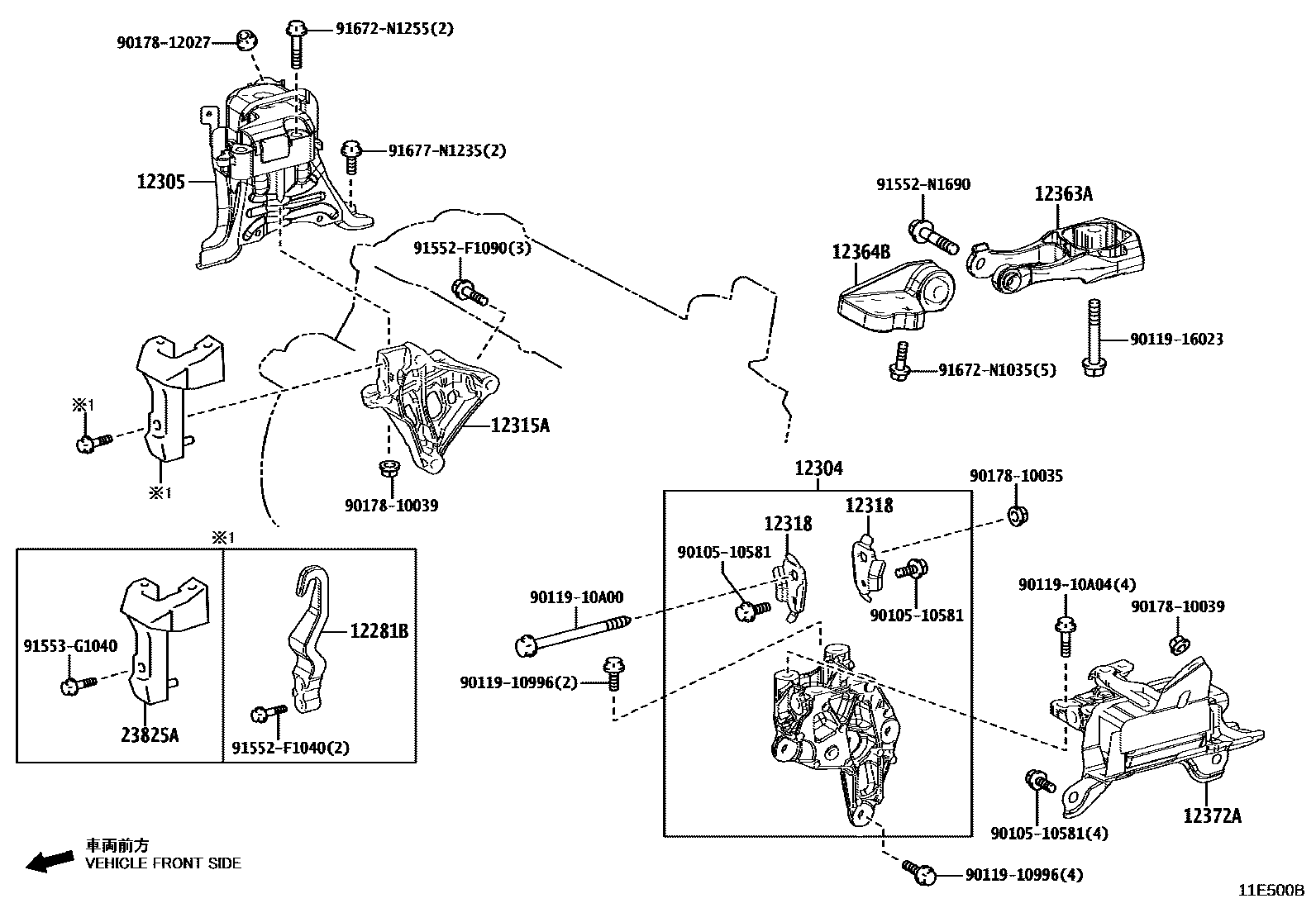

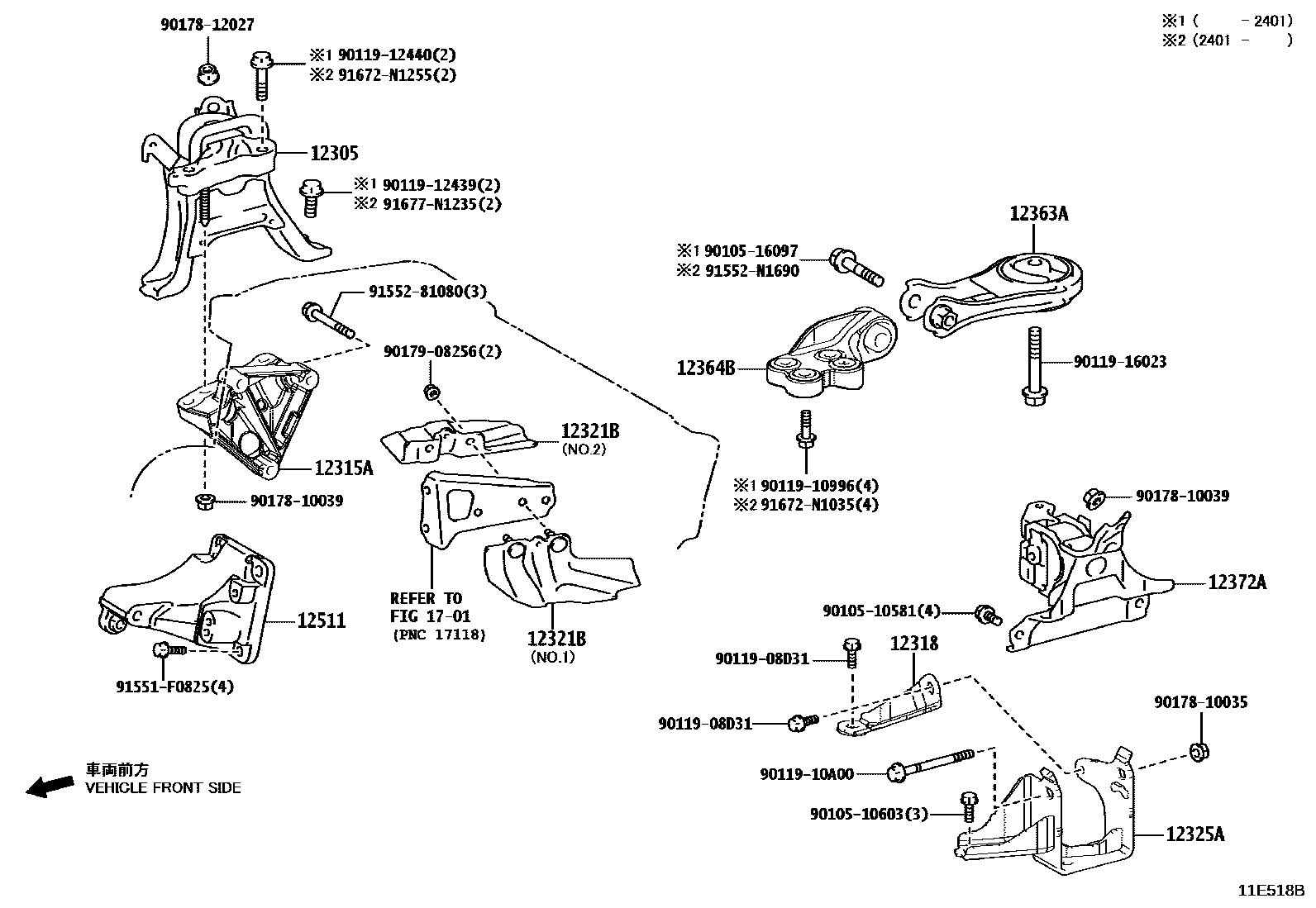

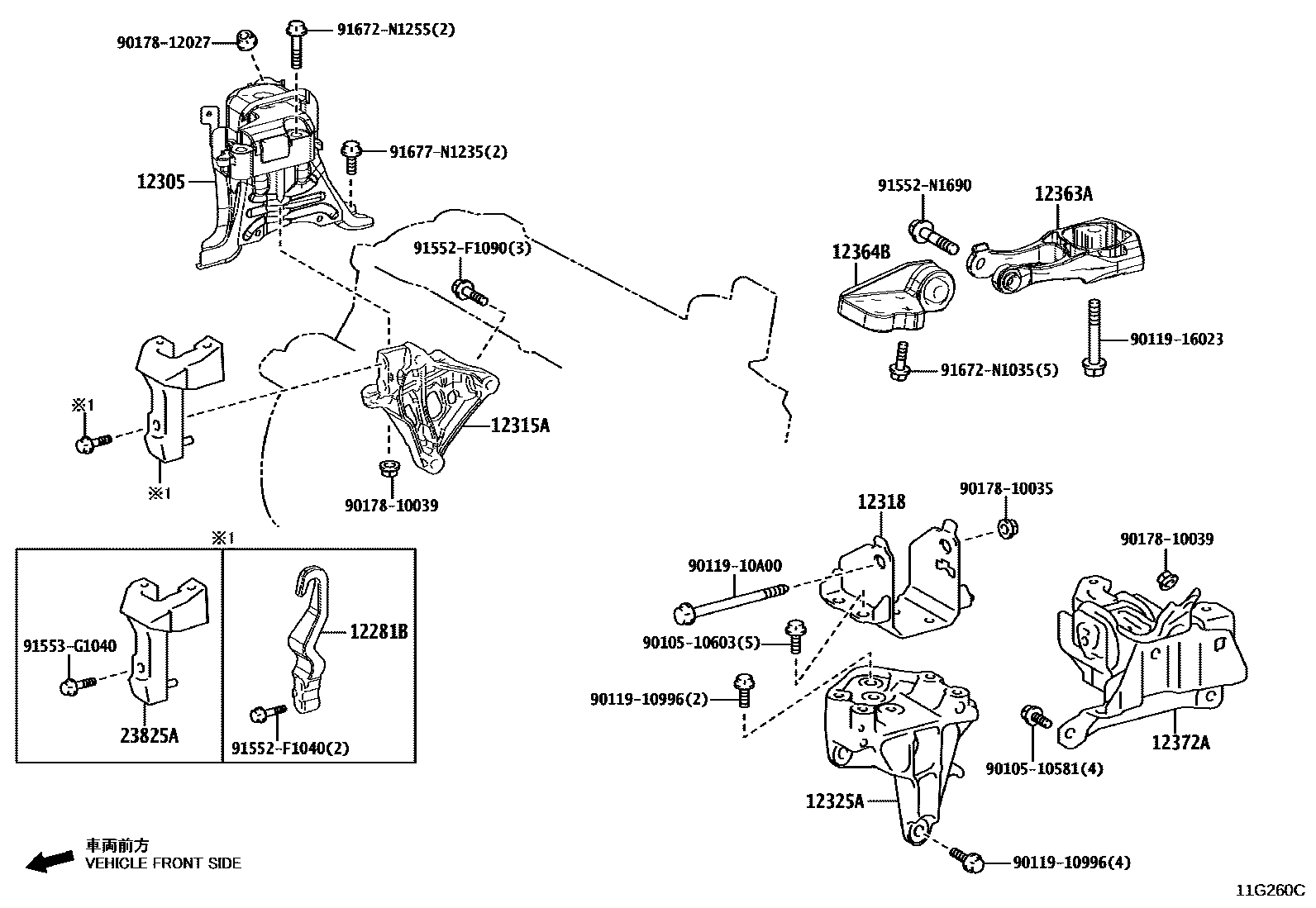

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 7 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 |
| 12304 | Engine left mounting bracket sub-assembly | 12304-24030 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-24010 · 12305-37341 · 12305-37342 · 12305-37390 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37060 · 12315-F2020 |
| 12318 | Engine left mounting bracket | 12318-0T050 · 12318-24030 · 12318-24040 · 12318-F2050 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-24020 · 12325-24050 · 12325-47140 · 12325-47150 · 12325-F2100 |
| 12328A | Engine No. 2 left side mounting bracket | 12328-37010 |
| 12351B | engine mount shock absorber | 12351-37070 |
| 12363A | Engine movement control lever | 12363-24010 · 12363-24011 · 12363-37031 · 12363-37032 · 12363-37040 · 12363-47101 · 12363-F2040 |
| 12364B | Engine No. 2 motion control lever | 12364-24010 · 12364-37040 · 12364-37060 · 12364-F2040 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T610 · 12372-0T620 · 12372-24010 · 12372-24021 · 12372-24070 · 12372-37313 · 12372-F2070 · 12372-F2120 · 12372-F2121 |
| 12511 | No. 1 generator bracket | 12511-37010 |
| 23825A | Oil pipeline anti-collision parts | 23825-24010 |
