Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

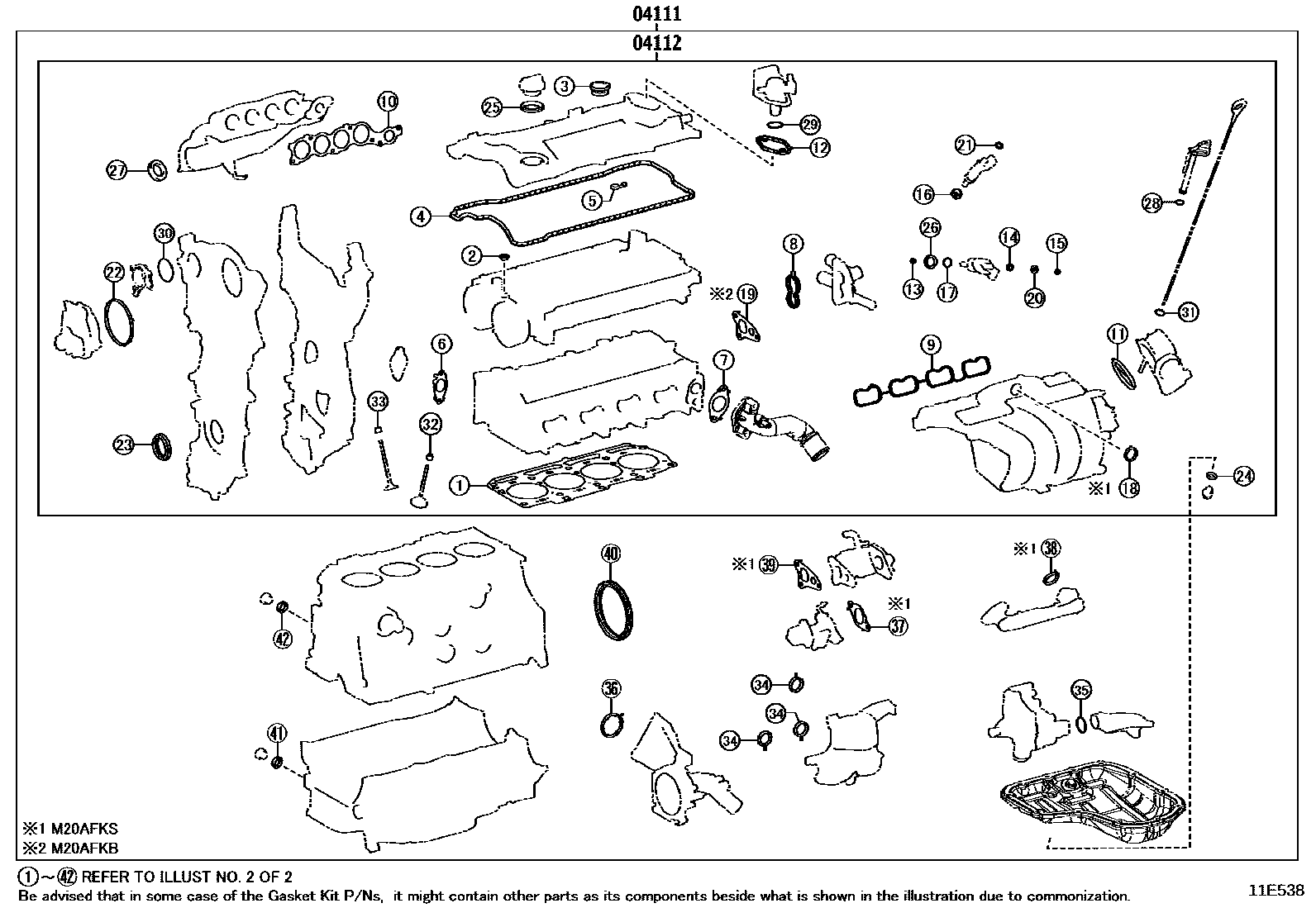

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E538
Engine Overhaul Gasket Kit — 11E538 (201909 – 999999)

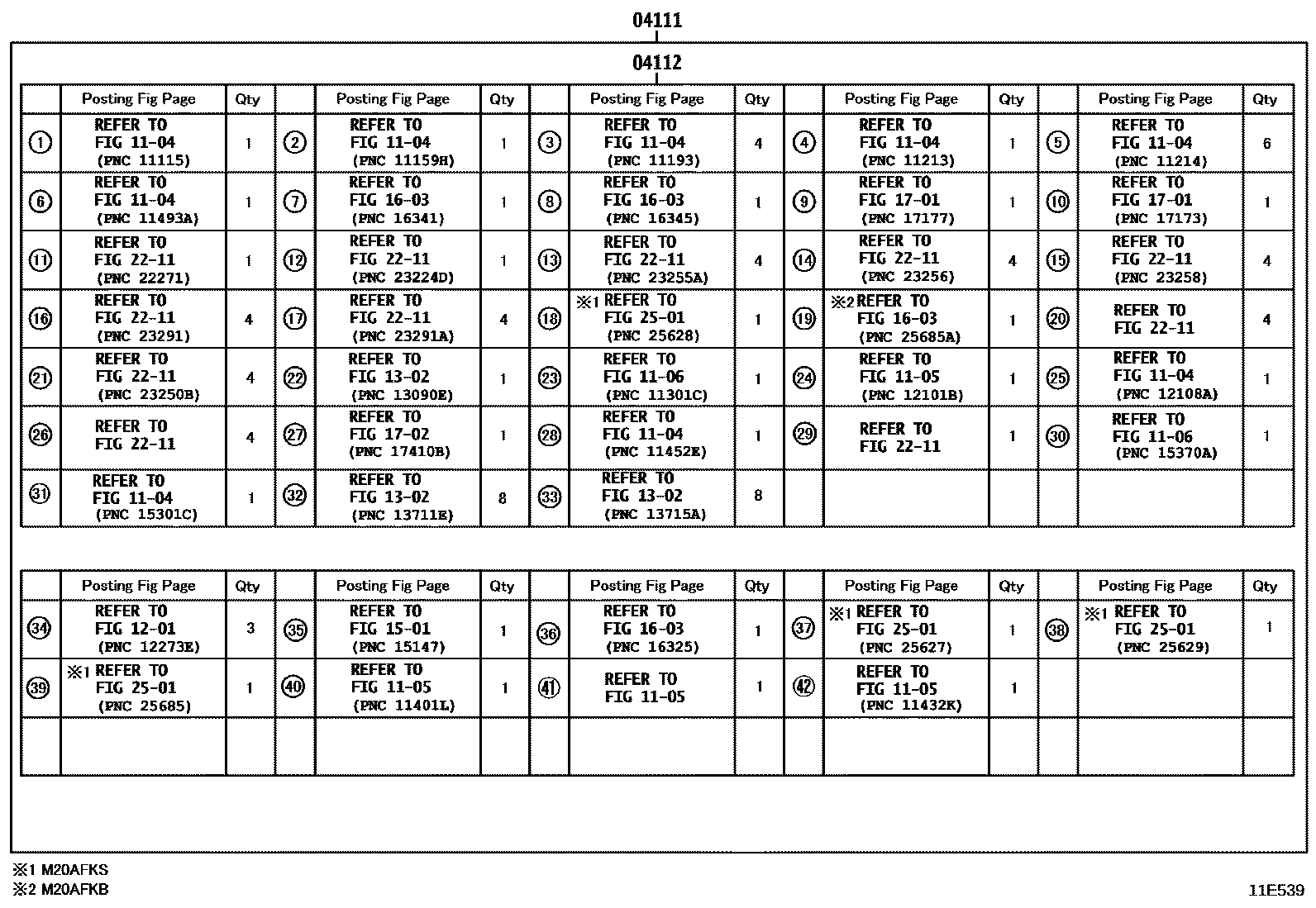

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E539
Engine Overhaul Gasket Kit — 11E539 (201909 – 999999)

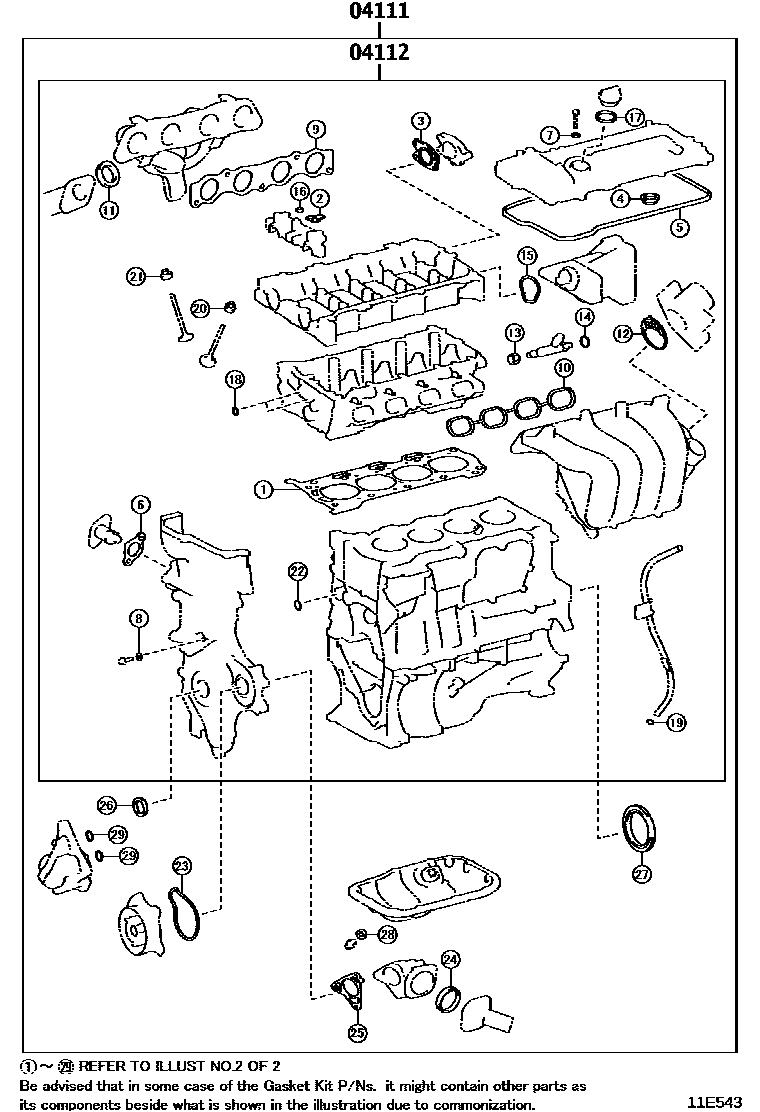

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E543
Engine Overhaul Gasket Kit — 11E543 (201909 – 999999)

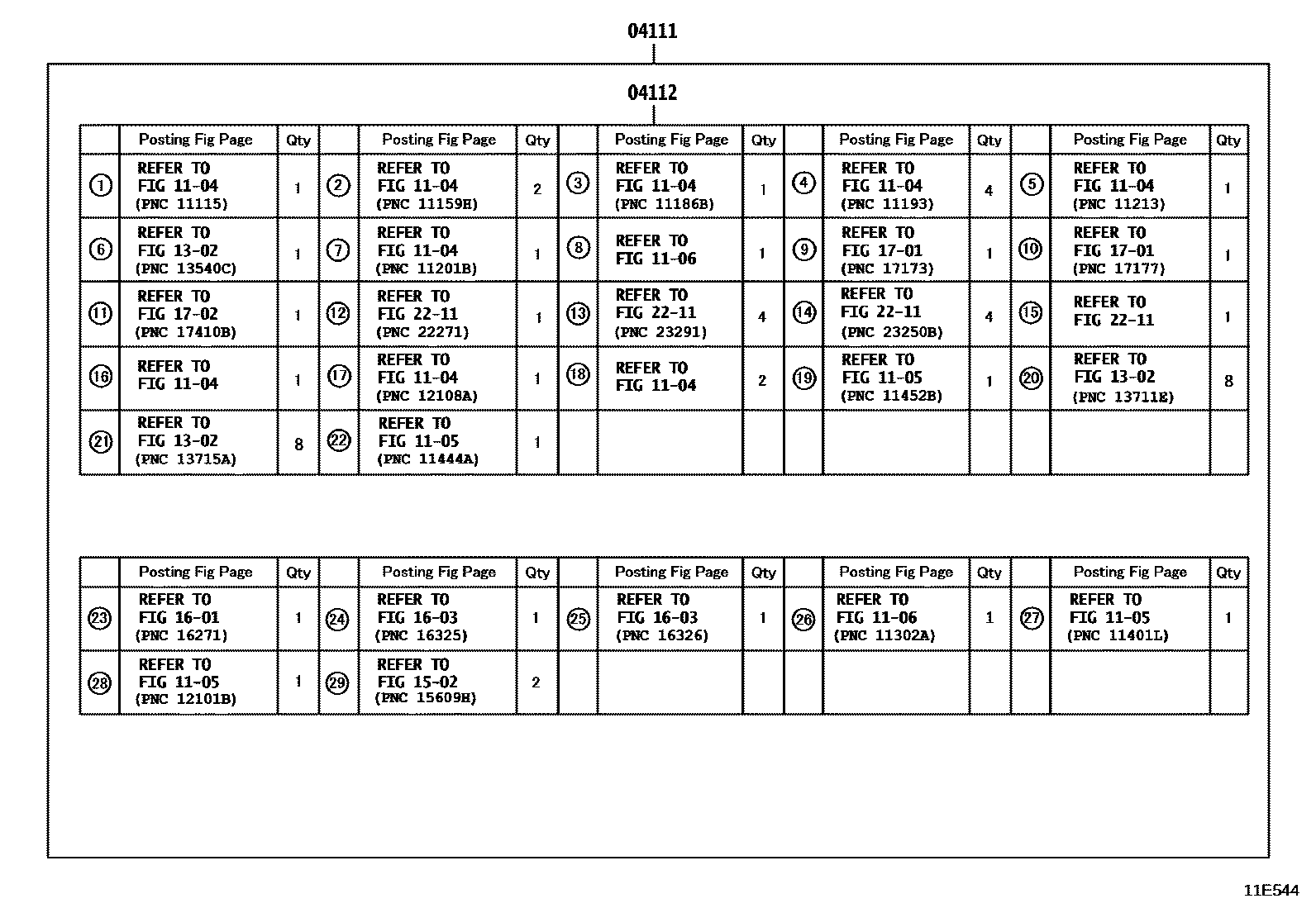

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E544
Engine Overhaul Gasket Kit — 11E544 (201909 – 999999)

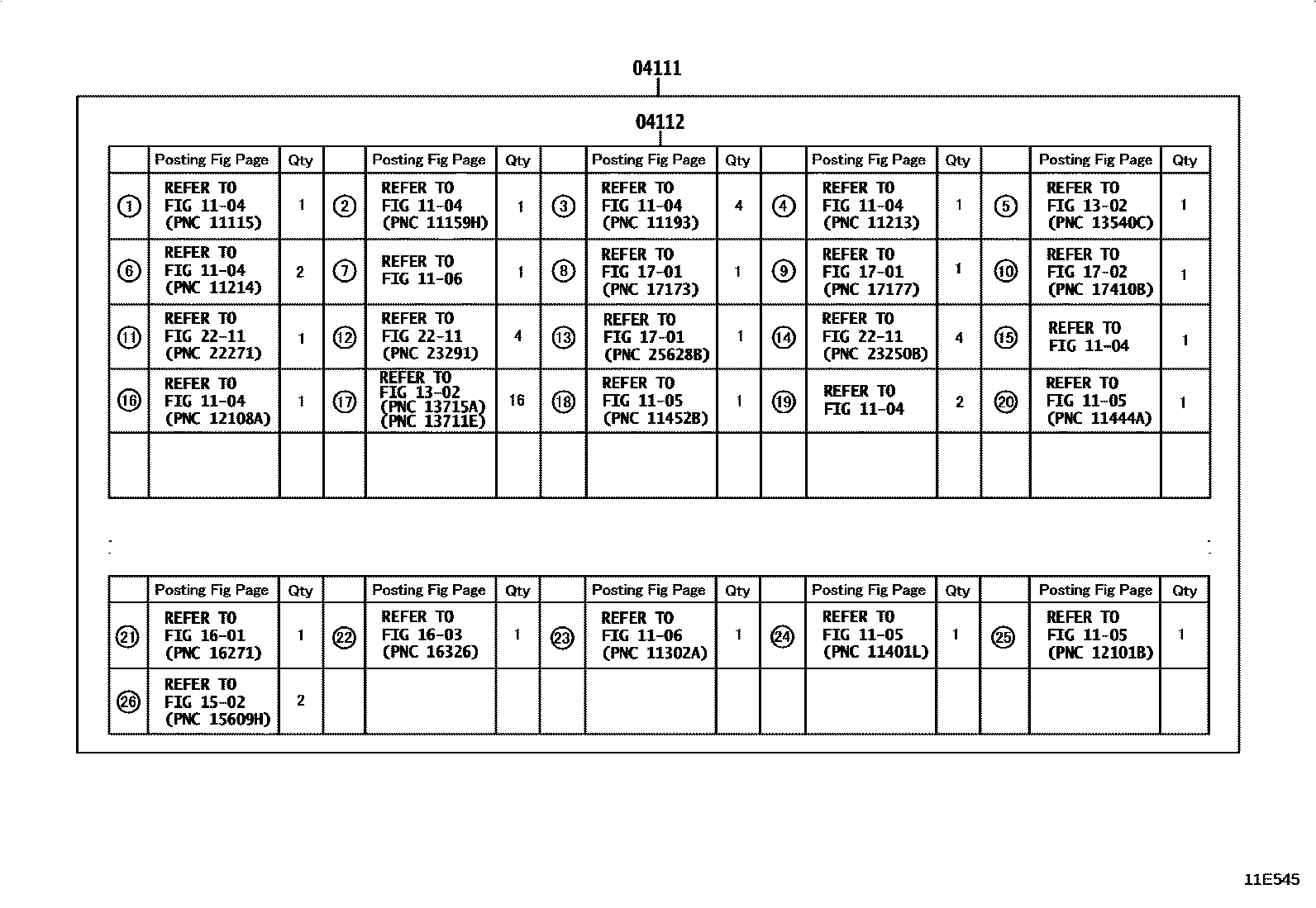

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E545
Engine Overhaul Gasket Kit — 11E545 (201909 – 999999)

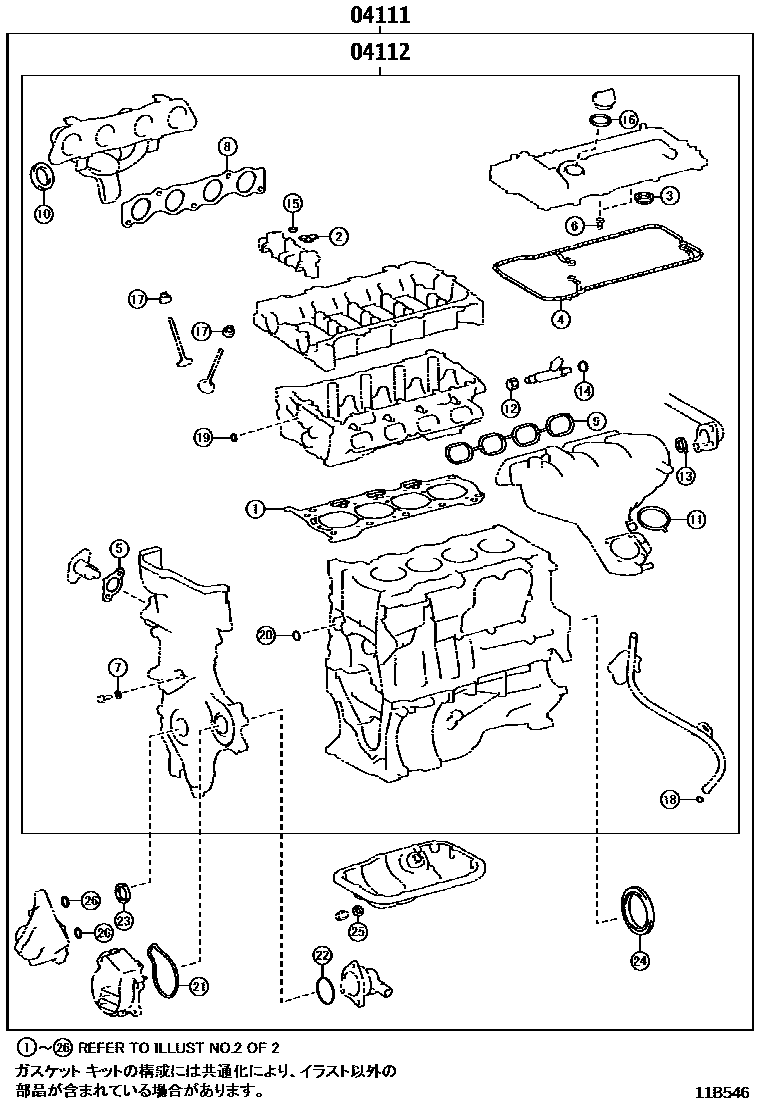

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E546
Engine Overhaul Gasket Kit — 11E546 (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-37275 · 04111-37276 · 04111-37501 · 04111-37550 · 04111-37551 · 04111-37552 · 04111-37560 · 04111-37561 · 04111-F2040 · 04111-F2041 · 04111-F2042 · 04111-F2050 · 04111-F2051 · 04111-F2052 · 04111-F2053
04112Engine valve grinding pad assembly04112-37224 · 04112-37225 · 04112-37381 · 04112-37390 · 04112-37391 · 04112-37392 · 04112-37400 · 04112-37401 · 04112-F2040 · 04112-F2041 · 04112-F2042 · 04112-F2050 · 04112-F2051 · 04112-F2052 · 04112-F2053
