Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

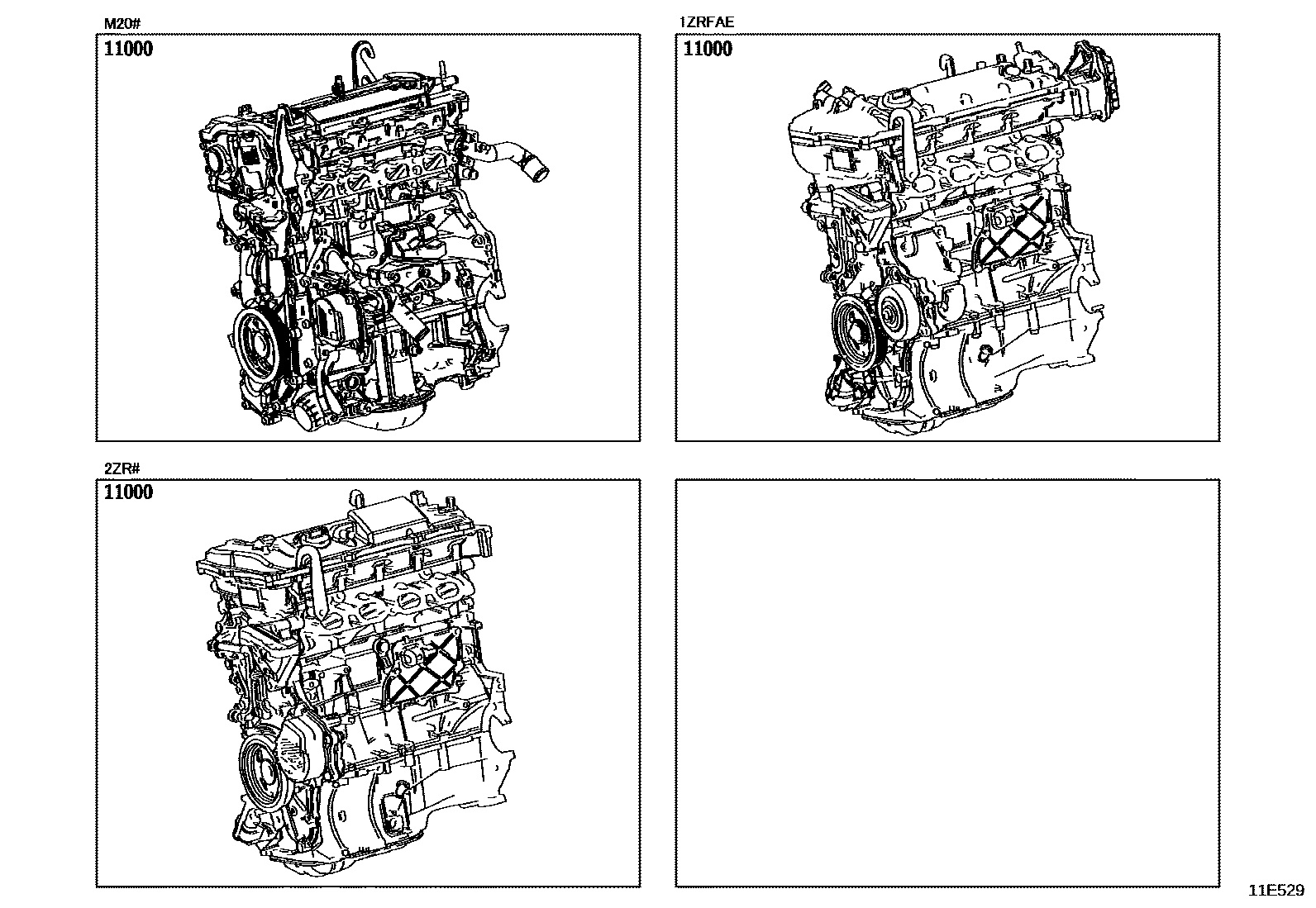

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E529
Partial Engine Assembly — 11E529 (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-37800 · 19000-37890 · 19000-37A40 · 19000-37B00 · 19000-37B40 · 19000-F2040 · 19000-F2050 · 19000-F2330 · 19000-F2340 · 19000-F2390 · 19000-F2400
