Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 2 PNC and OE references.

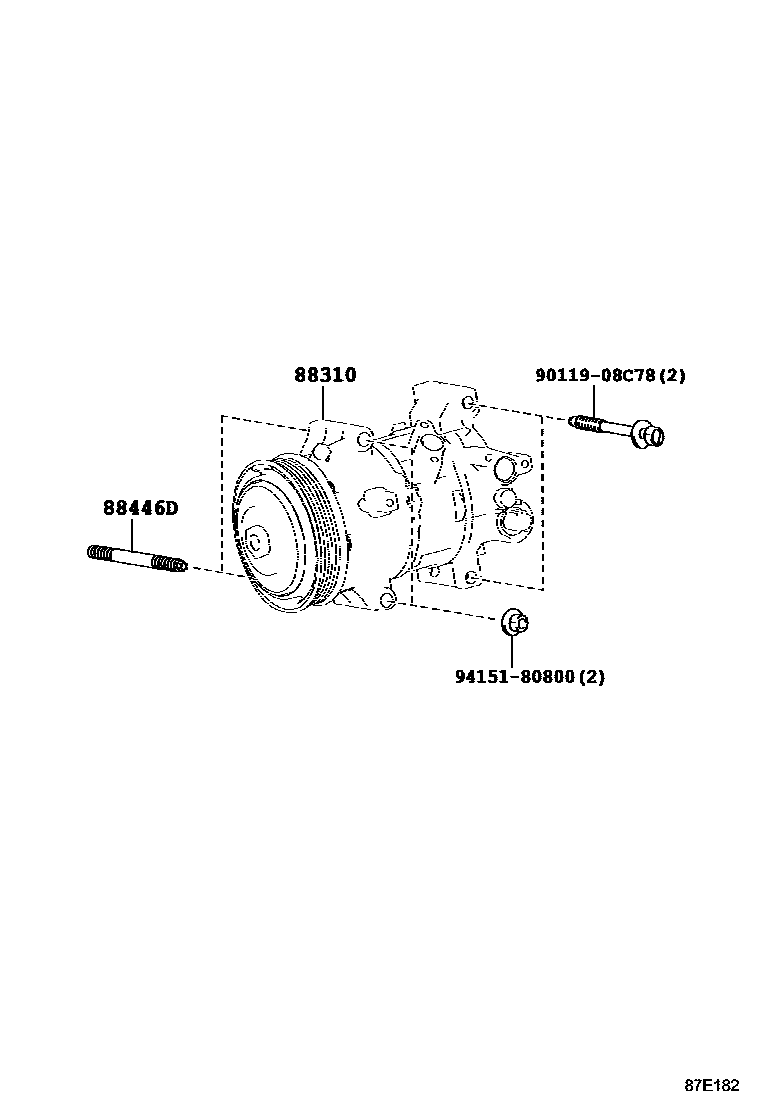

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87E182
Heating & Air Conditioning - Compressor — 87E182 (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-02A61 · 88310-02A62 · 88310-12A80 · 88310-12A81 · 88310-42510
88446Dcooler bolt88446-42030
