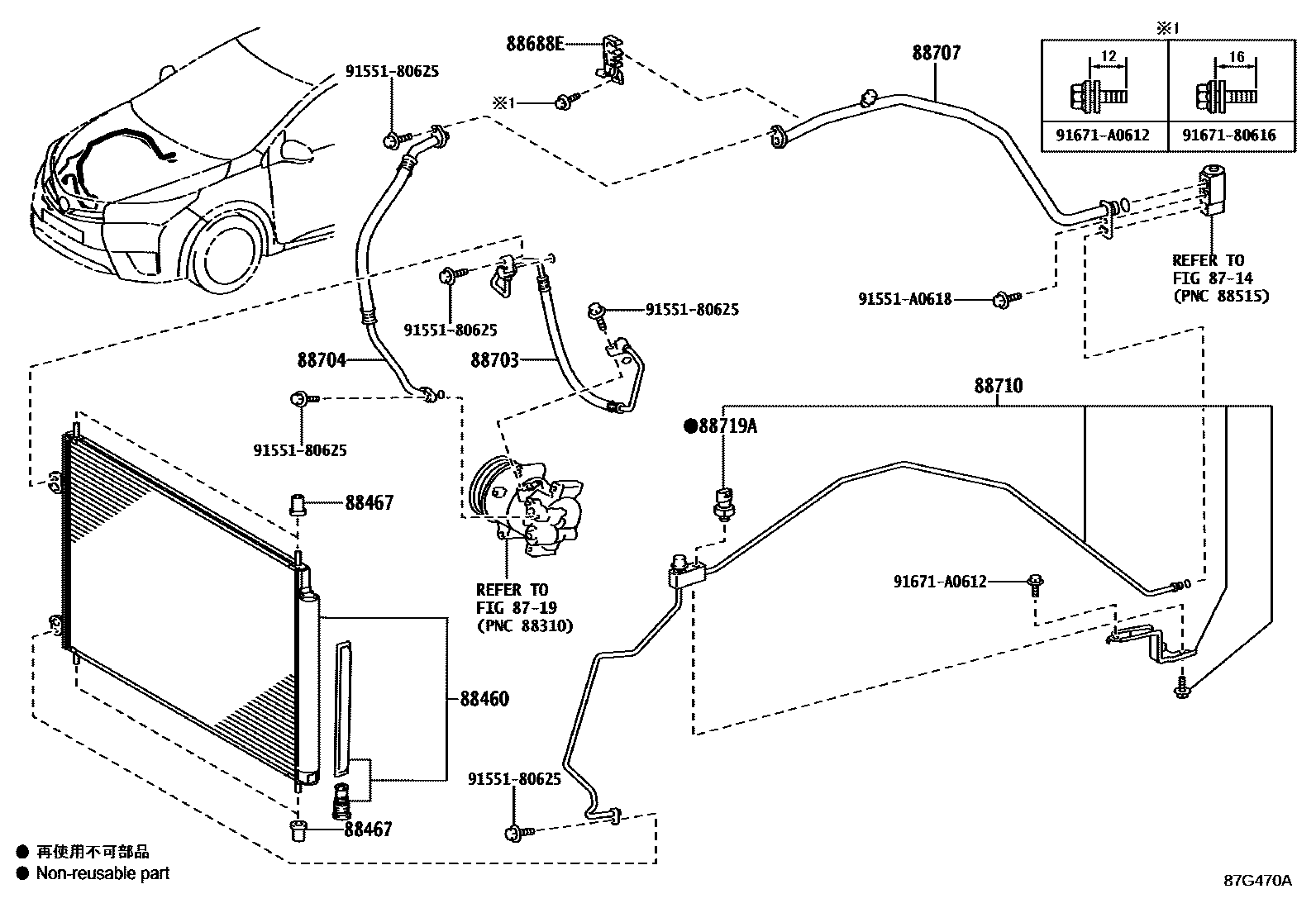

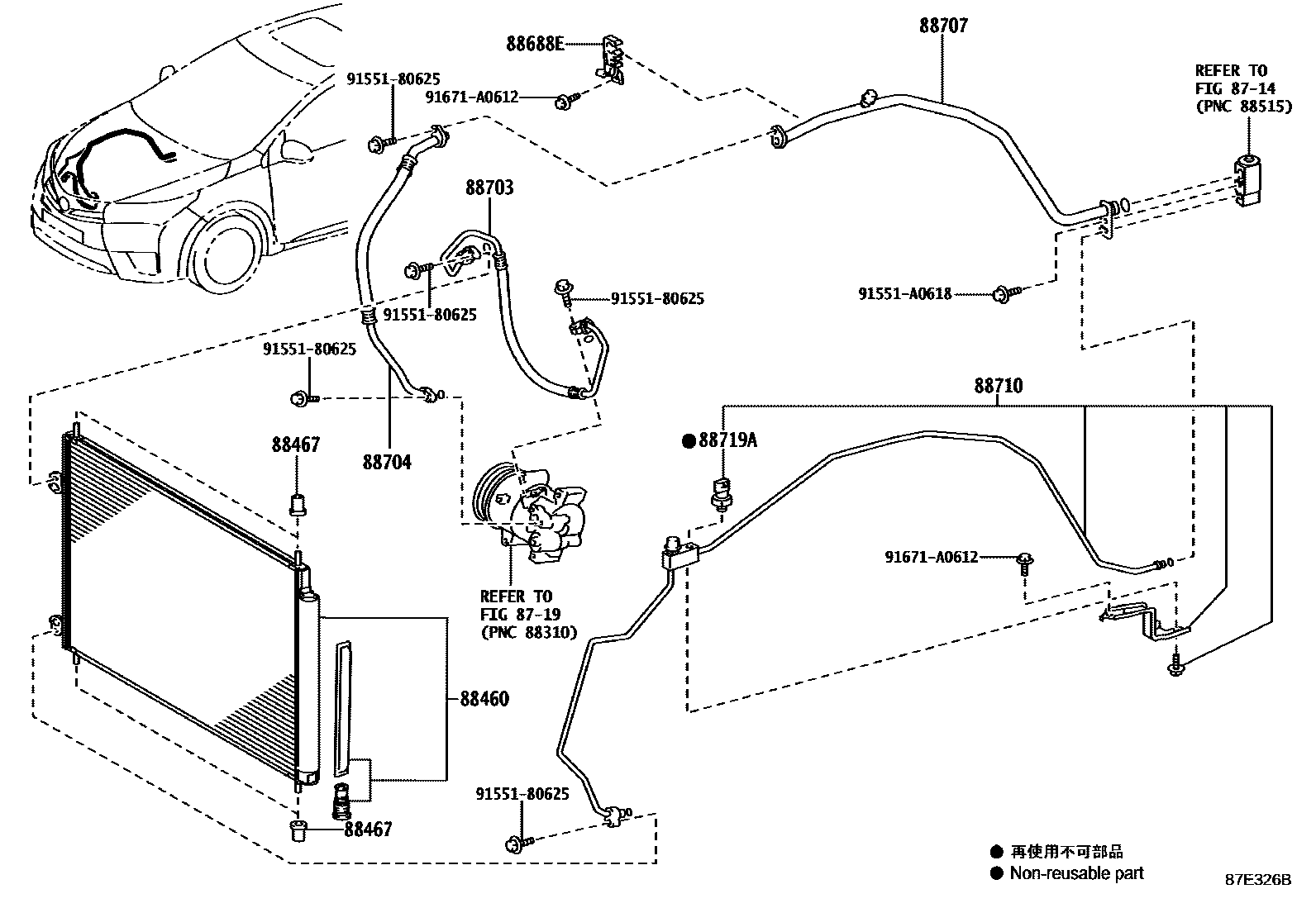

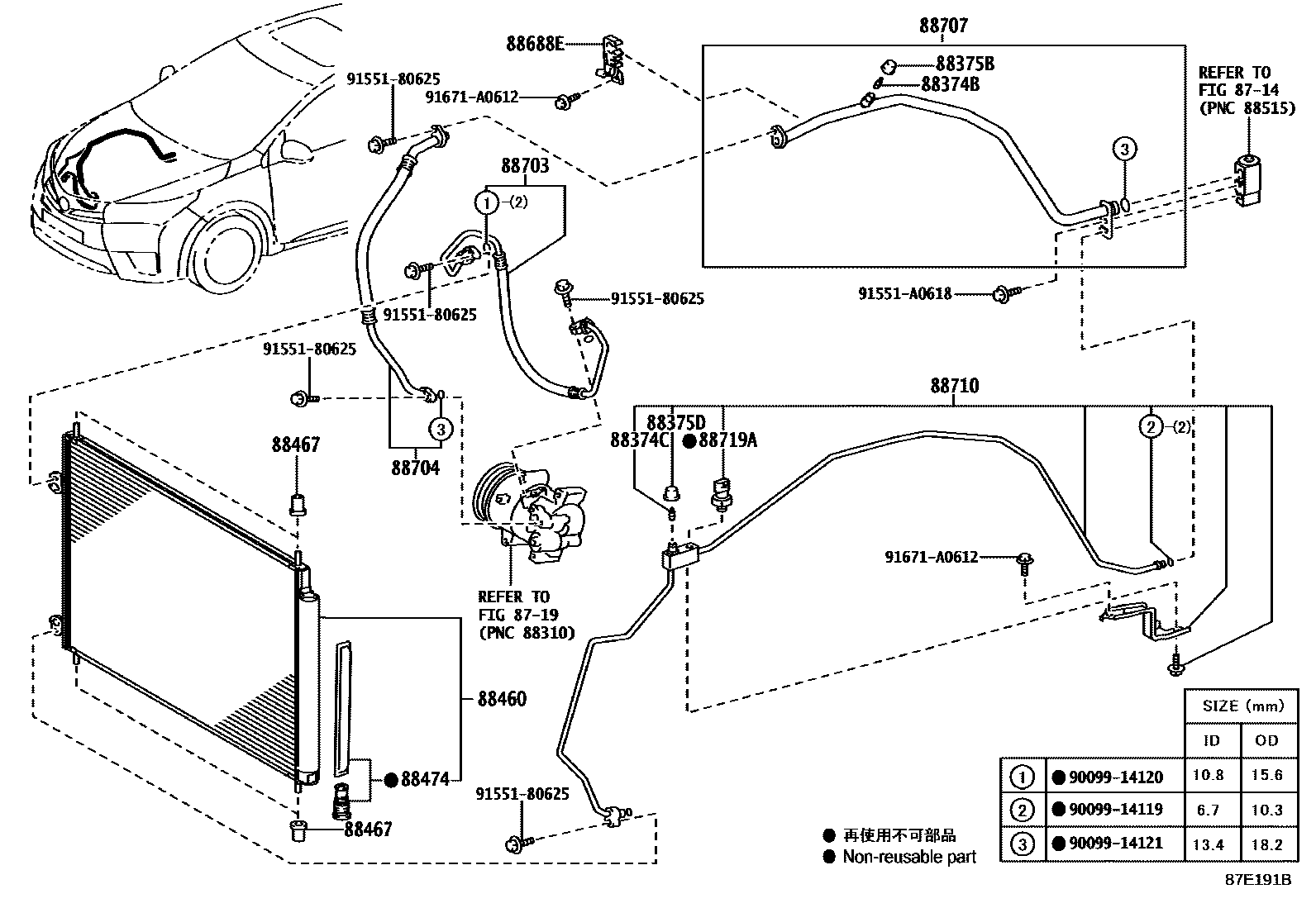

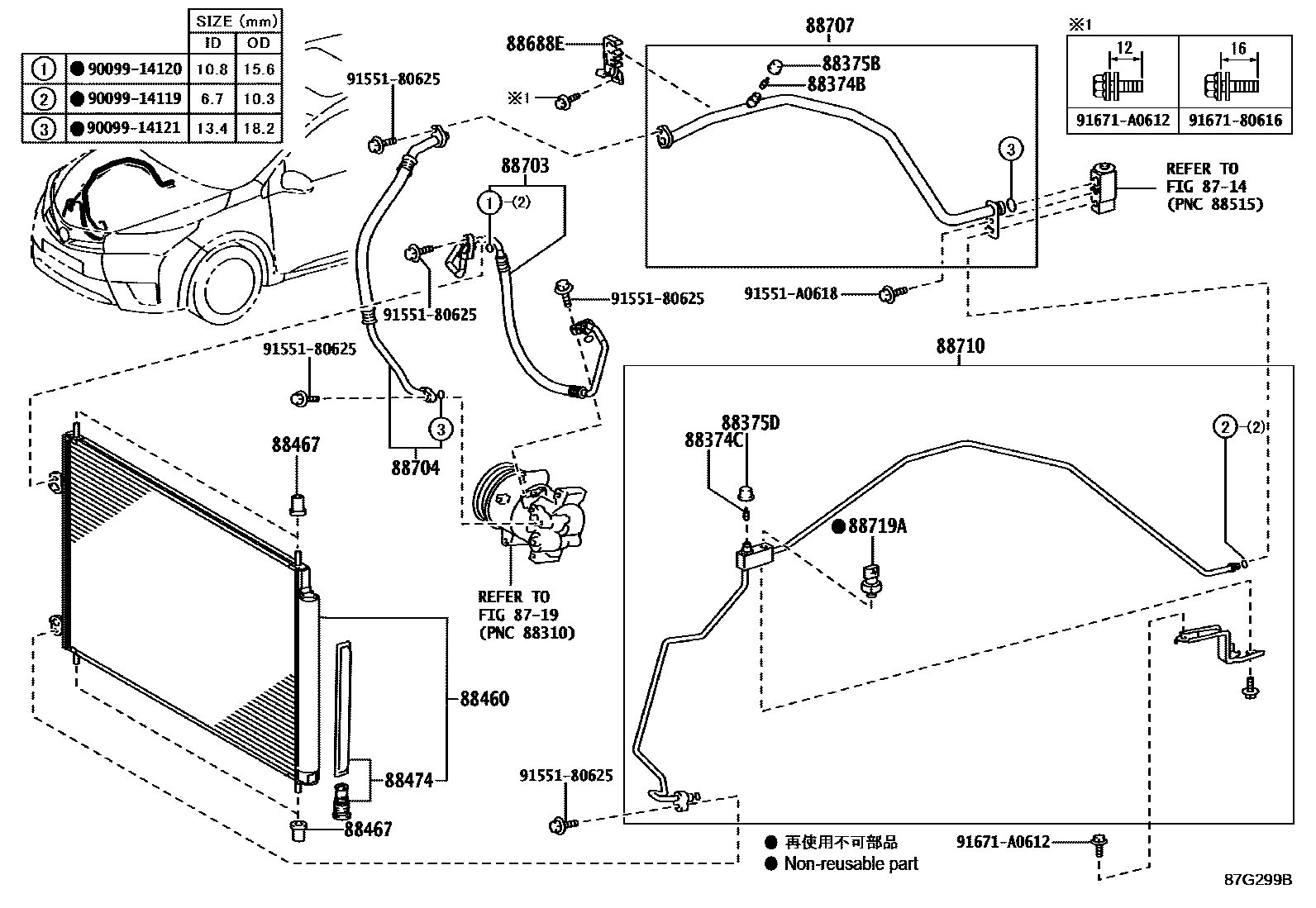

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02010 |
| 88374C | Service valve No. 2 | 88374-02010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 |
| 88460 | Air conditioning condenser assembly | 88460-02340 · 88460-02350 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02A70 · 88688-02A90 |
| 88703 | Discharge hose sub-assembly | 88703-02A70 · 88703-02A71 · 88703-02A80 · 88703-02A81 |
| 88704 | Oil suction hose sub-assembly | 88704-02A90 · 88704-02A91 · 88704-02B00 · 88704-02B01 · 88704-02B10 |
| 88707 | Suction pipe sub-assembly | 88707-02320 · 88707-02330 |
| 88710 | Air conditioning pipe assembly | 88710-02A60 · 88710-02A61 · 88710-02A70 · 88710-02A71 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
