Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

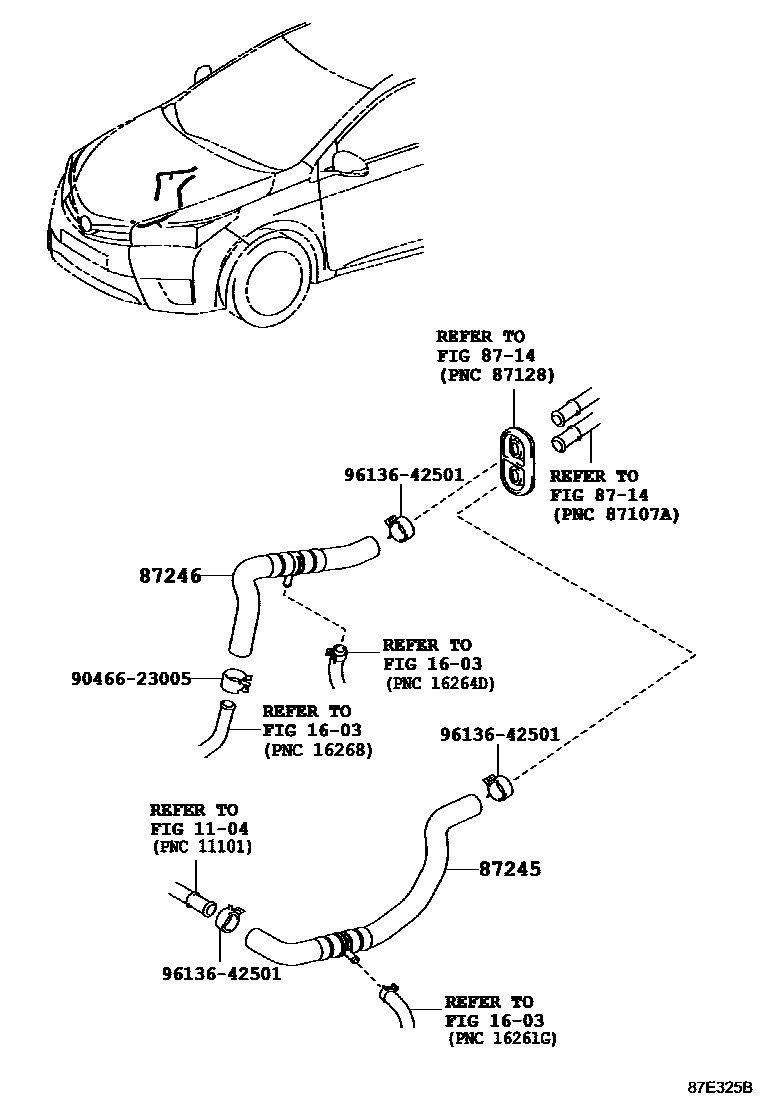

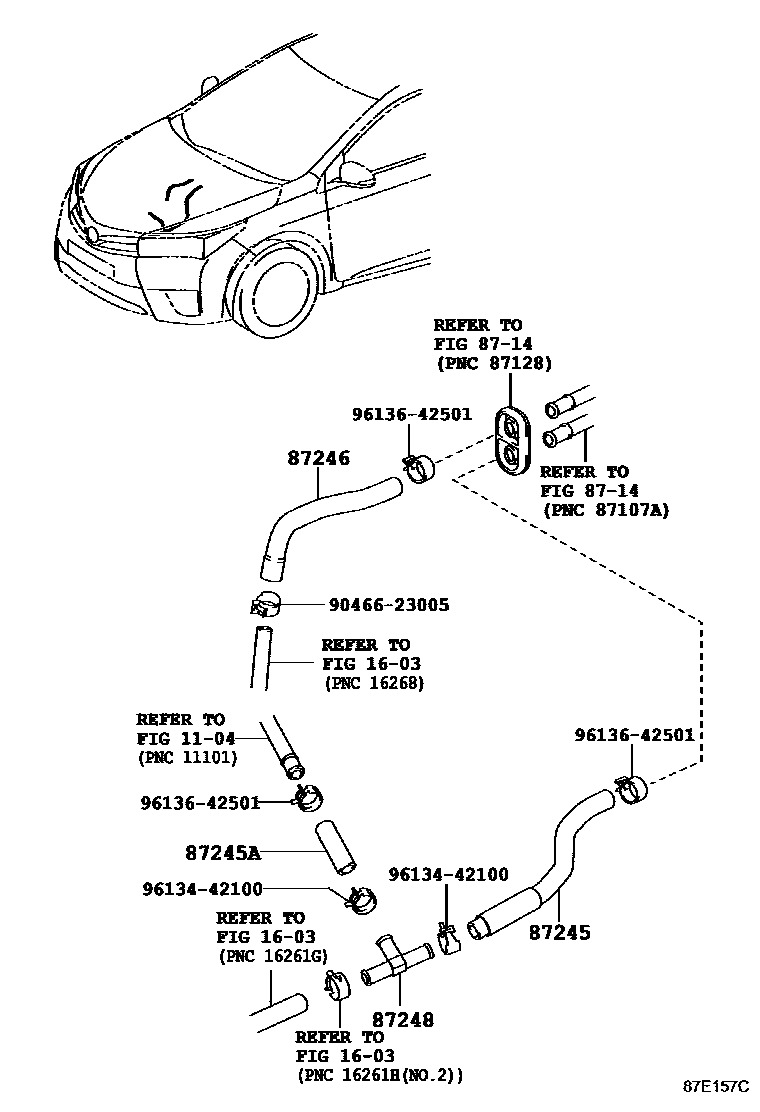

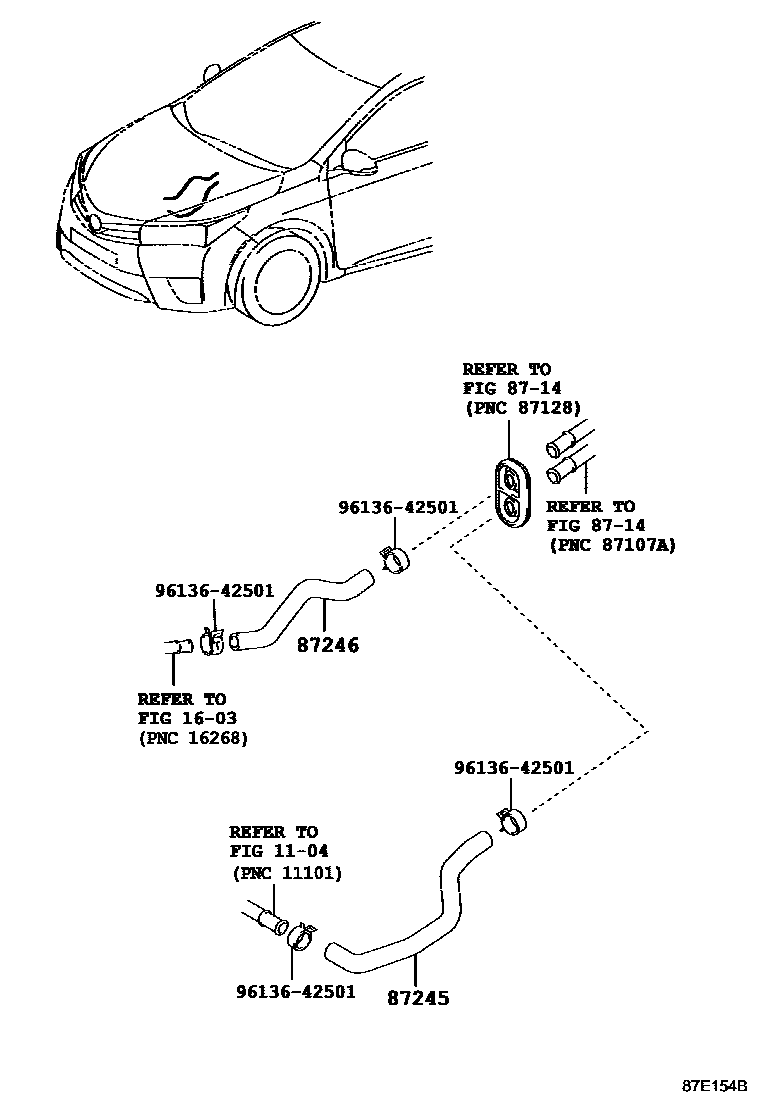

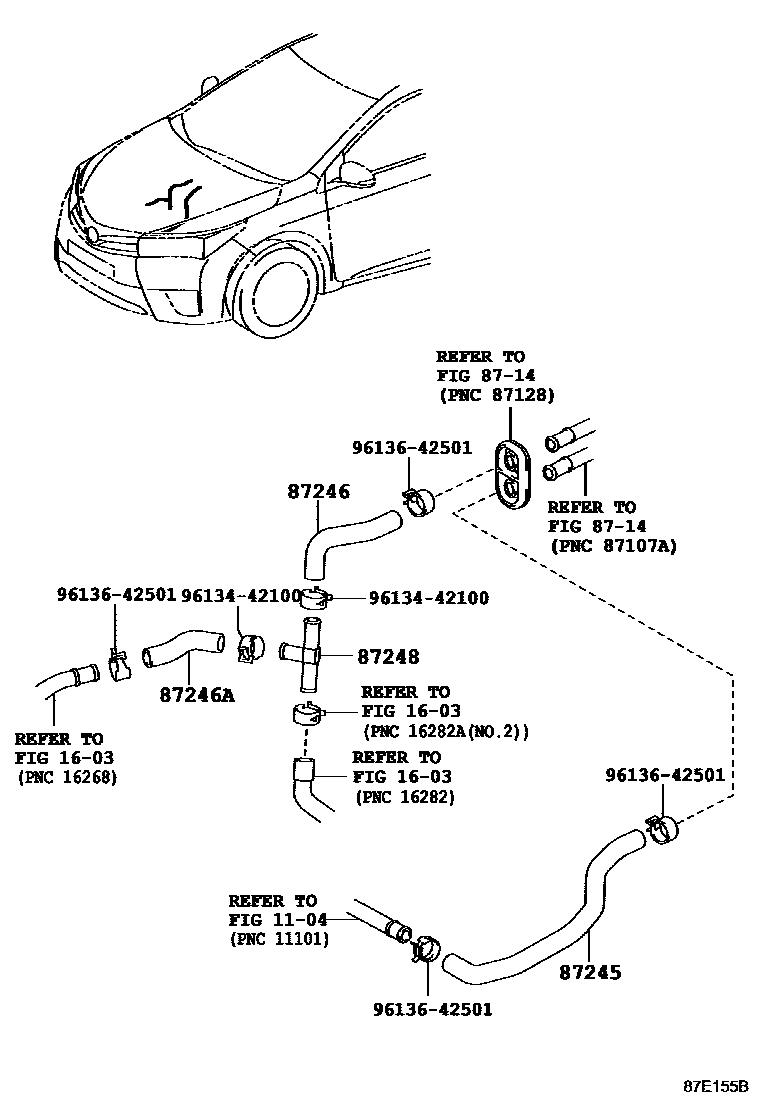

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87209-02190 · 87245-02N50 · 87245-02N90 |
| 87245A | Heater water inlet hose A | 87245-02N80 |
| 87246 | Heater outlet hose | 87209-02200 · 87245-02G30 · 87245-02K60 · 87245-02N70 |
| 87246A | Heater outlet hose A | 87245-02N60 |
| 87248 | Water pipe sub-assembly | 87248-12300 · 87248-12310 |
