Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

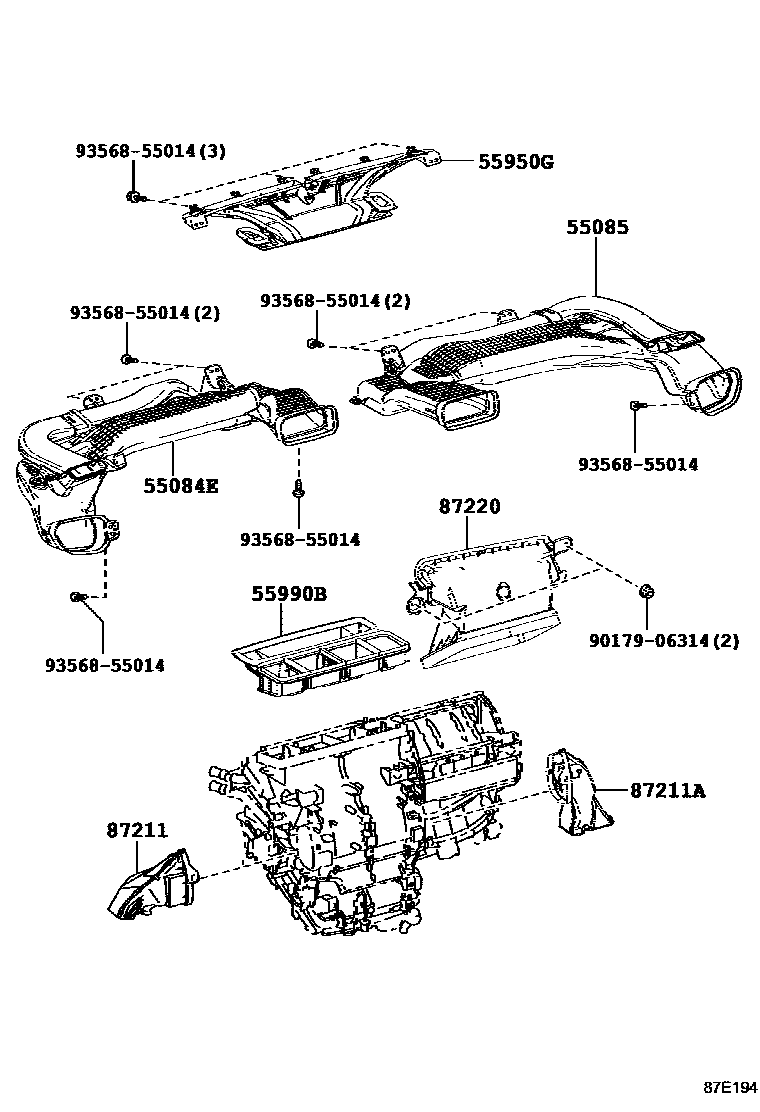

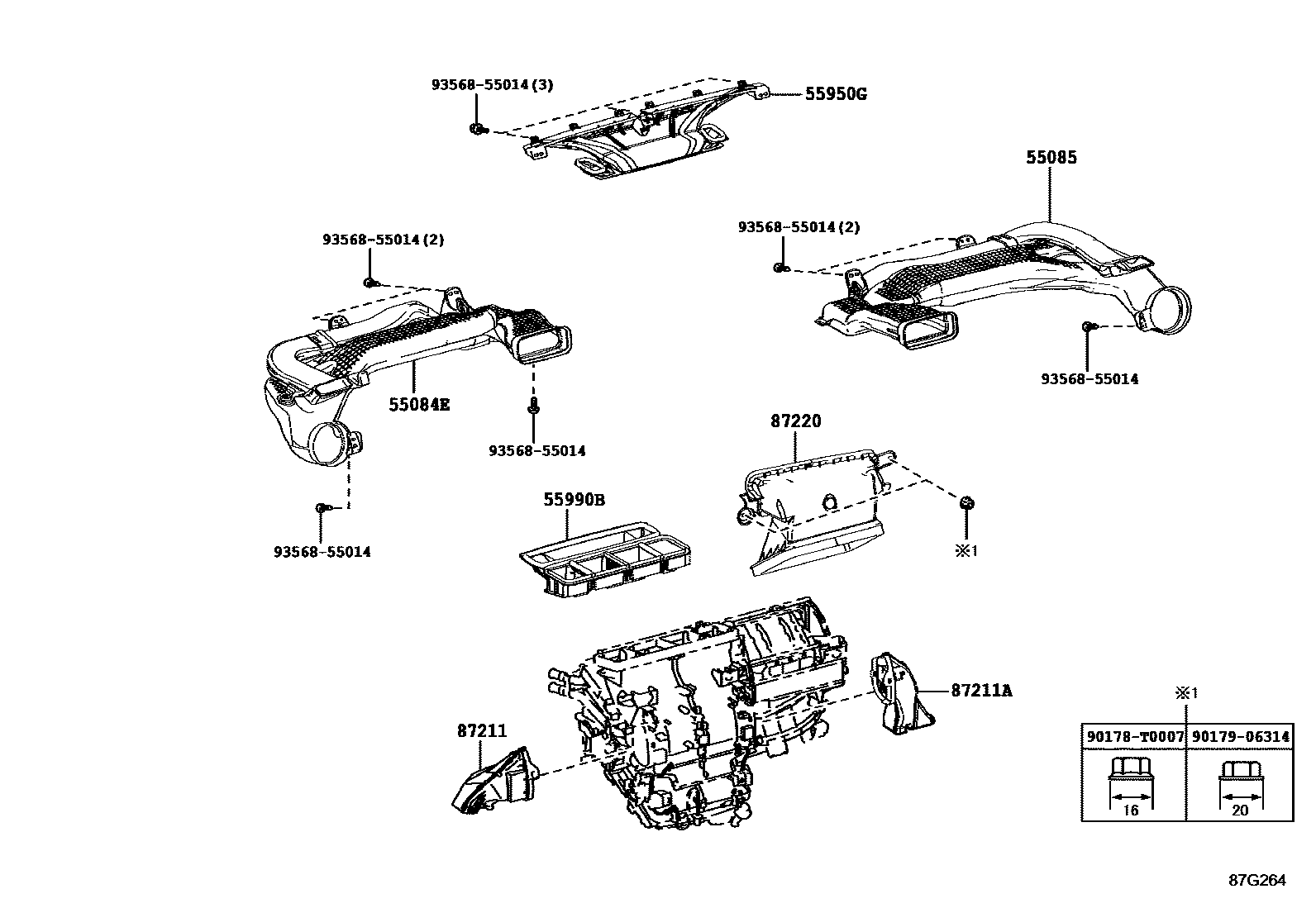

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02310 · 55084-02320 · 55084-02560 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55086-02310 · 55086-02320 · 55086-02530 |

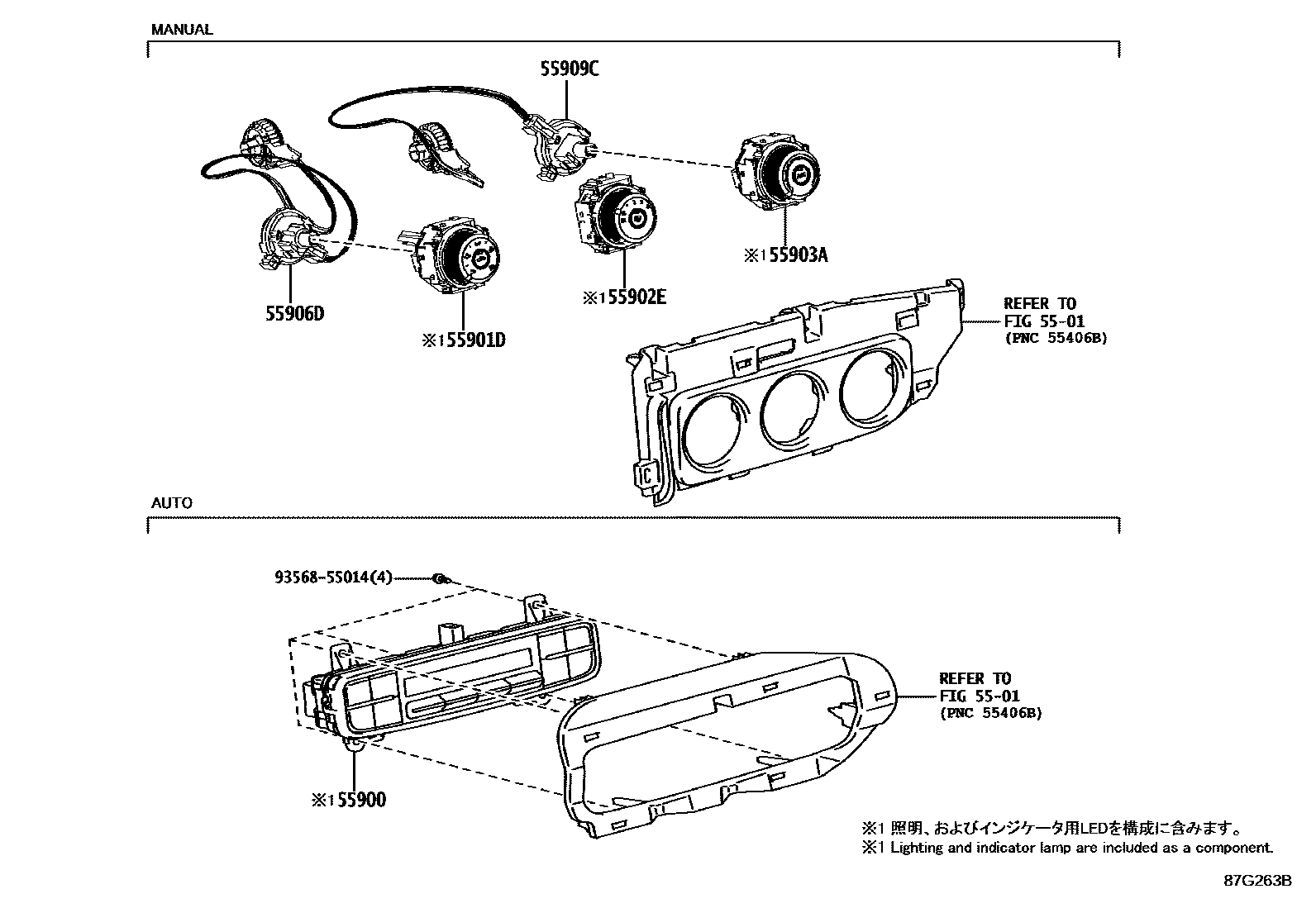

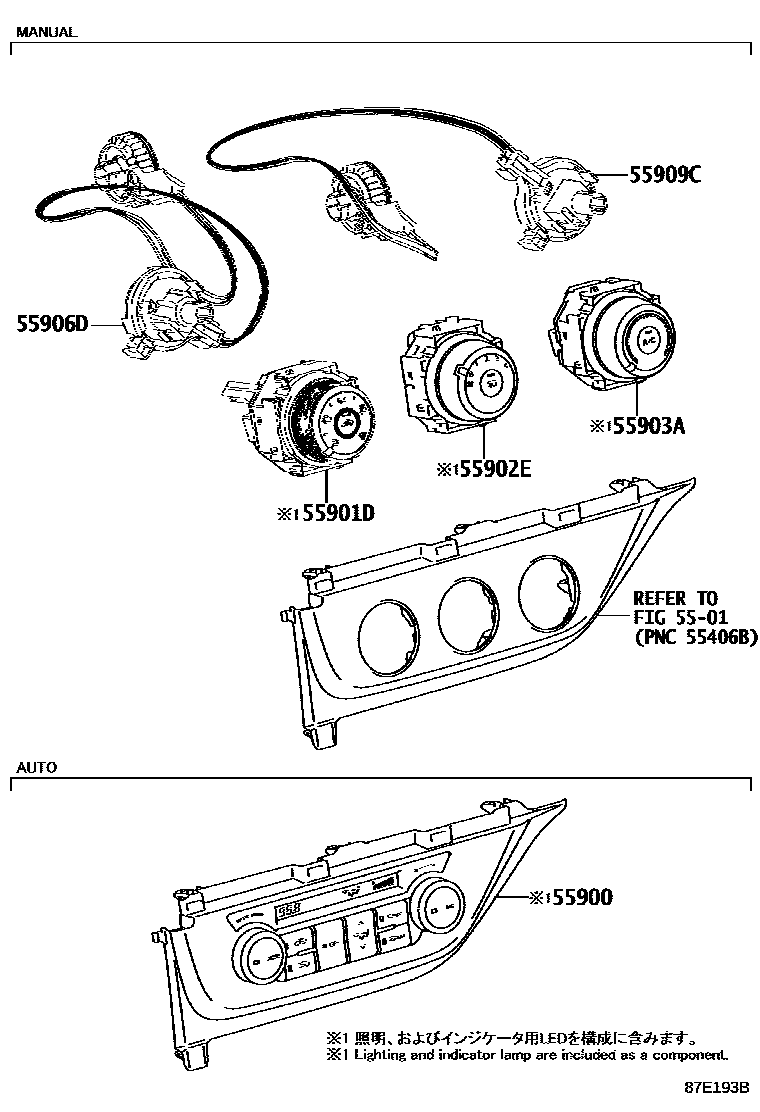

| 55900 | Air conditioning control assembly | 55900-02580 · 55900-02B90 · 55900-02C00 |
| 55901D | No. 1 heater control sub-assembly | 55901-42040 |
| 55902E | No. 2 heater control sub-assembly | 55902-42160 |
| 55903A | No. 3 heater control sub-assembly | 55903-42090 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55950G | Defroster nozzle assembly | 55950-02350 |
| 55990B | Lower defroster nozzle assembly | 55990-02240 |
| 87211 | No. 1 air duct | 87211-02441 · 87211-02461 · 87211-12440 |
| 87211A | Duct No. 2 | 87211-02450 · 87211-02470 |
| 87220 | Air duct assembly | 87220-02260 · 87220-02270 |

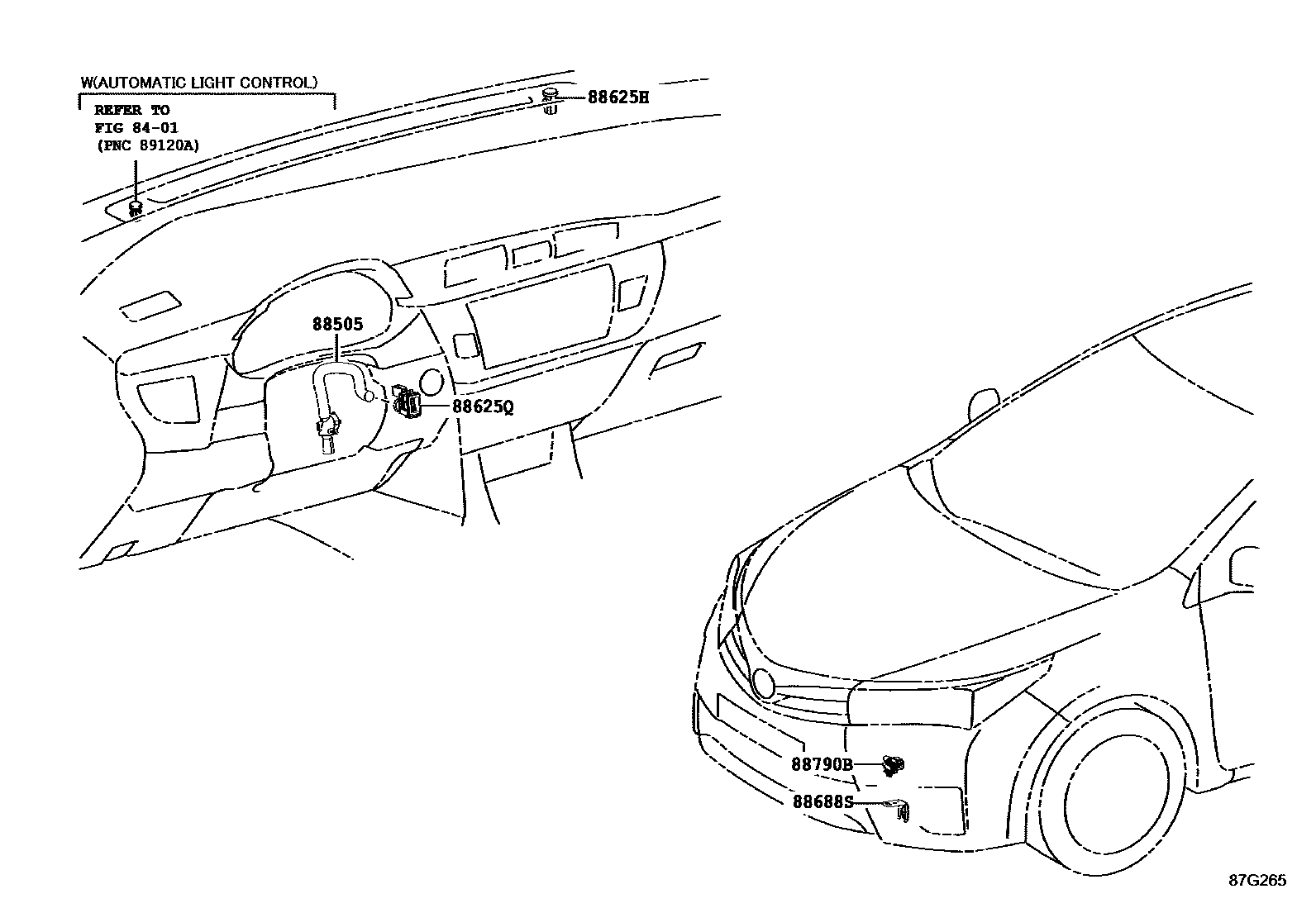

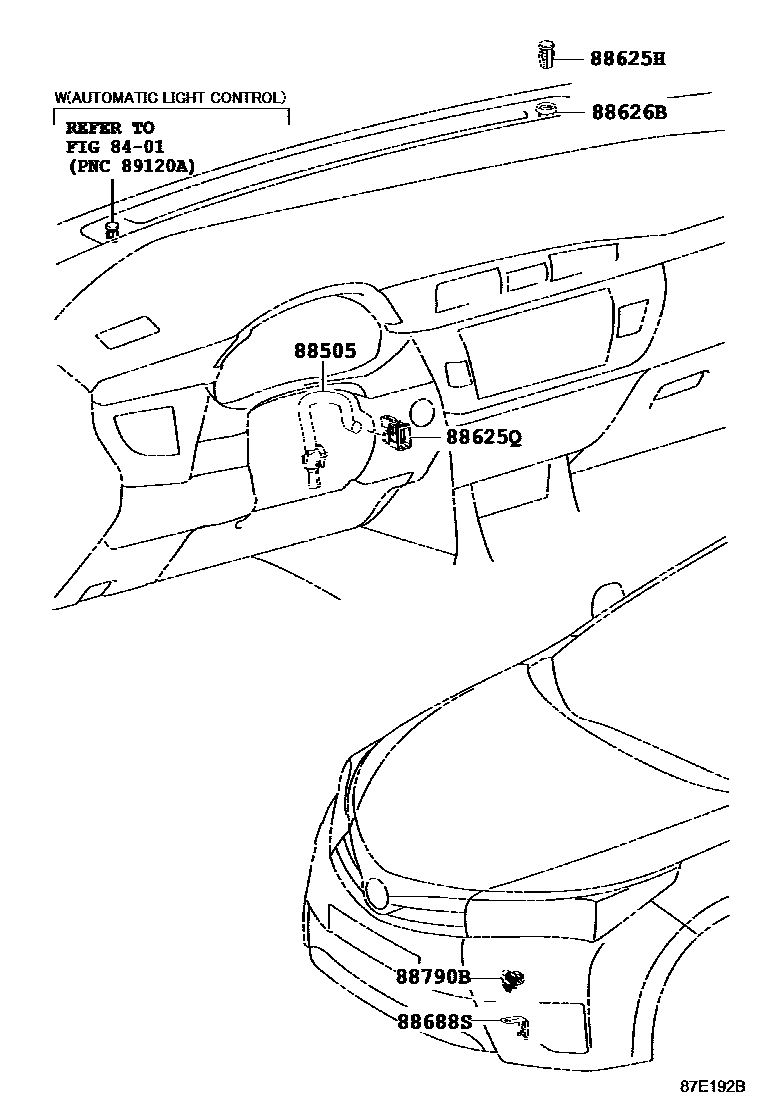

| 88505 | Air conditioning duct sub-assembly | 88505-02120 · 88505-02130 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 · 88625-51010 · 88790-35070 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88626B | Thermistor mount | 88626-12010 |
| 88688S | Bracket (for cooler thermistor) | 88688-0Z420 · 88688-0Z430 |
| 88790B | Thermistor assembly | 88790-22131 |
