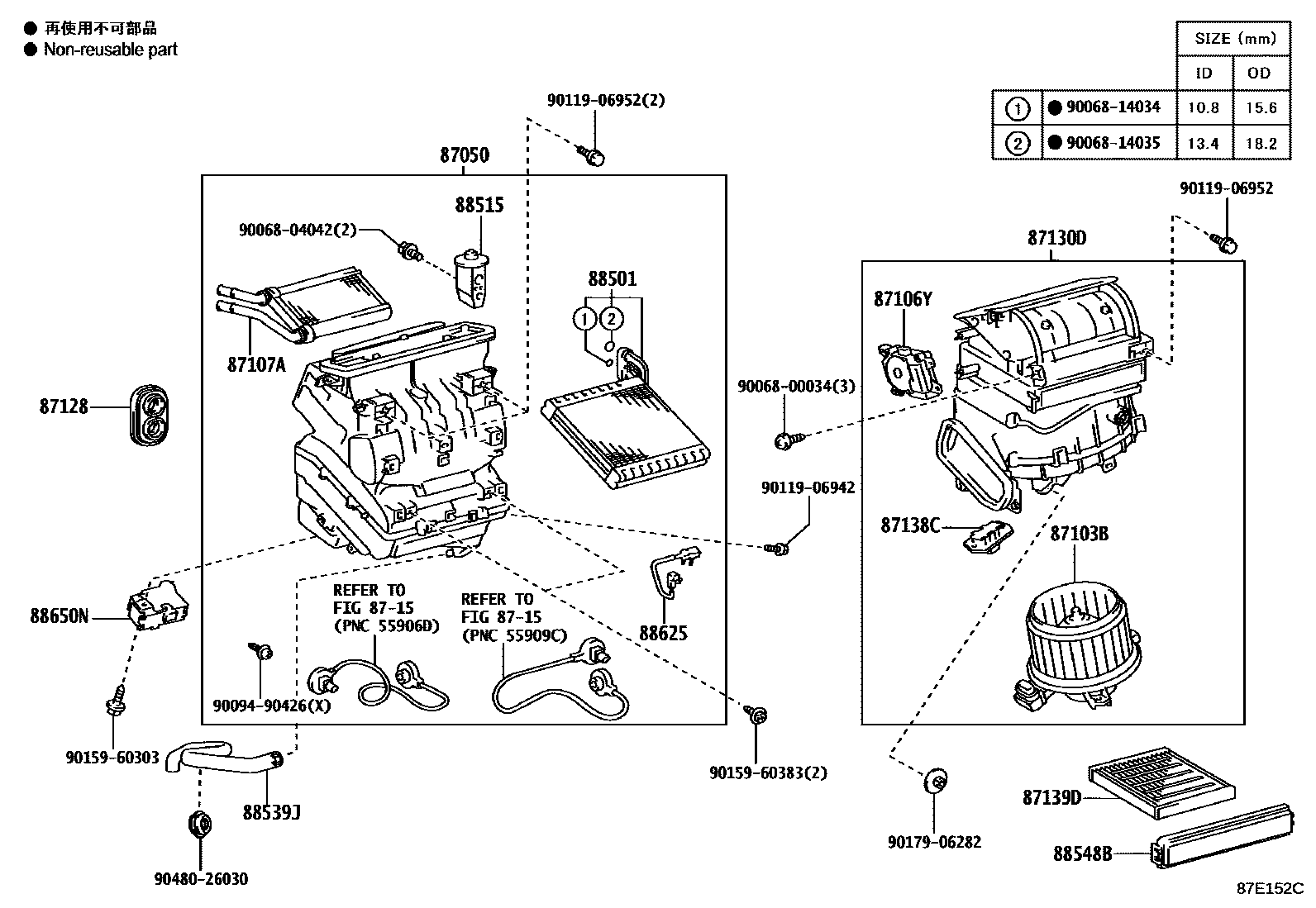

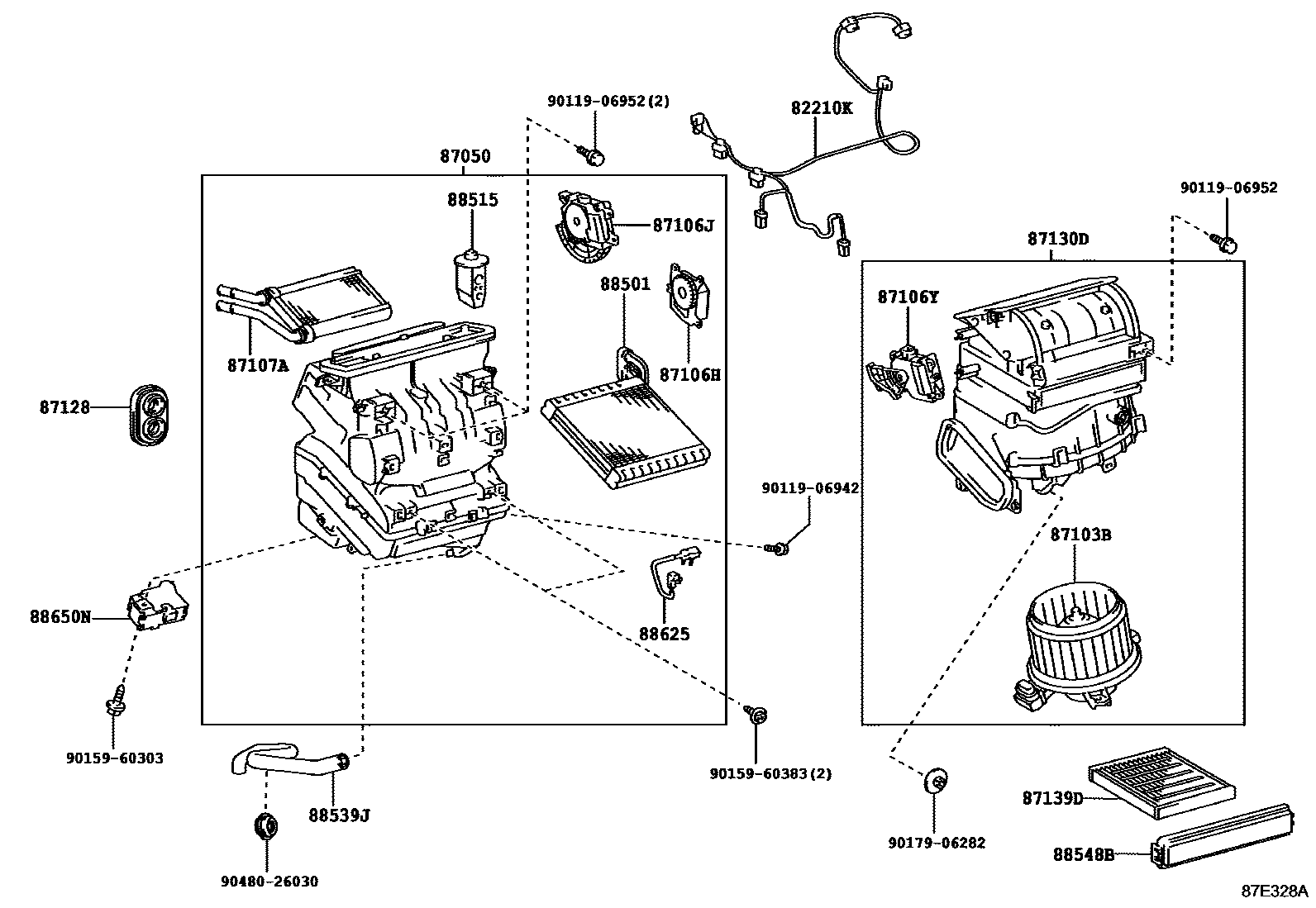

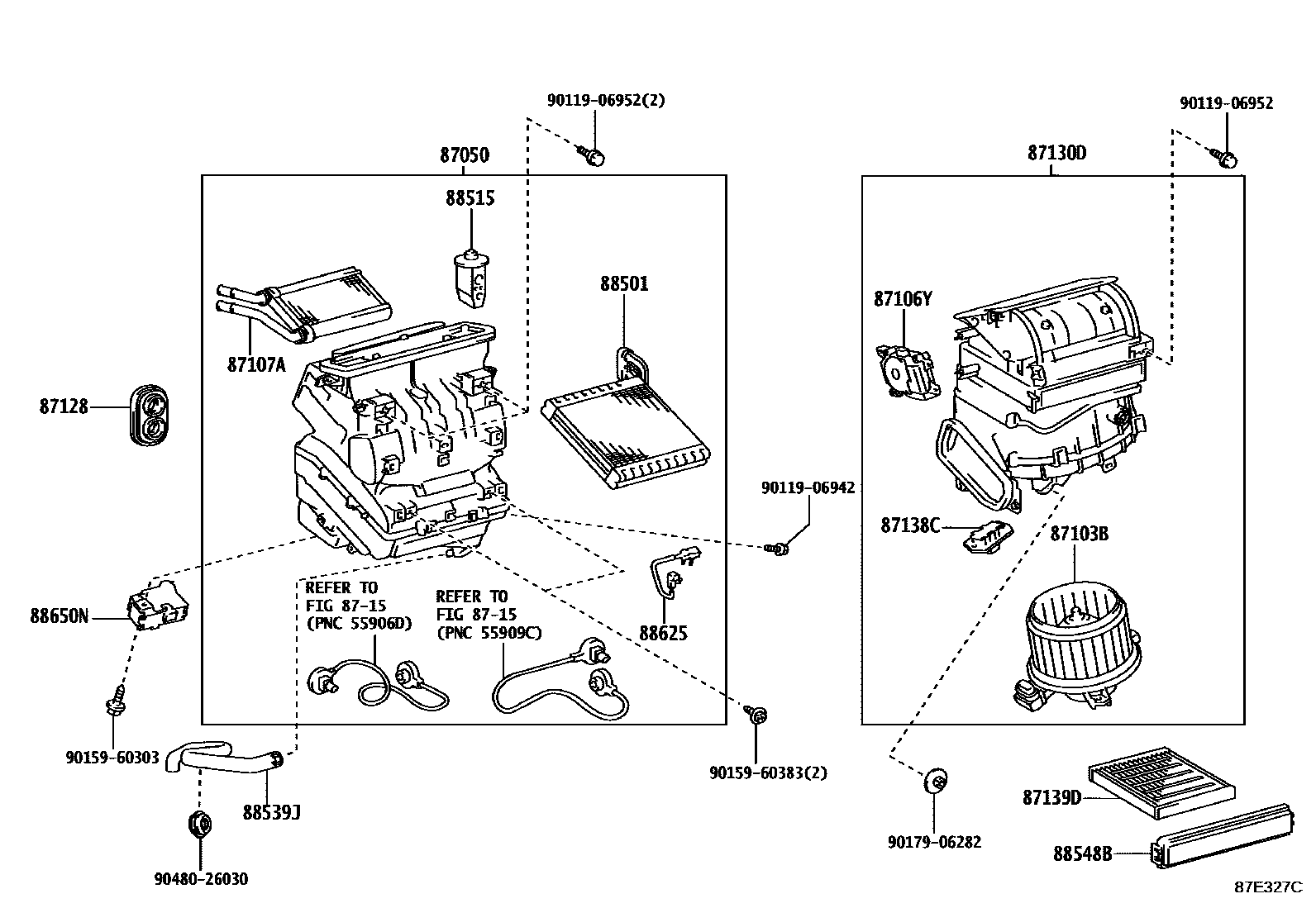

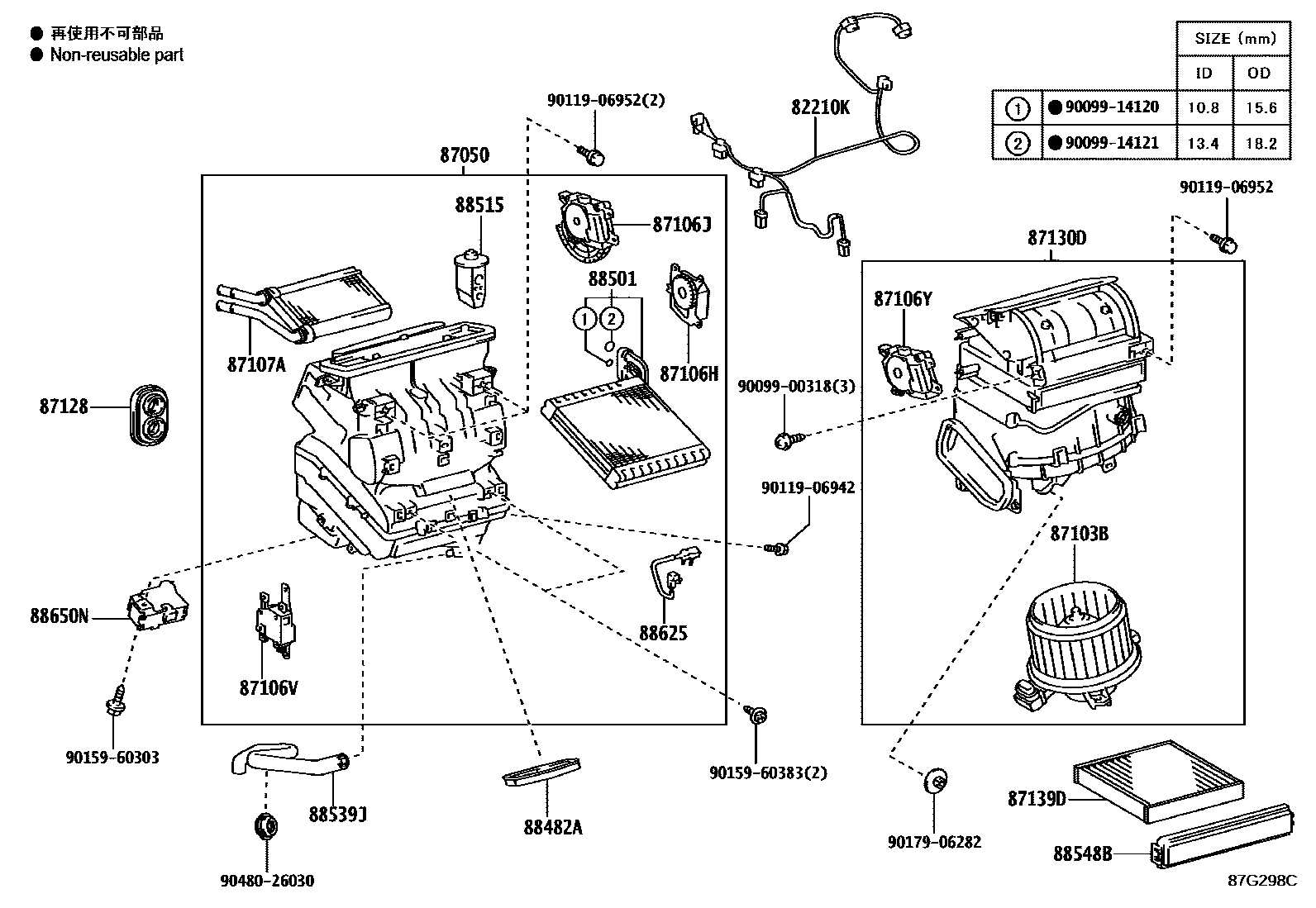

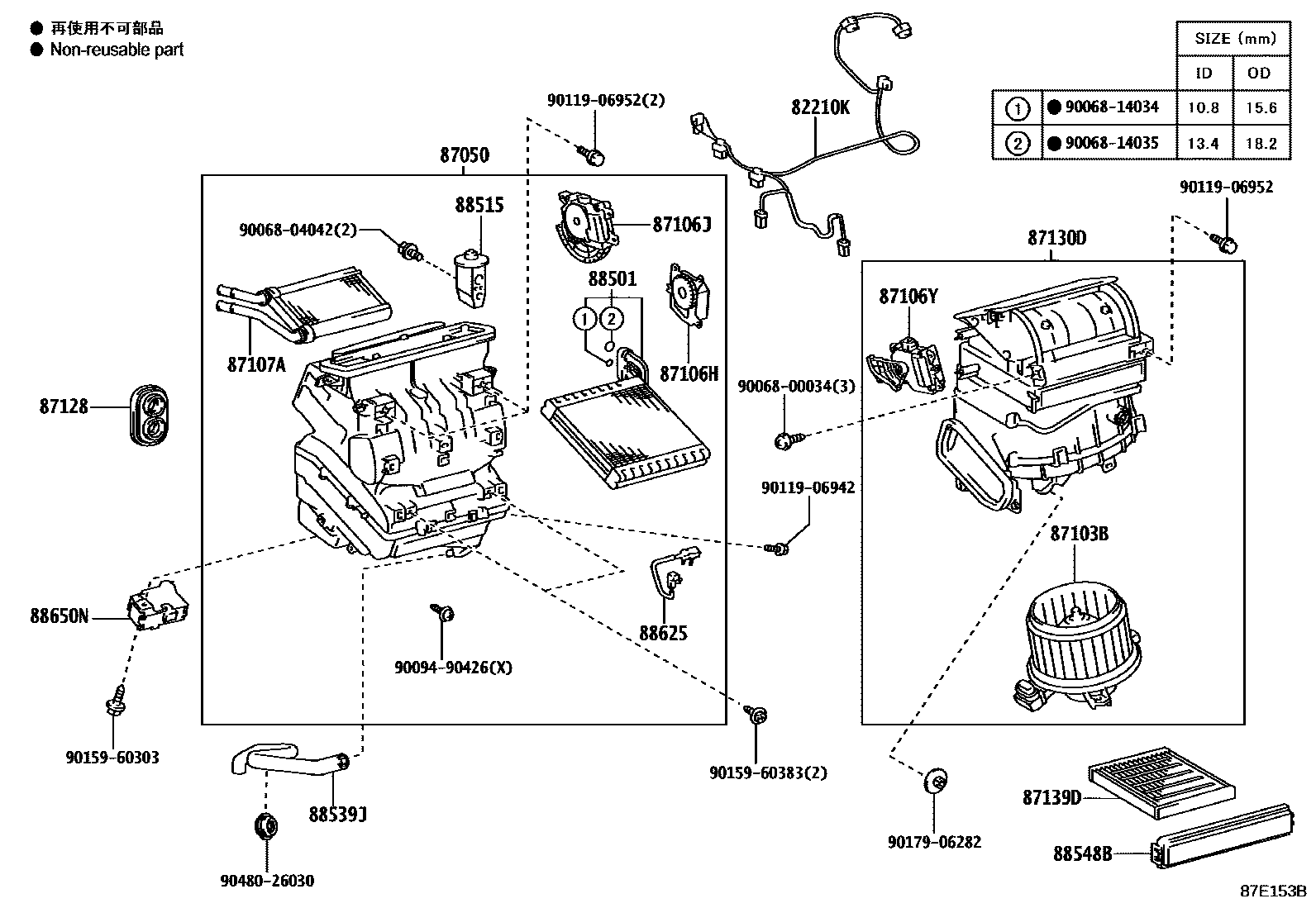

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02090 · 82212-12030 |
| 87050 | Air conditioning radiator assembly | 87050-02F40 · 87050-02G00 · 87050-02J10 · 87050-02N80 · 87050-12410 |
| 87103B | Blower motor sub-assembly with fan | 87103-02280 · 87103-02330 · 87103-12080 · 87103-42101 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02410 · 87106-12170 · 87106-47170 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02420 · 87106-42100 |
| 87106V | Damper servo mechanism sub-assembly (for No. 2 air mixing) | 87106-75010 |
| 87106Y | Damper servo sub-assembly (for recirculation and fresh air) | 87106-02430 · 87106-02440 · 87106-42130 · 87106-42140 · 87106-47130 |
| 87107A | Heater radiator device sub-assembly | 87107-02260 · 87107-0K030 · 87107-42170 |
| 87128 | heater seal | 87128-02100 · 87128-42010 |
| 87130D | Blower assembly | 87130-02630 · 87130-02640 · 87130-02650 · 87130-02660 · 87130-12571 |
| 87138C | Blower resistor | 87138-26160 |
| 87139D | Air fine filter element | 87139-02150 · 87139-52040 |
| 88482A | cover | 87114-12080 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02251 · 88501-12510 · 88501-72020 |
| 88515 | Cooler expansion valve | 88515-02410 · 88515-02640 · 88515-12100 · 88515-68010 |
| 88539J | Cooler drain hose | 88539-02350 · 88539-02360 |
| 88548B | air filter housing | 88548-02170 · 88548-02180 |
| 88625 | Cooler No. 1 Thermistor | 88620-02120 · 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-02C70 · 88650-02C71 · 88650-02C80 · 88650-02C81 · 88650-02J60 · 88650-02J70 |
