Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

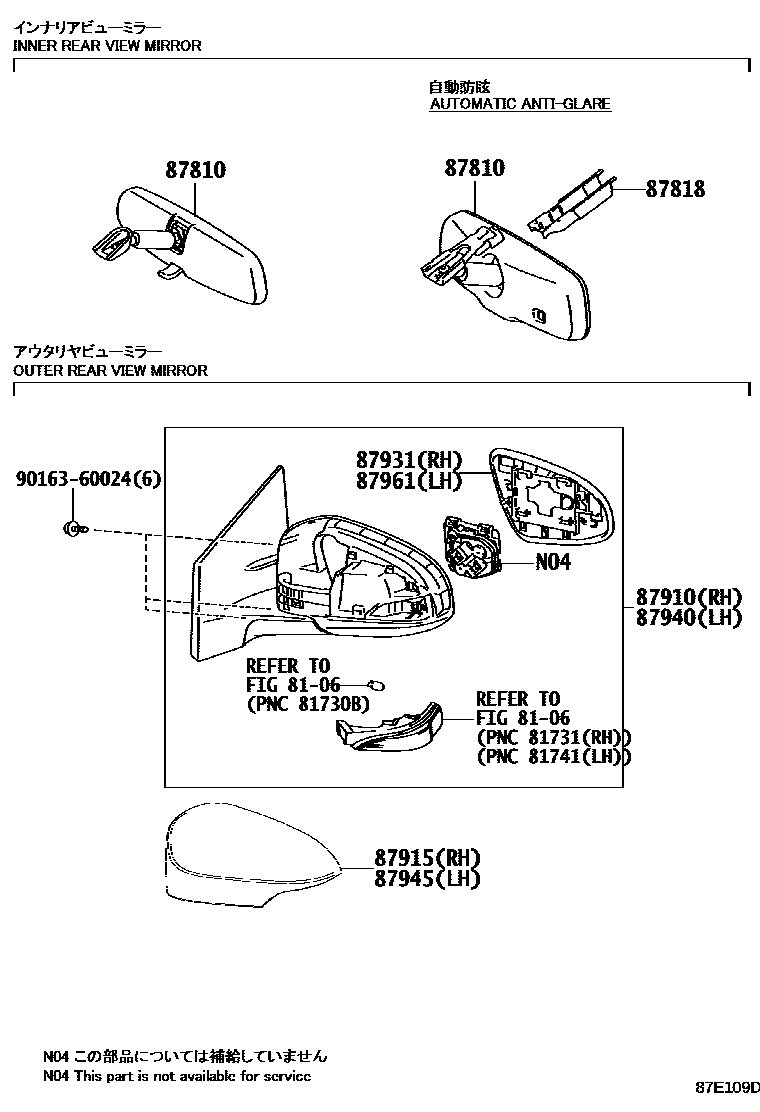

Toyota COROLLA 后视镜 EPC diagram — 87E109D
后视镜 — 87E109D (201403 – 999999)

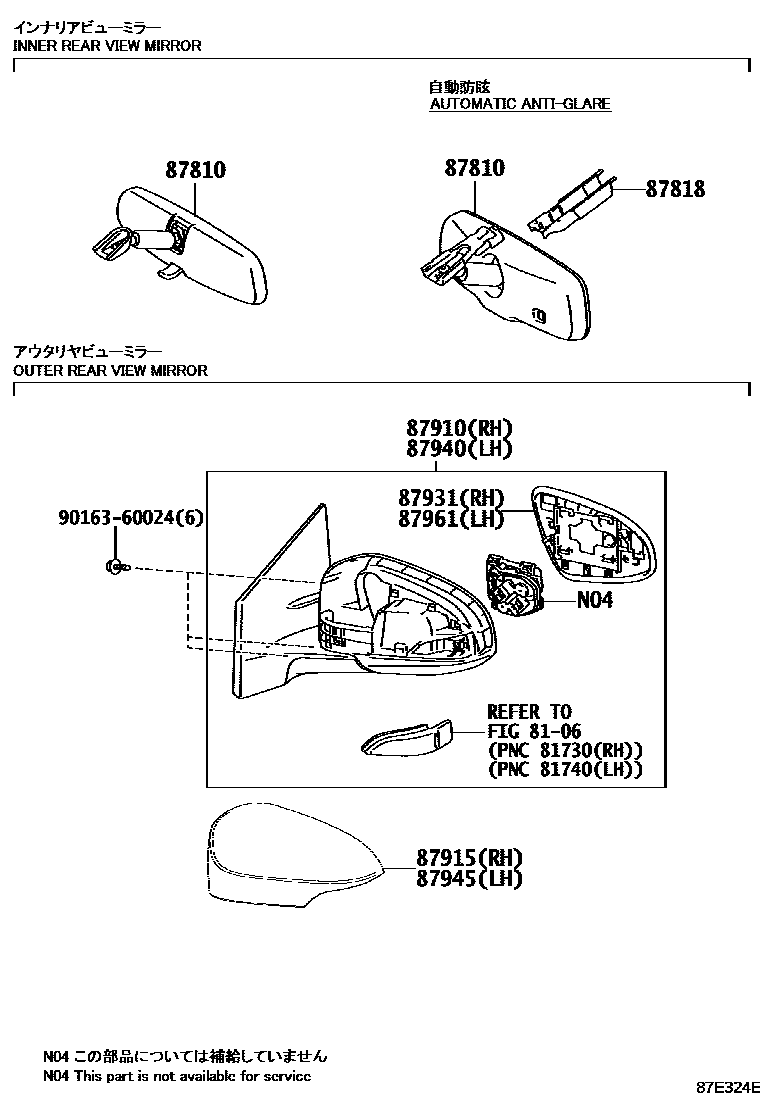

Toyota COROLLA 后视镜 EPC diagram — 87E324E
后视镜 — 87E324E (201501 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02111 · 87810-02230 · 87810-0W810
87818Interior rearview mirror cover87818-0W070
87910Right exterior rearview mirror assembly87910-02C90 · 87910-02C91 · 87910-02C92 · 87910-02D10 · 87910-02J30 · 87910-02J40
87915Right exterior rearview mirror cover87915-02928 · 87915-06910
87931Right exterior rearview mirror87931-02C90 · 87931-02D10 · 87931-0D750
87940Left exterior rearview mirror assembly87940-02D10 · 87940-02D11 · 87940-02D12 · 87940-02D30 · 87940-02G70 · 87940-02G80
87945Left exterior rearview mirror cap87945-02928 · 87945-06910
87961Left exterior rearview mirror87961-02D10 · 87961-02D30 · 87961-0D740
