Toyota COROLLA 喇叭 — Figure 8611

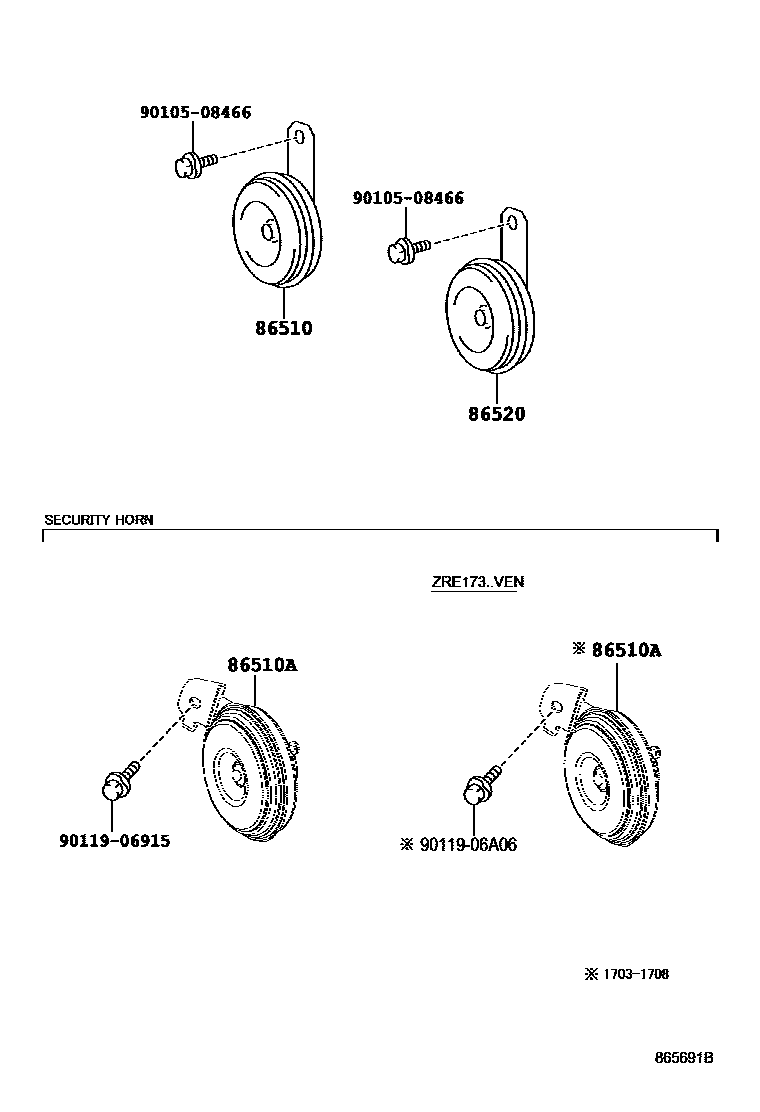

Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86500-12260 · 86510-48070 |
| 86510A | Alarm horn assembly | 86560-02030 |
| 86520 | Subwoofer assembly | 86500-12250 · 86520-47010 |
