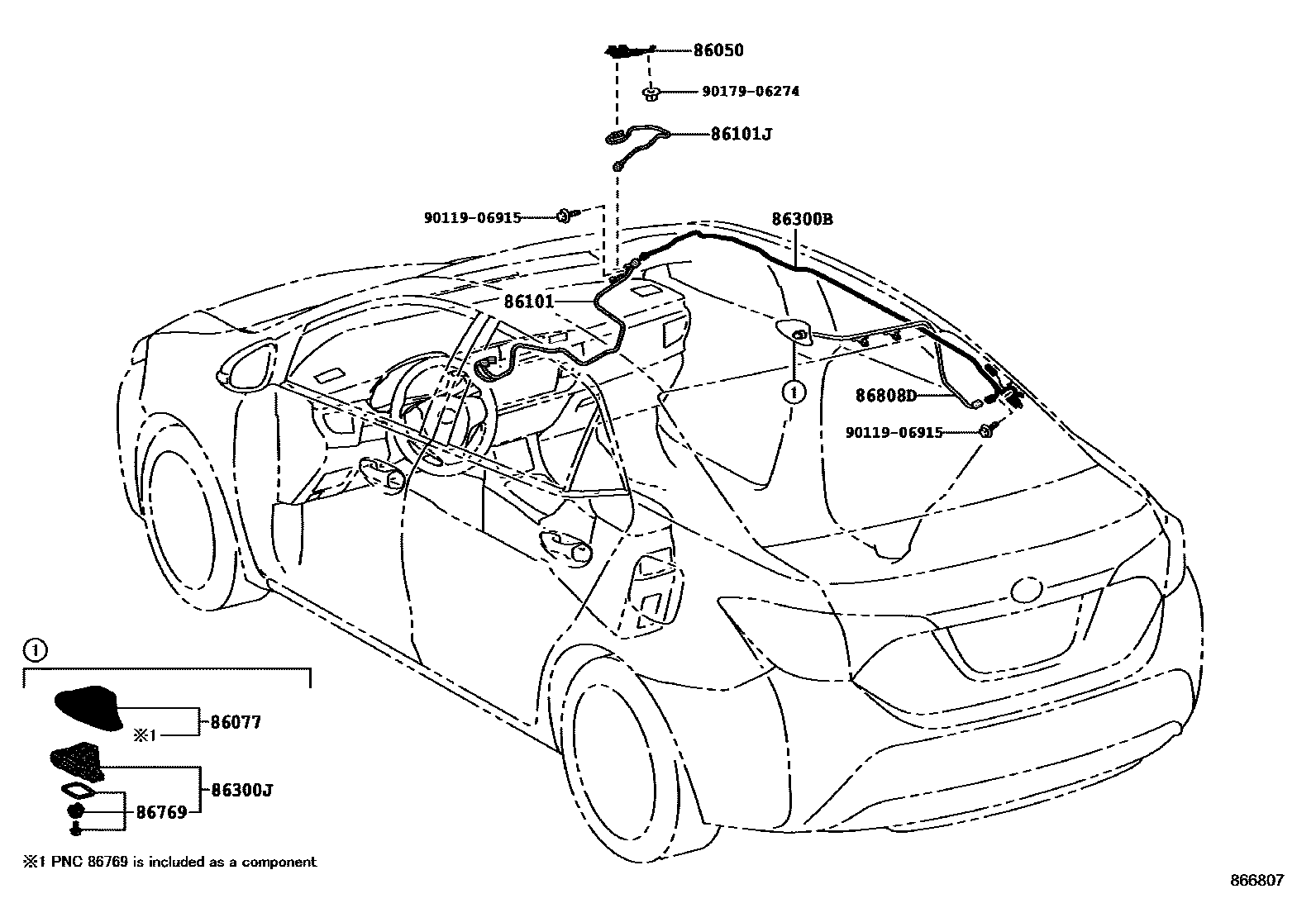

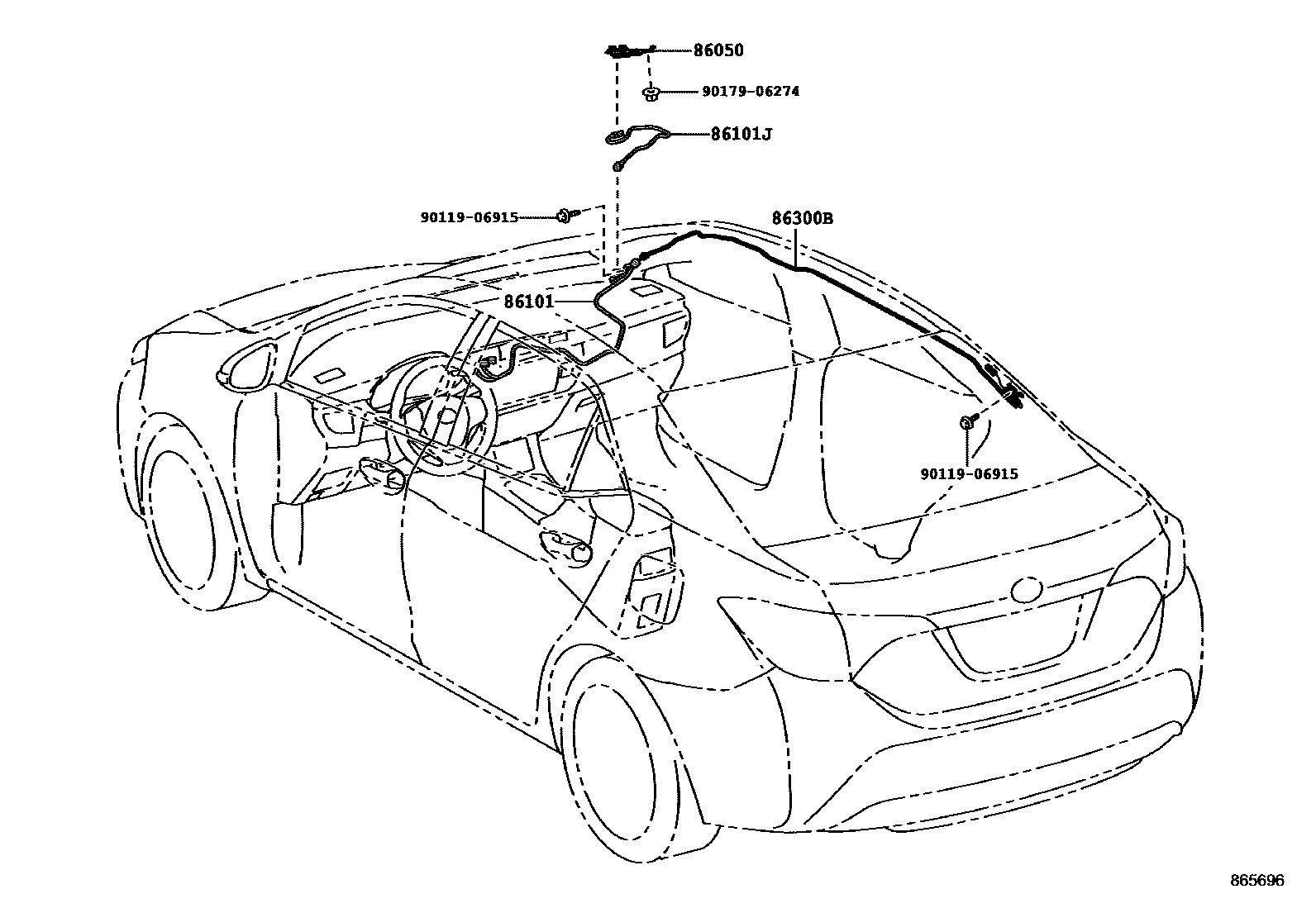

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-53190 · 86050-53200 |
| 86101 | Antenna wire sub-assembly | 86101-02590 · 86101-12A30 · 86101-12A60 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-12A20 · 86101-12E00 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02420 · 86300-02440 · 86300-02560 |
| 86300J | Roof antenna assembly | 86760-48080 |
| 86769 | roof radome | 86769-53010 |
| 86808D | Navigation antenna wire sub-assembly | 86808-02150 |
