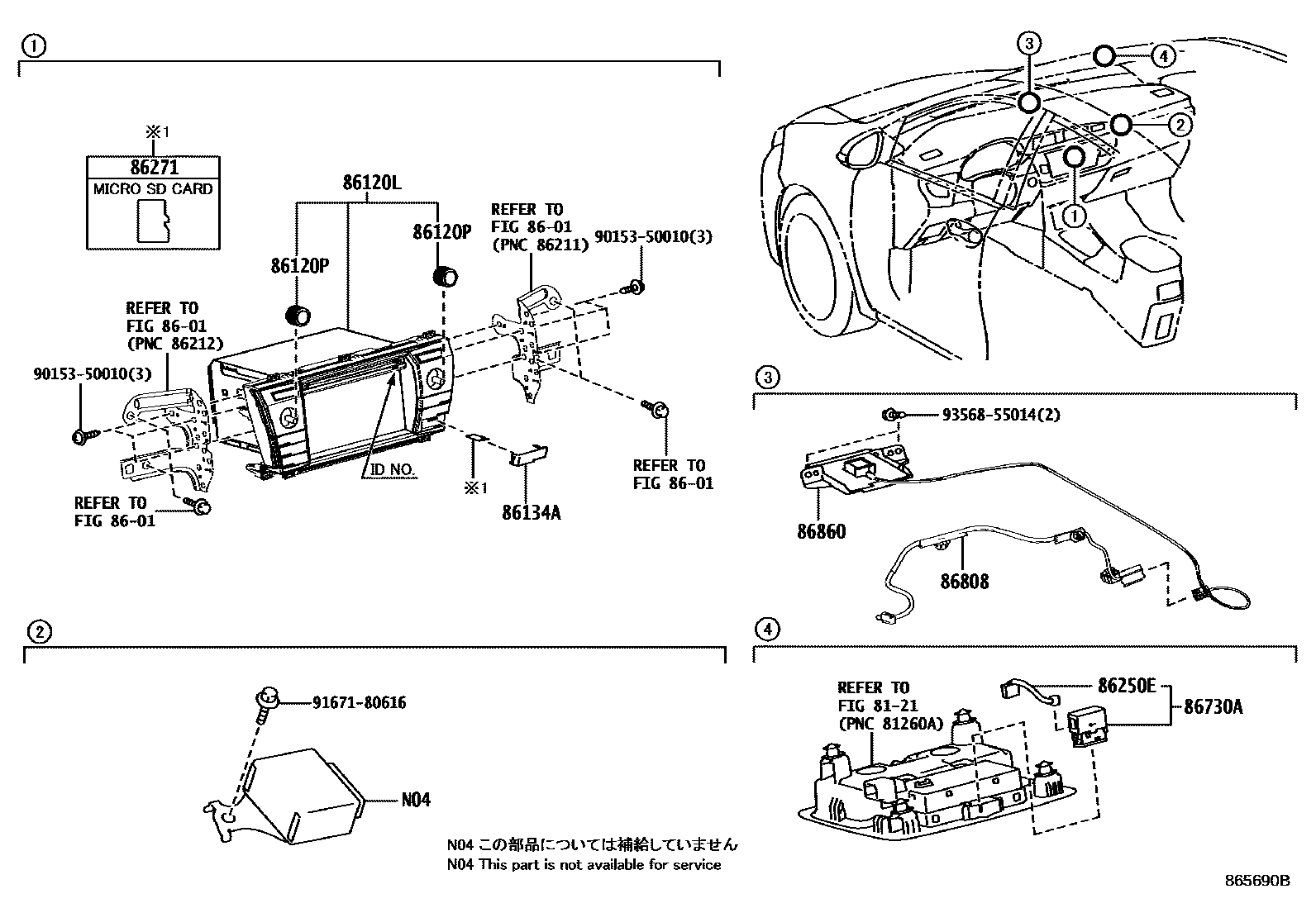

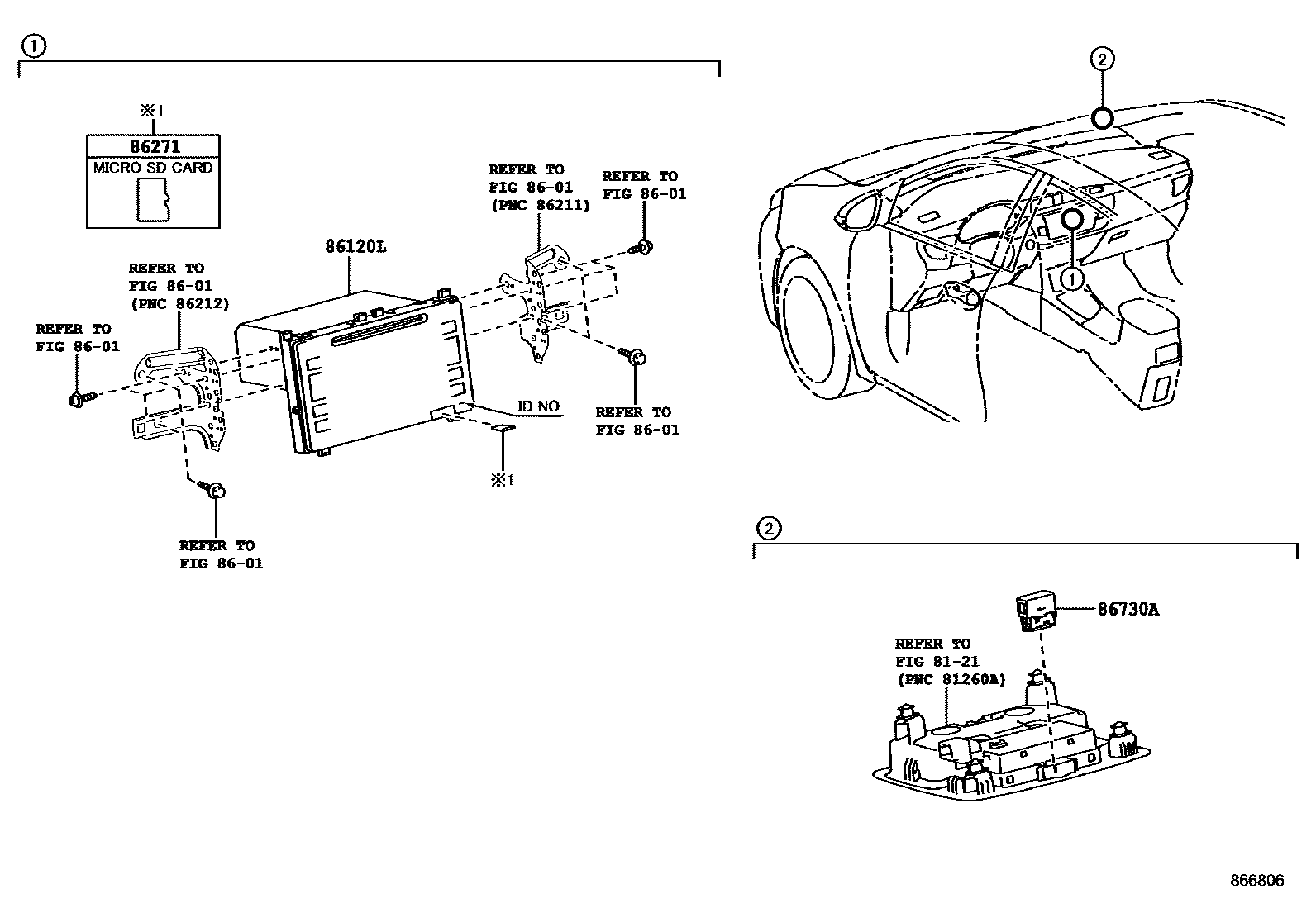

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-02010 · 86804-02060 · 86804-02090 · 86804-02091 · 86804-02130 · 86804-02140 |
| 86120P | Navigation receiver switch button | 90011-25233 |
| 86134A | Multifunctional display components | 86134-02030 |
| 86250E | amplifier loudspeaker assembly | 86250-52030 |
| 86271 | CD | 86271-33120 · 86271-33121 · 86271-33122 · 86271-33123 · 86271-33124 · 86271-33230 · 86271-33231 · 86271-33232 · 86271-33233 · 86271-33234 |
| 86730A | Telephone amplifier assembly | 86730-02010 · 86730-52020 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02090 |
| 86860 | Navigation antenna assembly | 86860-12140 |
