Toyota COROLLA 空气囊 — Figure 8421

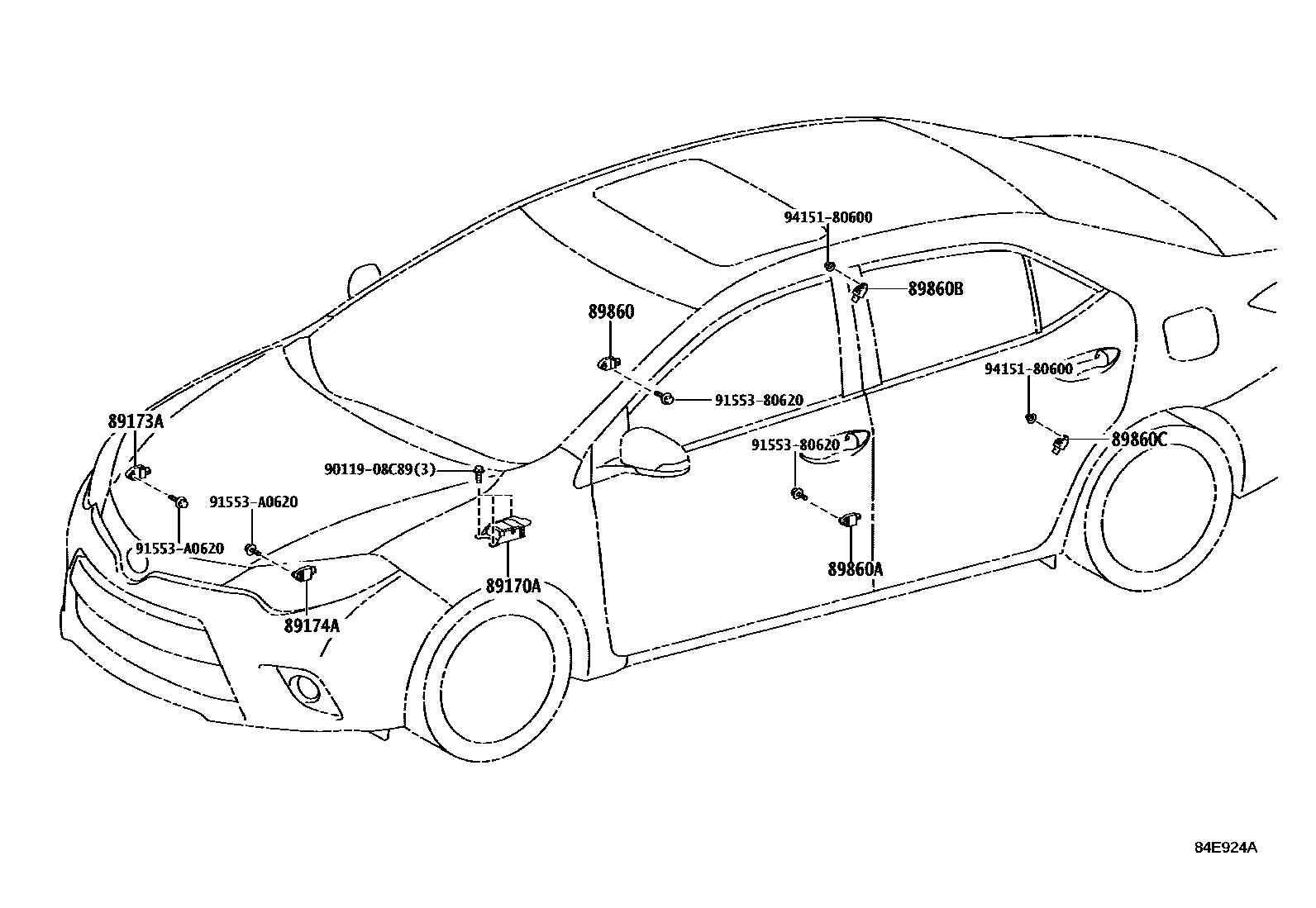

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02E60 · 89170-02E70 · 89170-02E80 · 89170-02E90 · 89170-02F00 · 89170-02N00 |
| 89173A | Right front air bag sensor | 89173-09A60 · 89173-19485 |
| 89174A | Left front air bag sensor | 89173-09A60 · 89173-19485 |
| 89860 | Right side airbag sensor assembly | 89831-02260 · 89831-12040 |
| 89860A | Left side air bag sensor assembly | 89831-02260 · 89831-12040 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-02270 · 89831-12030 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-02270 · 89831-12030 |
