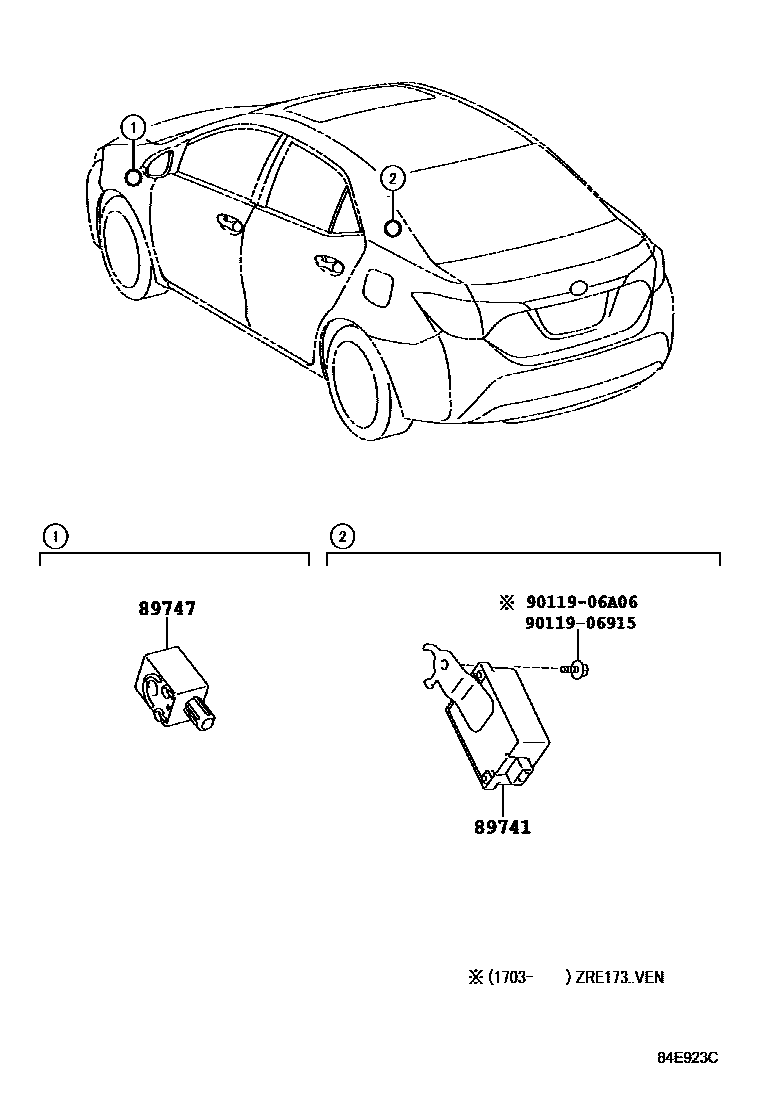

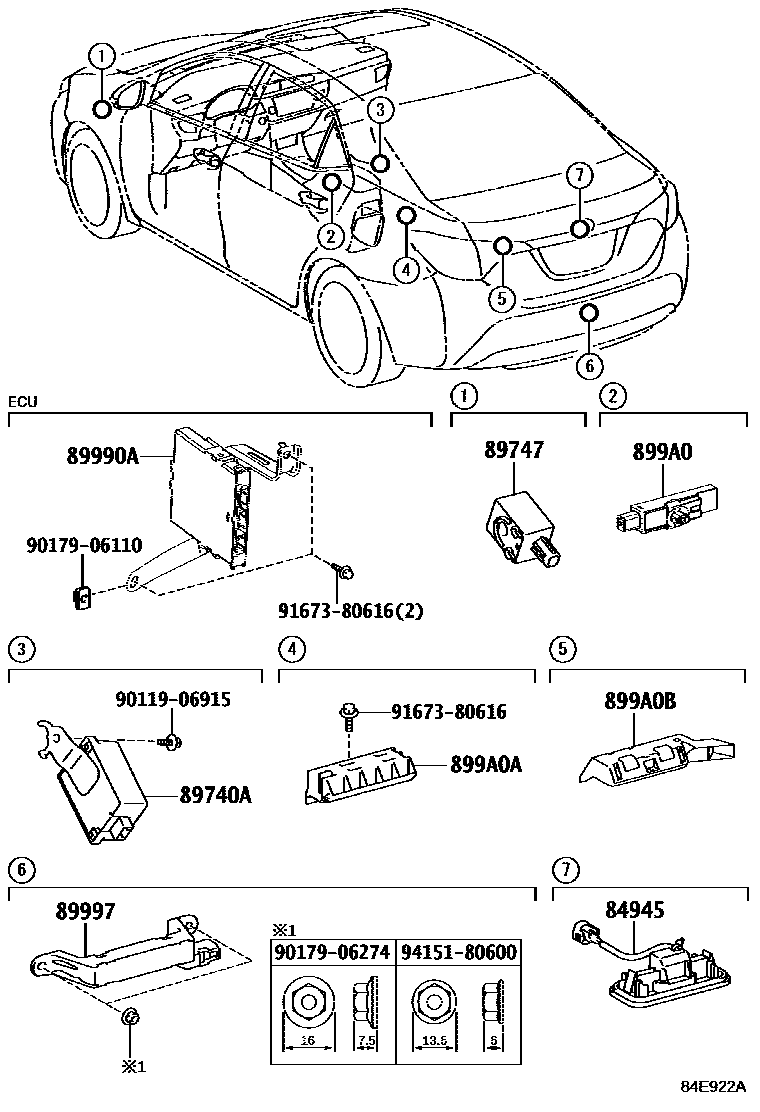

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-12030 |
| 89740A | Smart door control receiver assembly | 89740-12190 · 89740-12191 · 89740-12240 |
| 89741 | door control receiver | 89741-02340 · 89741-02360 · 89741-02370 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-12180 · 89990-12181 · 89990-12182 · 89990-12183 |
| 89997 | electronic key antenna | 89997-30070 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-47010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12060 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12070 |
