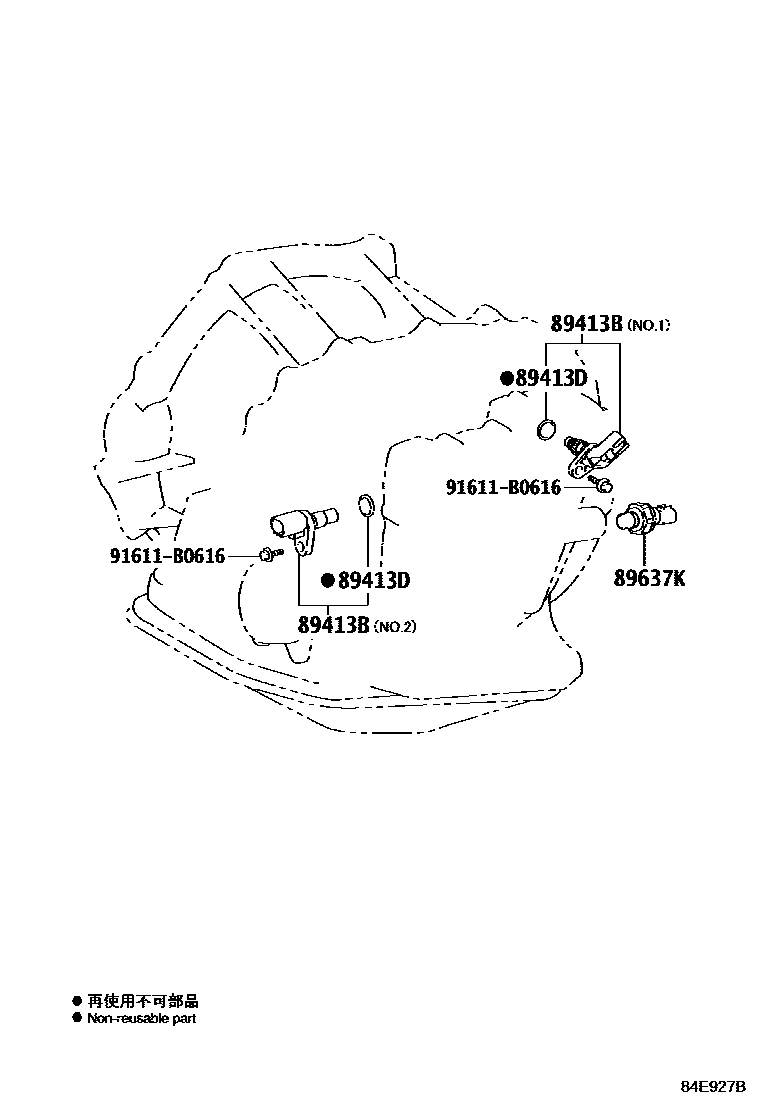

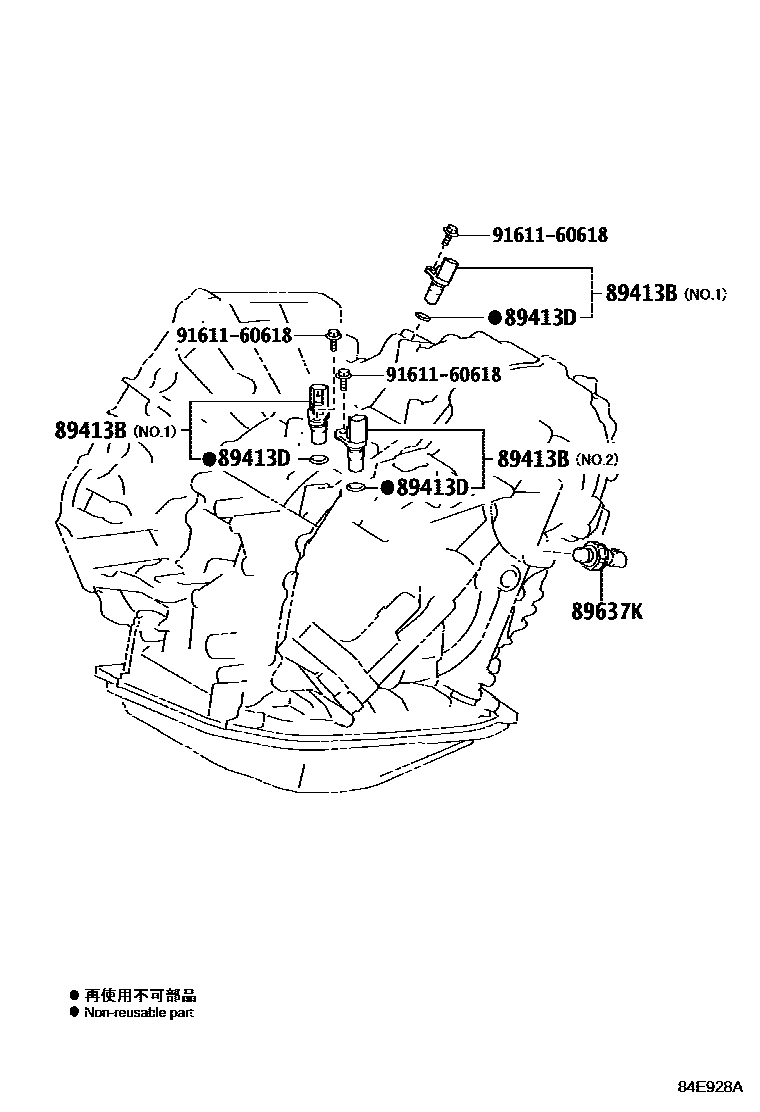

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89413B | Transmission speed sensor | 89413-12020 · 89413-28010 · 89413-28011 · 89413-60020 · 89413-60021 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413N | Transmission speed sensor (NT) | 89413-24010 |
| 89413S | Transmission speed sensor (NC) | 89413-24010 |
| 89637K | oil pressure sensor | 89637-63010 |
