Toyota COROLLA 开关和继电器和ECU — Figure 8401

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 86 PNC and OE references.

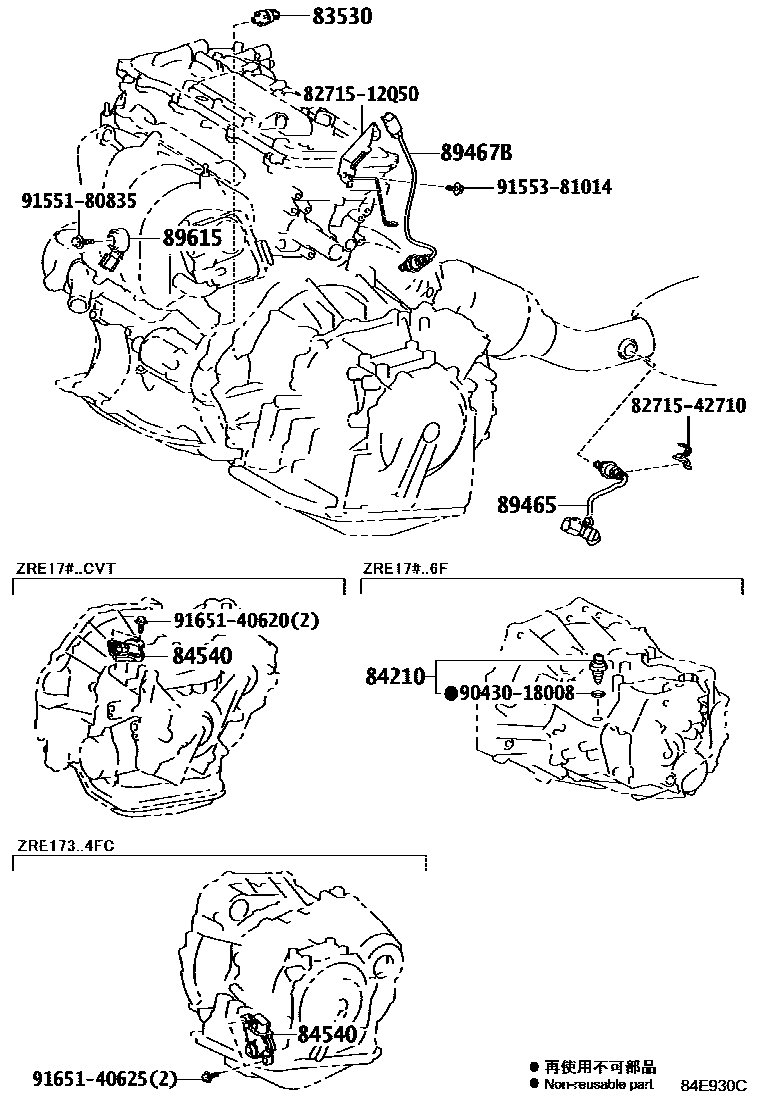

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E930C
开关和继电器和ECU — 84E930C (201403 – 999999)

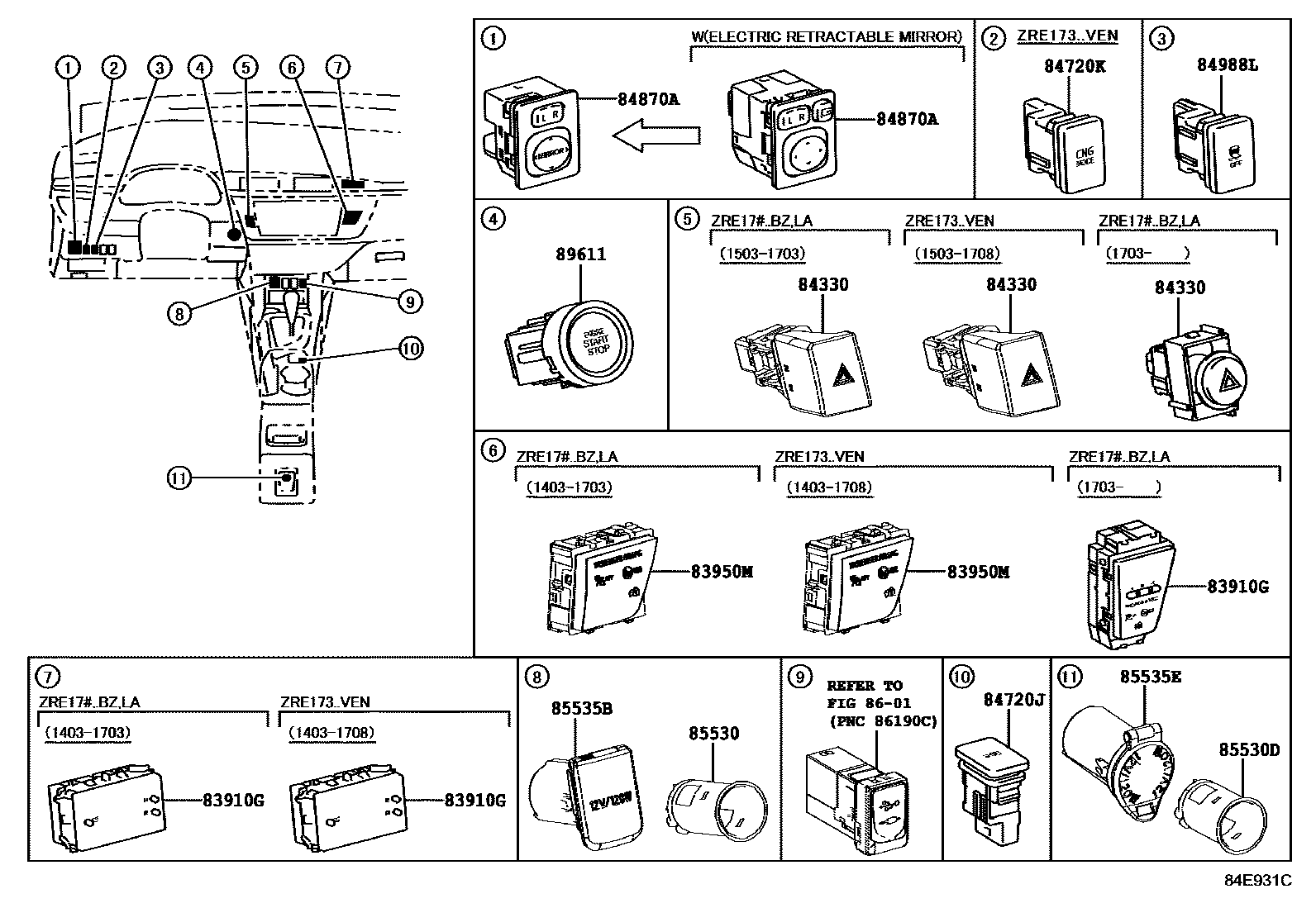

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E931C
开关和继电器和ECU — 84E931C (201403 – 999999)

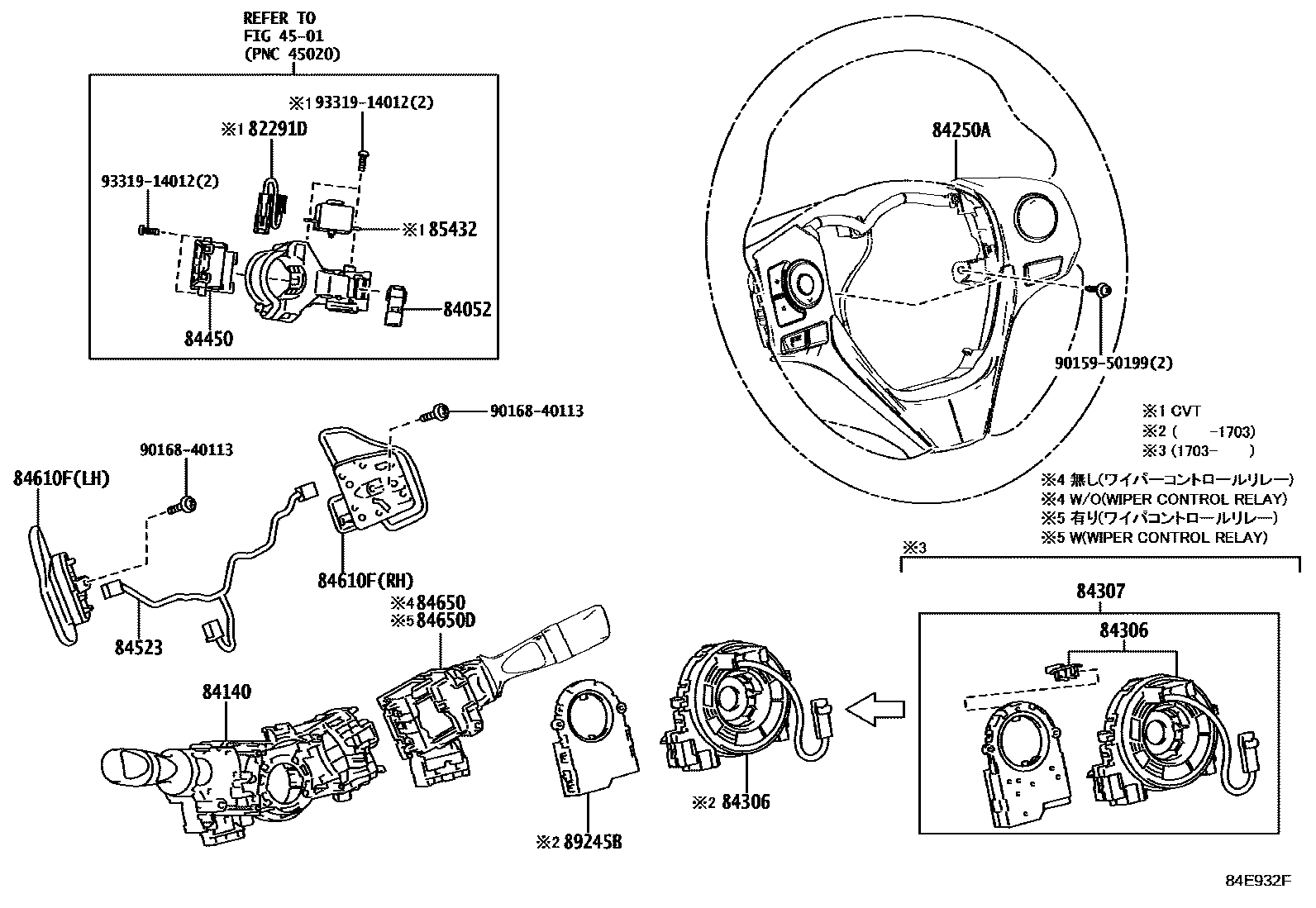

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E932F
开关和继电器和ECU — 84E932F (201403 – 999999)

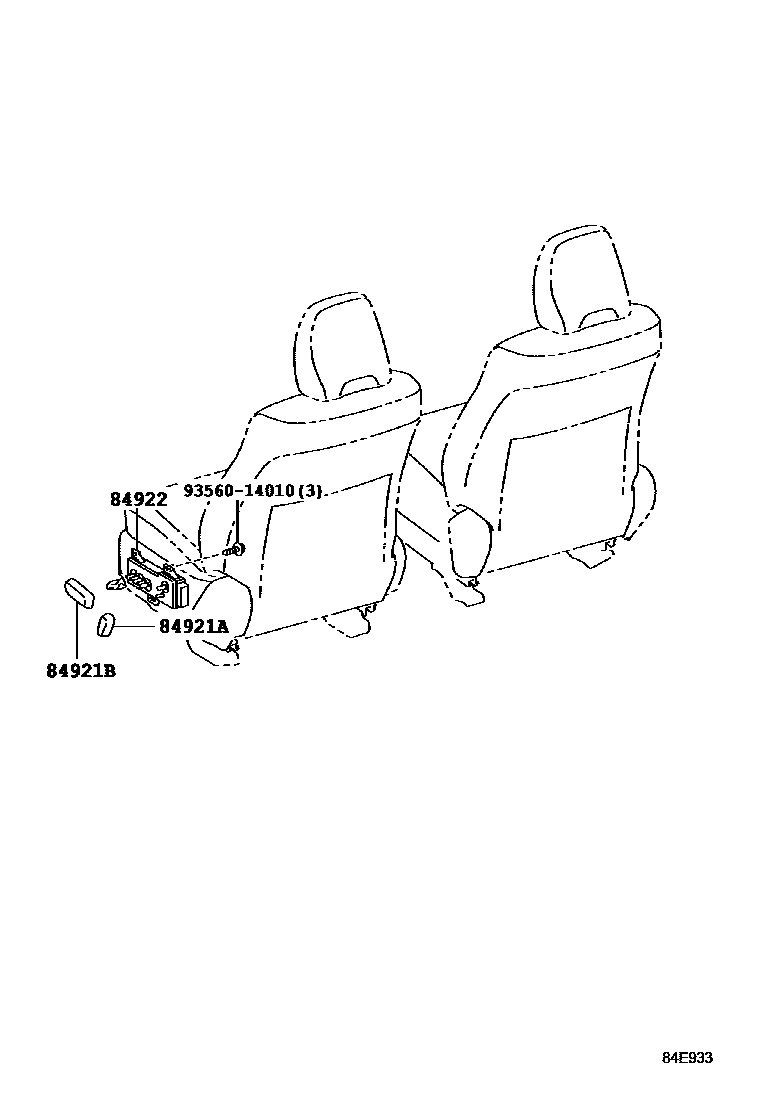

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E933
开关和继电器和ECU — 84E933 (201403 – 999999)

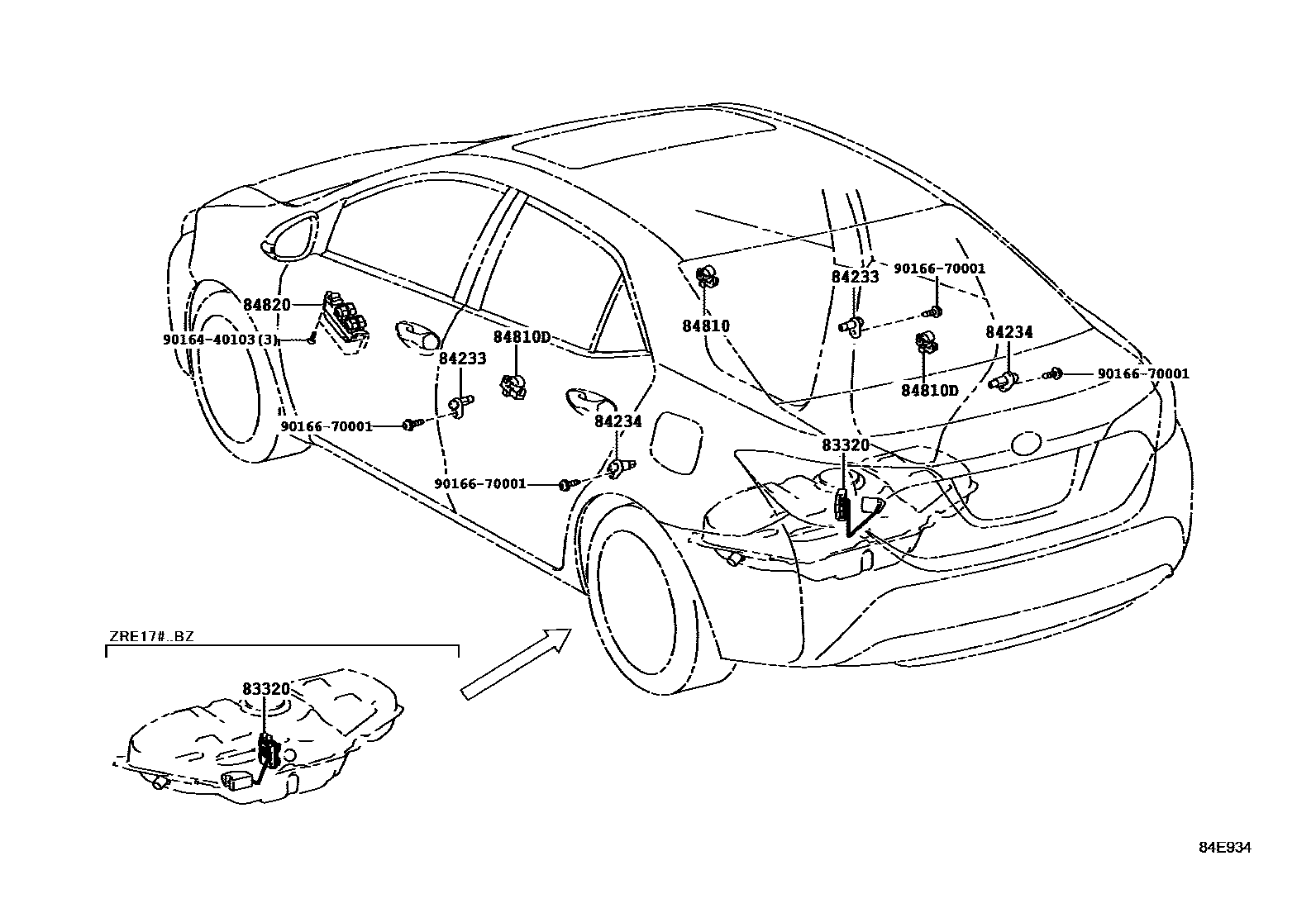

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E934
开关和继电器和ECU — 84E934 (201403 – 999999)

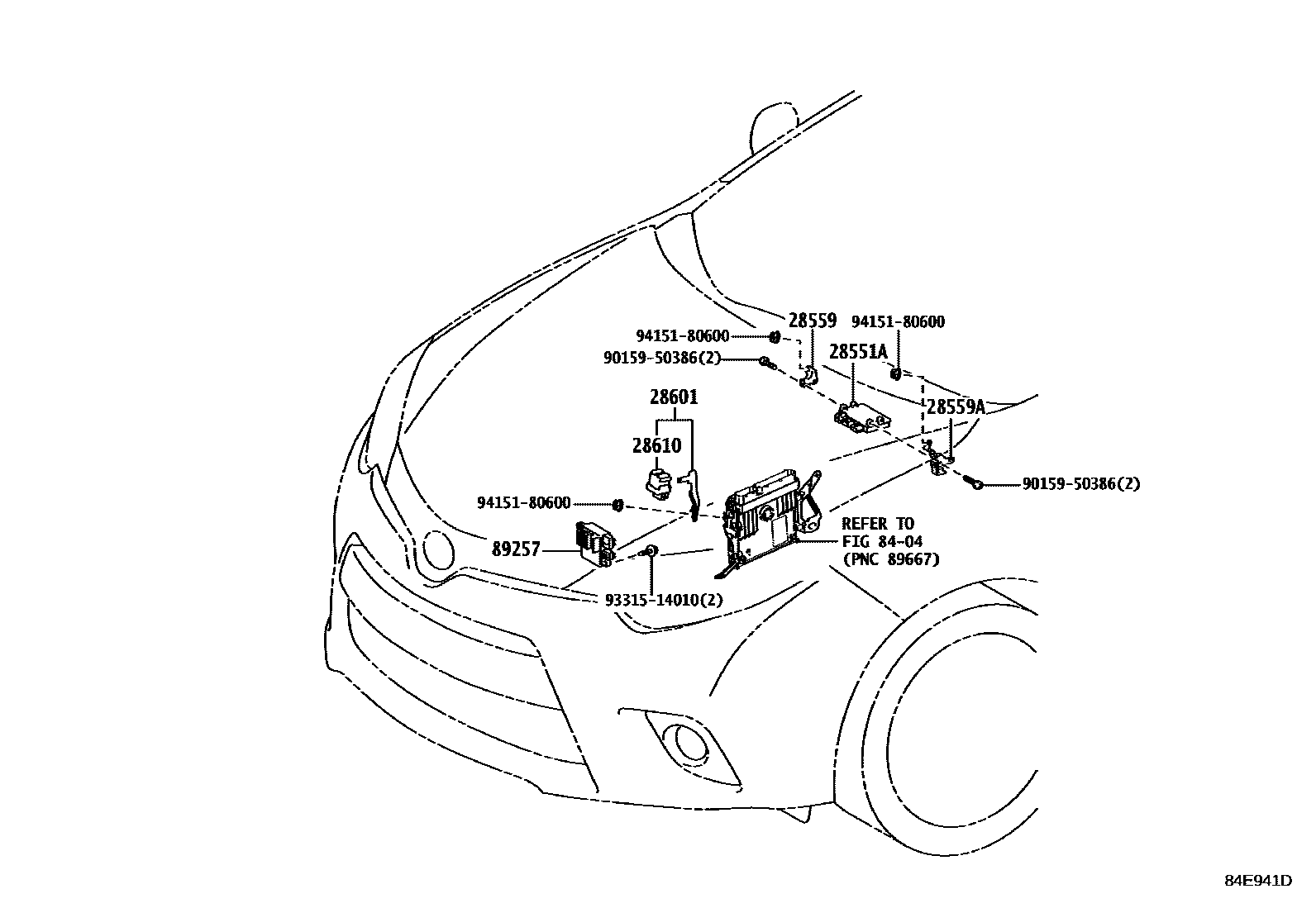

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E941D
开关和继电器和ECU — 84E941D (201403 – 999999)

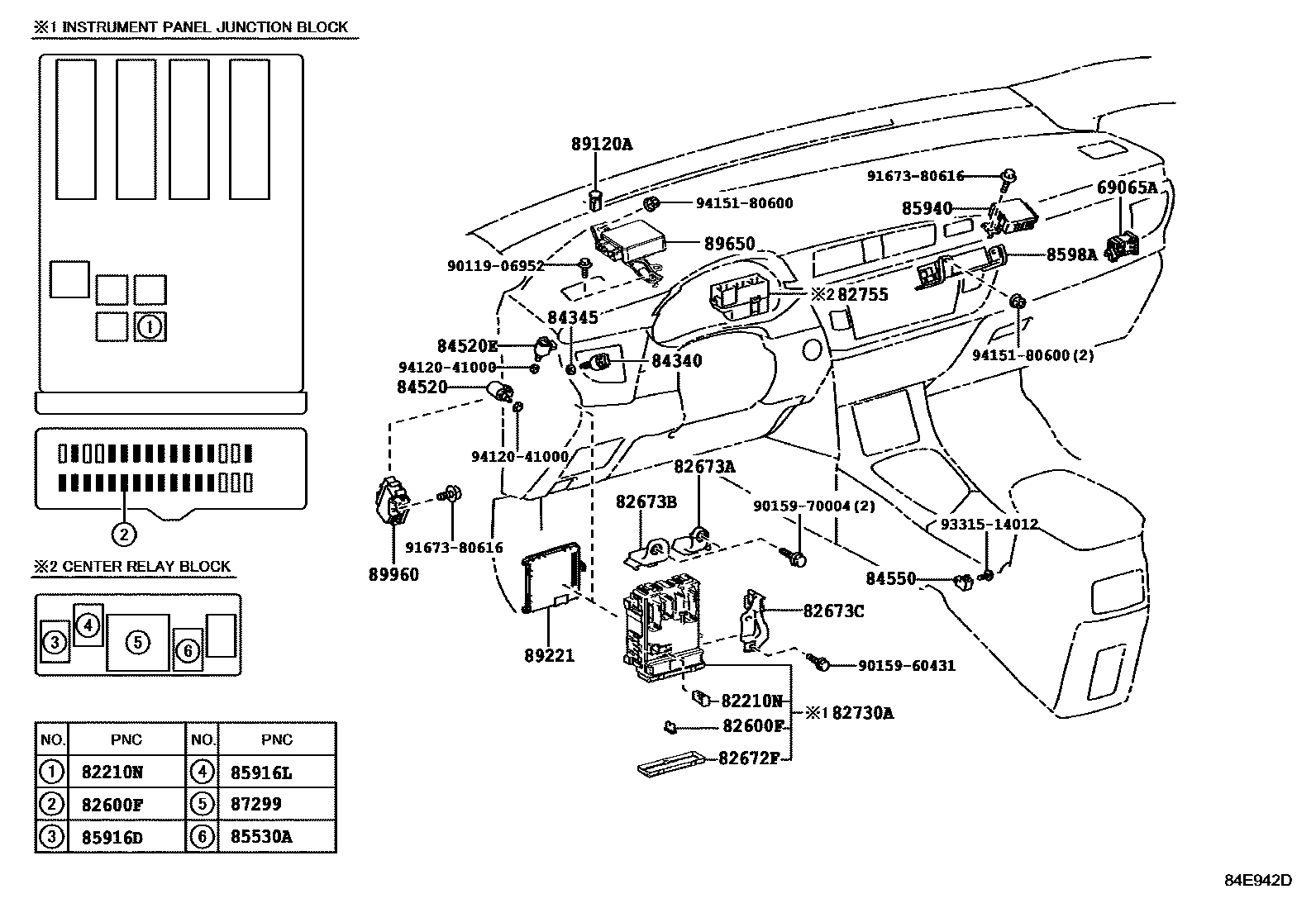

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84E942D
开关和继电器和ECU — 84E942D (201403 – 999999)

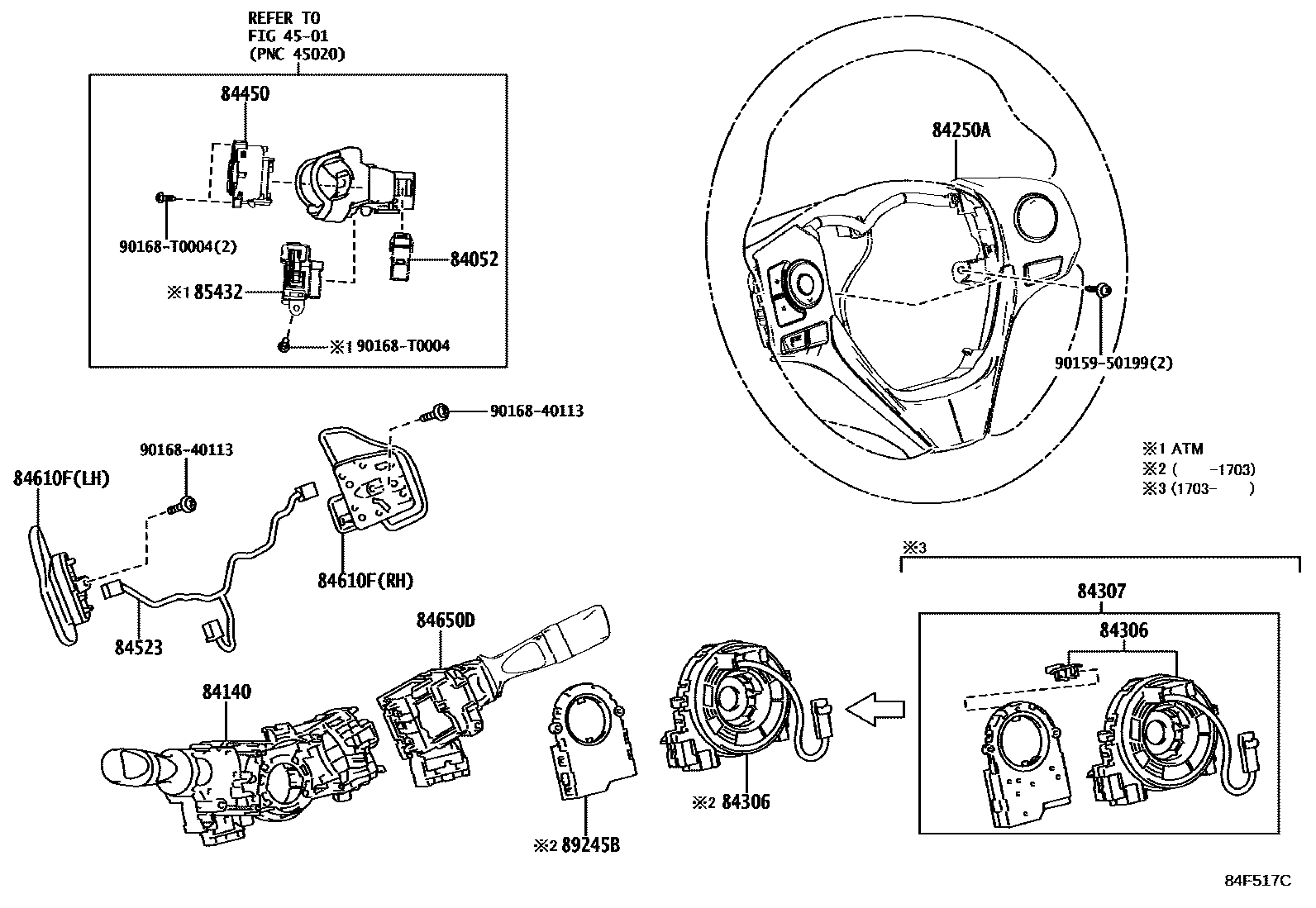

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84F517C
开关和继电器和ECU — 84F517C (201403 – 999999)

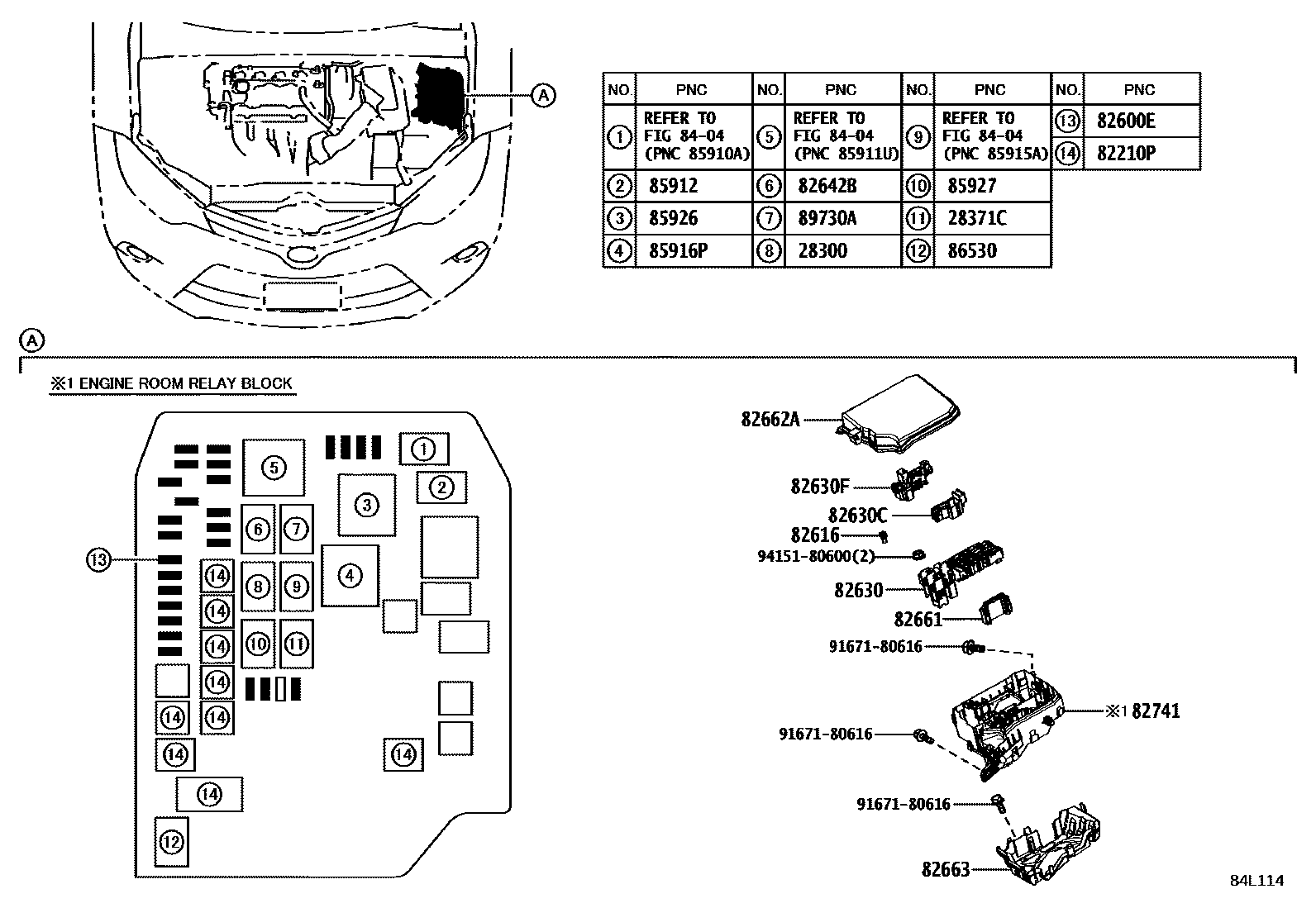

Toyota COROLLA 开关和继电器和ECU EPC diagram — 84L114
开关和继电器和ECU — 84L114 (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
28300Starter relay assembly28300-21020 · 28300-28010
28371CNo. 2 ignition relay90080-87021
28551AFuel injection heating controller28551-0T010
28559Glow plug controller bracket No. 128559-0T010
28559AGlow plug controller bracket No. 228559-0T020
28601Relay fixed glow plug sub-assembly28601-37010
28610Intake air heater or glow plug relay assembly28610-67010
69065AAir bag cut-off switch lock cylinder sub-assembly69065-12460
82210NInstrument panel fuse90982-08306
82210PEngine room fuse90982-08274 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08305
82291DWiring harness (to solenoid valve)82291-02040
82600EEngine room fuse90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025
82600FSpare fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024
82616fuse puller82616-58010
82630Fuse holder assembly82631-12040
82630CFuse holder assembly82631-12060
82630Ffuse holder82631-12110
82642BNo. 1 daytime running light relay90080-87021
82661No. 1 relay box cover82661-12330
82662ANo. 1 relay box upper cover82662-02870 · 82662-02A20 · 82662-02A21
82663Relay box lower cover82663-12140
82672FJunction box cover82672-12540 · 82672-12541
82673AJunction box bracket82673-02110
82673BJunction box bracket82673-02120
82673CJunction box bracket82673-02130
82730ADriver's side junction box assembly82730-12L60 · 82730-12L61 · 82730-12L62 · 82730-12M80 · 82730-12M81
82741Engine room relay box82741-12120
82755central relay box82755-02040
83320Fuel gauge sensor assembly83320-02130 · 83320-12840
83530Oil pressure switch assembly (for engine)83530-12060 · 83530-28020 · 83530-60020
83910Gclock assembly83910-02170 · 83910-02320
83950MWarning light assembly83950-02350
84052Unlock warning switch assembly84052-0K020 · 84052-71010
84140Headlight dimmer switch assembly84140-02860 · 84140-02A80 · 84140-02B50 · 84140-02B70 · 84140-02B80 · 84140-02B90 · 84140-06600
84210Reversing light switch assembly84210-52050
84233Door control light switch assembly (for front door)84231-60070
84234Door control light switch assembly (for rear door)84231-60070
84250ASteering wheel decorative cover switch assembly84250-02470 · 84250-02480 · 84250-02490 · 84250-02A80 · 84250-02A90 · 84250-02B00
84306Spiral cable sub-assembly84306-06190 · 84306-06210 · 84308-02010 · 84308-02060
84307Spiral cable sub-assembly with sensor84307-02330 · 84307-02340
84330Hazard warning signal switch assembly84332-02230 · 84332-02231 · 84332-02330
84340brake light switch assembly84340-09040 · 84340-09041 · 84340-19065
84345Brake light switch base adjuster84345-0K010
84450Ignition or starter switch assembly84450-02030 · 84450-02040
84520Clutch start switch assembly84520-42010
84520ENo. 2 clutch start switch assembly84520-42010
84523No. 1 switch harness84523-42010
84540Neutral start switch assembly84540-42010 · 84540-52070
84550Parking brake switch assembly84550-02010
84610FTransmission shift switch assembly84610-12120 · 84610-12130
84650Windshield wiper switch assembly84652-02800
84650DWindshield wiper switch assembly with wiper control relay84652-02750 · 84652-02850 · 84652-06260
84720JMode selection switch assembly84720-02090 · 84720-02091
84720KMode selection switch assembly84721-02010 · 84721-02011
84810Electric window lift switch assembly84810-02050 · 84810-02150
84810DRear electric window lift switch assembly84810-02050 · 84810-02150
84820Electric window lift main switch assembly84040-02130 · 84820-02350
84870AExterior rearview mirror switch assembly84870-12240 · 84870-12250 · 84870-12260 · 84870-12261
84922Front electric seat switch84922-06140
84988LVSC off switch84988-02051
85432Key interlock solenoid valve85432-0D010 · 85432-71010
85530No. 1 power socket assembly85530-0D040
85530Apower outlet relay90080-87021
85530DNo. 2 power socket assembly85530-0D040
85535BNo. 1 power outlet cover85535-02140
85912defogger relay90080-87020 · 90987-04004
85916Dfog light relay90080-87021
85916LRear fog light relay90080-87021
85916Pheadlight relay90987-02025
85926Headlight dimmer relay90987-02025
85927cooling fan relay90987-02027
85940Windshield wiper relay assembly85940-12220
8598Adoor control battery8598A-02010 · 8598A-12010
86530Speaker relay assembly90080-87021
87299heater relay90987-02025
89120AAutomatic light control sensor89121-12010
89221Multi-channel network body ECU89221-12270 · 89221-12550 · 89221-12570 · 89221-12750 · 89221-12B00 · 89221-12B20 · 89221-12B40 · 89221-12C20 · 89221-12C30 · 89221-12C50 · 89221-12C60 · 89221-12C70 · 89221-12D60 · 89221-12D80 · 89221-12D90 · 89221-12E10 · 89221-12E20 · 89221-12E30 · 89221-12E40 · 89221-12E50 · 89221-12E60
89245Bsteering sensor8924B-0D010
89257Cooling fan ECU89257-12010 · 89257-12020 · 89257-K0020
89465oxygen sensor89465-12A80 · 89465-12B40
89467Bair fuel ratio sensor89467-12260 · 89467-52060
89611One-button start switch89611-42010 · 89611-42011 · 89611-42012
89615knock control sensor89615-20090
89650Power steering ECU assembly89650-02A00 · 89650-02A50 · 89650-02C40 · 89650-02C50
89730ARelay (for safety warnings)90987-02027
89960Headlight beam height adjustment ECU assembly89960-12490
