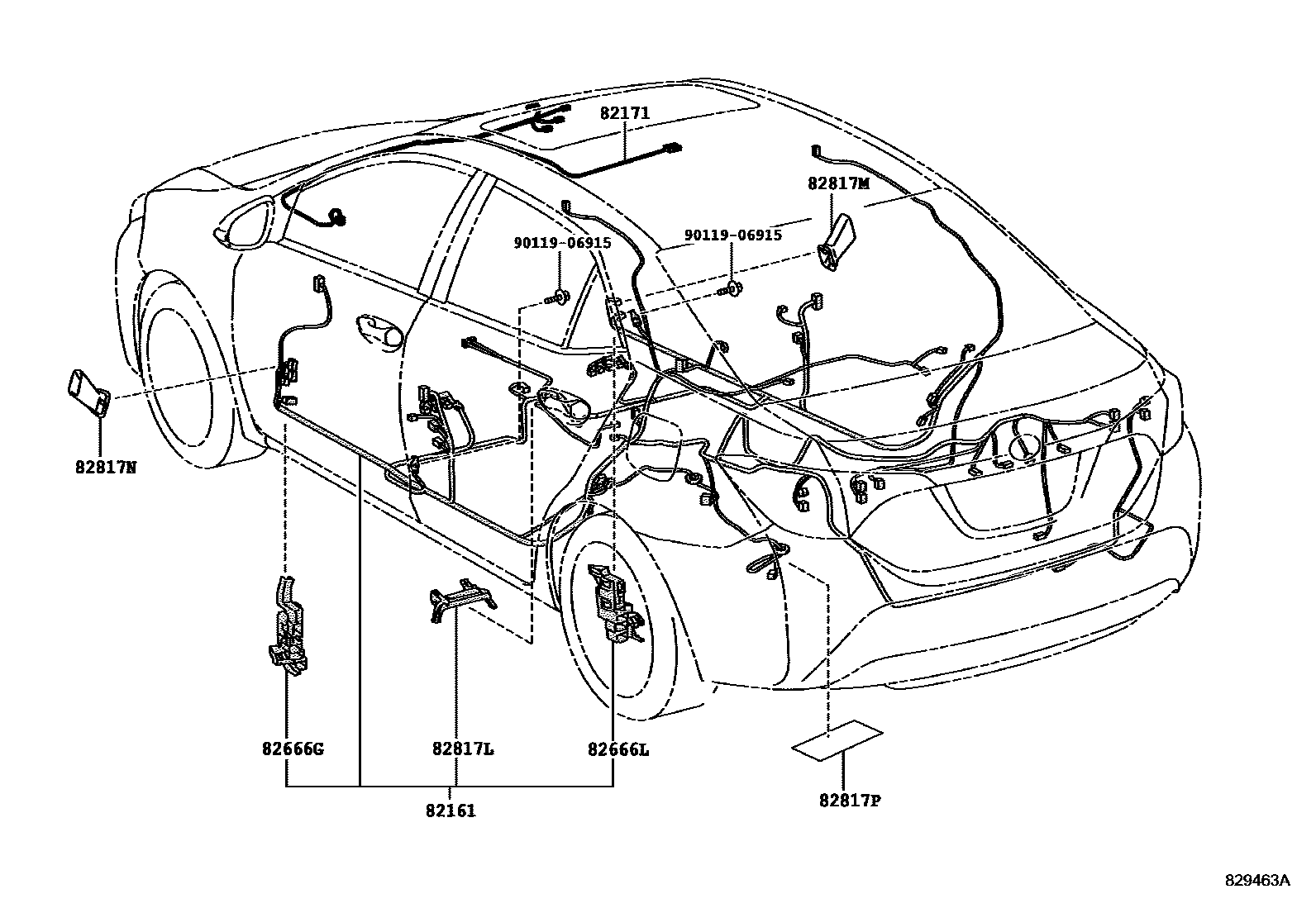

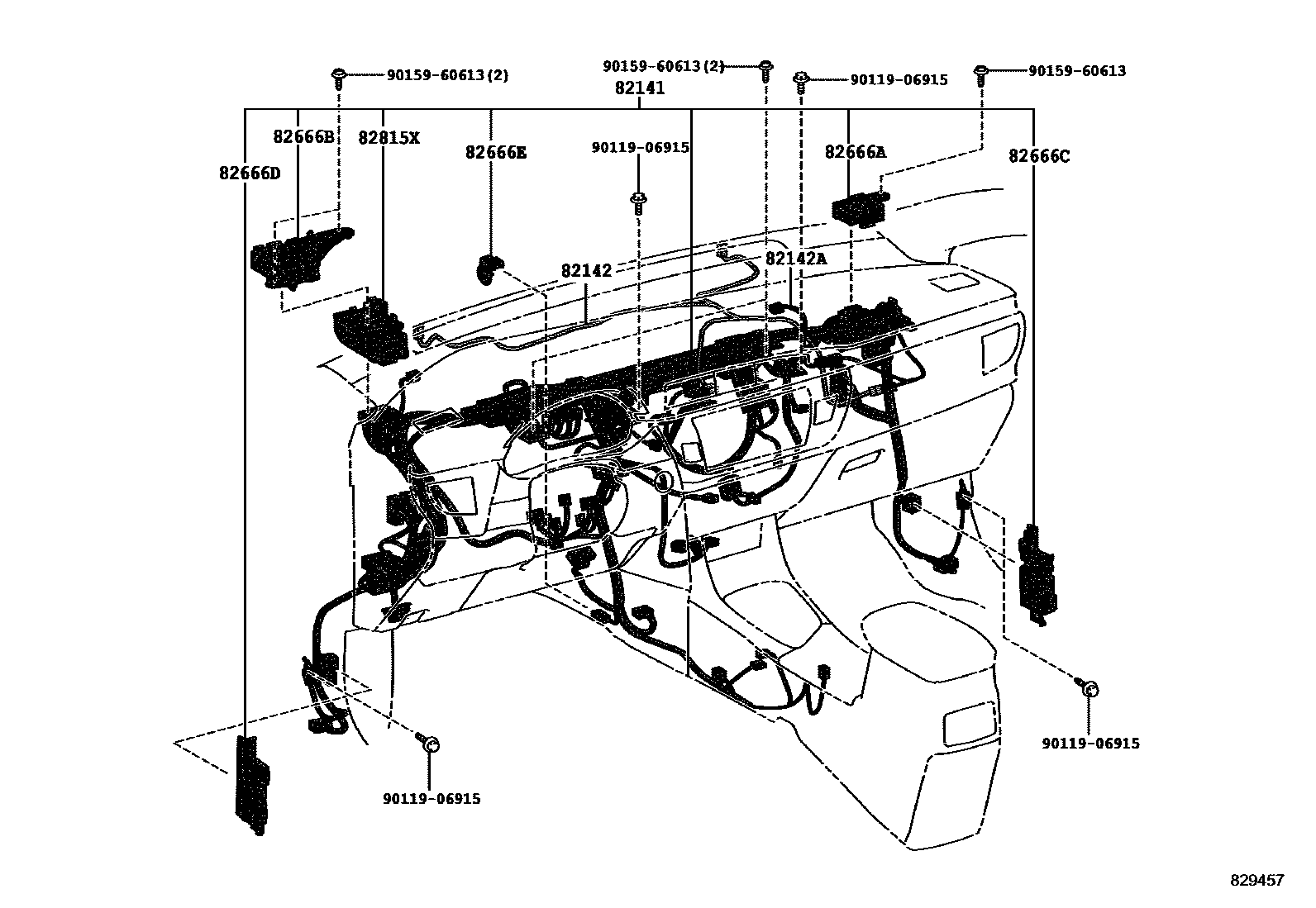

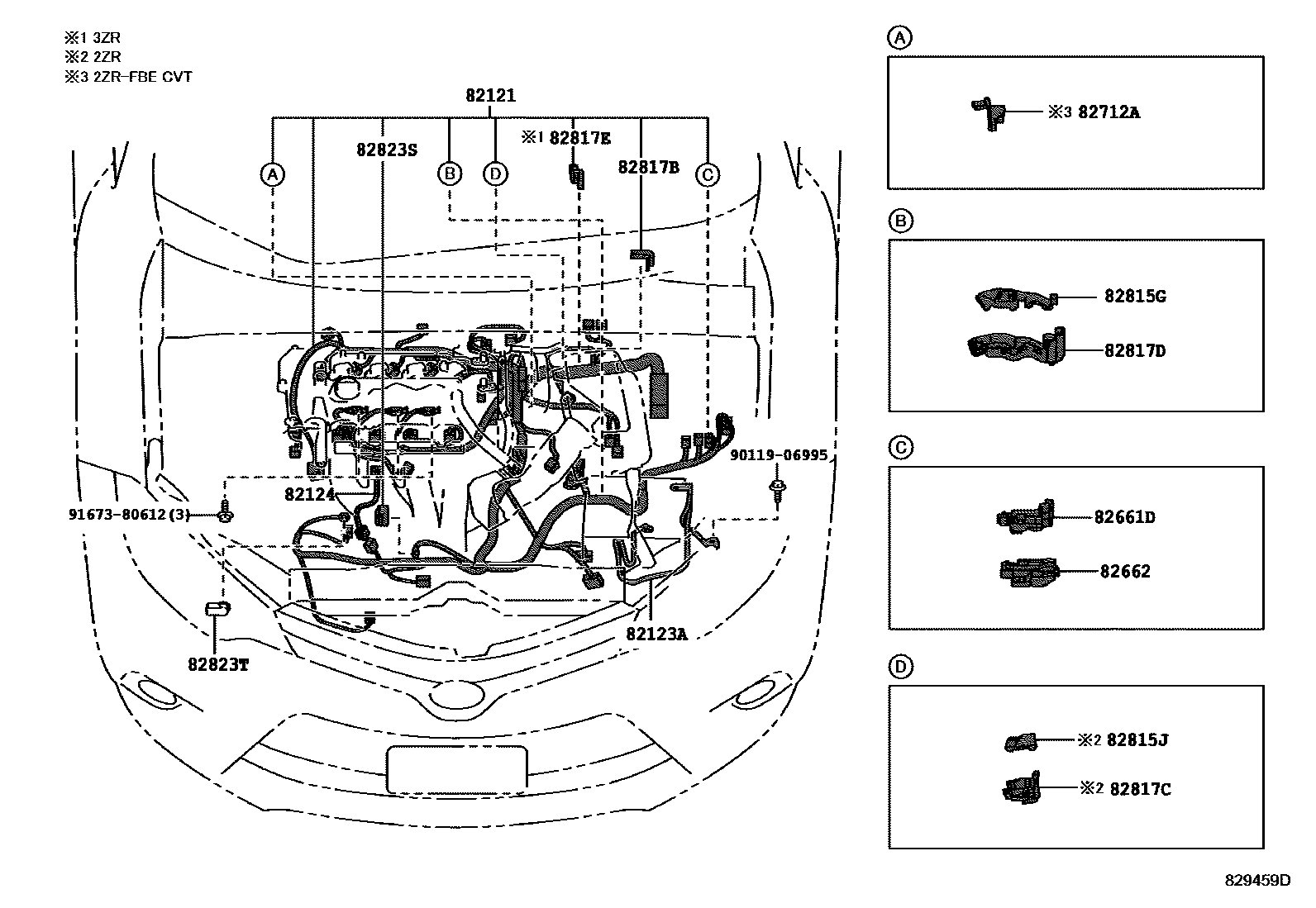

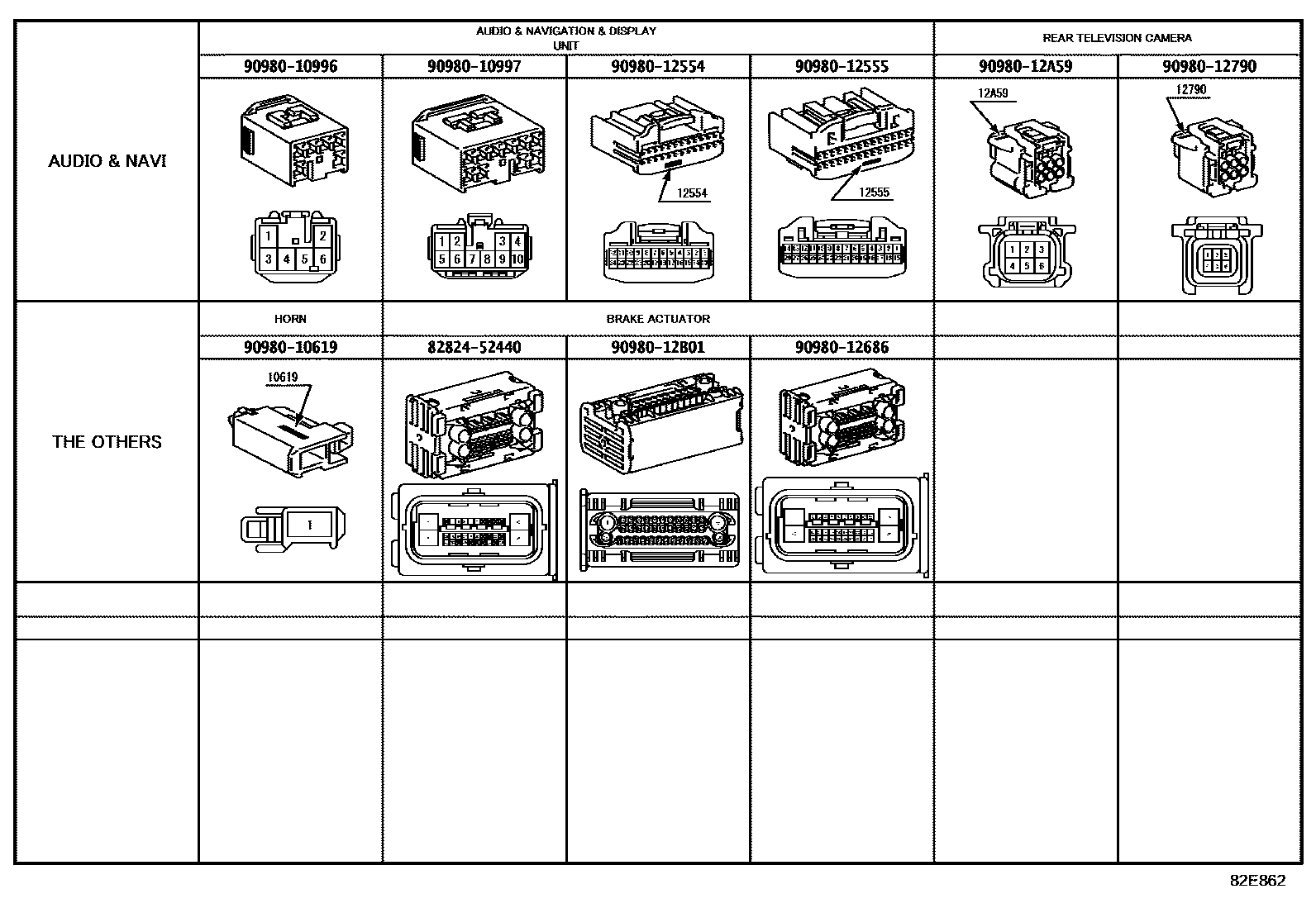

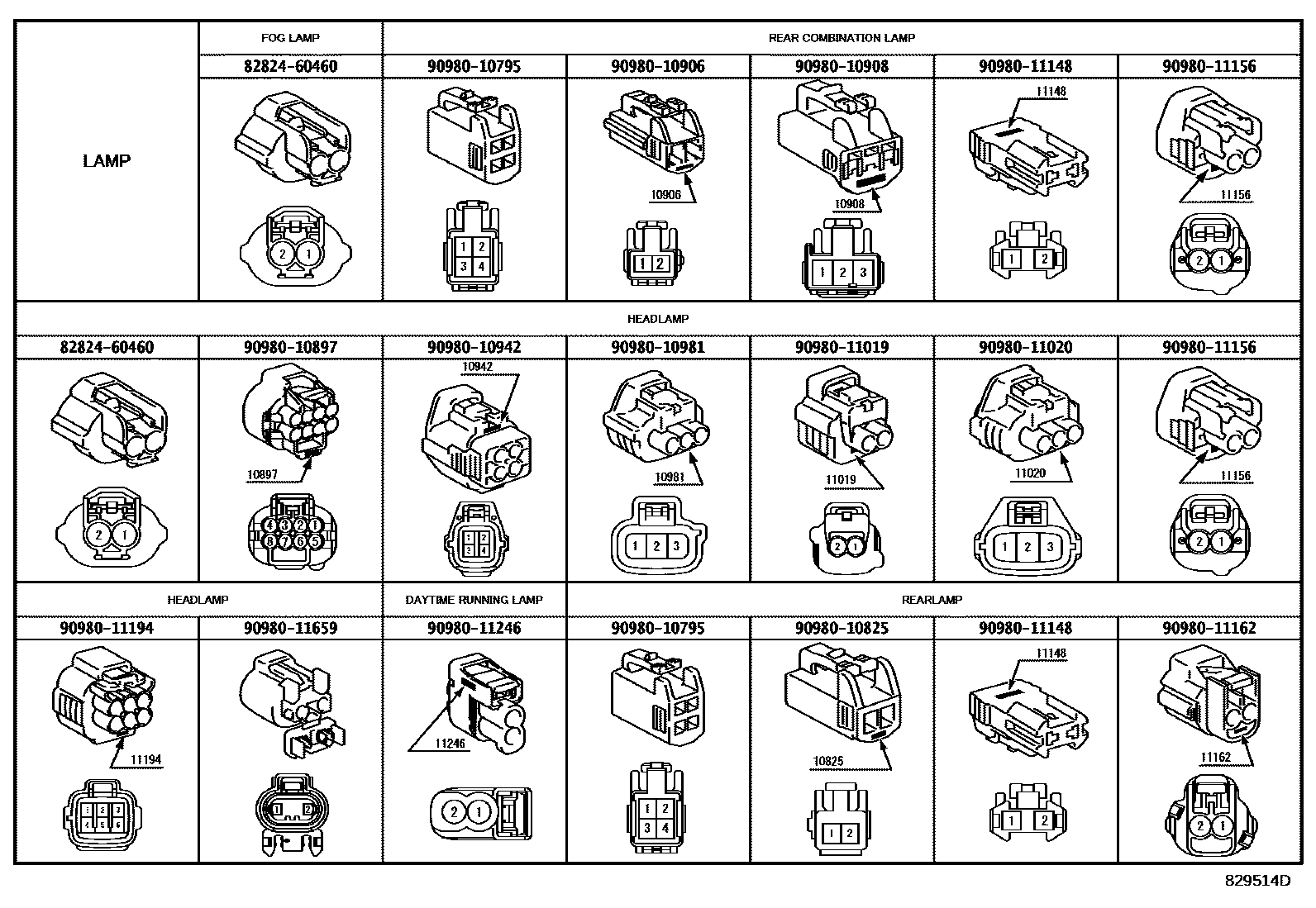

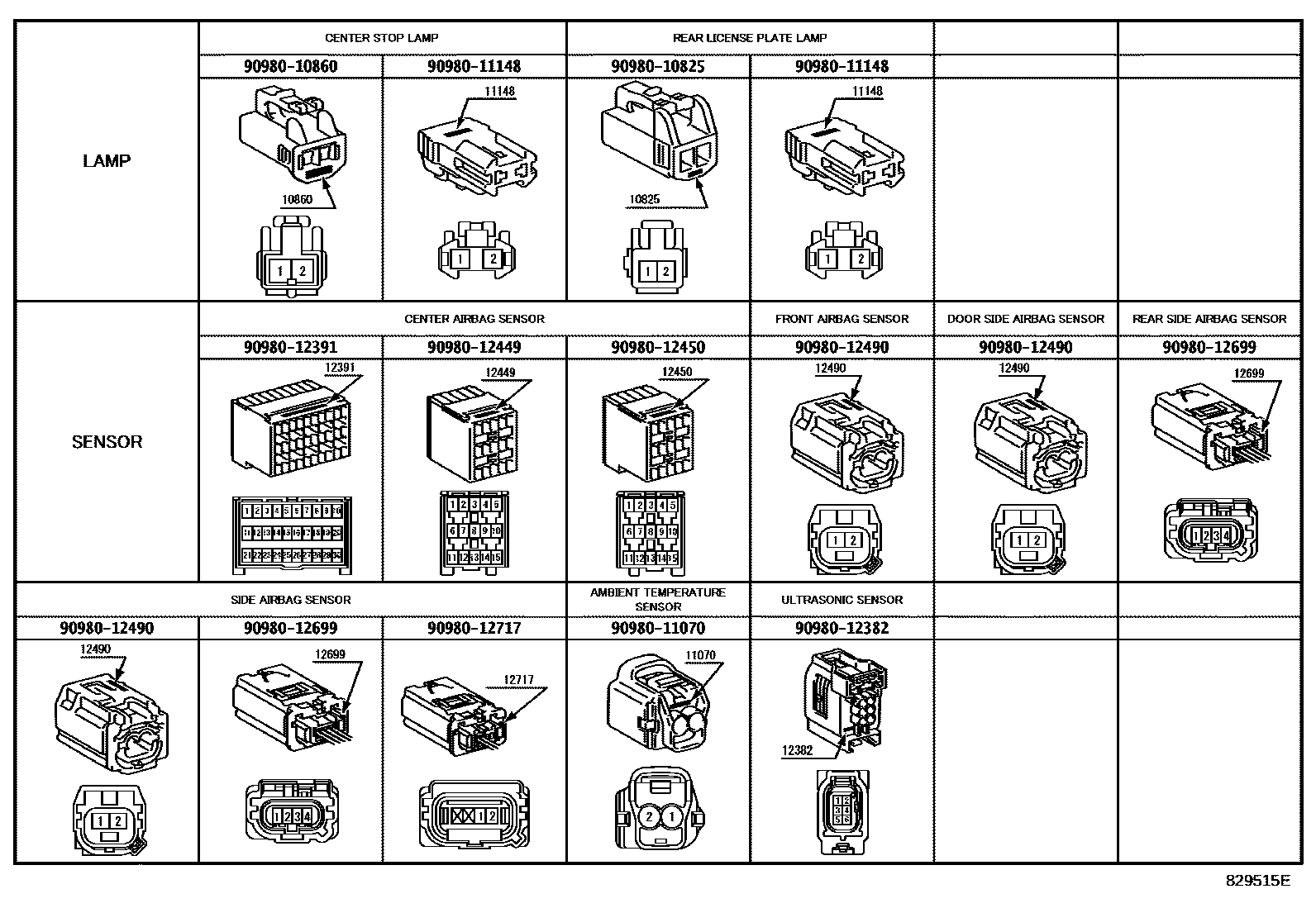

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

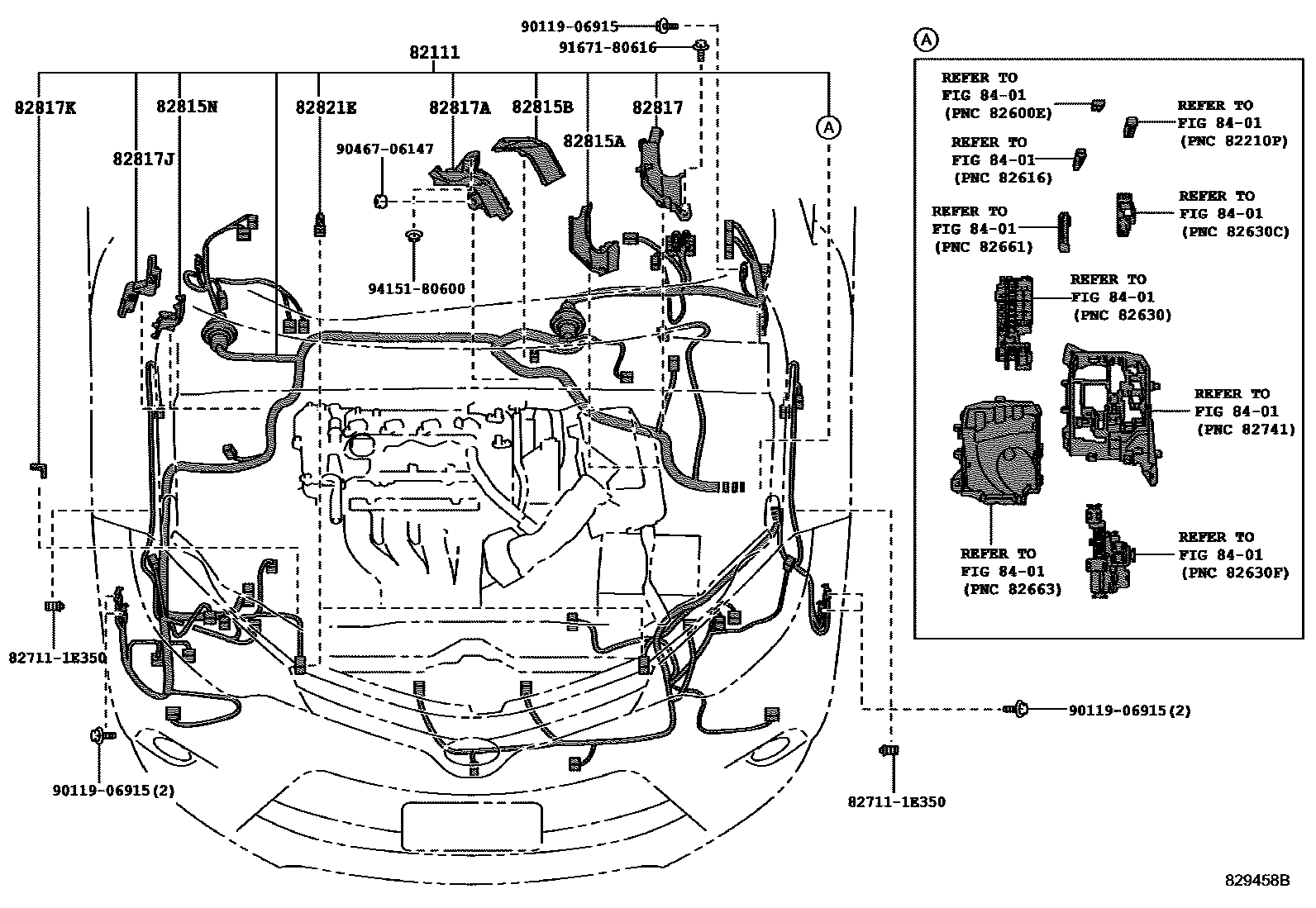

| 82111 | Engine room main wiring harness | 82111-F2350 · 82111-F2351 · 82111-F2360 · 82111-F2361 · 82111-F2390 · 82111-F2391 · 82111-F2400 · 82111-F2401 · 82111-F2410 · 82111-F2411 · 82111-F2420 · 82111-F2421 · 82111-F2540 · 82111-F2541 · 82111-F2550 · 82111-F2551 · 82111-F2560 · 82111-F2570 · 82111-F2580 · 82111-F2590 · 82115-0ZR70 · 82115-0ZR80 · 82115-0ZR90 · 82115-0ZS00 · 82115-0ZS10 · 82115-0ZS30 · 82115-0ZS40 · 82115-0ZS60 · 82115-0ZS70 · 82115-0ZS71 · 82115-0ZS80 · 82115-0ZS81 · 82115-0ZS90 · 82115-0ZS91 · 82115-0ZT00 · 82115-0ZT01 |

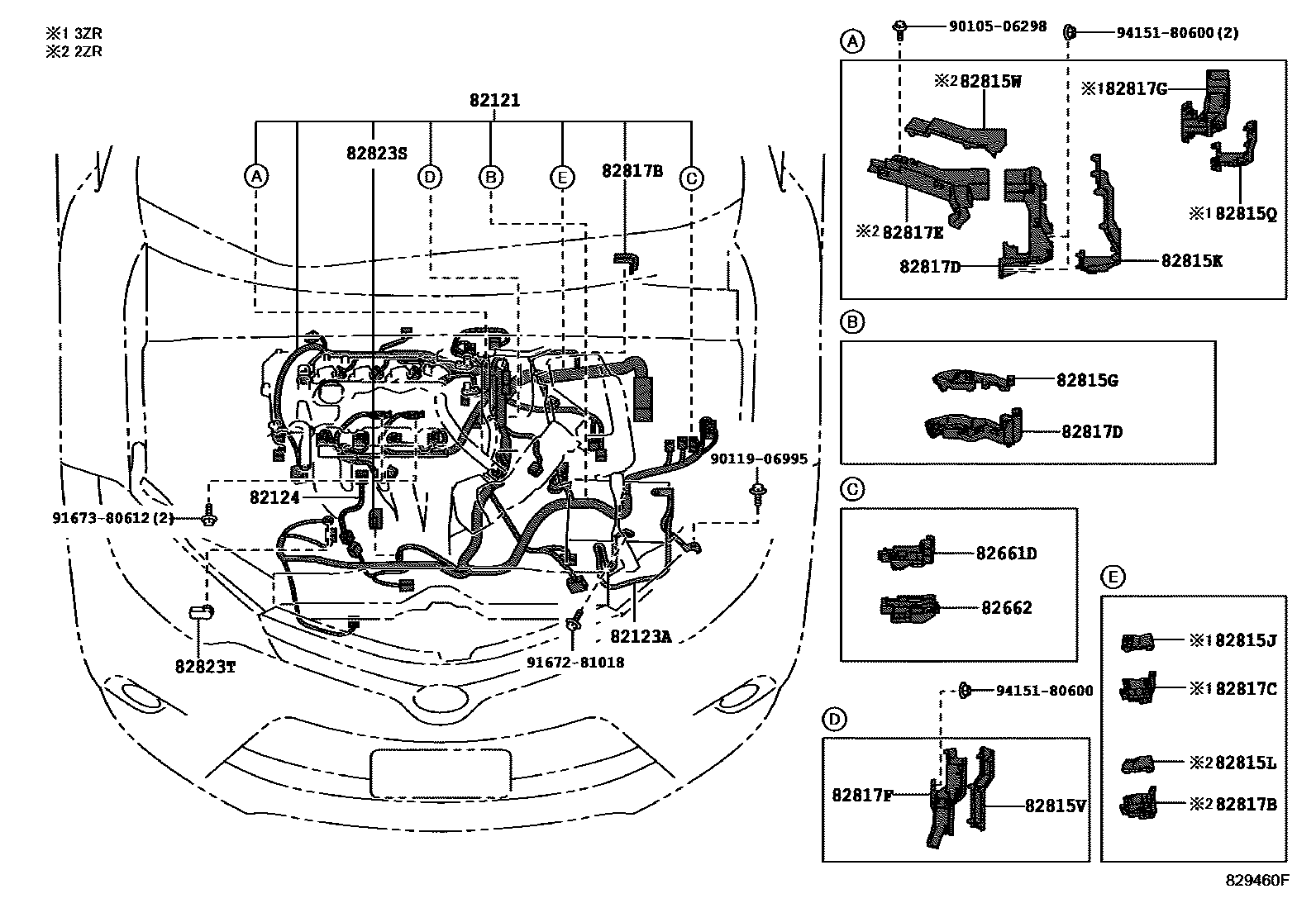

| 82121 | Engine wiring harness | 82121-0ZA20 · 82121-0ZA30 · 82121-0ZA40 · 82121-0ZA50 · 82121-0ZA60 · 82121-0ZA70 · 82121-0ZA80 |
| 82123A | Engine No. 3 wiring harness | 82123-02A40 · 82123-02A50 · 82123-02A60 · 82123-02A70 · 82123-02A80 |
| 82124 | Engine No. 4 wiring harness | 82124-02120 · 82124-12160 |
| 82141 | Dashboard wiring harness | 82117-0Z880 · 82117-0Z881 · 82117-0Z890 · 82117-0ZA10 · 82117-0ZA30 · 82117-0ZA40 · 82117-0ZA50 · 82117-0ZL10 · 82117-0ZL11 · 82117-0ZL20 · 82117-0ZL30 · 82117-0ZL40 · 82117-0ZL50 · 82117-0ZL51 · 82117-0ZL60 · 82117-0ZL70 · 82117-0ZL71 · 82117-0ZL80 · 82117-0ZL90 · 82117-0ZM00 · 82117-0ZM10 · 82117-0ZM11 · 82117-0ZM20 · 82138-0Z220 · 82138-0Z270 · 82138-0ZU30 · 82138-0ZU40 · 82138-0ZU50 · 82138-0ZU60 · 82138-0ZU70 · 82138-0ZU80 · 82138-0ZV20 · 82138-0ZV40 · 82138-0ZV50 · 82138-0ZV60 · 82138-0ZV70 · 82138-0ZV80 · 82138-0ZV90 · 82138-0ZW00 · 82138-0ZW20 · 82145-0ZU40 · 82145-0ZV00 · 82145-F2D40 · 82145-F2D80 · 82145-F2D90 · 82145-F2E00 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-02610 · 82142-02620 · 82142-02630 · 82142-02640 · 82142-02720 · 82142-02D20 · 82142-02D30 · 82142-02D40 · 82142-02D50 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-02460 |

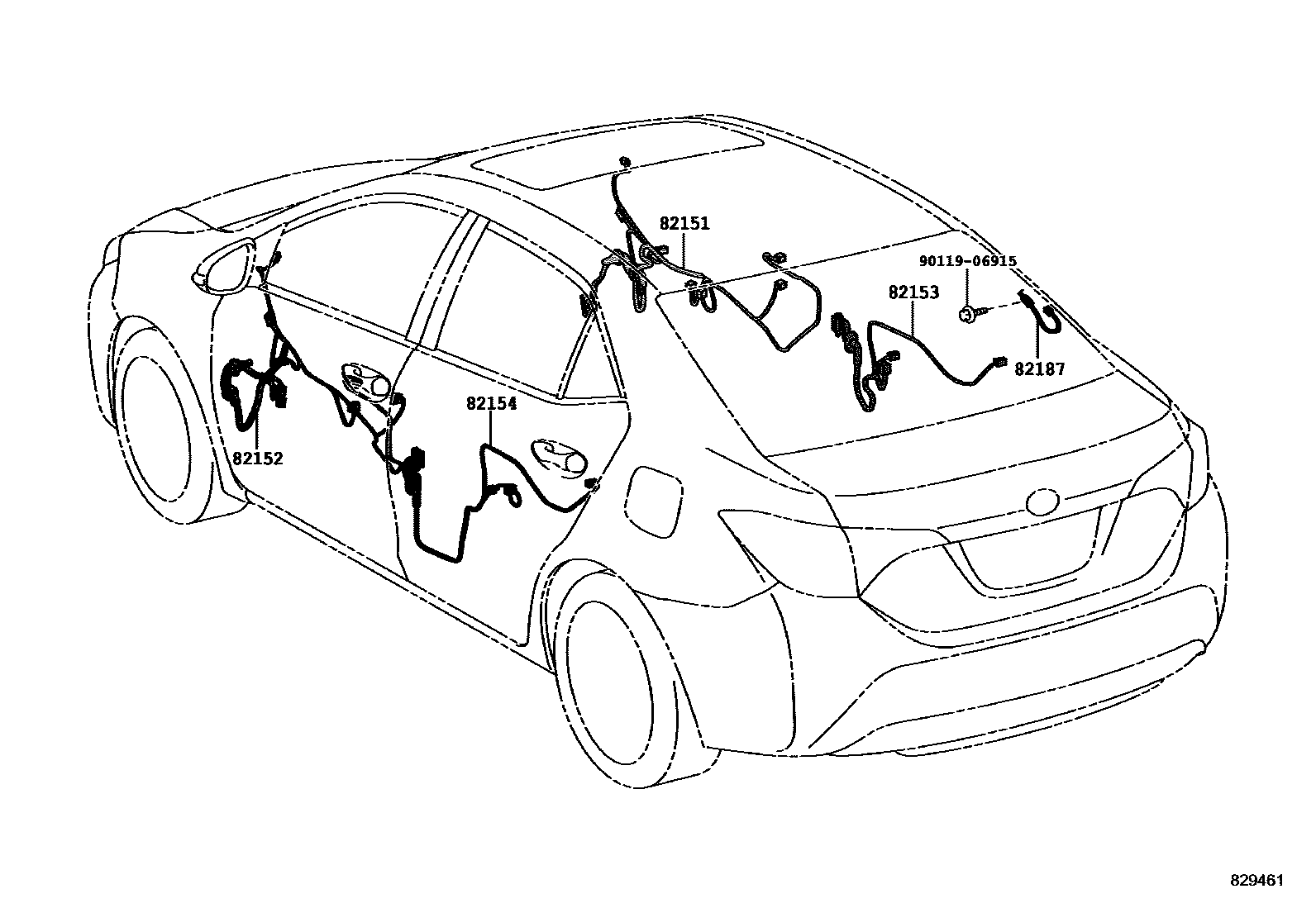

| 82151 | Right front door wiring harness | 82151-0ZD10 · 82151-0ZD20 · 82151-0ZD30 · 82151-0ZD40 · 82151-0ZD41 · 82151-0ZD50 · 82151-0ZE40 |
| 82152 | Left front door wiring harness | 82152-0ZC00 · 82152-0ZC10 · 82152-0ZC20 · 82152-0ZC30 · 82152-0ZC31 · 82152-0ZC40 · 82152-0ZD50 |
| 82153 | Rear door wiring harness No. 1 | 82153-02C70 · 82153-02C80 · 82153-02D10 |
| 82154 | Rear door wiring harness No. 2 | 82154-02B00 · 82154-02B10 · 82154-02B40 |
| 82161 | floor wiring harness | 82161-0ZY50 · 82161-0ZY60 · 82161-0ZY61 · 82161-0ZY70 · 82161-0ZY80 · 82161-0ZY81 · 82161-0ZY90 · 82161-0ZZ00 · 82199-02Z10 · 82199-02Z20 · 82199-02Z50 · 82199-02Z70 · 82199-02Z90 · 82199-0Z020 · 82199-0Z030 |
| 82171 | Roof No. 1 wiring harness | 82171-02Q40 · 82171-0Z500 · 82171-0Z510 · 82171-0Z520 · 82171-0Z530 · 82171-0Z730 · 82171-0Z820 · 82171-0ZF10 · 82171-0ZP00 |
| 82187 | Rear window wiring harness No. 2 | 82187-02260 · 82187-02290 |

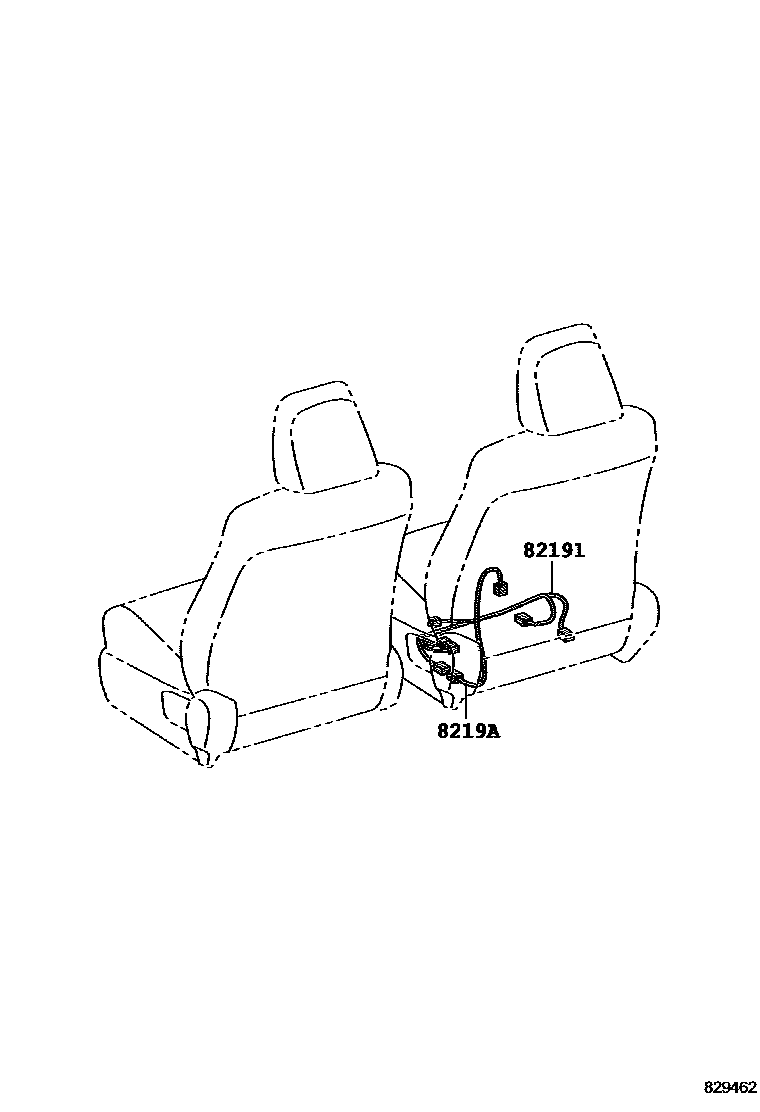

| 82191 | Front right seat wiring harness | 82191-02110 |
| 8219A | Wire harness No. 2, right side of front seat | 82191-06520 |
| 82661D | No. 1 relay box side cover | 82661-12300 |
| 82662 | Relay box upper cover | 82662-12260 |
| 82666A | Connector holder No. 2 | 82666-02380 |
| 82666B | No. 3 connector holder | 82666-02400 |
| 82666C | No. 4 connector holder | 82666-02510 |
| 82666D | No. 5 connector holder | 82666-02520 |
| 82666E | No. 6 connector holder | 82666-02630 |
| 82666G | No. 8 connector holder | 82666-02490 |
| 82666L | No. 9 connector holder | 82666-02500 |

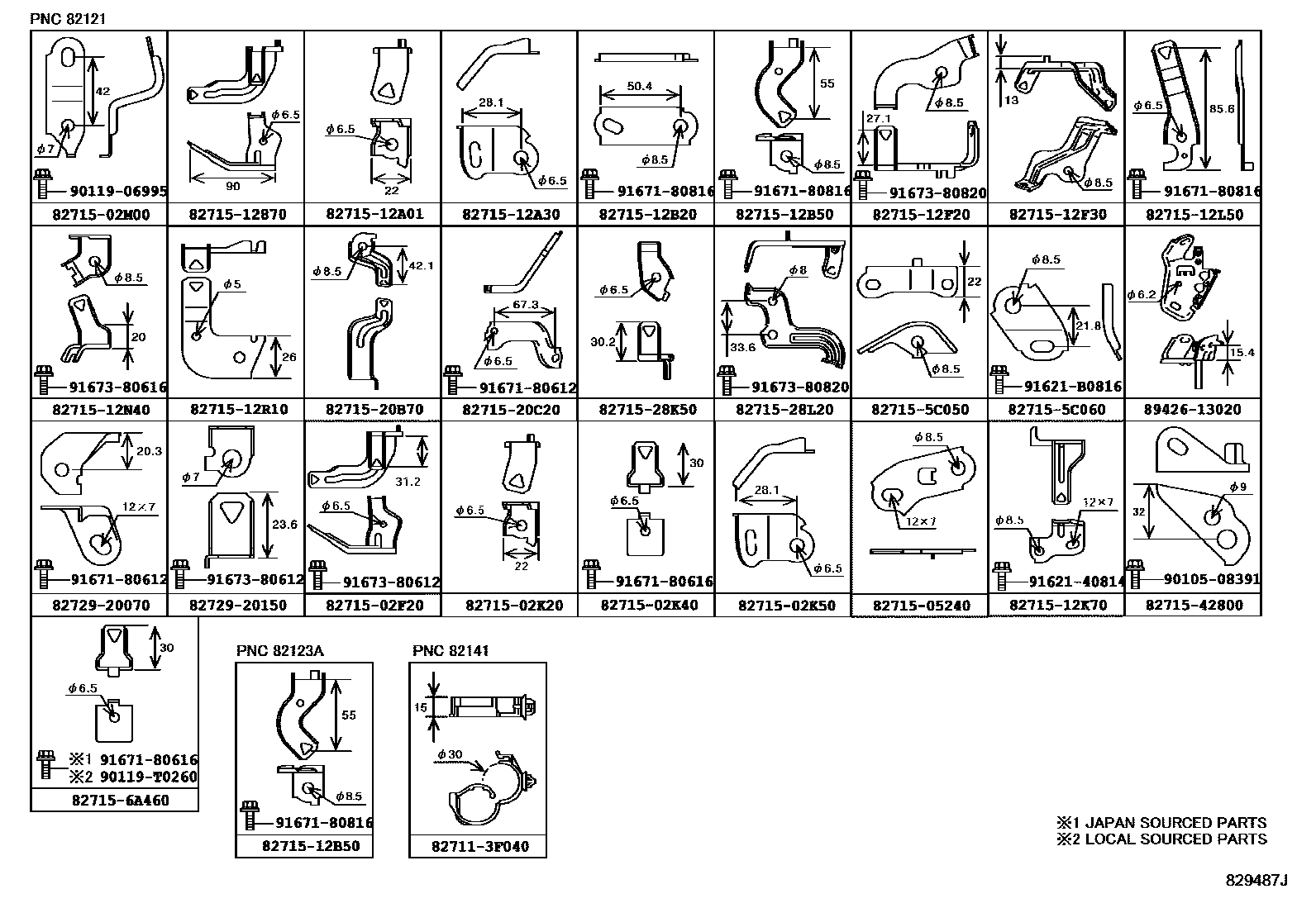

| 82712A | Wire harness bracket | 82712-12070 |
| 82815A | Wiring harness protector cover | 82815-12250 |
| 82815B | Wiring harness protector cover | 82815-12270 |
| 82815G | No. 5 wire harness protector cover | 82815-12360 |
| 82815J | No. 7 wire harness protector cover | 82815-02510 |
| 82815K | No. 8 wire harness protector cover | 82815-12510 |
| 82815L | No. 9 wire harness protector cover | 82815-12180 |
| 82815N | No. 11 wire harness protector cover | 82815-02040 |
| 82815Q | No. 13 wire harness protector cover | 82815-02590 |
| 82815V | No. 1 wire harness protector cover | 82815-12530 |
| 82815W | No. 2 wire harness protector cover | 82815-12520 |
| 82815X | No. 3 wire harness protector cover | 82815-02330 |
| 82817 | No. 1 wire harness protection device | 82817-12D50 |
| 82817A | No. 2 wire harness protection device | 82817-12D70 |
| 82817B | No. 3 wire harness protection device | 82817-12860 · 82817-12B60 |
| 82817C | No. 4 wire harness protection device | 82817-02F00 |
| 82817D | No. 5 wire harness protection device | 82817-12G40 · 82817-12K80 |
| 82817E | No. 6 wire harness protection device | 82817-12K90 |
| 82817F | No. 7 wire harness protection device | 82817-12L00 |
| 82817G | No. 8 wire harness protection device | 82817-02K10 |
| 82817J | No. 9 wire harness protection device | 82817-02100 |
| 82817K | No. 10 wire harness protection device | 82817-12860 |
| 82817L | No. 11 wire harness protection device | 82817-02C20 |
| 82817M | No. 12 wire harness protection device | 82817-02J70 |
| 82817N | No. 13 wire harness protection device | 82817-02J80 |
| 82817P | No. 14 wire harness protection device | 82817-52710 |
| 82821E | Connector cover | 82821-42040 |
| 82823S | starter terminal cover | 82823-12110 |
| 82823T | Generator terminal cover | 82823-22050 |
