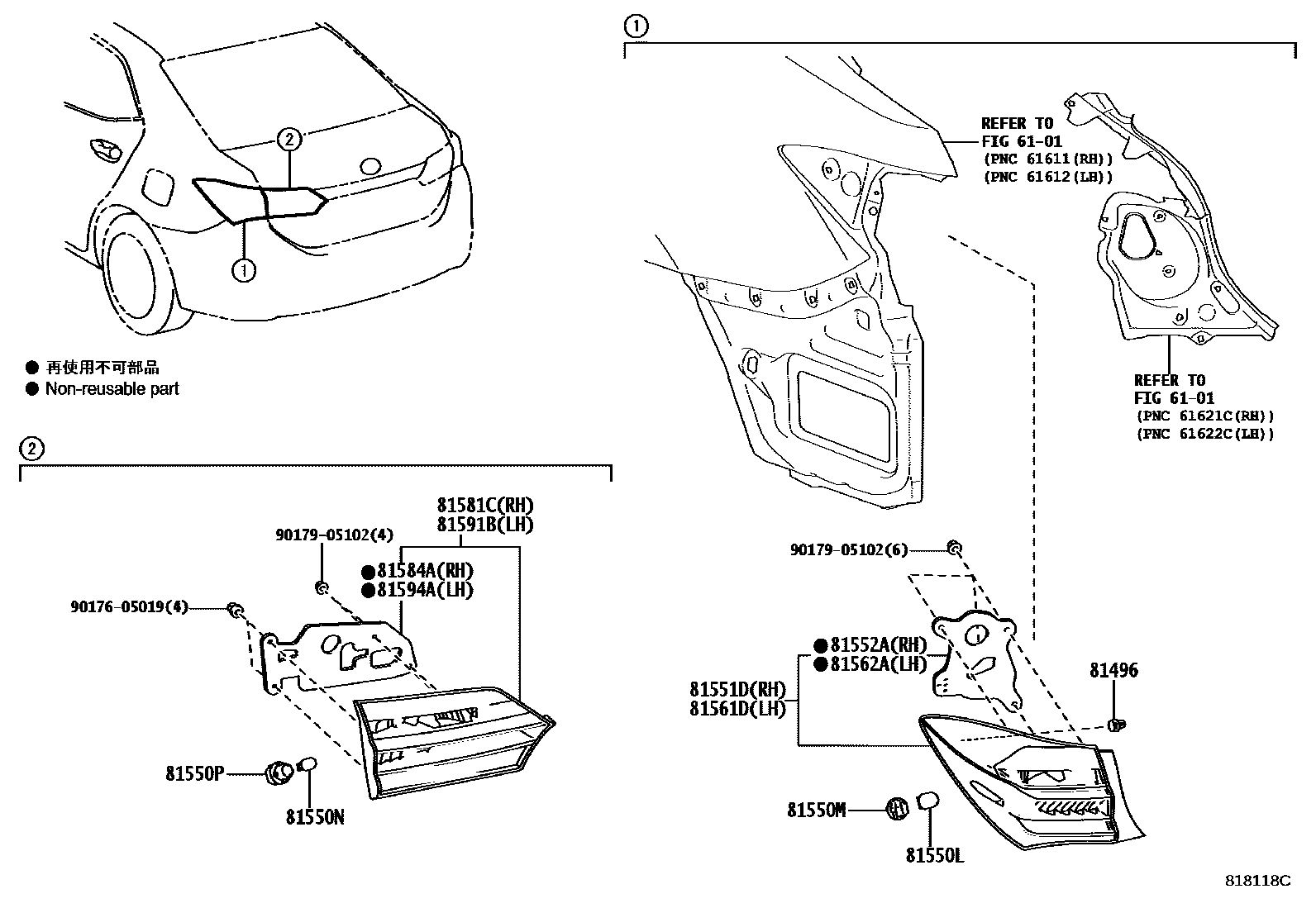

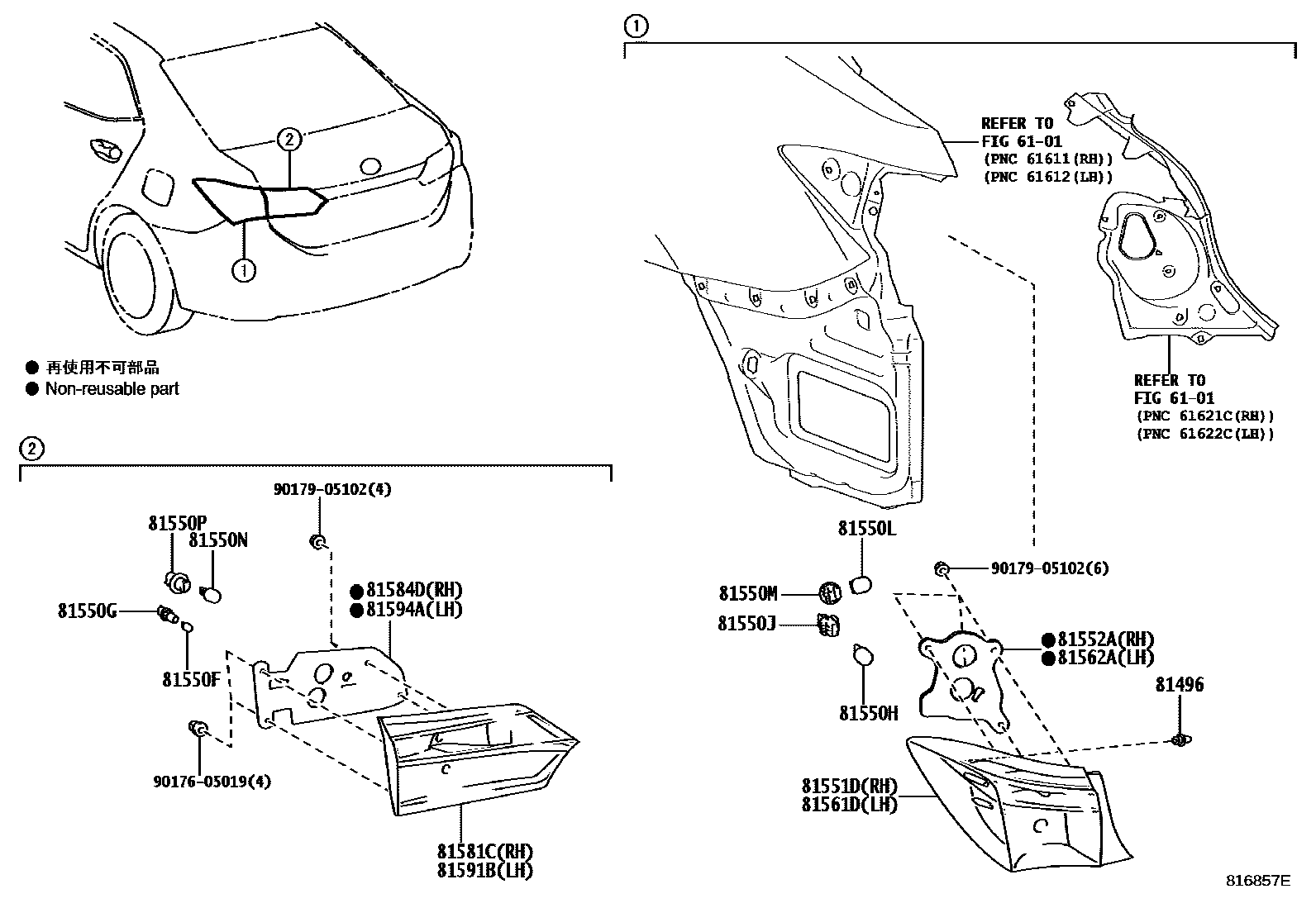

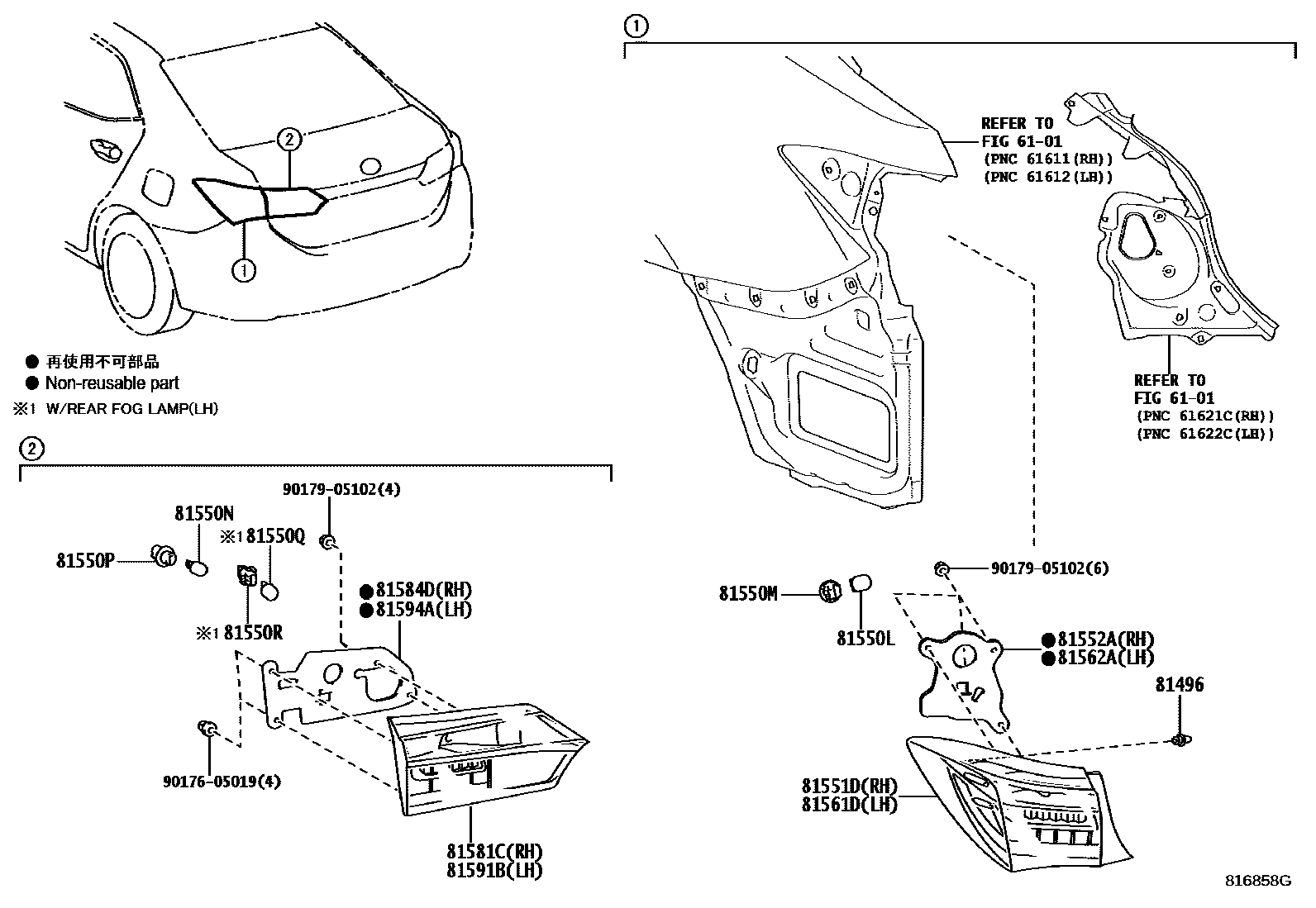

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550F | tail light bulb | 99132-12050 |
| 81550G | Tail light lamp holder | 90075-60077 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60002 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550M | Rear turn signal lamp holder | 90075-60026 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60001 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81550R | Rear fog light lamp holder | 90075-60085 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02800 · 81551-02810 · 81551-02C20 |
| 81552A | Right rear combination light gasket | 81552-02800 · 81552-02810 · 81552-02C20 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02800 · 81561-02810 · 81561-02C20 |
| 81562A | Left rear combination light gasket | 81552-02800 · 81552-02810 · 81552-02C20 |
| 81581C | Right rear light lampshade and lamp body | 81581-02640 · 81581-02650 · 81581-02A00 · 81581-02B30 |
| 81584A | Right rear light gasket | 81584-02B30 |
| 81584D | rear light gasket | 81584-02640 · 81594-02810 |
| 81591B | Left rear light shade and body | 81591-02640 · 81591-02650 · 81591-02810 · 81591-02A00 · 81591-02B30 · 81591-02B40 |
| 81594A | Left rear light gasket | 81584-02640 · 81584-02B30 · 81594-02810 |
