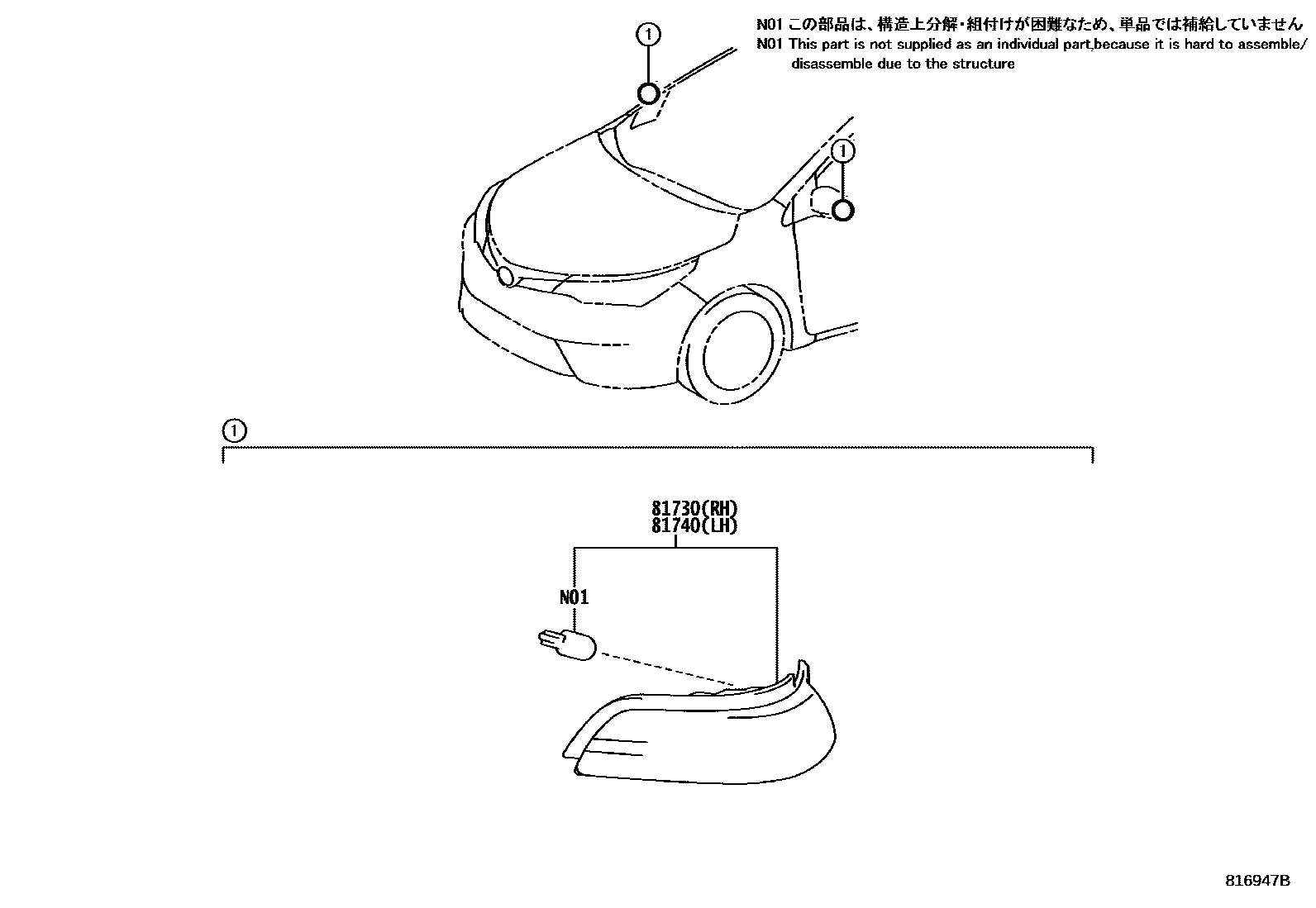

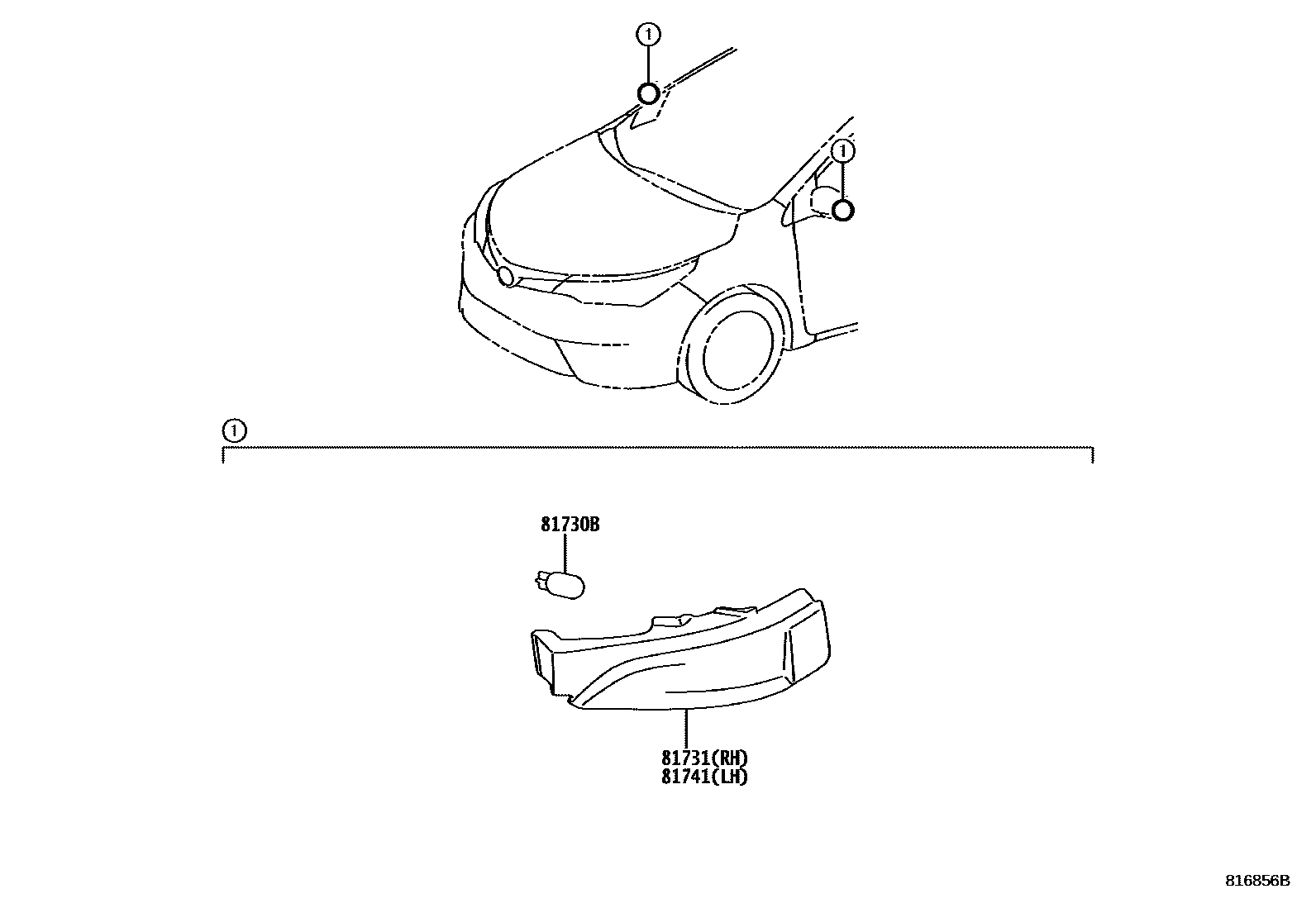

Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-52100 |
| 81730B | Bulb (for side turn signal lights) | 90981-WF011 |
| 81731 | Right side turn signal lamp cover | 81731-02150 |
| 81740 | Left side turn signal light assembly | 81740-52050 |
| 81741 | Left side turn signal lamp cover | 81741-02150 |
