Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

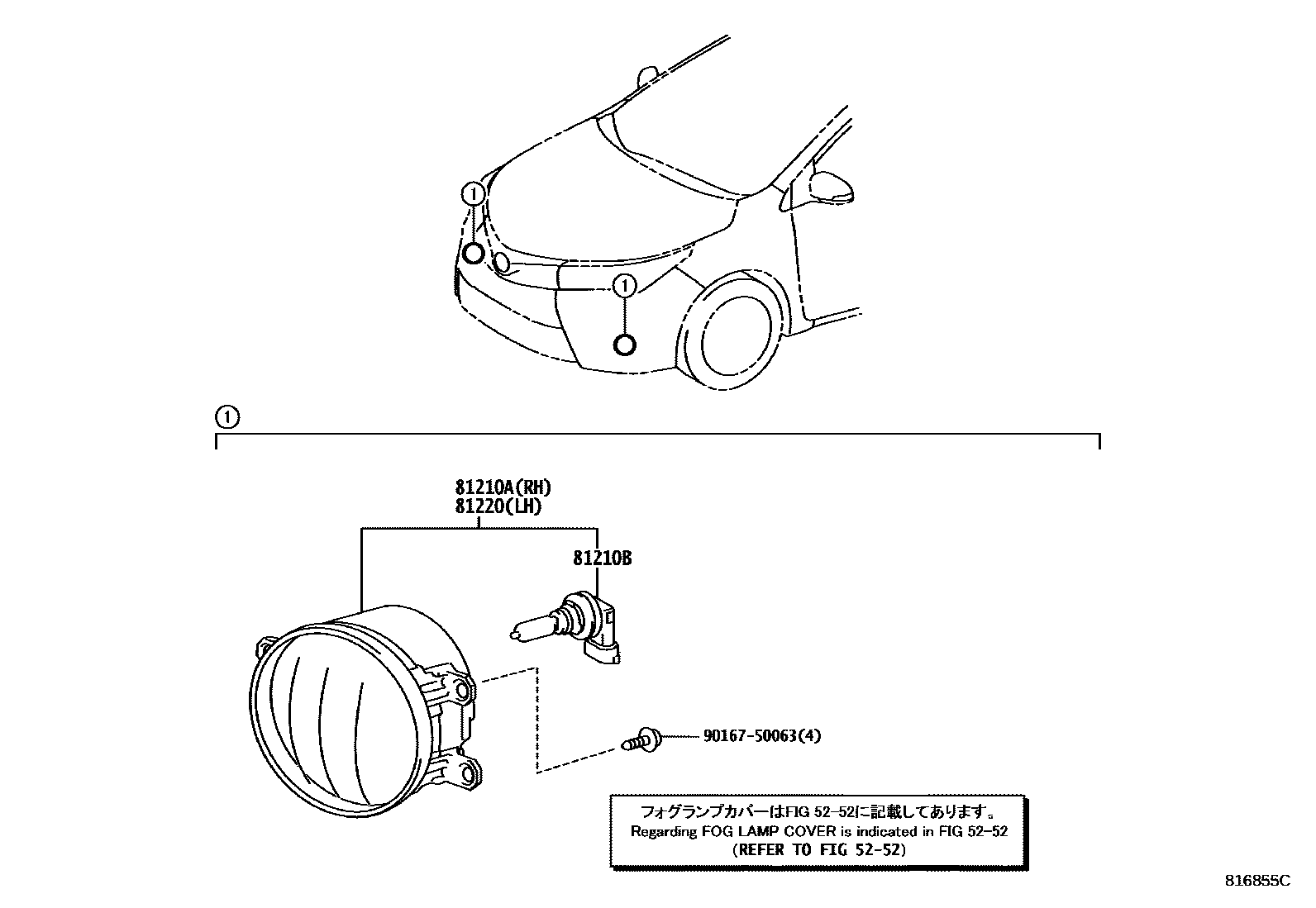

Toyota COROLLA Fog Lamp EPC diagram — 816855C
Fog Lamp — 816855C (201403 – 201708)

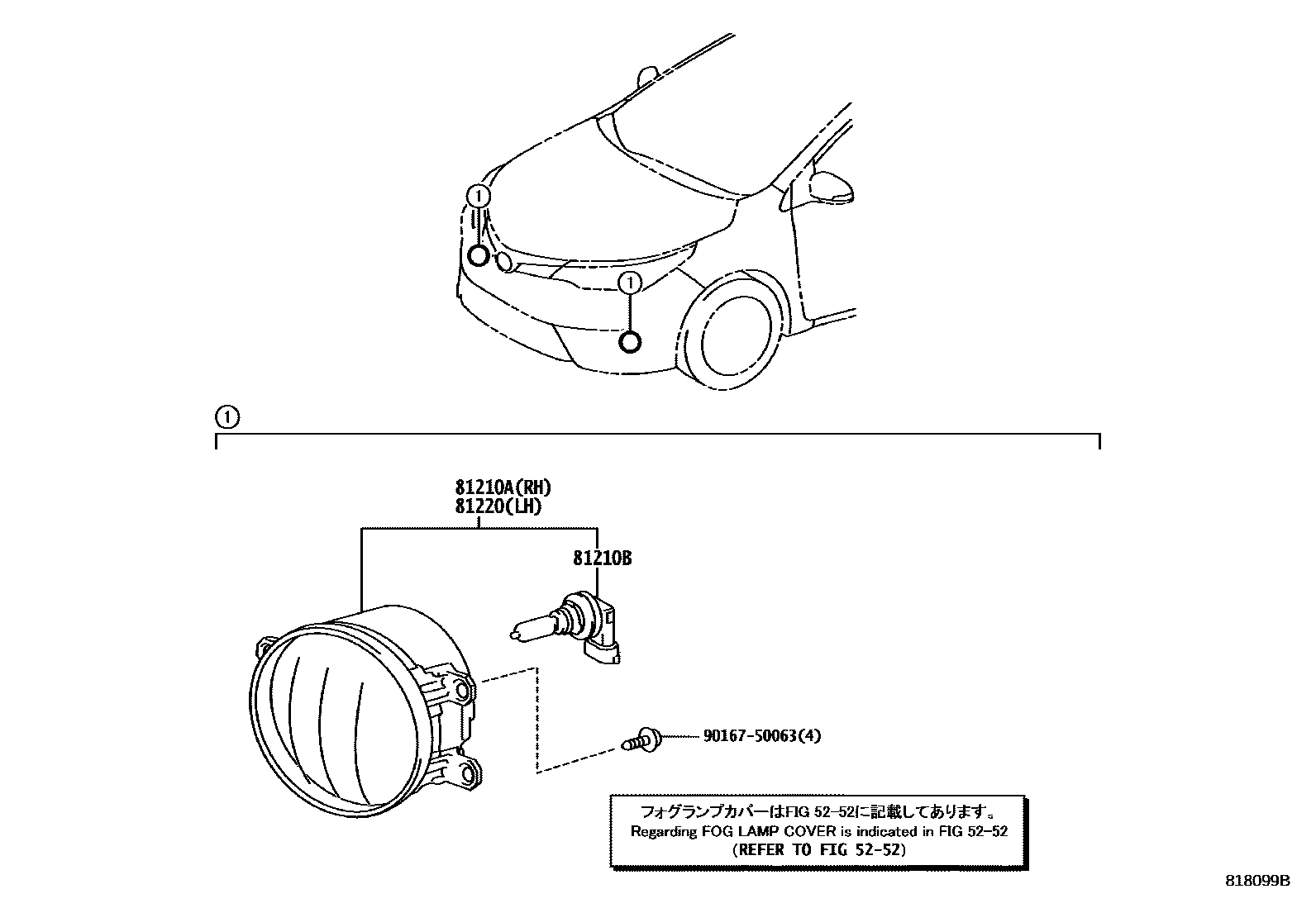

Toyota COROLLA Fog Lamp EPC diagram — 818099B
Fog Lamp — 818099B (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0D110
81210Bfog light bulb90981-13090
81220Left fog light assembly81220-0D110
