Toyota COROLLA Headlamp — Figure 8101

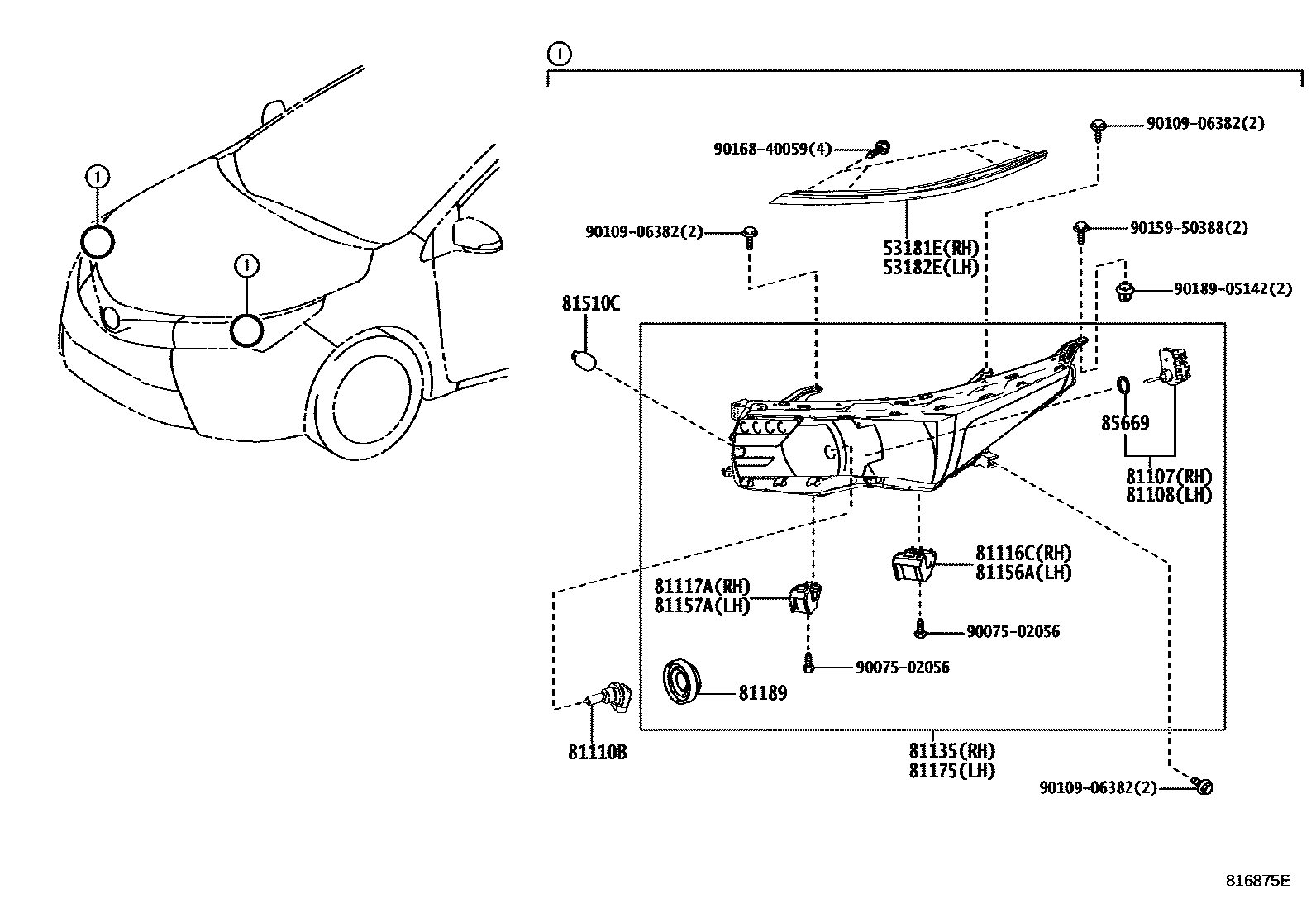

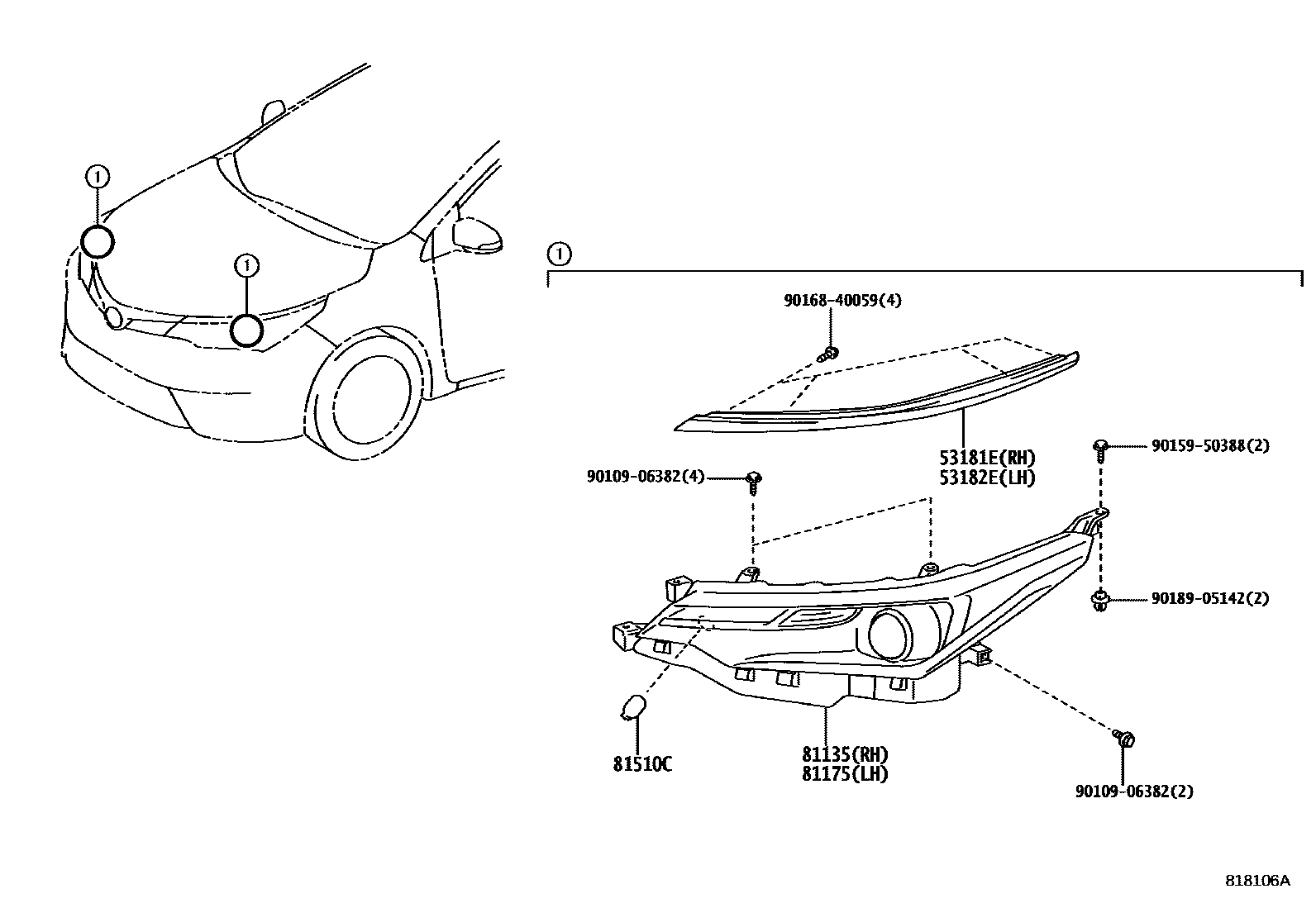

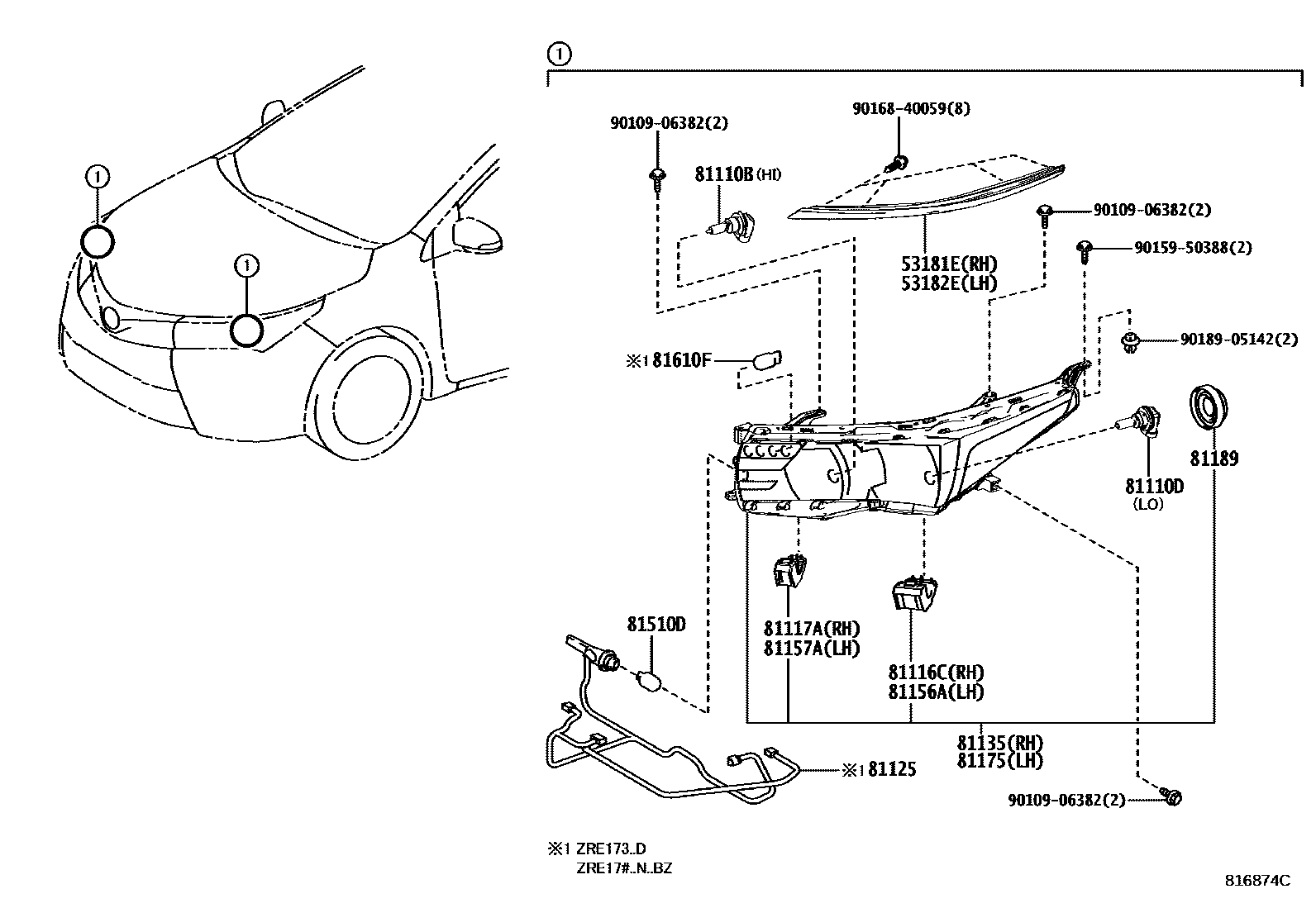

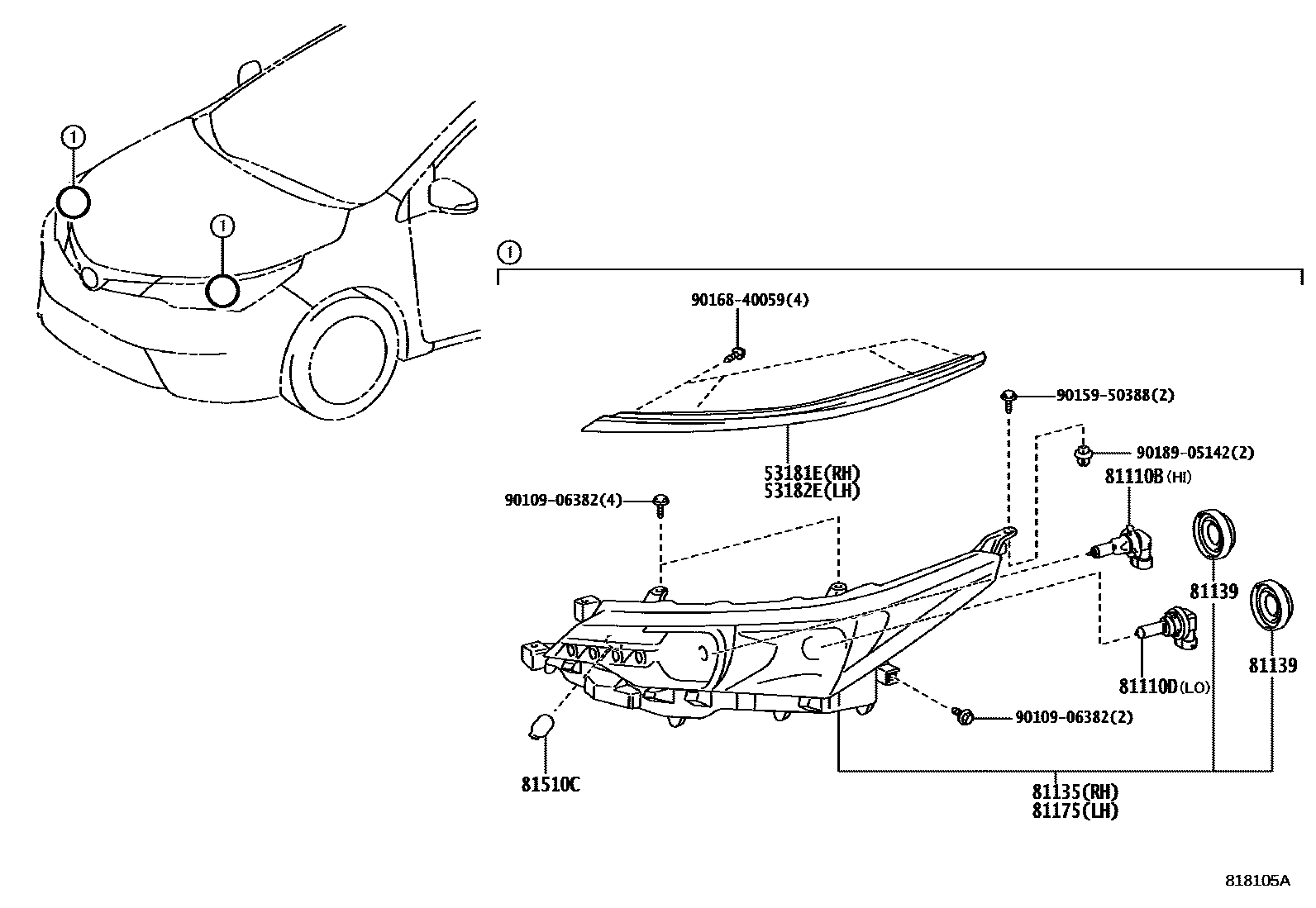

Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53181E | Right headlight cover | 53181-02030 · 53181-02070 |
| 53182E | Left headlight cover | 53182-02030 · 53182-02070 |
| 81107 | Right headlight control ECU sub-assembly | 81107-02G30 |
| 81108 | Left headlight control ECU sub-assembly | 81107-02G30 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 · 90981-13092 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 · 90981-13081 |
| 81116C | Right headlight bracket | 81116-02G10 · 81116-02G30 |
| 81117A | Right headlight bracket | 81117-02G10 · 81117-02G30 |
| 81125 | headlight wire | 81125-02G20 |
| 81135 | Right headlight assembly assembly | 81130-02G10 · 81130-02G11 · 81130-02G20 · 81130-02G21 · 81130-02G30 · 81130-02G31 · 81130-02G40 · 81130-02G41 · 81130-02Q80 · 81130-02Q90 · 81140-02R00 · 81140-02R10 · 81140-02R20 |
| 81139 | Headlight lamp holder cover | 81139-02Q80 |
| 81156A | Left headlight bracket | 81116-02G10 · 81116-02G30 |
| 81157A | Left headlight bracket | 81117-02G10 · 81117-02G30 |
| 81175 | Left headlight assembly assembly | 81070-02R00 · 81070-02R10 · 81070-02R20 · 81170-02G10 · 81170-02G11 · 81170-02G20 · 81170-02G21 · 81170-02G30 · 81170-02G31 · 81170-02G40 · 81170-02G41 · 81170-02Q80 · 81170-02Q90 |
| 81189 | headlight cover | 90075-65006 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 · 90981-15021 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-23002 |
