Toyota COROLLA 燃油箱和燃油管 — Figure 7701

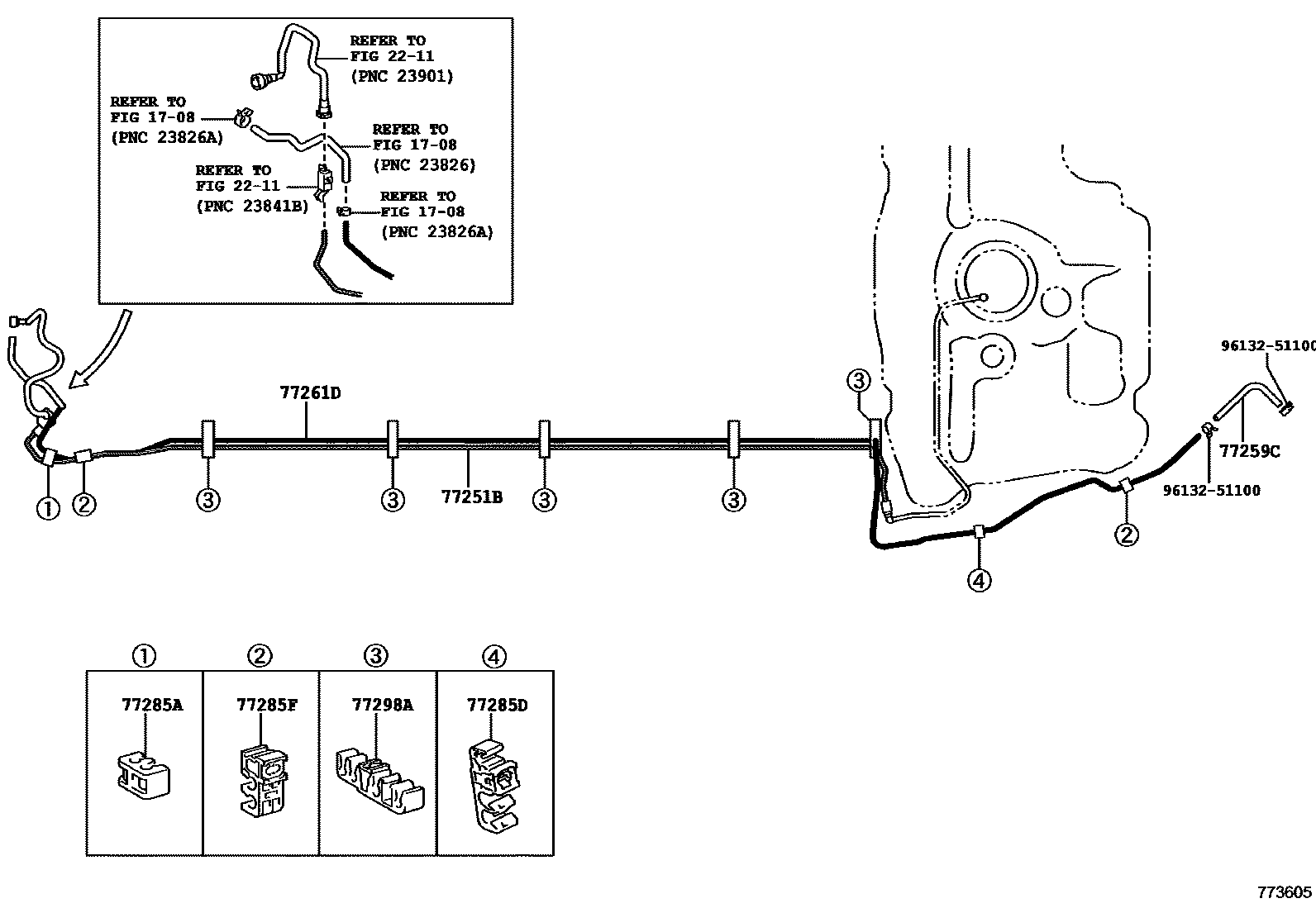

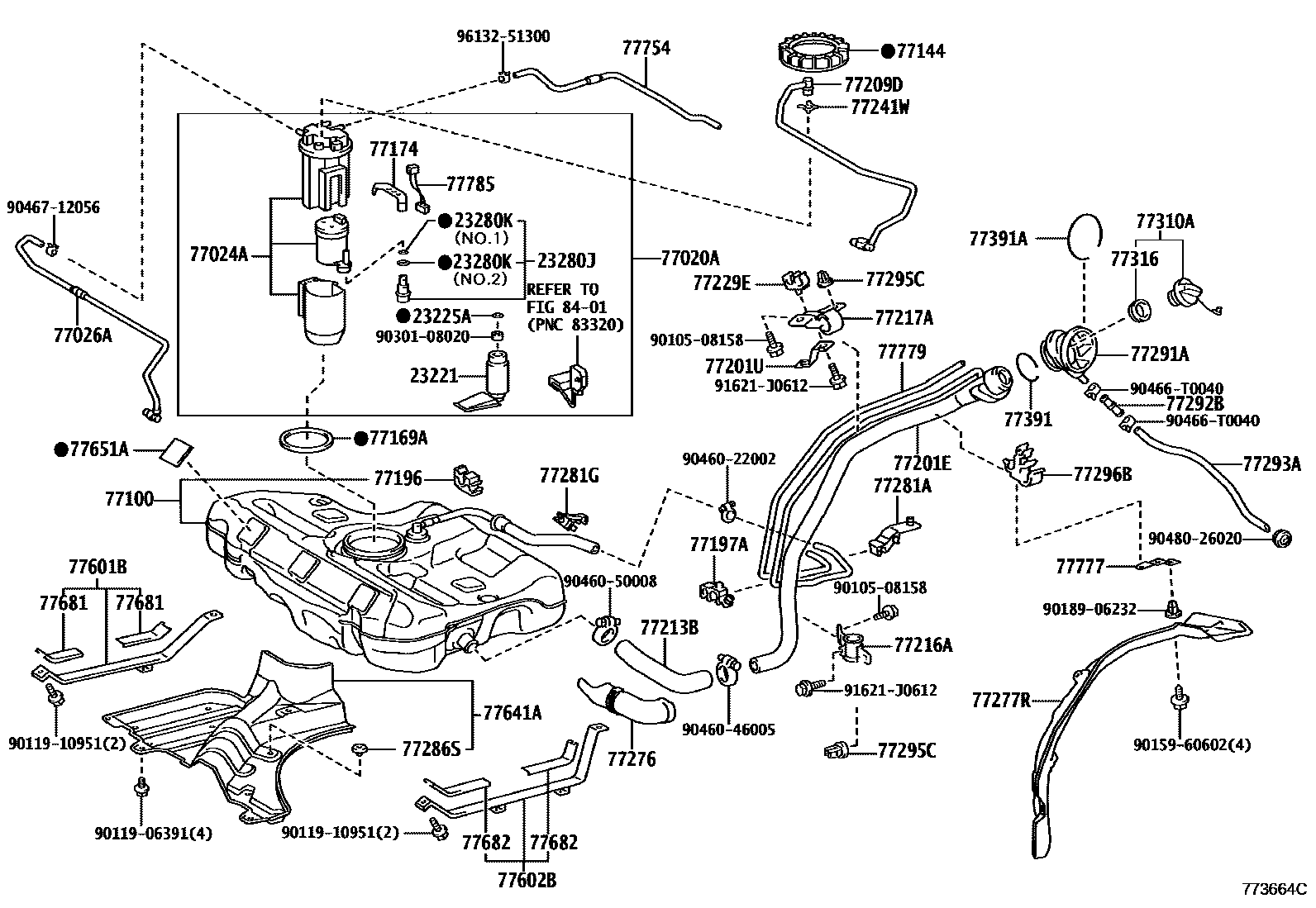

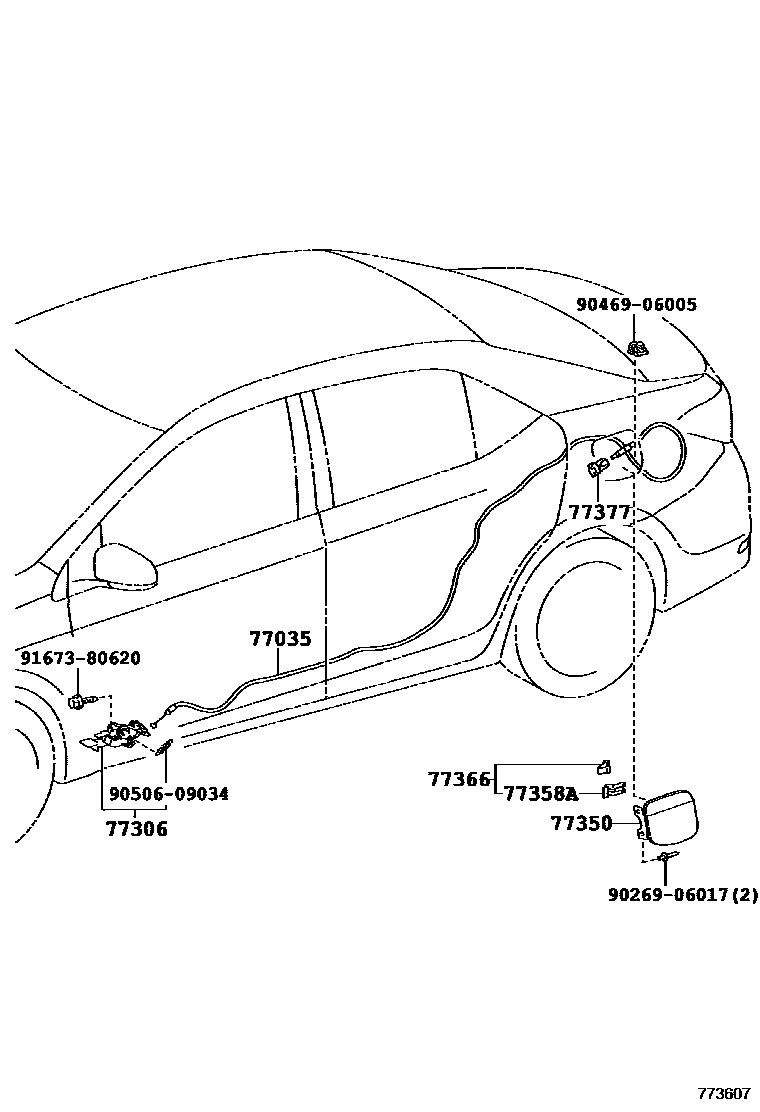

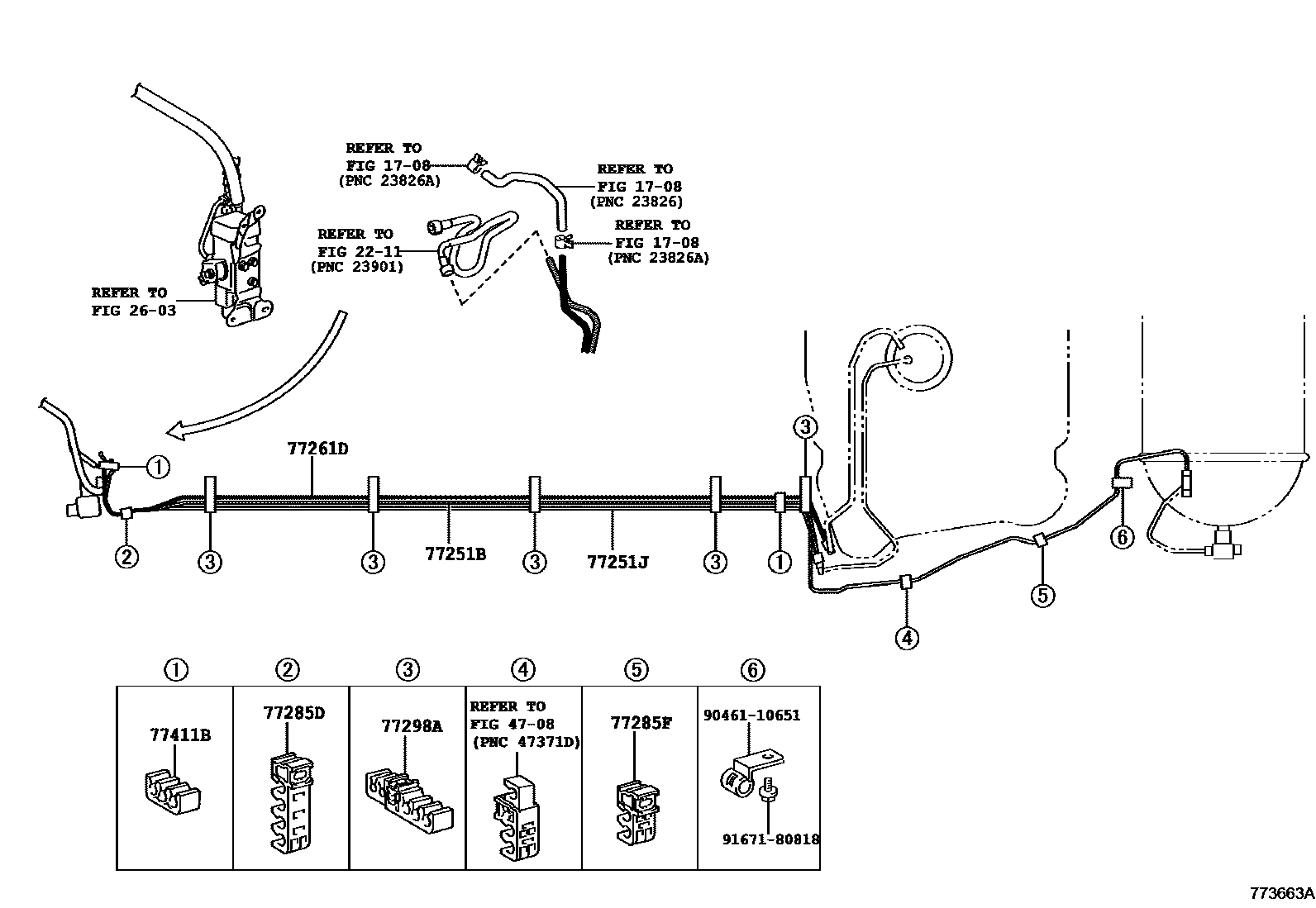

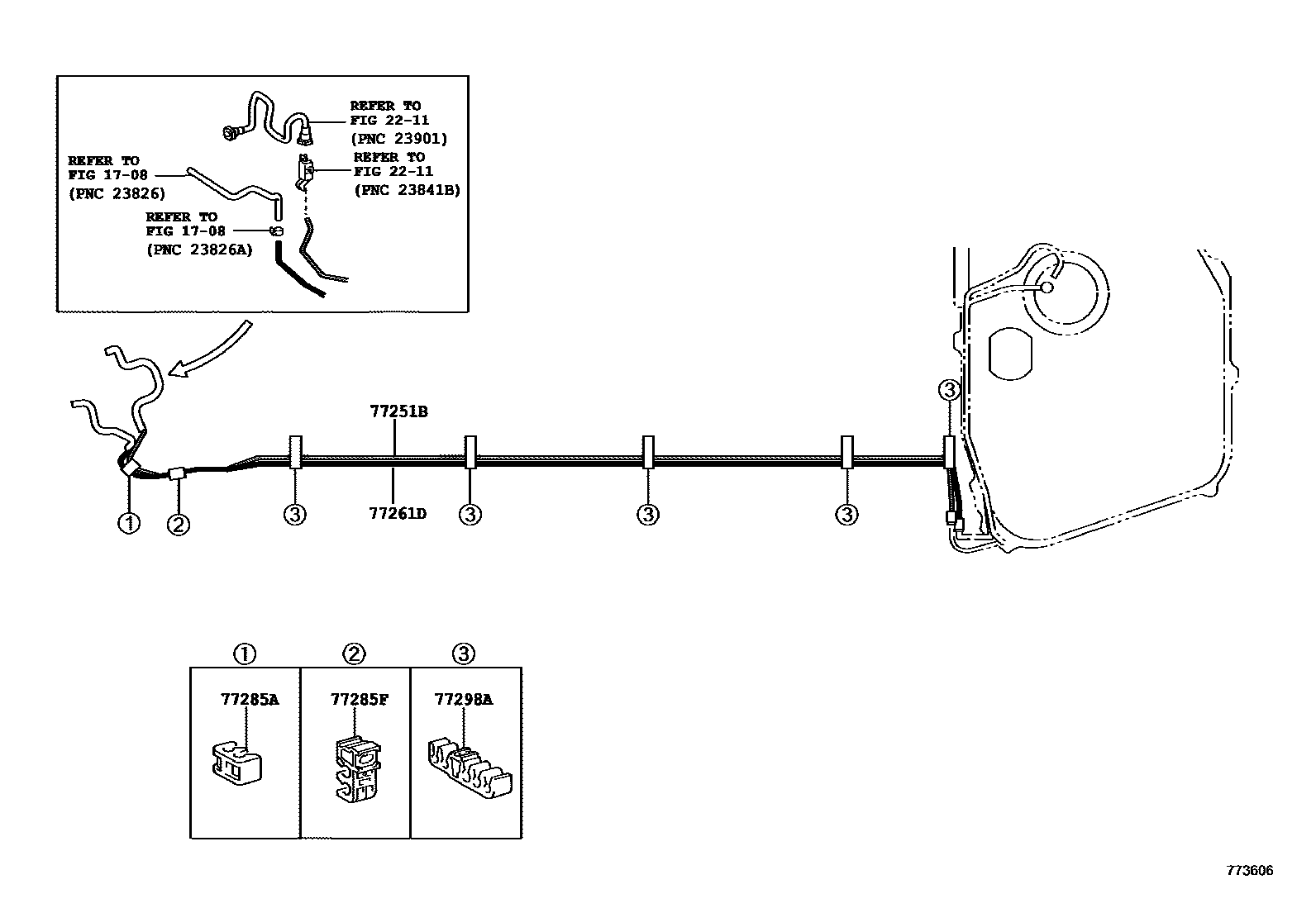

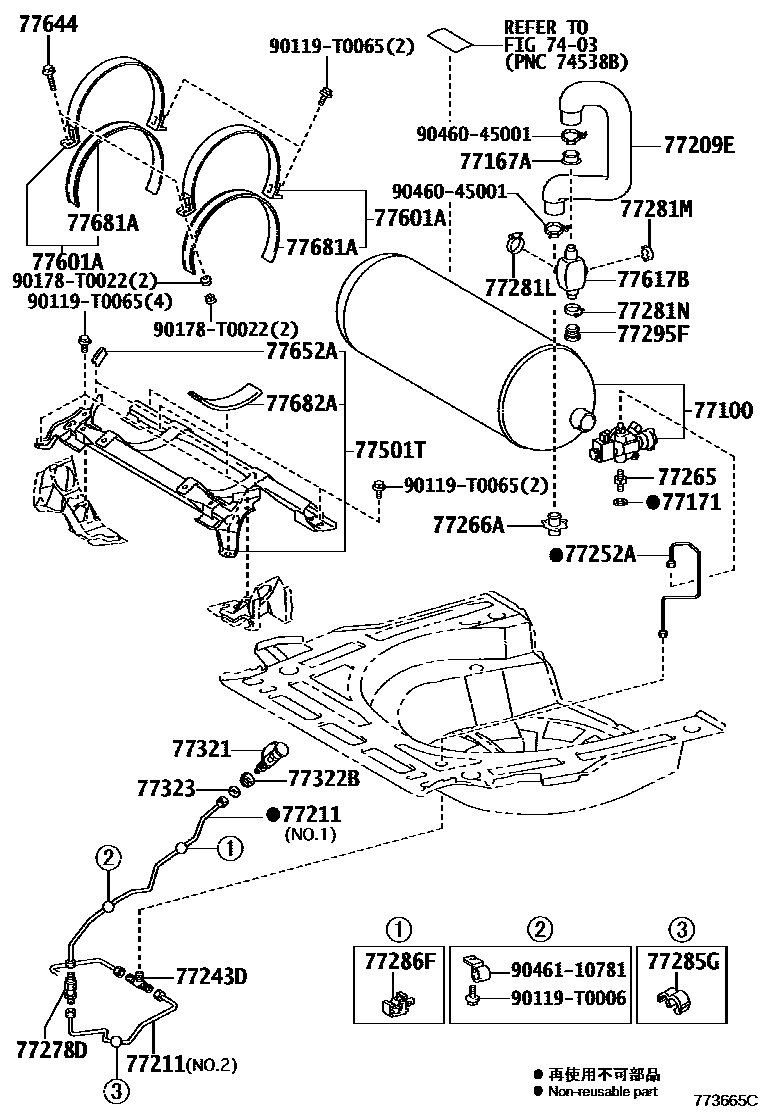

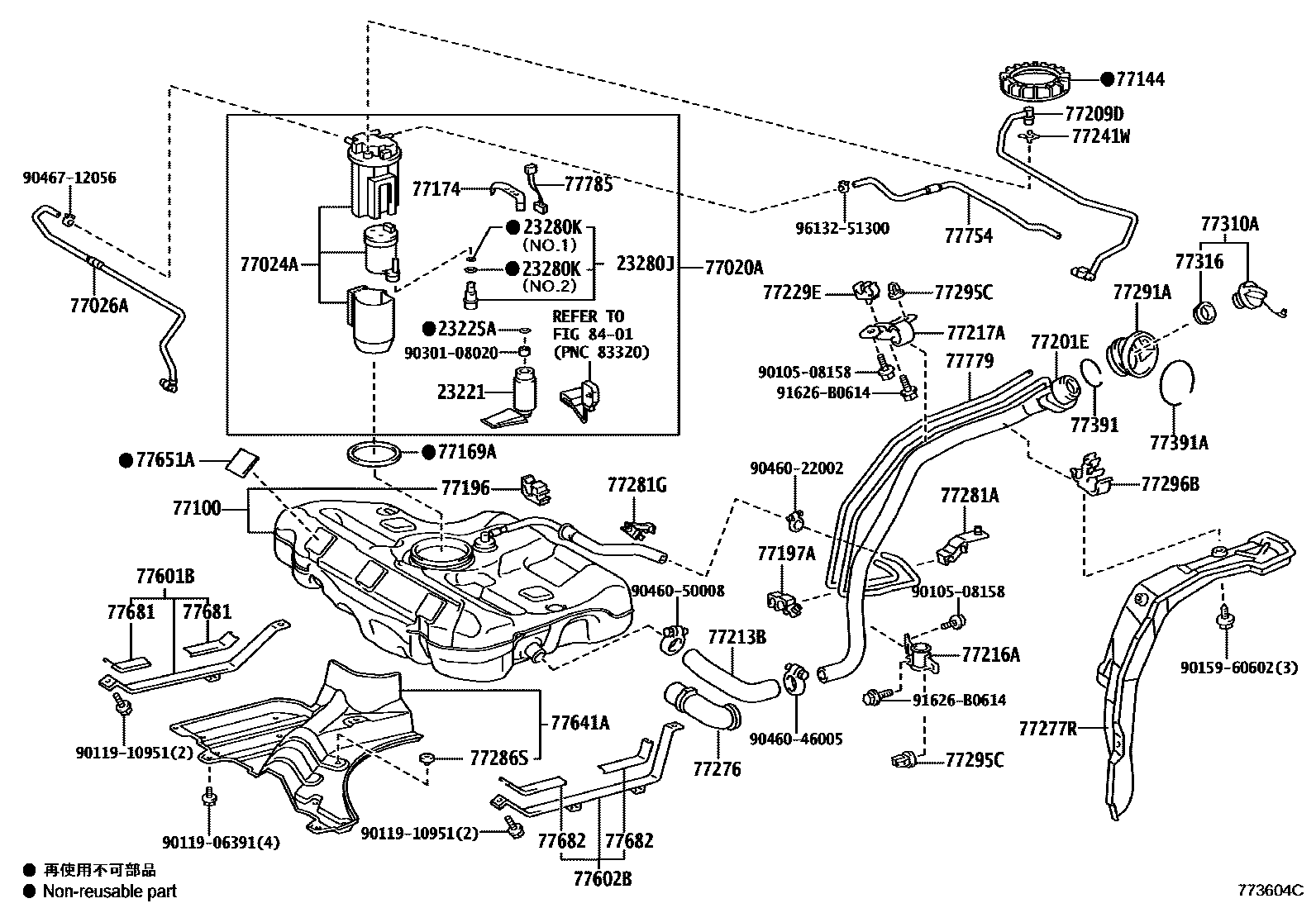

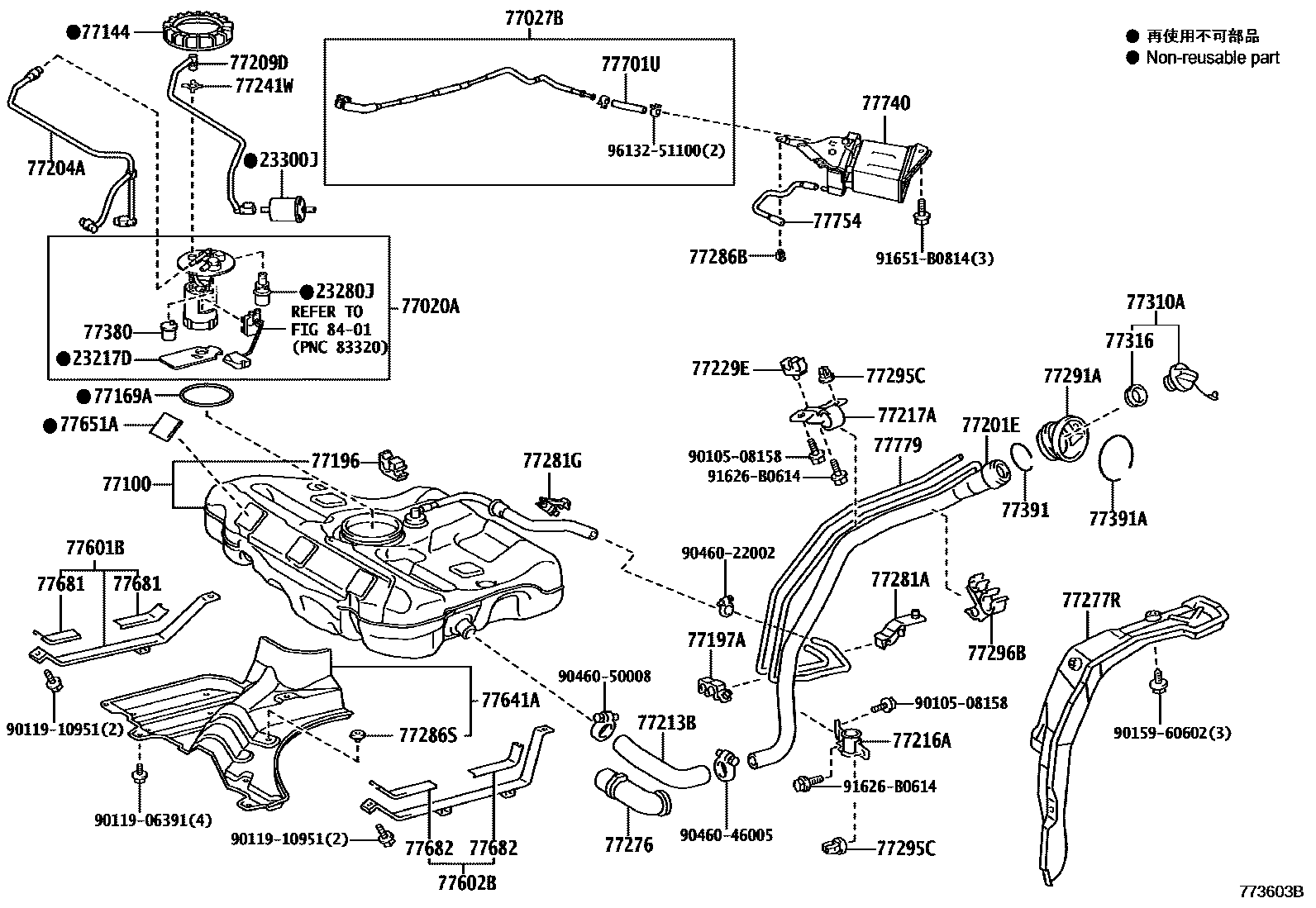

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 8 images and 92 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0D140 |
| 23221 | fuel pump | 23220-37210 · 23220-37211 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-0D010 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 23300J | fuel filter assembly | 23300-0D100 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02361 · 77020-12890 · 77020-12891 |
| 77024A | Fuel absorber sub-assembly | 77024-12150 · 77024-12180 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02060 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-02070 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02450 |
| 77100 | fuel tank assembly | 77001-02450 · 77001-02460 · 77100-02A10 |
| 77144 | Fuel pump instrument fixture | 77144-52030 |
| 77167A | No. 2 fuel tank vent pipe bracket | 77166-YV020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02080 |
| 77171 | Fuel tank pipe No. 1 gasket | 77171-02010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-72010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12080 |
| 77197A | No. 2 evaporation vent pipe clamp | 77196-12060 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02350 · 77201-02510 |
| 77201U | Bracket (for fuel tank inlet pipe) | 77131-02140 |
| 77204A | fuel tank return pipe | 77204-02110 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02160 · 77209-02260 |
| 77209E | Fuel drain hose sub-assembly | 77209-12291 |
| 77211 | fuel tank inlet pipe | 77211-02190 · 77211-02270 |
| 77213B | Fuel tank to filler pipe hose | 77213-12330 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02130 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02090 |
| 77229E | Snorkel clamp | 77229-12100 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77243D | No. 1 fuel pipe joint | 77243-02030 |
| 77251B | main fuel pipe | 77251-02770 · 77251-02780 · 77251-02790 |
| 77251J | No. 1 main fuel pipe | 77251-02510 · 77251-02511 |
| 77252A | No. 2 main fuel pipe | 77252-02030 |
| 77259C | fuel hose | 77259-12400 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02570 · 77261-02580 · 77261-02590 |
| 77265 | Main fuel line connector | 77265-02010 |
| 77266A | No. 1 fuel line protection device | 77266-12160 |
| 77276 | Fuel hose protector | 77276-12130 |
| 77277R | Fuel tank filler pipe protection device | 77277-02190 · 77277-02220 |
| 77278D | Check valve with bracket | 77278-02050 |
| 77281A | Fuel filler pipe clamp | 77281-12110 |
| 77281G | fuel hose clamp | 77281-12150 |
| 77281L | fuel hose clamp | 77281-YV010 |
| 77281M | fuel hose clamp | 77281-YV020 |
| 77281N | fuel hose clamp | 77281-YV030 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-12120 · 77285-12140 |
| 77285F | No. 1 fuel pipe clamp | 77285-50040 |
| 77285G | No. 1 fuel pipe clamp | 77285-30140 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12170 |
| 77286F | No. 2 fuel pipe clamp | 77286-12160 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-02160 · 77291-02180 |
| 77292B | fuel tank drain plug cover | 77292-02020 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-02010 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77295F | fuel hose retainer | 77295-YV020 |
| 77296B | No. 1 fuel line protector bracket | 77296-12070 |
| 77298A | No. 4 fuel pipe clamp | 77298-12140 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 |
| 77310A | Fuel tank cap assembly | 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77321 | Fuel inlet connector | 77321-02010 |
| 77322B | Fuel tank inlet connector No. 1 gasket | 77322-02030 |
| 77323 | Fuel tank inlet connector No. 2 gasket | 77323-02020 |
| 77350 | Fuel filler cap assembly | 77350-02160 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77380 | Fuel shut-off valve assembly | 77380-12020 |
| 77391 | fuel inlet ring | 77391-02020 |
| 77391A | fuel inlet ring | 77391-06110 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-48020 |
| 77501T | Fuel tank bracket sub-assembly | 77501-02040 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02180 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02100 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02100 |
| 77617B | Fuel tank valve rear cover | 77617-YV010 |
| 77641A | No. 1 fuel tank protective shell | 77641-02140 |
| 77644 | fuel tank bolt | 77644-02010 |
| 77651A | No. 1 fuel tank liner | 77651-02140 · 77651-12080 |
| 77652A | No. 2 fuel tank liner | 77652-02080 |
| 77681 | Fuel tank right side strap seat | 77681-02050 |
| 77681A | Fuel tank strap seat | 77681-02100 |
| 77682 | Fuel tank left side strap seat | 77681-02050 |
| 77682A | No. 2 fuel tank strap seat | 77682-02060 |
| 77740 | Carbon canister assembly | 77740-12730 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02100 · 77754-02110 |
| 77777 | Fuel pipe clamp bracket | 77777-02010 |
| 77779 | Carbon canister outlet pipe | 77779-02060 · 77779-02150 |
| 77785 | fuel pump wiring harness | 77785-12010 |
