Toyota COROLLA 挡泥板和扰流板 — Figure 7601

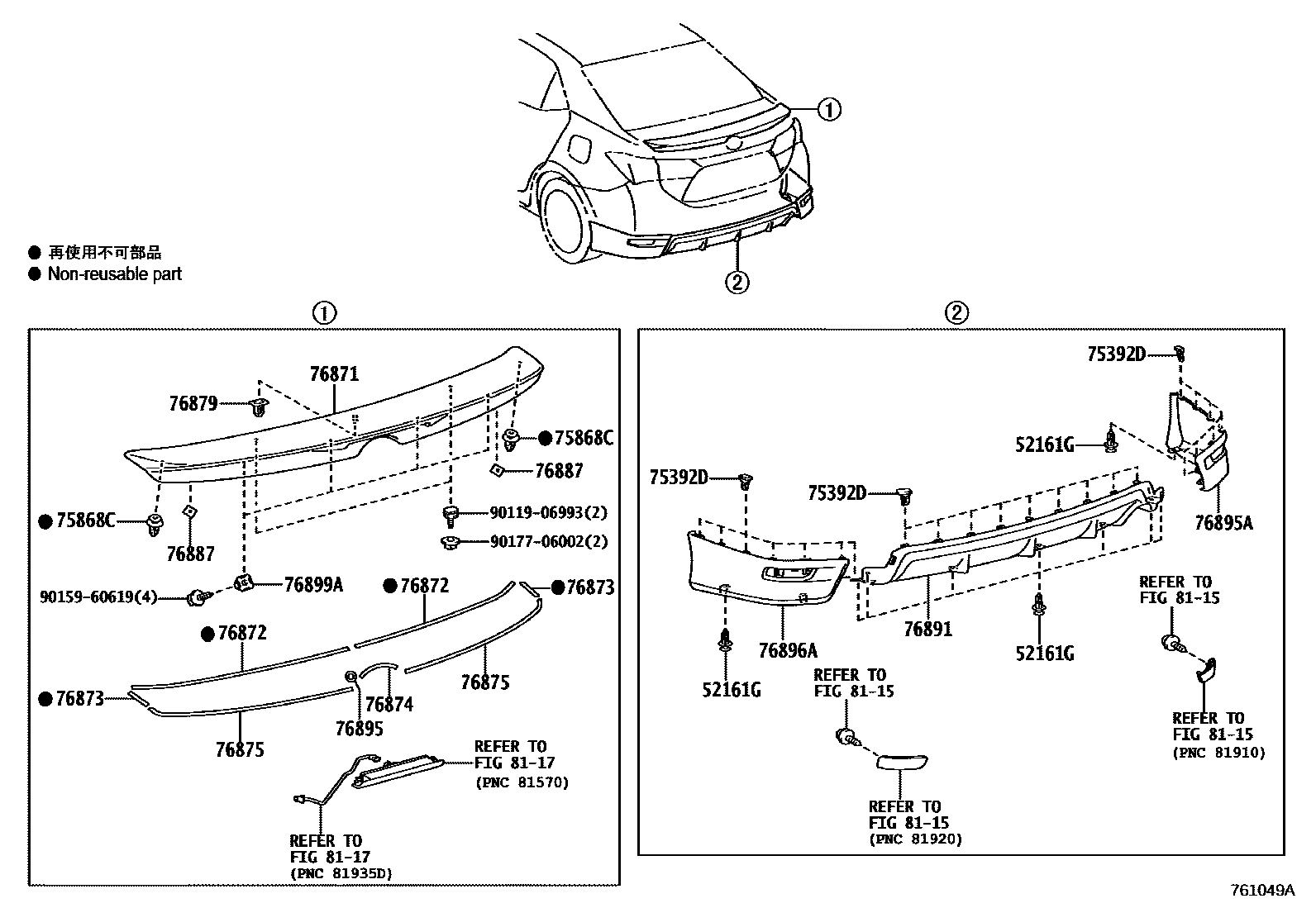

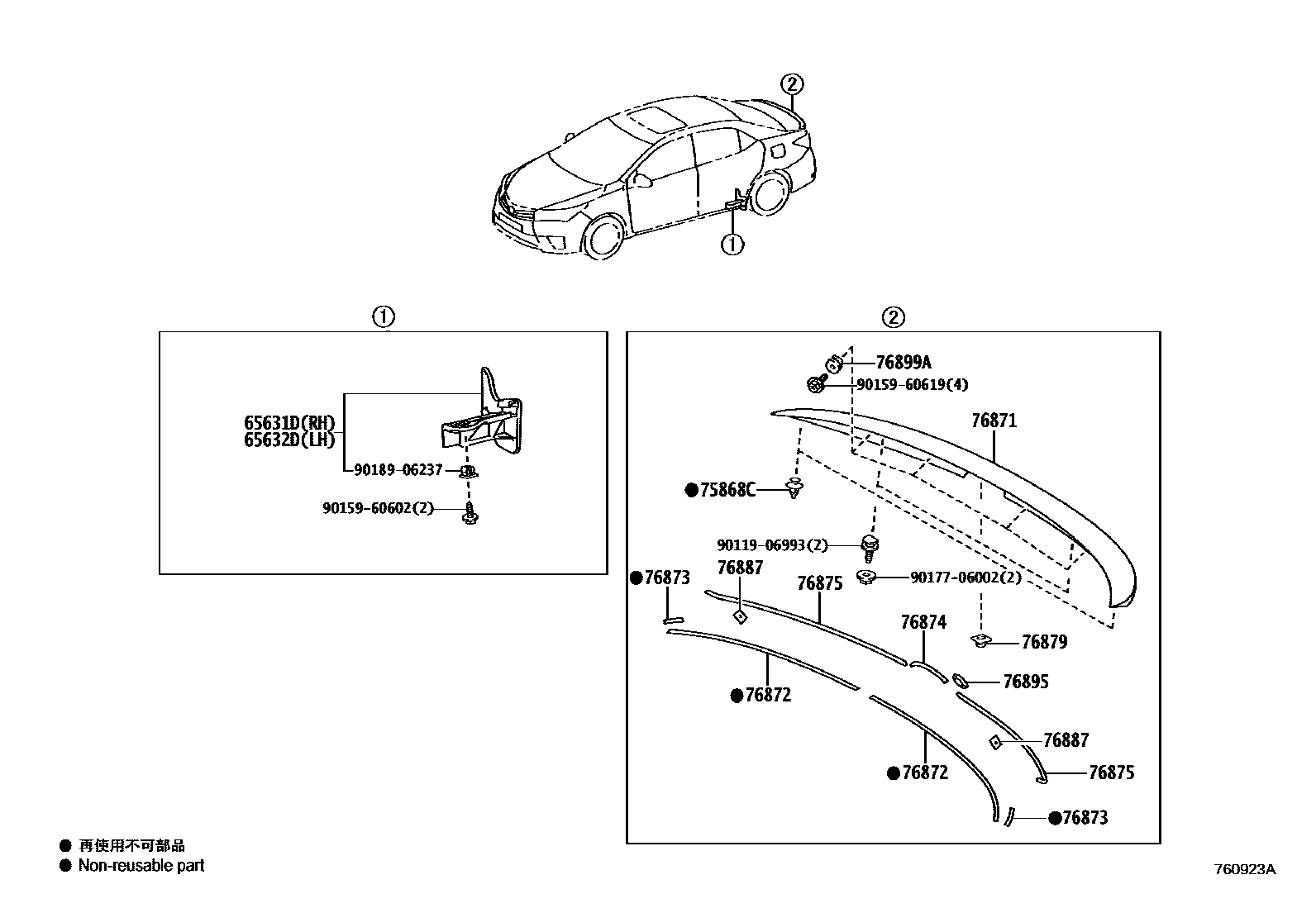

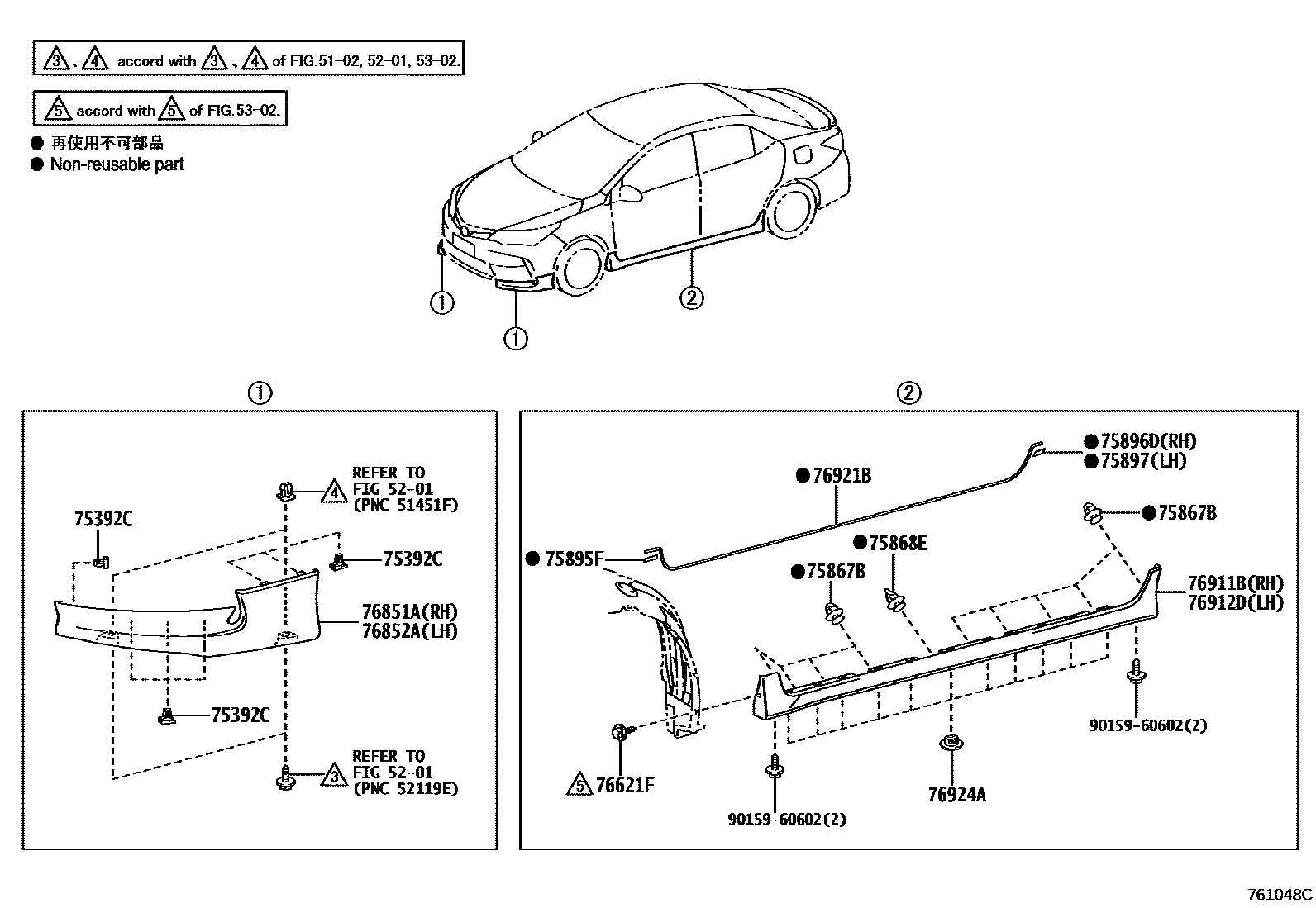

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-20010 |
| 65631D | Right rear wheel house front panel | 65631-02280 |
| 65632D | Left rear wheel house front panel | 65632-02280 |
| 75392C | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 75392D | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 75867B | Door sill panel protective strip clip | 75867-33030 · 75867-52020 |
| 75868C | No. 2 rear spoiler clip | 75868-60020 |
| 75868E | No. 2 door sill plate protective strip clip | 75868-33020 |
| 75895F | No. 1 protective strip tape | 75895-02080 |
| 75896D | No. 2 protective strip tape | 75896-02040 |
| 75897 | No. 3 protective tape | 75897-02020 |
| 76621F | Screw No. 1 | 90159-60602 |
| 76851A | Right front spoiler cover | 76851-02310 |
| 76852A | Left front spoiler cover | 76852-02300 |
| 76871 | rear spoiler | 76871-02927 · 76871-02928 |
| 76872 | No. 1 rear spoiler protective strip | 76872-02050 |
| 76873 | No. 2 rear spoiler protective strip | 76873-02060 |
| 76874 | No. 3 rear spoiler protective strip | 76874-02070 |
| 76875 | No. 4 rear spoiler protective strip | 76875-02040 |
| 76879 | No. 1 rear spoiler clip | 90467-09196 |
| 76887 | Rear spoiler seal | 76887-02040 |
| 76891 | No. 1 rear spoiler | 76891-02070 |
| 76895 | No. 5 rear spoiler protective strip | 76895-02120 |
| 76895A | Right rear bumper spoiler | 76895-02150 |
| 76896A | Left rear bumper spoiler | 76896-02140 |
| 76899A | rear spoiler nut | 76899-60010 |
| 76911B | right fender | 76911-02926 |
| 76912D | left fender | 76912-02926 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
