Toyota COROLLA 后防护条 — Figure 7504

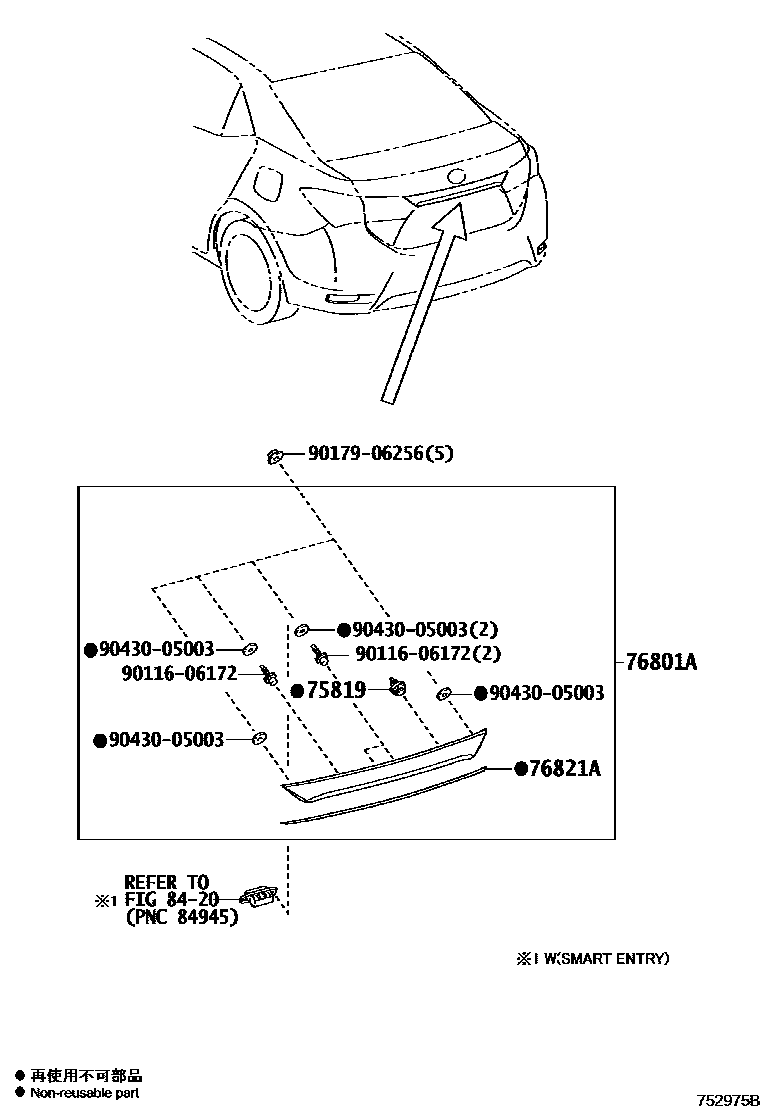

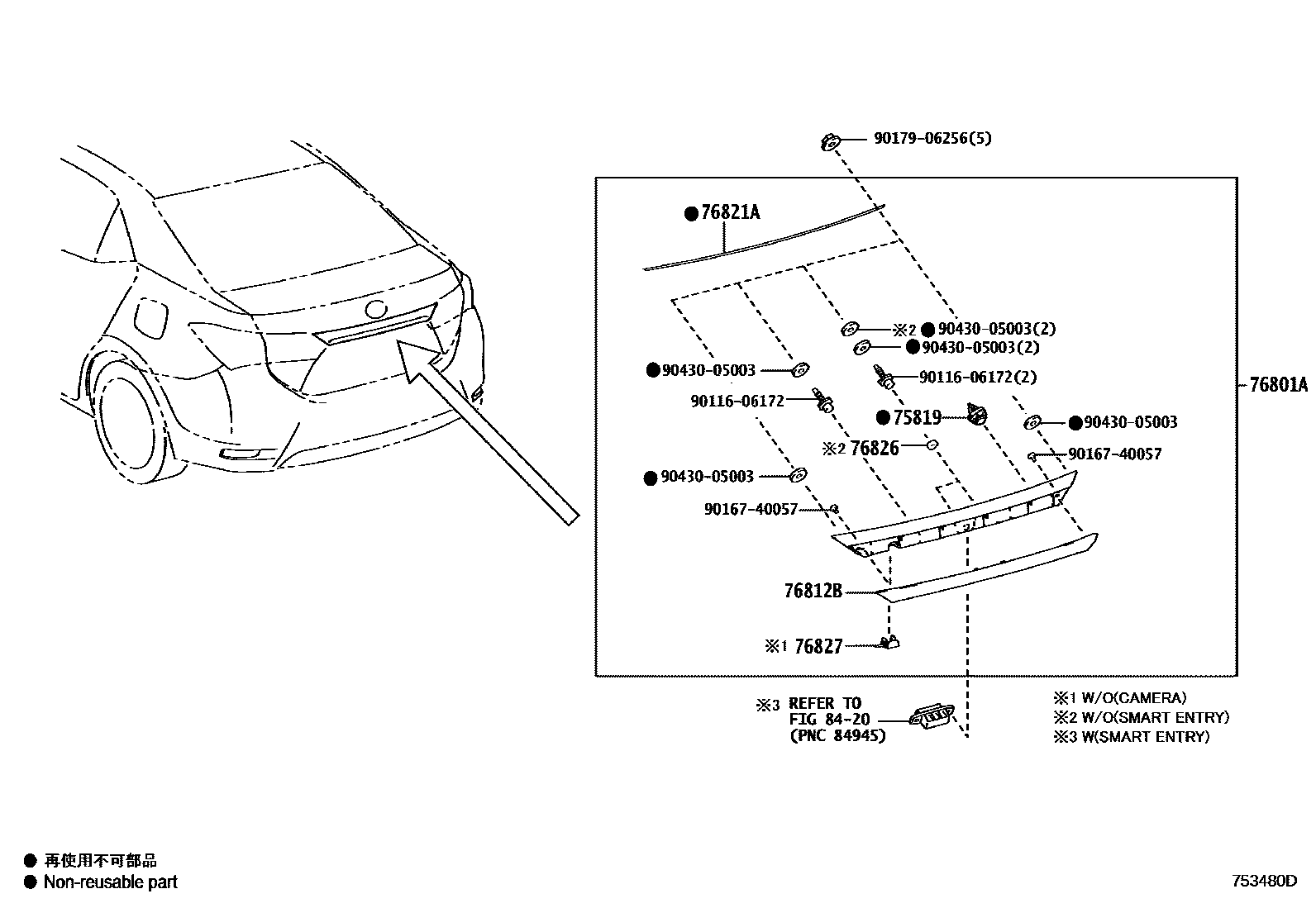

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02931 · 76801-02932 · 76801-02933 · 76801-02934 · 76801-02D60 · 76801-02D70 · 76801-02D80 |
| 76812B | No. 2 suitcase door outer decorative strip | 76812-02150 |
| 76821A | Luggage door outer decorative strip protective cover | 76825-02190 |
| 76826 | No. 1 rear door trim strip fixing | 76829-02020 |
| 76827 | No. 2 rear door trim strip fixings | 76827-02050 |
