Toyota COROLLA 侧防护条 — Figure 7503

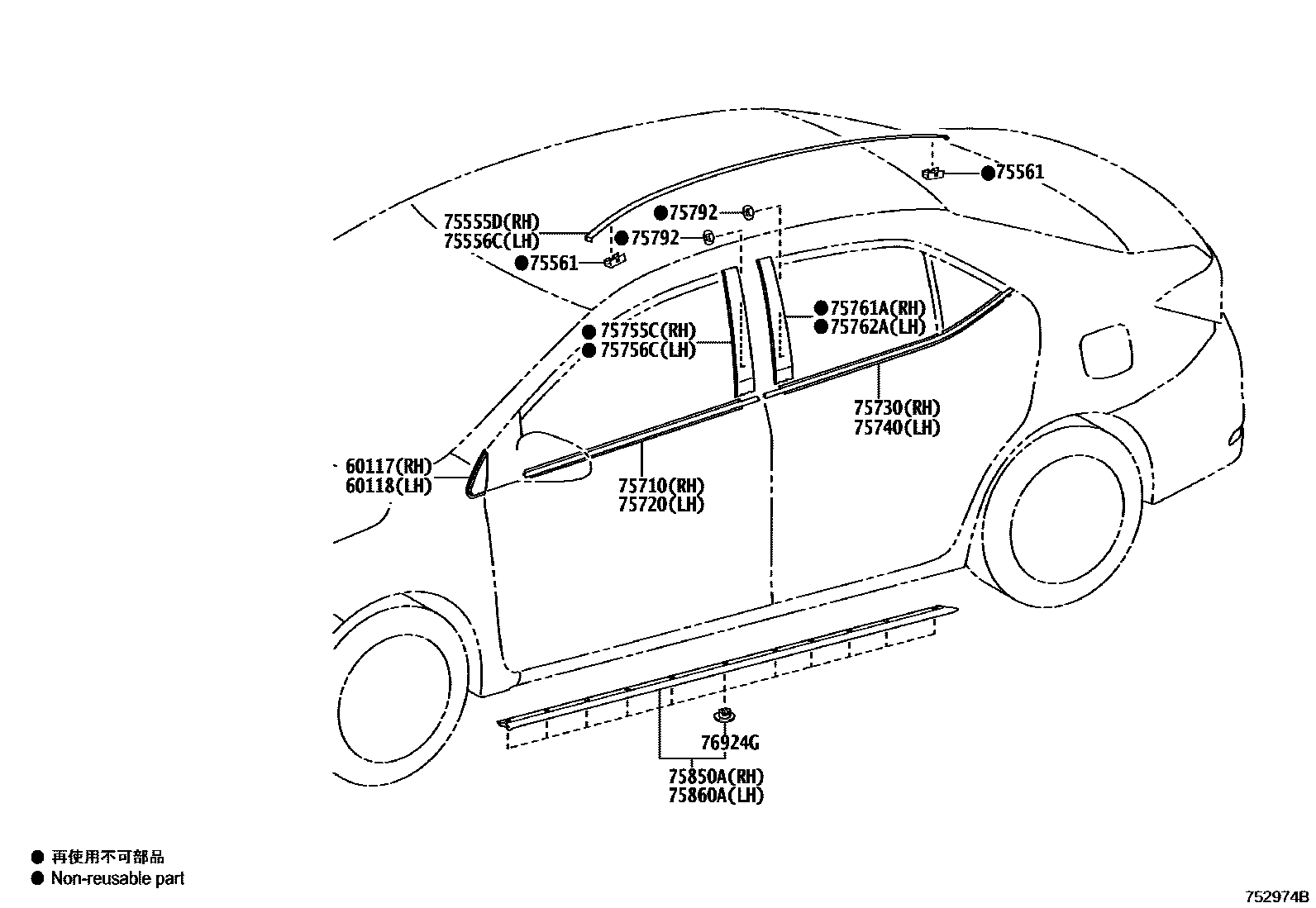

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02160 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02160 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02260 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02250 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-02380 · 75710-02410 |
| 75720 | Left front door waistline protection strip assembly | 75720-02380 · 75720-02410 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02360 · 75730-02390 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02360 · 75740-02390 |
| 75755C | Right front door window frame rear protective strip | 75755-02080 |
| 75756C | Left front door window frame rear protective strip | 75756-02070 |
| 75761A | Right rear door window frame front protective strip | 75761-02070 |
| 75762A | Left rear door window frame front protective strip | 75762-02070 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75850A | Right body door sill panel protective strip assembly | 75851-02180 |
| 75860A | Left body door sill panel protective strip assembly | 75852-02180 |
| 76924G | Door sill panel protective strip fixings | 76924-12030 |
