Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

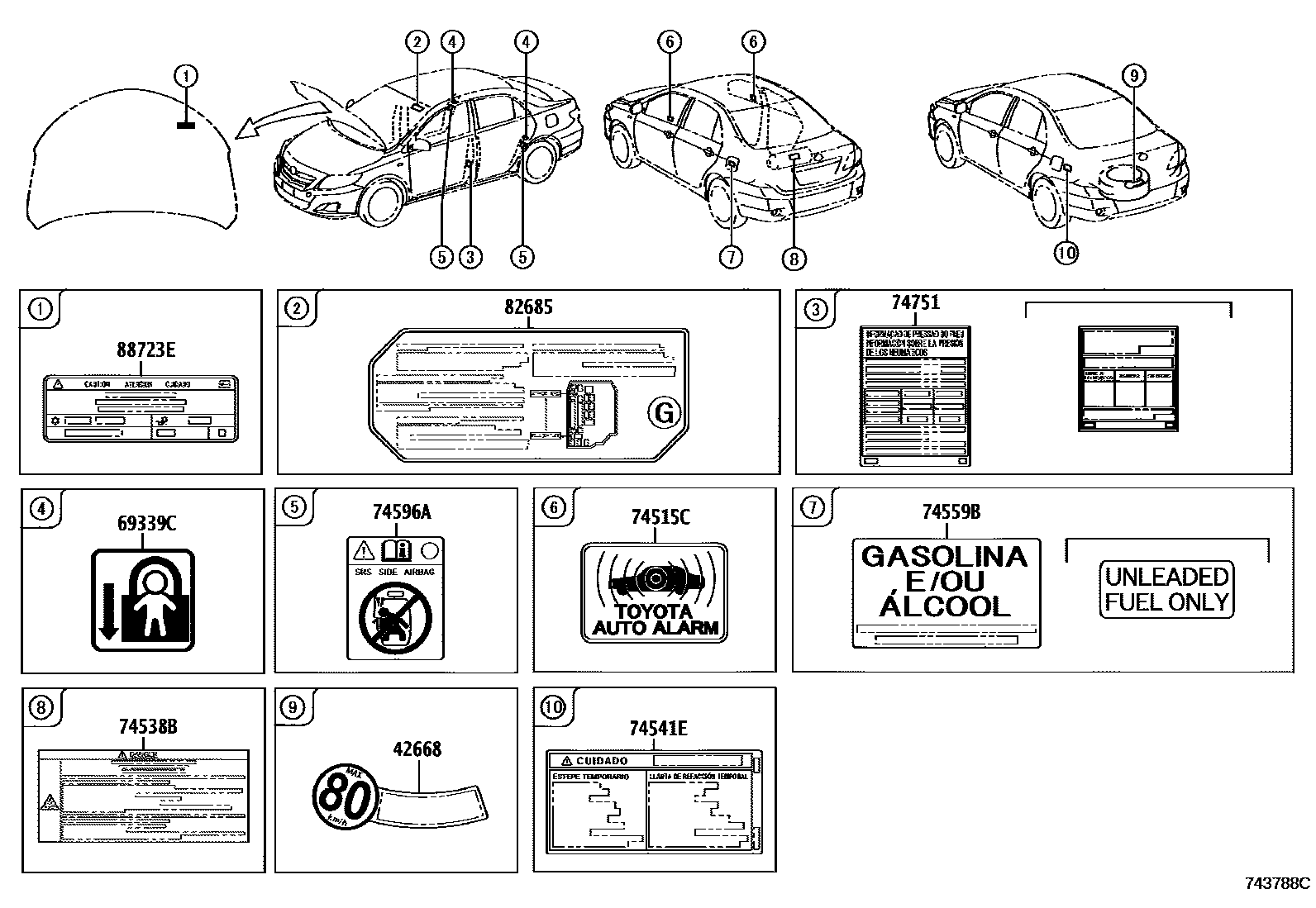

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11297C | Engine No. 2 maintenance information label | 11297-0T010 |
| 16793E | Cooling fan warning label | 16793-0T040 |
| 42668 | Small spare tire warning label | 42668-0D050 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74515C | Anti-theft warning information label | 74515-02030 · 74515-02040 |
| 74538B | Fuel tank system warning labels | 74538-02020 |
| 74541E | Small spare tire warning plate | 42668-0D120 |
| 74559B | fuel information label | 74559-02040 · 74559-14050 · 74559-20140 |
| 74596A | Side air bag warning label | 74596-53012 |
| 74751 | tire pressure information label | 42661-02B50 · 42661-02K00 · 42661-02P00 |
| 82685 | warning nameplate | 82685-12110 |
| 88723E | Cooler maintenance warning label | 88723-02320 · 88723-02330 |
