Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 6 PNC and OE references.

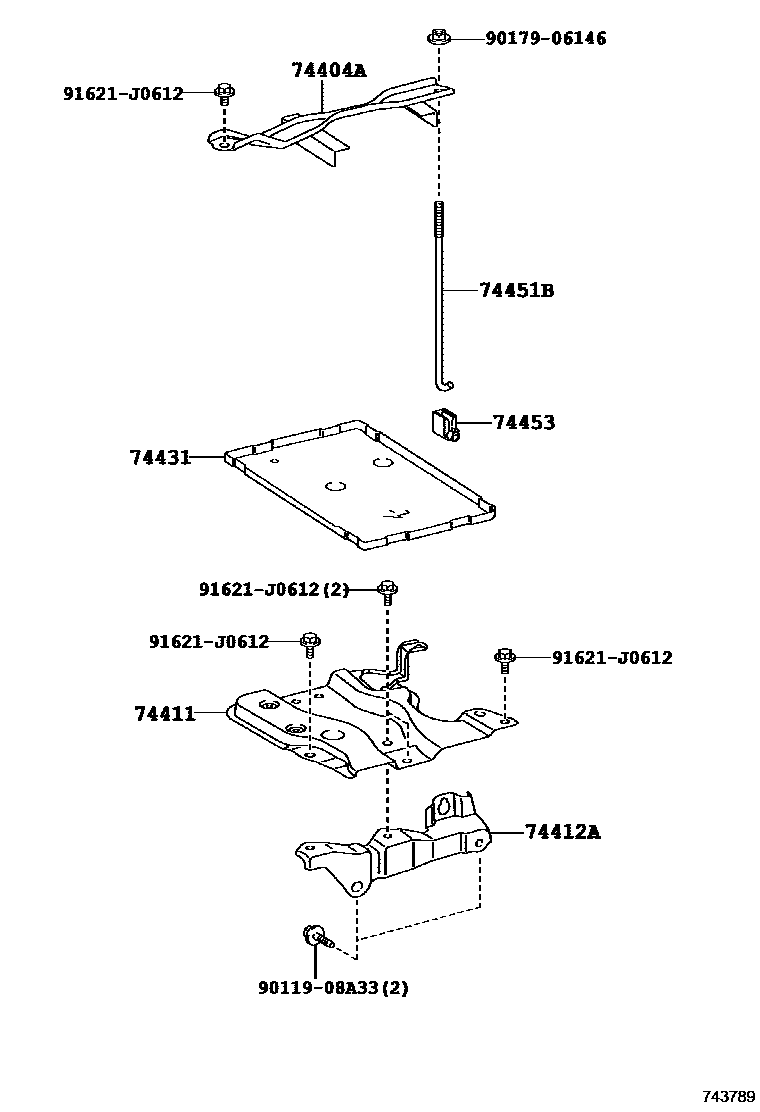

Toyota COROLLA battery holder EPC diagram — 743789
battery holder — 743789 (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02470 · 74404-02480
74411battery holder74401-02110
74412ANo. 2 battery holder74410-02230
74431battery tray74431-02051 · 74431-12030
74451BBattery clamp bolt74451-02090 · 74451-02100
74453battery holder bracket74454-28020
